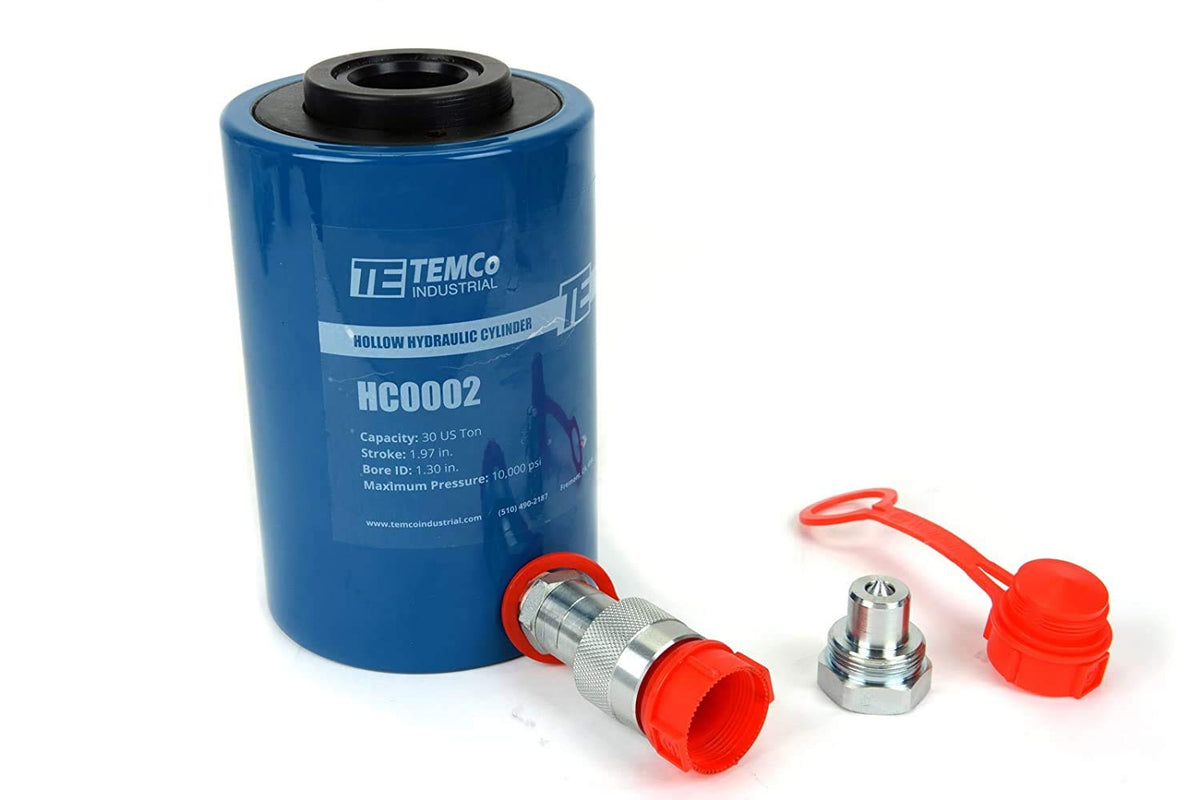

TEMCo 30 Ton Hollow Hydraulic Cylinder 2" Stroke Single Acting 10,000 PSI – Tensioning, Pulling & Maintenance

Key features

• 30 US Ton Capacity, 2" Stroke. Max Pressure 10,000 PSI. Single acting - Pressure Extend, Spring Return.
• Extended Overall Height: 9.01", Stroke: 1.97", Outside Cylinder Diameter: 4.49", Center Bore ID: 1.3", Oil Volume: 14.58 cubic in
• Black oxide plated high carbon steel ram. Proprietary heat-treated steel shell.

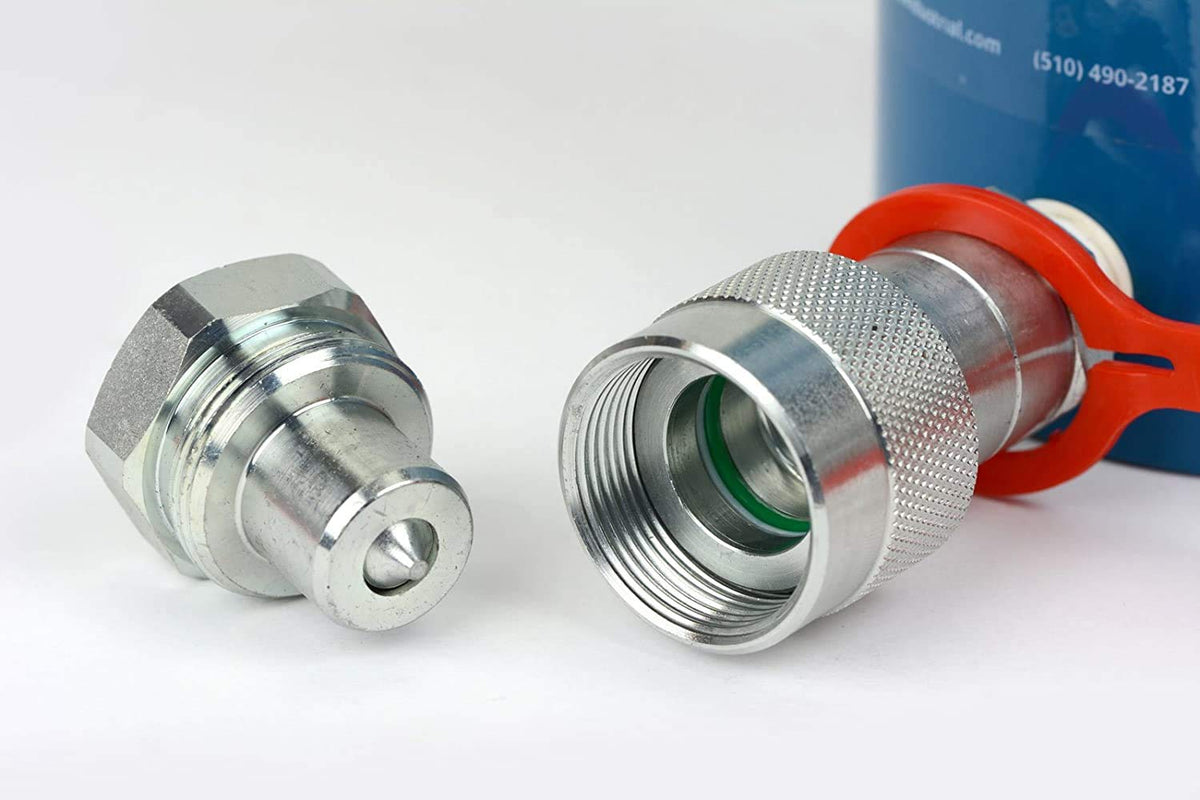

• Includes ISO 14540 Quick Coupler – Ships with a 3/8" NPT Male & Female hydraulic connector (10,000 psi rated, 6 GPM flow) featuring poppet-style occlusion, nitrile rubber seals, and a protective dust cap; compatible with most standard hydraulic equipment so you can get to work without mismatched fittings.
• Backed by a 5-Year manufacturer warranty for confidence and peace of mind on every job.

BONUS: Includes ISO 14540 Male x Female 3/8" NPT Connector (Shown in photos) Type: Hollow Hydraulic Cylinder Action: Single acting - Pressure extend, Spring return Ram Material: Hard Black Oxide Plated High Carbon Steel Shell Material: Proprietary Heat-treated Steel Capacity: 30 US Tons Compressed Overall Height: 7.09" Extended Overall Height: 9.01" Outside Cylinder Diameter: 4.49" Stroke: 1.97" Center Bore ID: 1.3" Bore length: 7.09" Oil Volume: 14.58 cubic in Max Pressure: 10,000 psi Min Operating Temp: -15°C Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap Warranty: 5 Years Applications Include: Heavy machinery rigging and moving, Auto repair, Oil rigging, Machine maintenance, Bearing and bushing removal and installation, Lifting, pushing, spreading, bending, pressing or straightening COUPLER SPECIFICATIONS Standard: ISO 14540 Thread (between male poppet end and coupling ring): M30 x 1.5 mm Thread: 3/8" NPT Occlusion Type: Poppet Rated Pressure: 10,000 psi Rated Flow: 6 GPM Sealing Material: Nitrile Rubber (Buna-N, NBR)
