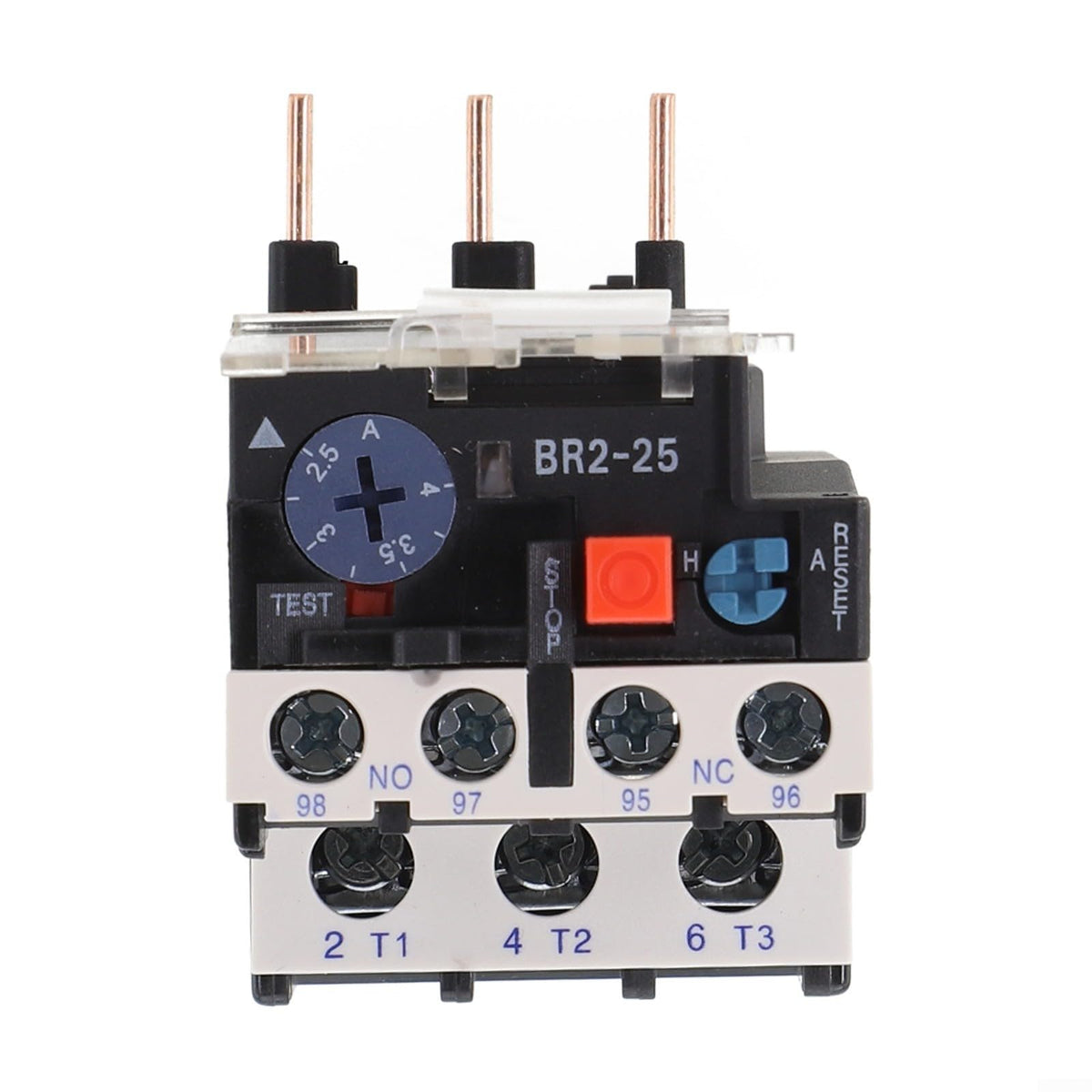

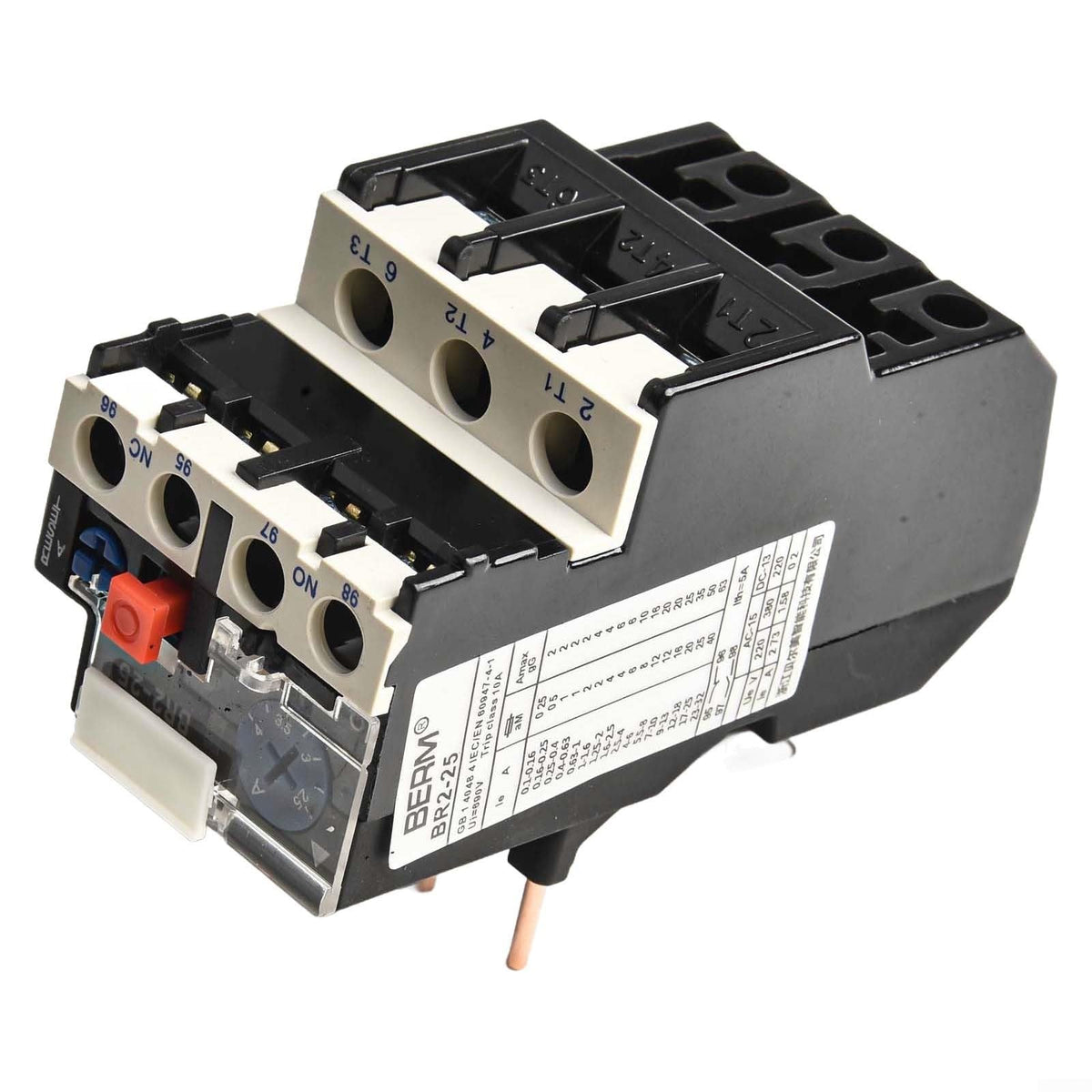

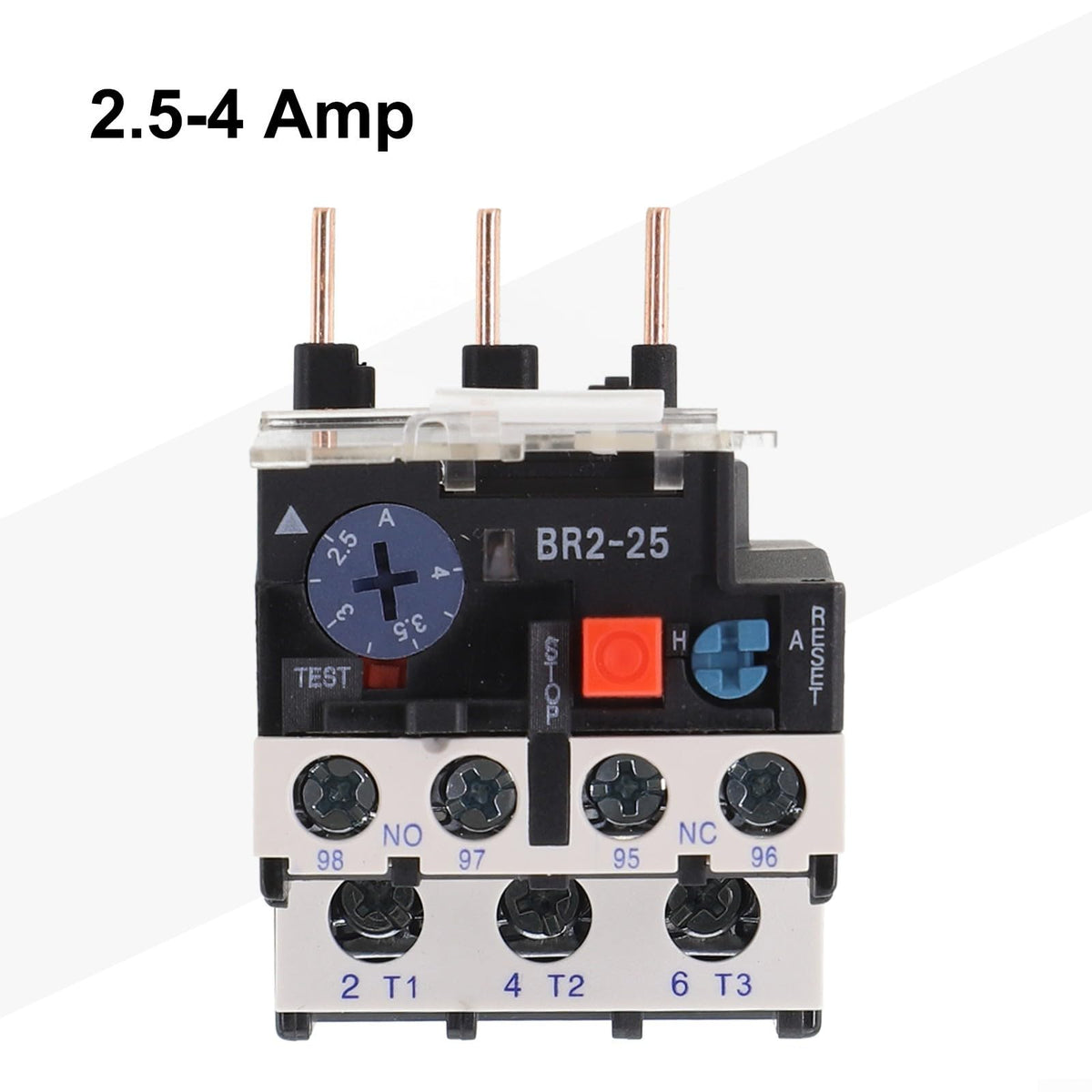

Thermal Overload Relay NR2-25 for Motor Protection, 0.1-25A Adjustable Current, for CJX2 Series Contactors, 690V AC 3-Phase with Phase Loss Defense(2.5-4 Amp)
Thermal Overload Relay NR2-25 for Motor Protection, 0.1-25A Adjustable Current, for CJX2 Series Contactors, 690V AC 3-Phase with Phase Loss Defense(2.5-4 Amp)
Key features
- [ADAPTABLE CURRENT RANGE] The NR2 25 thermal overload relay supports a setting current range from 1 A to 25 A, making it for various motor applications requiring reliable overload protection.
- [SUSTAINABLE MATERIALS USAGE] Constructed with environmentally friendly materials, this relay is both safe and lightweight, designed for easy integration into any power distribution system.
- [RELIABLE MOTOR PROTECTION] Featuring phase loss protection and compatibility with AC motors up to 690V at both 50Hz and 60Hz, this relay s that your motors operate safely under fluctuating conditions.
- [FUNCTIONAL EFFICIENCY] Enhanced with for temperature compensation and both automatic and manual for reset features, this relay simplifies maintenance while providing consistent performance indicators.
- [REMINDER ON SIZING] you verify your specifications rather than relying solely on the size guide for the fit.
Features: * and * Motor three-phase thermal overload relay FR NR2-25 has a setting current range of 0.1 A to 25 A * Applicable to CJX2 series contactors * Made of - materials, environmentally friendly, safe, reliable, , small in size, light in weight, with many varieties and complete specifications. It has complete functions, convenient and flexible installation, simple maintenance, and better cost performance, allowing you to easily build a safe and beautiful power distribution . * NR2-25 series thermal overload relay is suitable for overload and phase loss for protection of AC motors with AC 50Hz/60Hz, voltage up to 690V, and set current 0.1A to 25A for long-term or intermittent . * It also has functions such as for temperature compensation, operating instructions, automatic and manual for reset, stop and test, ., with stable and reliable performance. * The thermal overload relay can be plugged and installed together with the contactor (applicable to CJX2 series contactors, the contactor needs to be purchased separately). * “NO” = Normally Open, “NC” = Normally Closed. Specification: Model: NR2-25 Set current range (optional): 0.1-0.16 for Amp, 0.4-0.63 for Amp, 0.63-1 for Amp,
Free shipping included. 30-day hassle-free returns.
