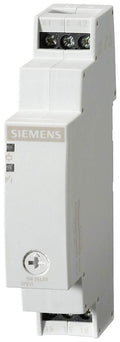

Timing Relay, On Delay Function, 0.5s-10s Time Setting Range, AC/DC 24 AC 100–127 V Control Voltage

Key features

• Product Type :Electronic Component
• Package Dimensions :10.668 Cm L X8.636 Cm W X2.286 Cm H
• Country Of Origin :United States
• Package Weight :0.200 Lbs

This Siemens 7PV1512-1AQ30 timing relay is a control relay with built-in time delay for controlling an event based on time. It has an LED indicator for monitoring operation status and screw-type terminals. This timing relay is Underwriter's Laboratories (UL) Recognized for safety, European Conformity (CE) and International Electrotechnical Commission (IEC) certified for quality assurance, and Ingress Protection (IP) rated for safety. SpecificationsControl voltageAC/DC 24 V AC 100-127 VCoil resistance4,000VTime setting range0.5 – 10 secMountingSnap-on fastening on 35 mm standard railOperating temperature-25 to +55 degrees CDimensions*90 x 17.5 x 66.7 mm (H x W x D)Standards metUL (Underwriter's Laboratories) IEC (International Electrotechnical Commission)Ingress protectionFront: IP 40 Terminal: IP 20 *H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back. Relay switches (also called an electrical relay or an electrical relay switch) use a small amount of power to control a larger source of power connected to electrical devices such as car motors, computers,
