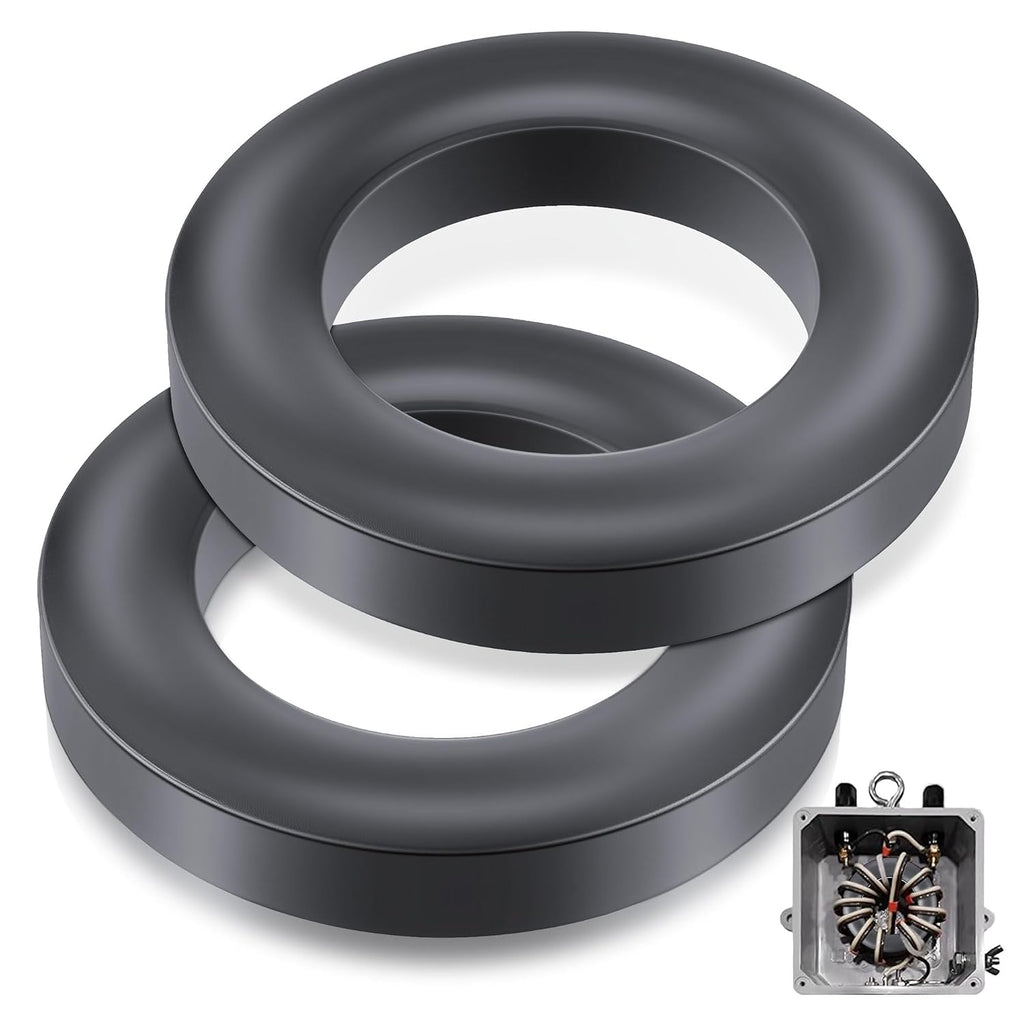

Toroid Ferrite Core, Compatible with FT240-31 Ferrite Ring

Key features

• Toroid Ferrite Core: For EMI suppression from 1 MHz to 300 MHz—ideal for HF/VHF/UHF applications. Meanwhile Compatible with FT240-31 is a very good wide band common mode suppression solution in the frequency range from 1 up to 50 MHz. High Permeability & Low Loss Delivers effective common-mode current suppression with minimal signal degradation
• Compatible with FT240-31: This ferrite core NiZn ferrite can be use as common mode choke or balun, and also designed for common mode suppression, for impedance transformers please use the another model

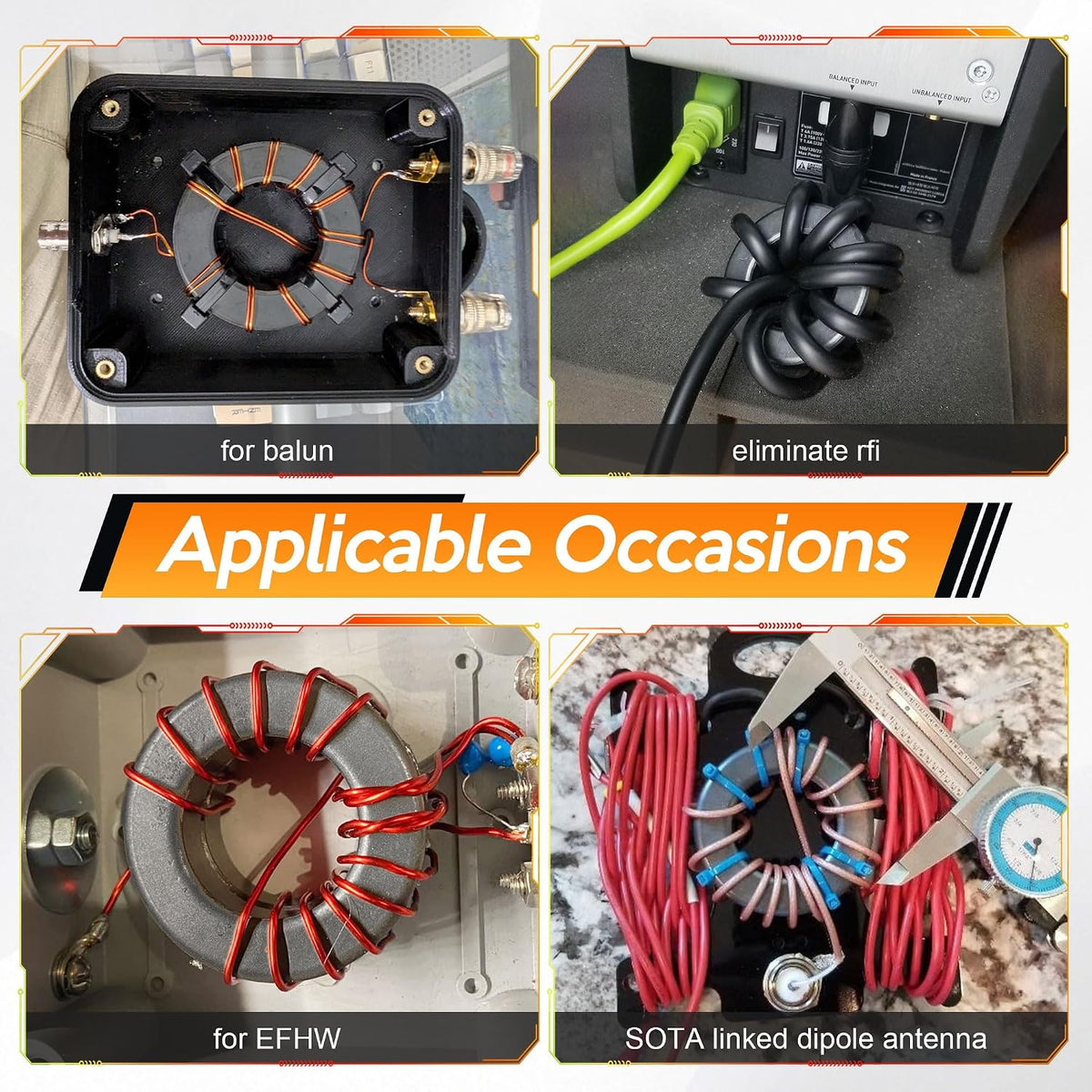

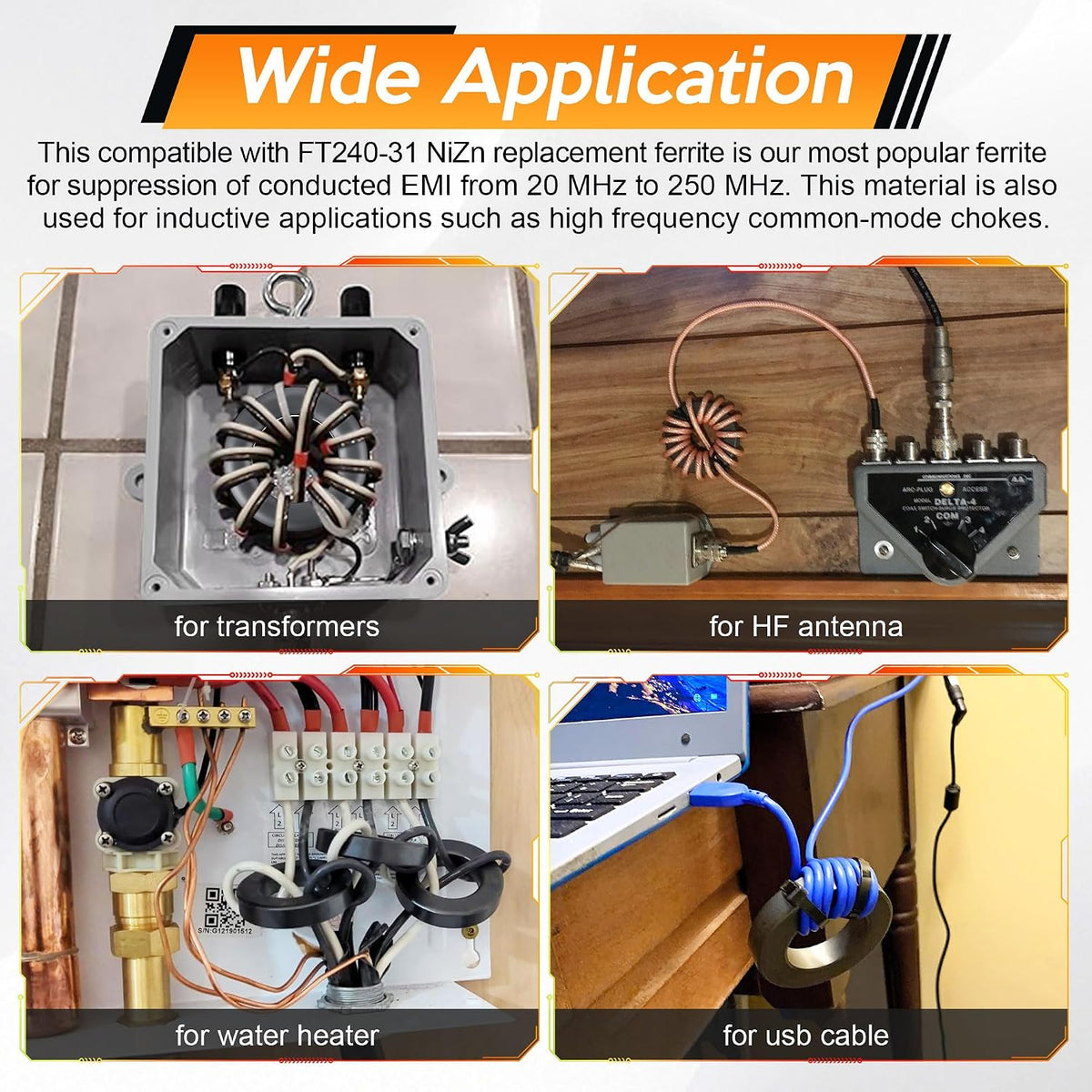

• Widely Apply: Has wide application in Common Mode Choke (CMC) / Line Isolator, 1:1 Balun / Guanella Current Balun (especially optimized for low frequencies), EMI / RFI Suppression (general noise suppression), Low-Frequency / Medium-Wave Applications, ham radio, SDR setups, power line filtering, and DIY RF projects

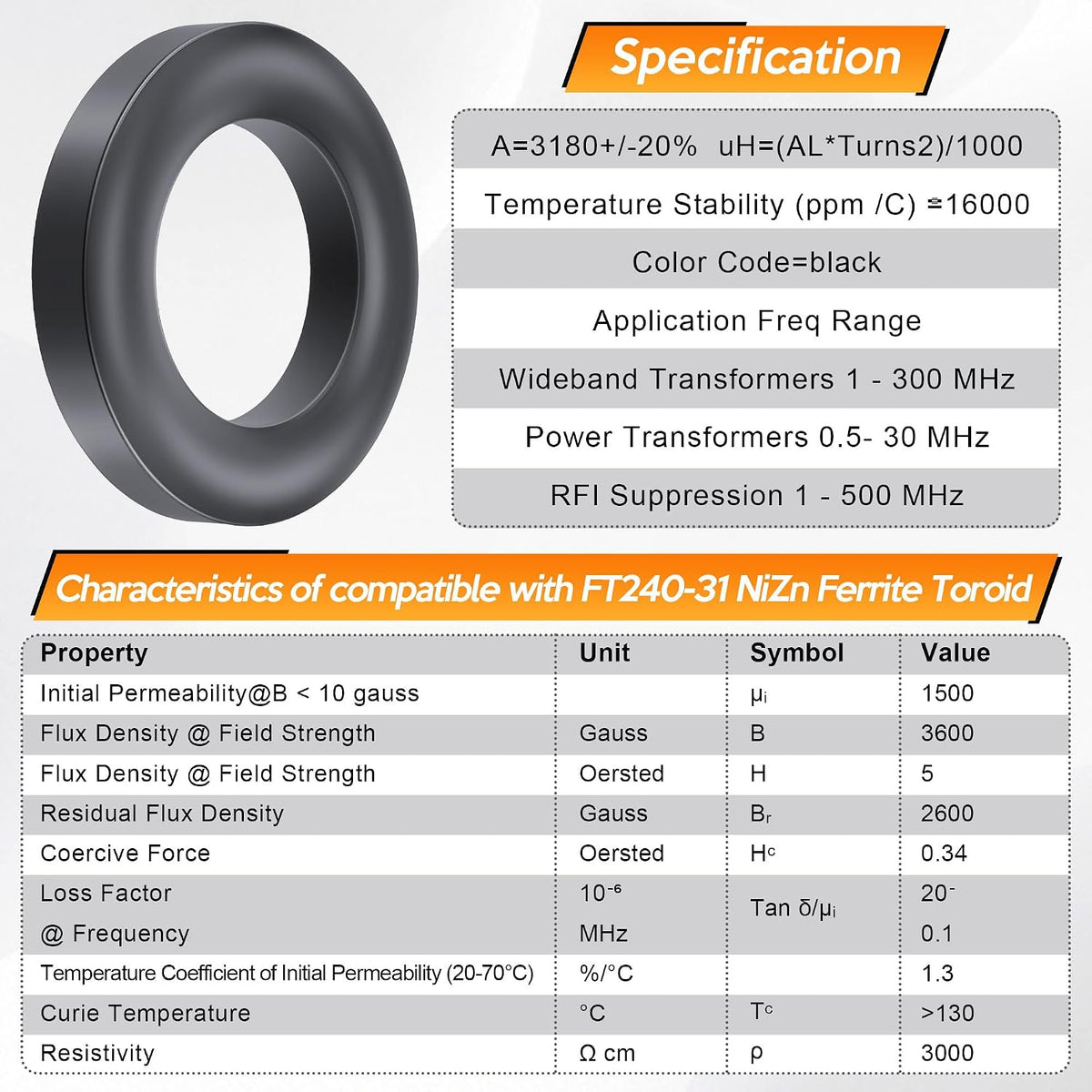

• Specification: AL=3180+/-20%, uH=(A*Turns2)/1000, Actual measured AL using 10 turns #28 wire, Temperature Stability (ppm/°C) = 16000, Application Freq Range Wideband Transformers 1 - 300 MHz, Power Transformers 0.5 - 30 MHz, RFI Suppression 1 - 500 MHz

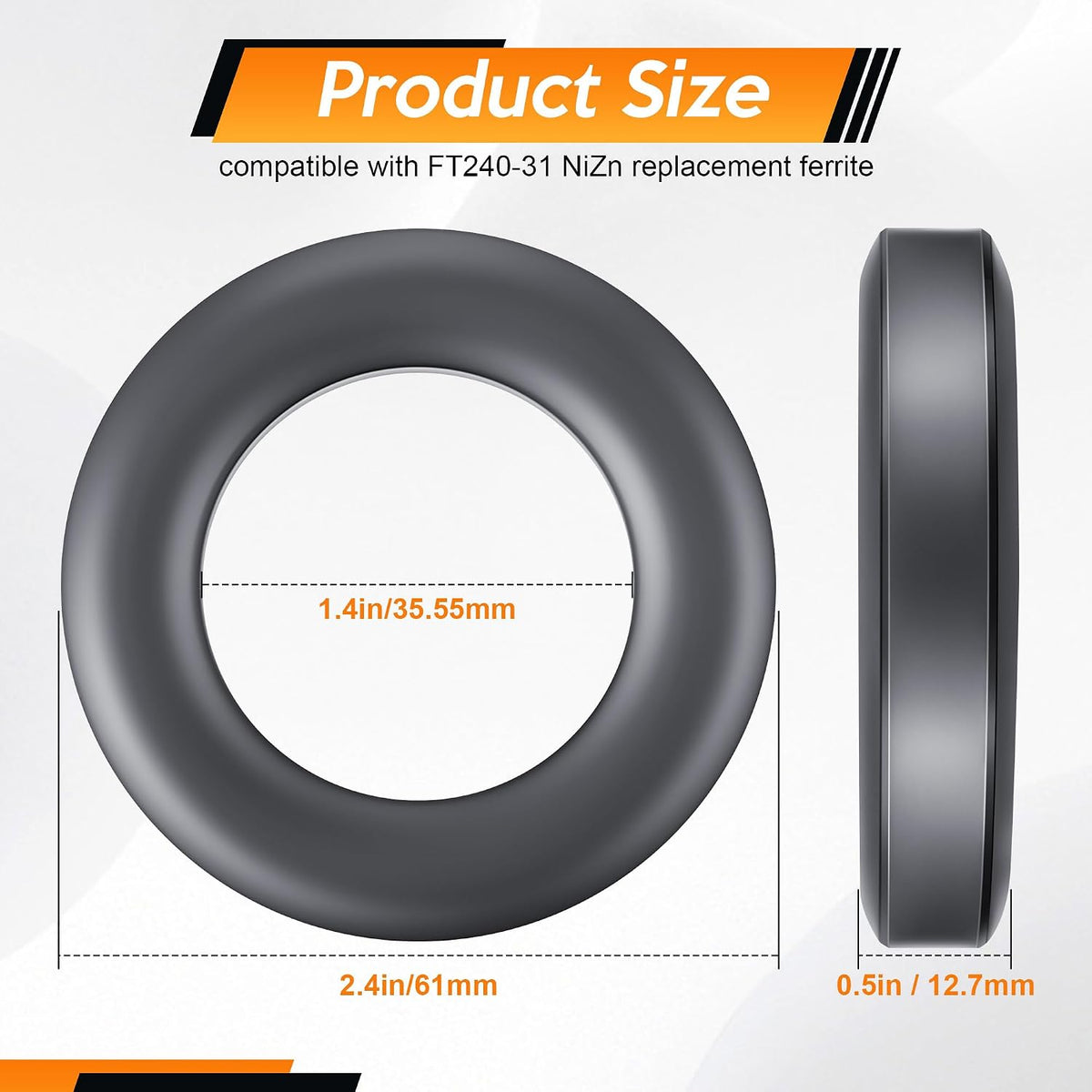

• Size: Outer Diameter Width: 2.40 in/61.0 mm +/- 1.30mm, Inner Diameter Width: 1.40 in/ 35.55 mm +/-0.85mm, Thickness Depth: 0.50 in/ 12.7 mm +/- 0.50mm

Toroid Ferrite Core Size Outer Diameter Width: 2.40 in/61.0 mm +/- 1.30mm Inner Diameter Width: 1.40 in/ 35.55 mm +/-0.85mm Thickness Depth: 0.50 in/ 12.7 mm +/- 0.50mm Specification AL=3180+/-20% uH=(A*Turns2)/1000 Actual measured AL using 10 turns #28 wire Temperature Stability (ppm/°C) = 16000 Application Freq Range Wideband Transformers 1 - 300 MHz Power Transformers 0.5 - 30 MHz RFI Suppression 1 - 500 MHz
