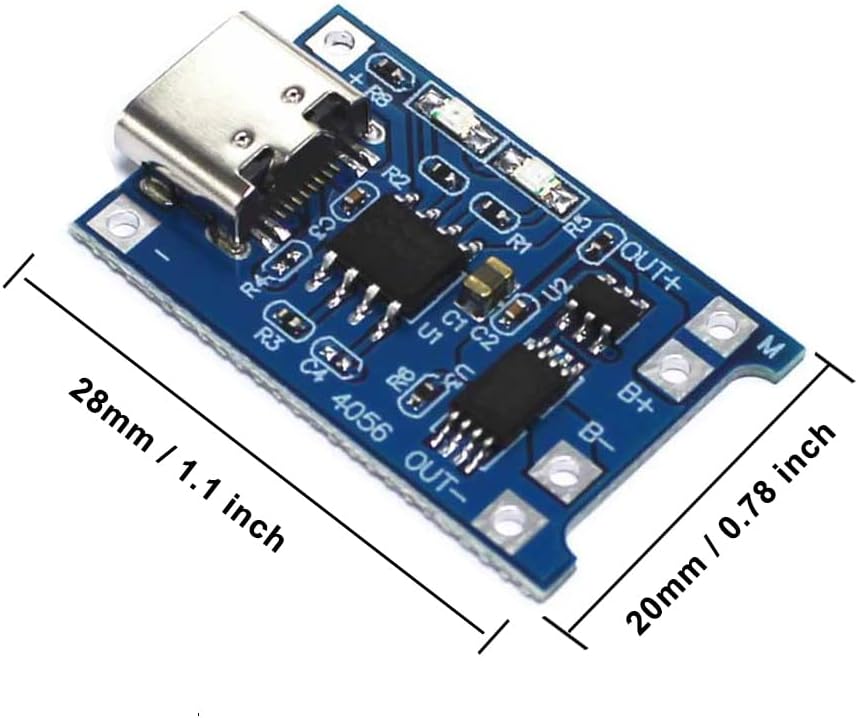

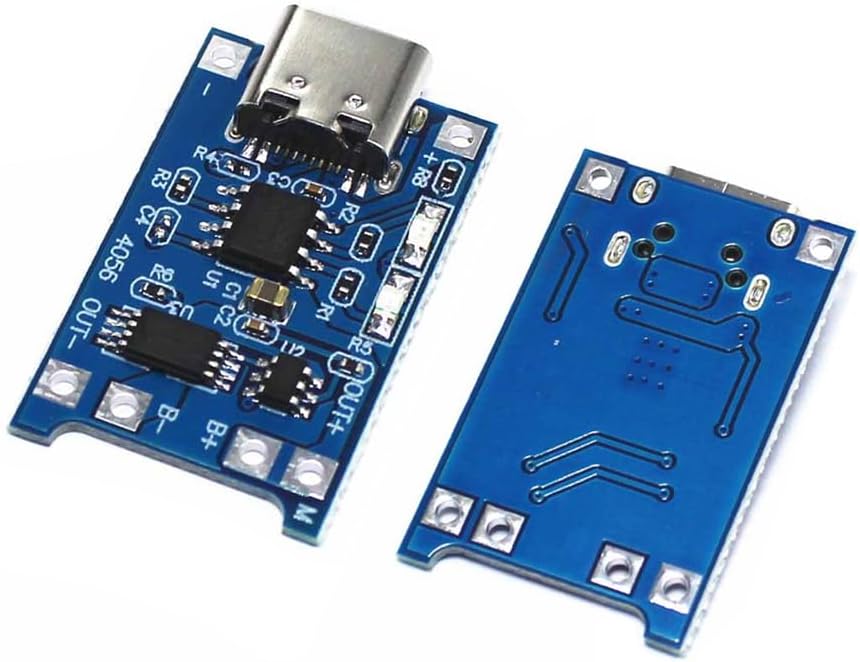

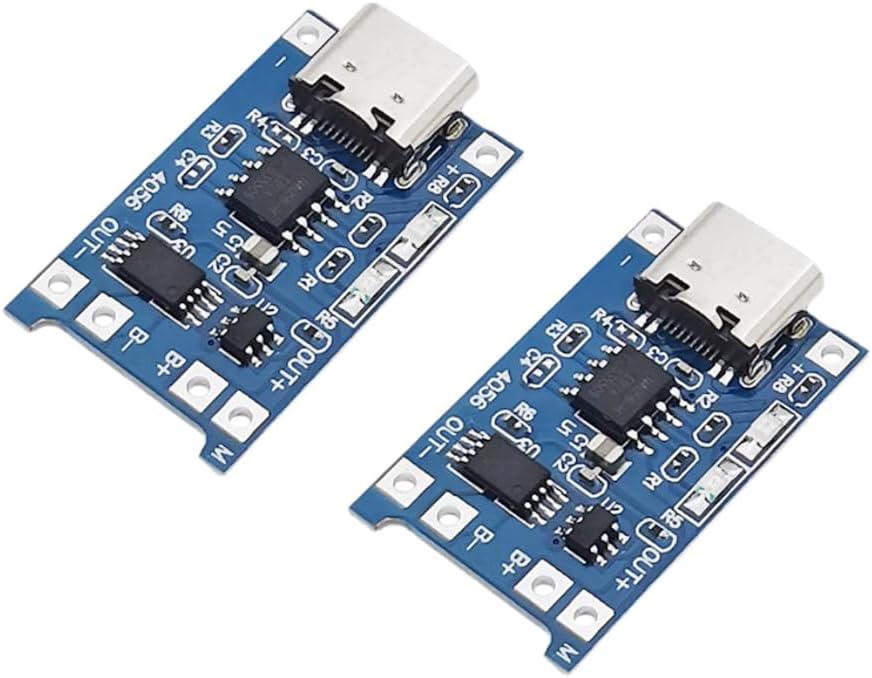

TP4056 Type-c USB 5V 1A 18650 Lithium Battery Charger Module Charging Board with Dual Protection Functions
TP4056 Type-c USB 5V 1A 18650 Lithium Battery Charger Module Charging Board with Dual Protection Functions
Key features
- Input interface: Type-c USB.
- Battery overcharge lifting voltage: 4.00 V
- Battery: over-current protection current 3 A
- Maximum charging current output: 1000mA
- Light state: no load the light not bright, red light for recharging, is full of green light.

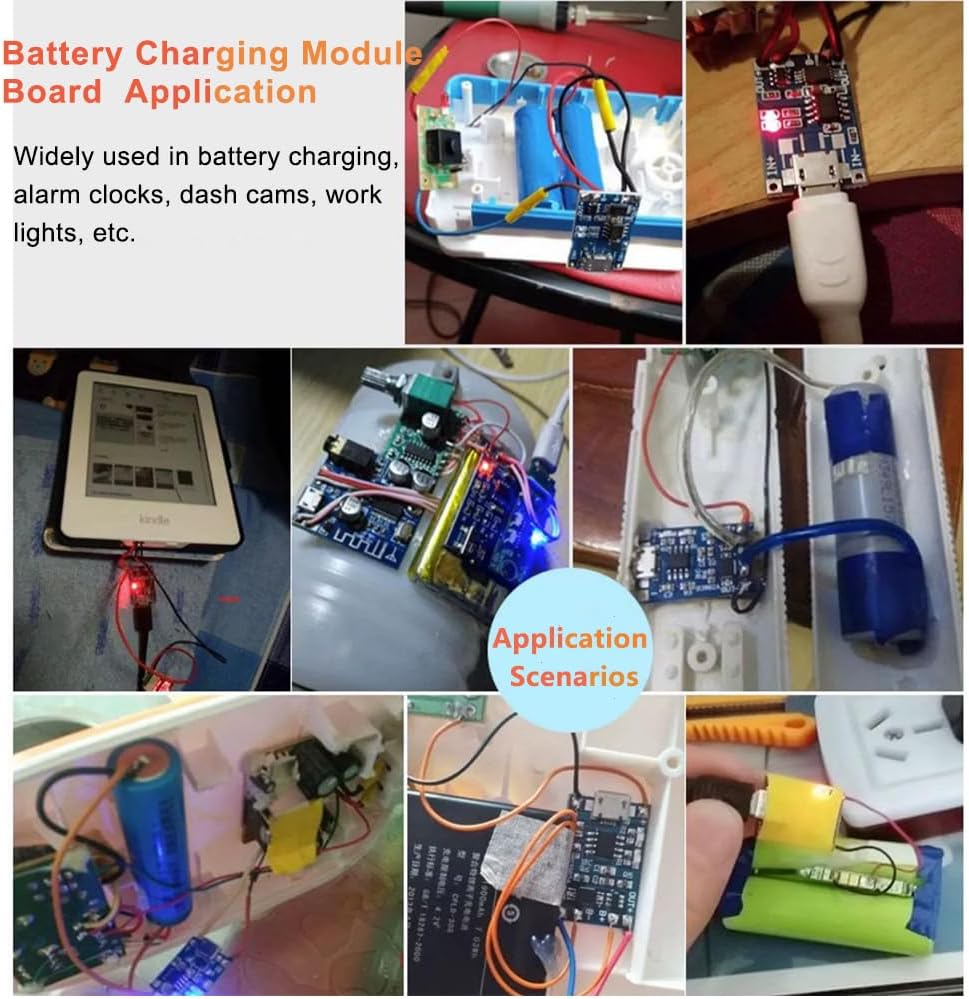

Applicable Occasions: The battery charging board is suitable for single-cell lithium battery or multi-cell parallel lithium battery charging, and the charging port can be powered from Type-C Input Interface USB, which are convenient for you to operate. Specifications: Input interface: Type-c USB The single board size: about 2.5 * 1.65 cm Charge cut-off voltage: 4.2 V + / - 1% Battery overcharge lifting voltage: 4.00 V Battery discharge termination voltage: 3.2 V Battery: over-current protection current 3 A Maximum charging current output: 1000 mA The battery discharge protection voltage: 3.0 V The battery overcharge protection voltage: 4.28 V The input voltage: 4.35-6V (recommended voltage 5V)
Free shipping included. 30-day hassle-free returns.
