TPE24V Pool Valve Actuator Replacement for 24VAC, 2-Way & 3-Way Valves

Key features

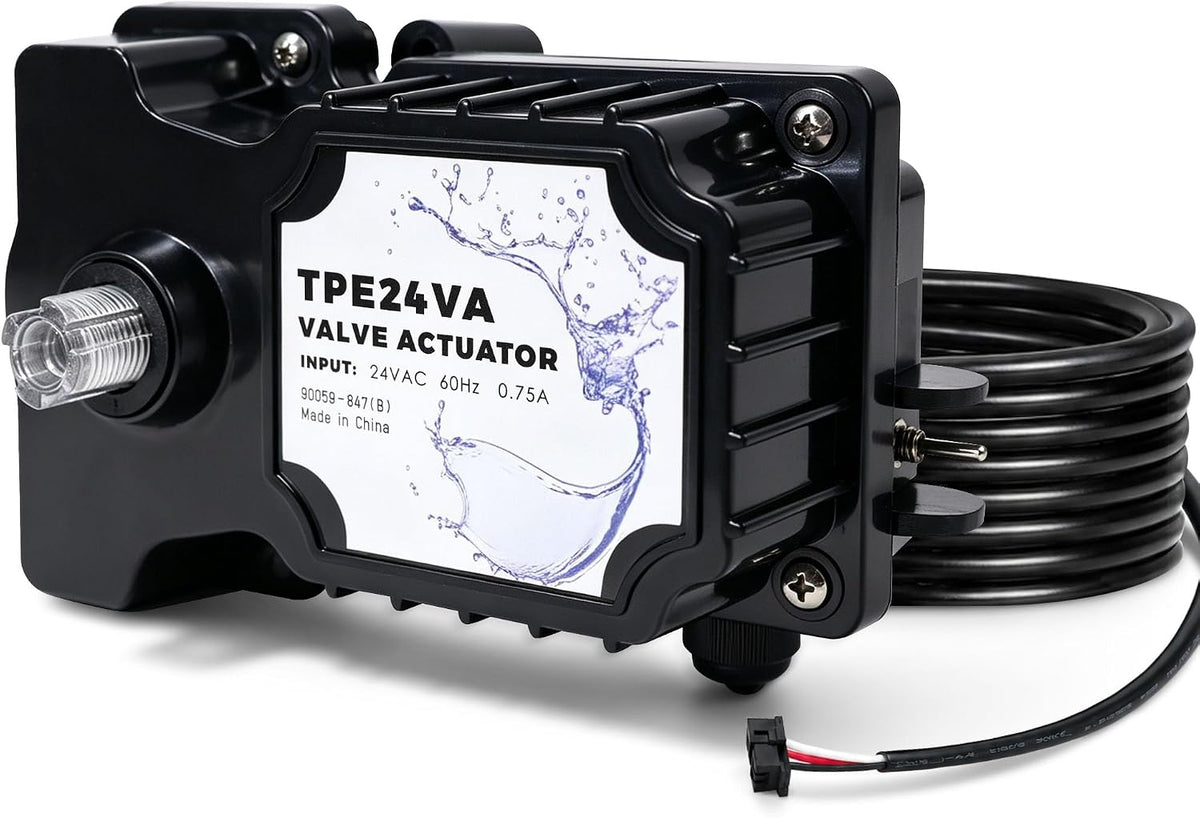

• 24VAC VALVE ACTUATOR REPLACEMENT: Replaces a worn or failed TPE24VA actuator in compatible pool and spa systems. Motorized operation moves an existing 2-way or 3-way diverter valve between preset positions for automatic water-path control

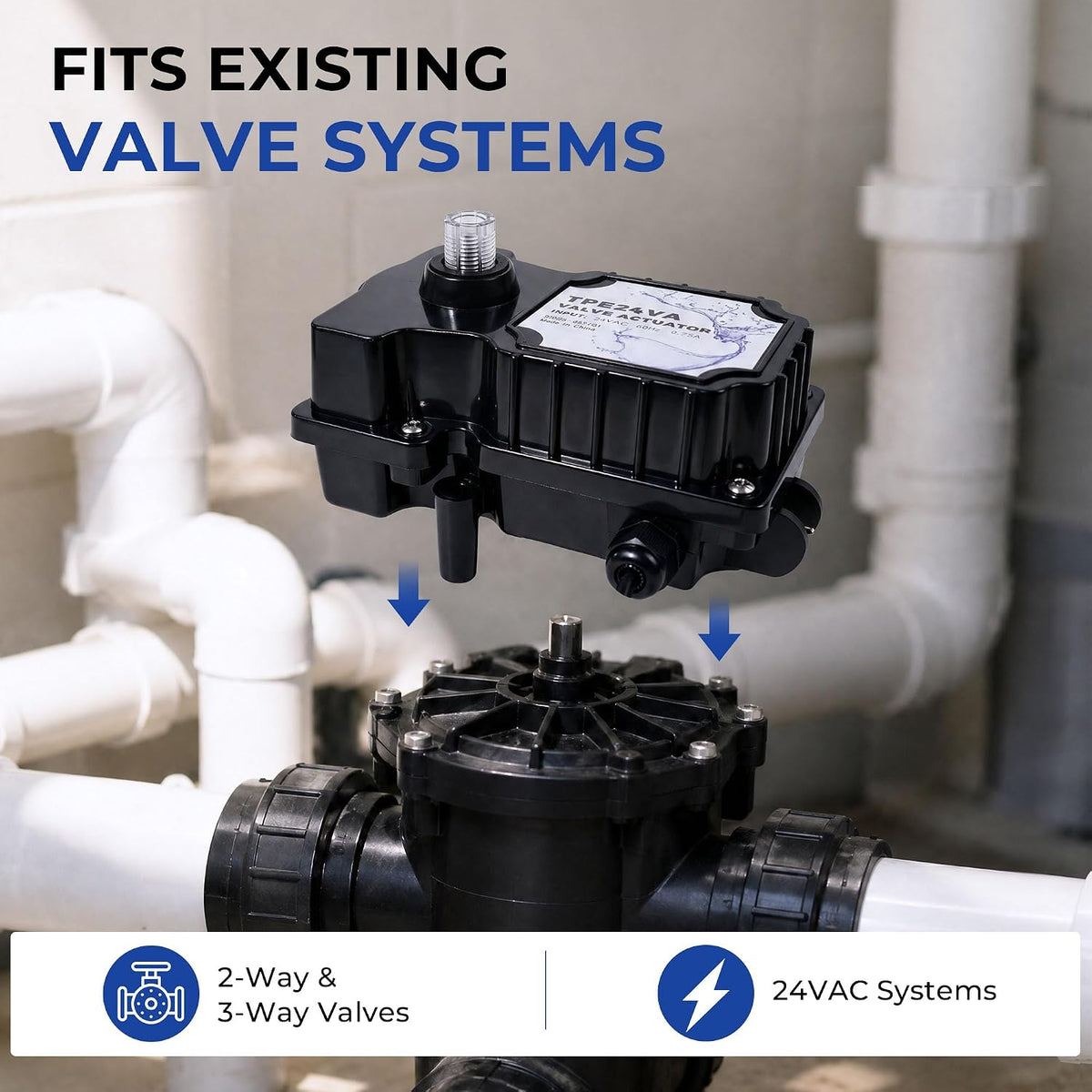

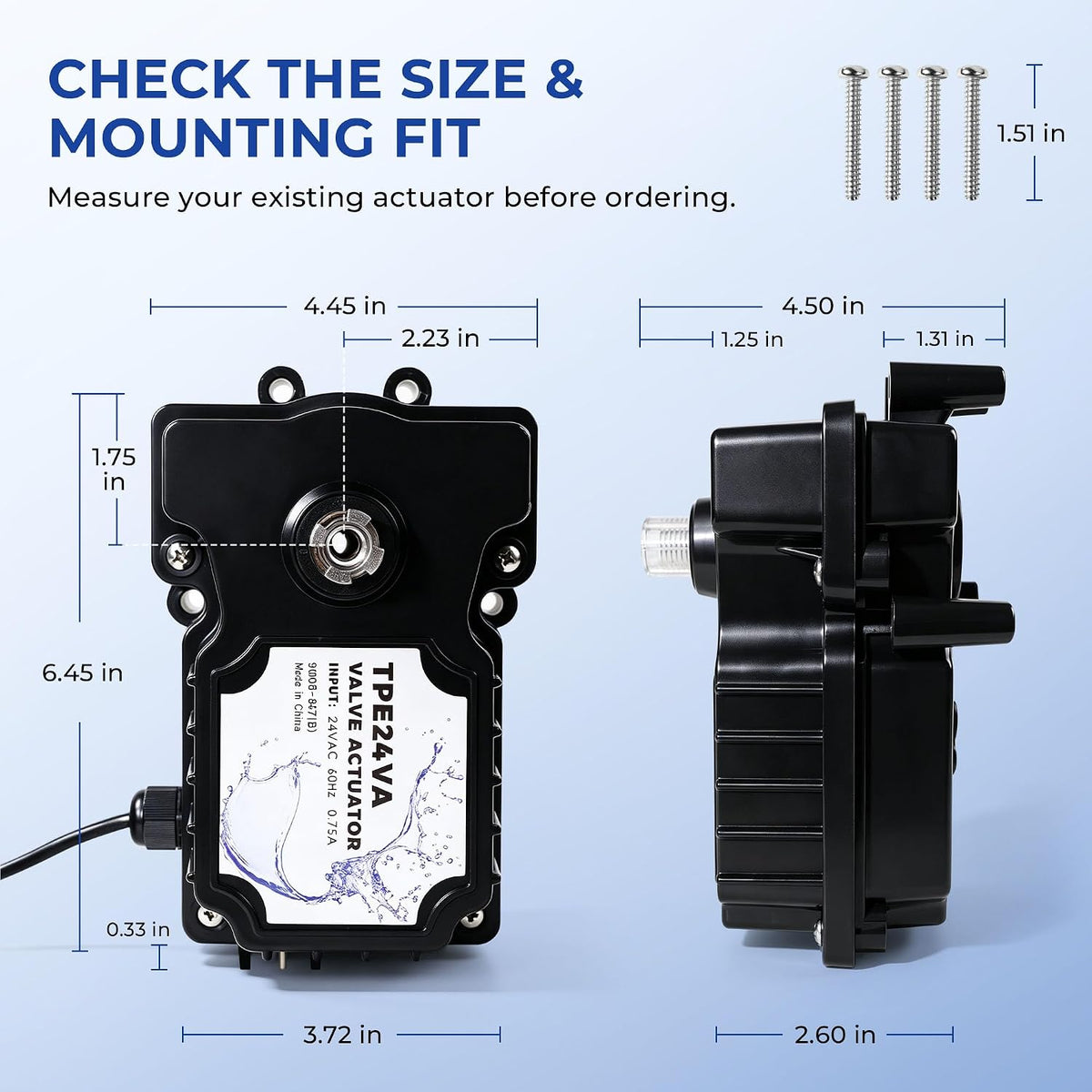

• COMPATIBLE 2-WAY & 3-WAY VALVES: Designed for compatible 24VAC control systems and rotary diverter valves. Compare the shaft coupling, four mounting points, cable, and connector with your existing actuator before ordering

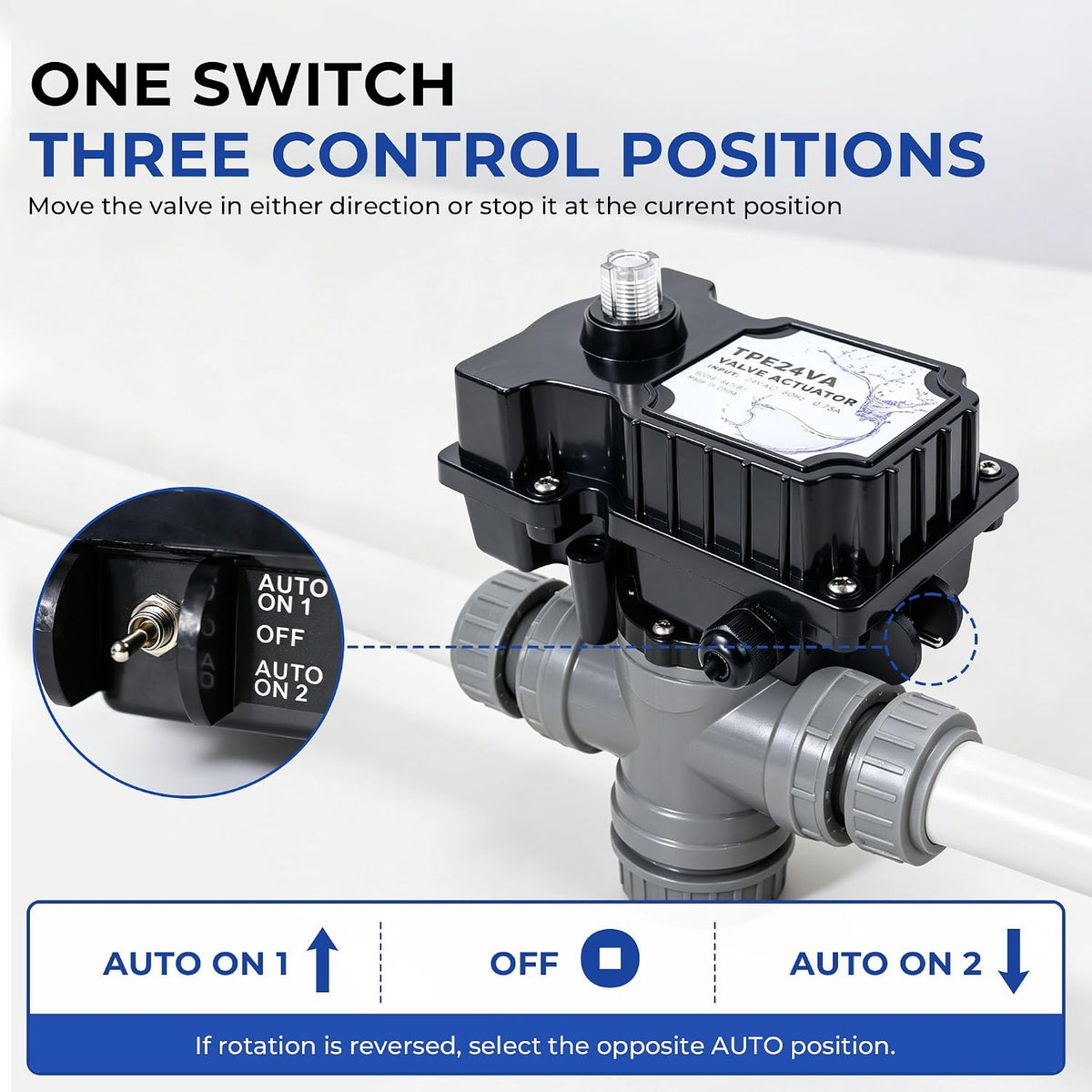

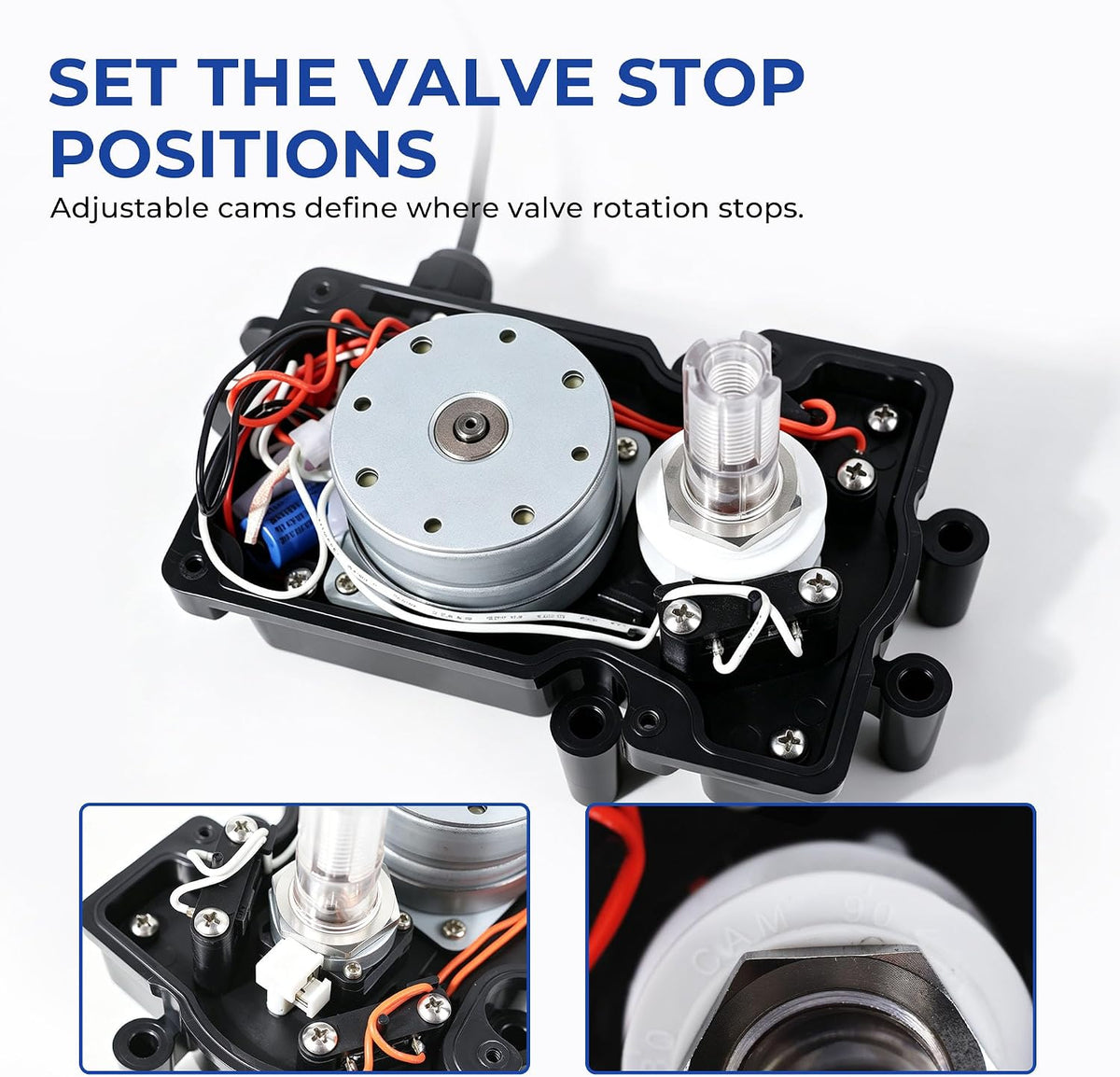

• ADJUSTABLE CAM SETTINGS: Upper and lower cams set the stopping point in each direction. The ON 1 / OFF / ON 2 switch allows the actuator direction to be synchronized with the controller and plumbing layout
• 25 FT CONTROL CABLE: The attached three-conductor cable provides reach between the valve and control box. Confirm the connector and wiring arrangement before installation

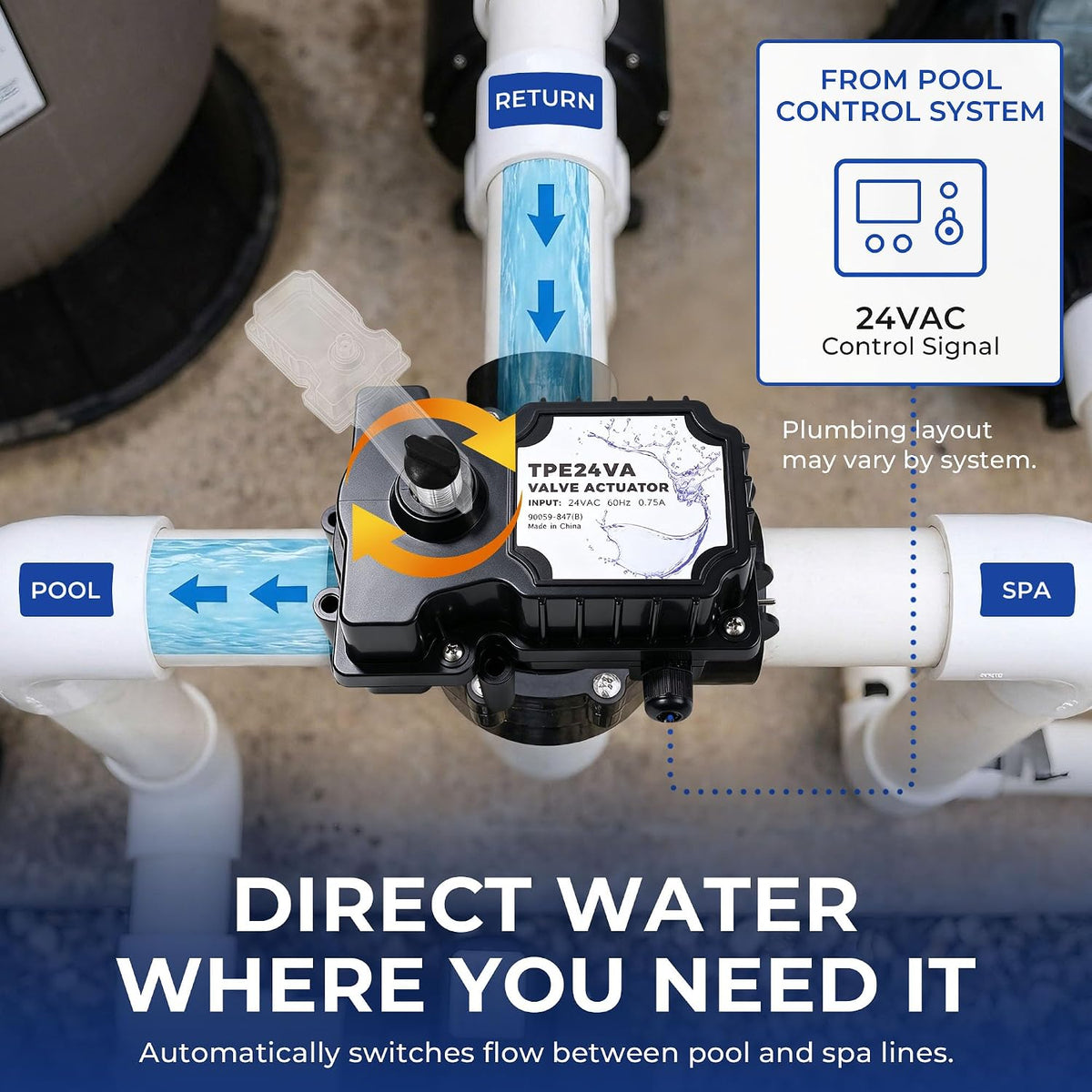

• POOL & SPA APPLICATIONS: For compatible pool/spa combinations, solar heating, water features, and pool-cleaner circuits. Turn off the pump and power before installation. Valve, handle, controller, and plumbing are not included

Free shipping included. 30-day hassle-free returns.
