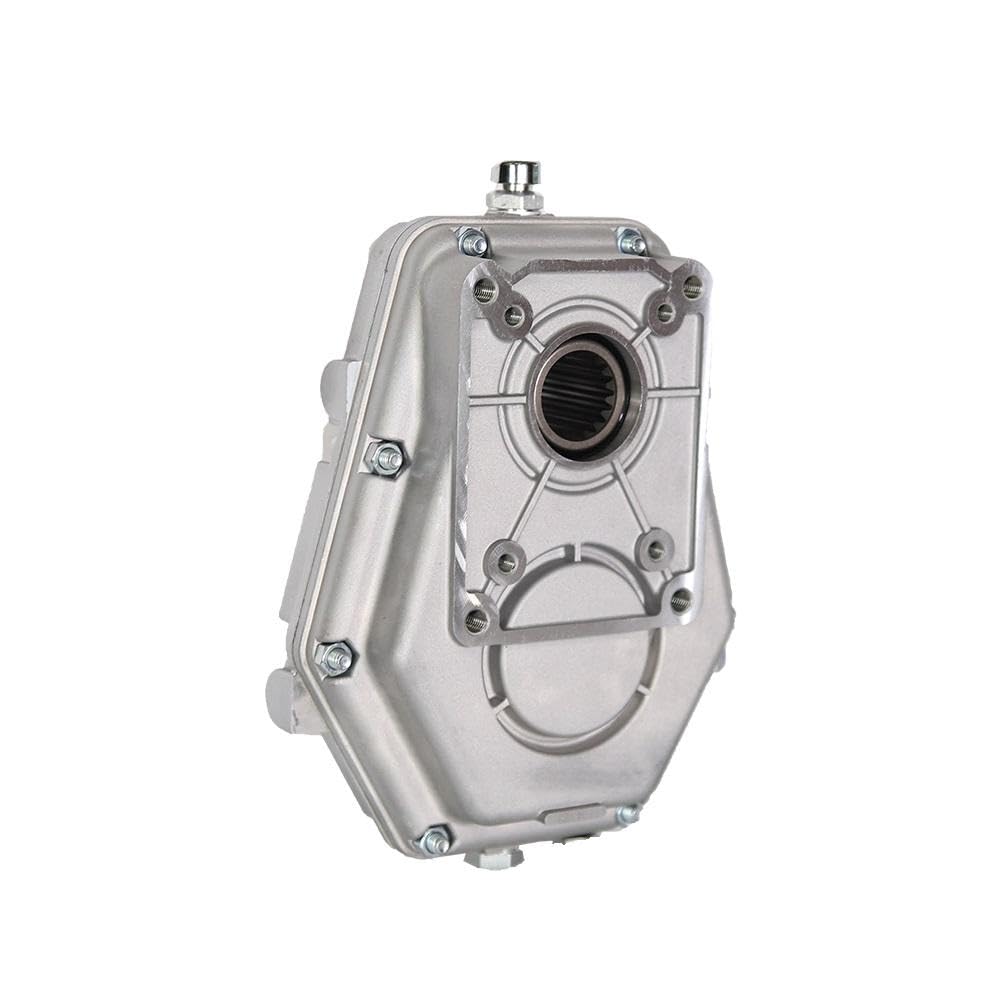

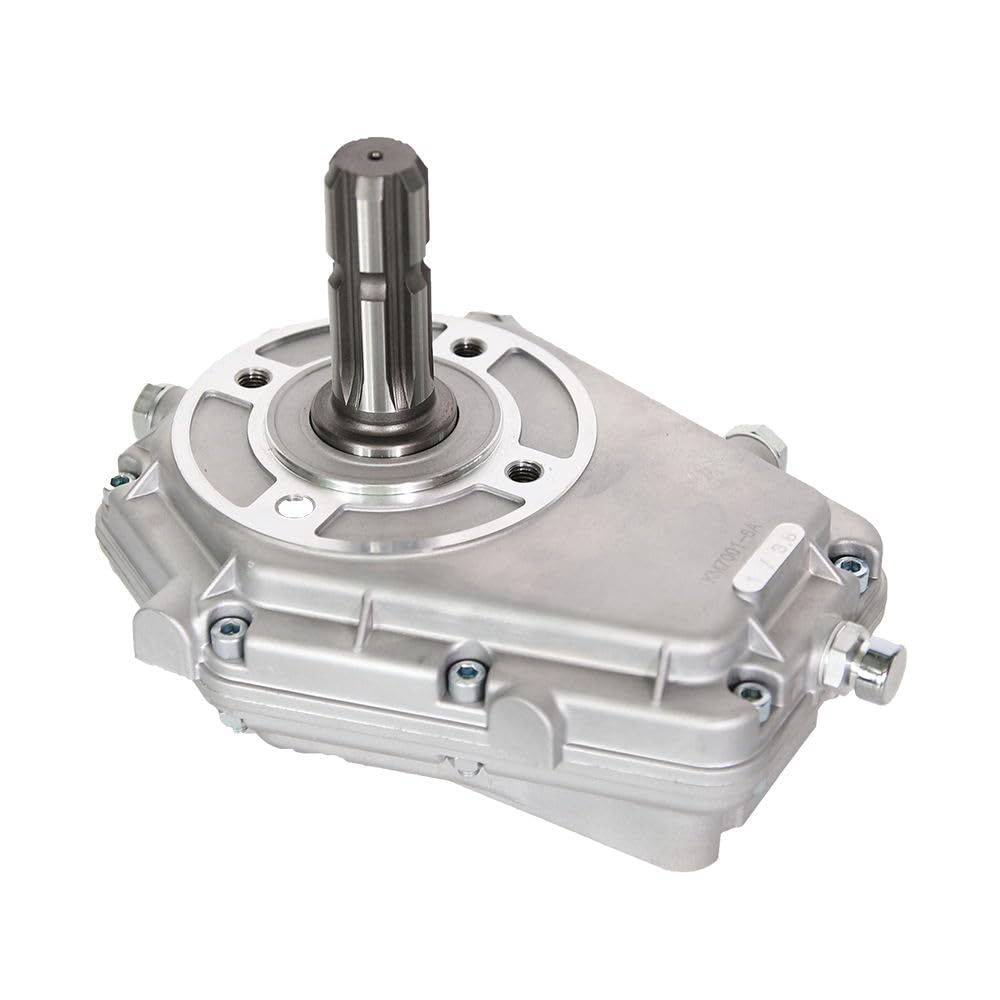

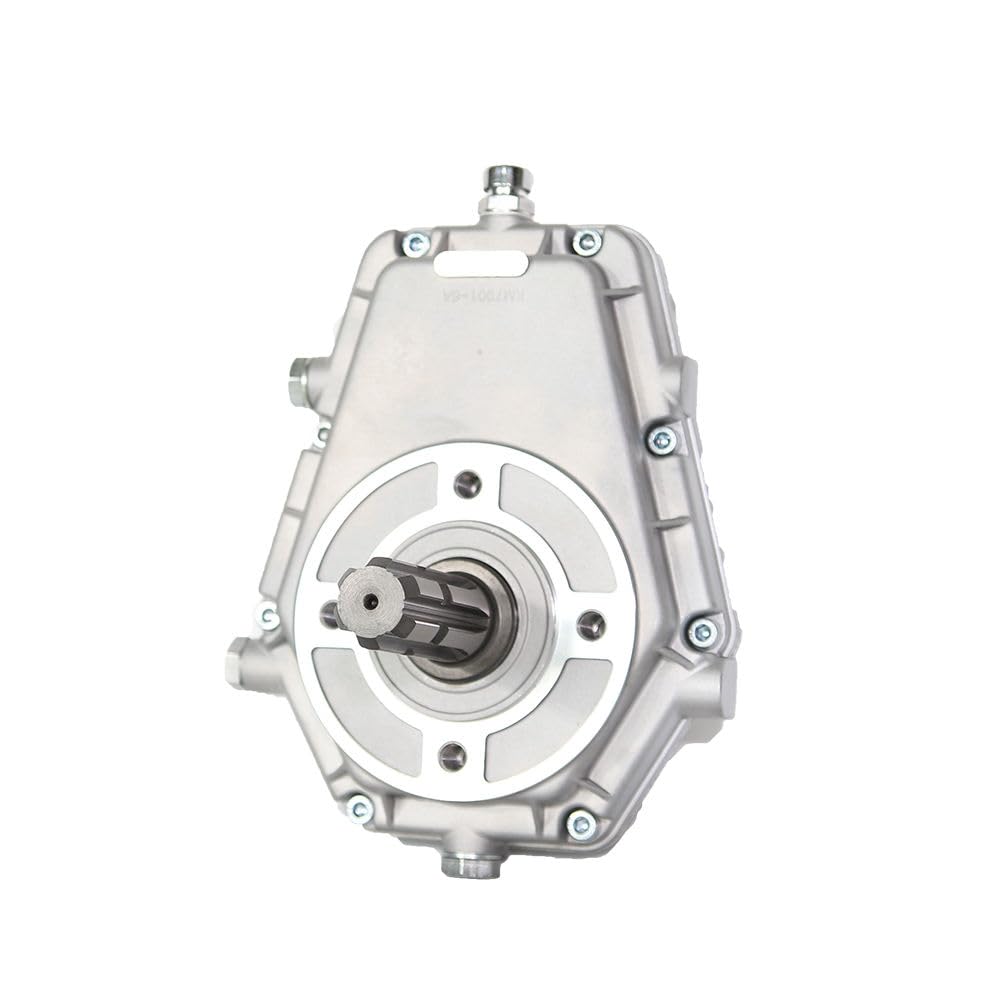

Tractor PTO Gearbox Speed Increaser for Group 3 Gear Pump (Ratio 1:3)

Key features

• Product name: Group 3 540rpm PTO Gearbox
• Applicable Industries: Manufacturing Plant, Farms, Other
• Input Speed: 540rpm; Output Speed: 1620rpm
• Input Torque: 490Nm; Output Torque: 160Nm
• Gearing Arrangement: Spur; Mount Position: Flange Mounted
• Transmission Ratio: 1:3

Applicable Industries: Manufacturing Plant, Farms, Other Weight (KG): 8 Gearing Arrangement: Spur Input Torque: 490Nm; Output Torque: 160Nm Input Speed: 540rpm Output Speed: 1620rpm Material: Aluminium,steel Name: 540 rpm pto gearbox Serie: Group 3 Group 540 rpm pto gearbox Use: for group 3 hydraulic pump Gear Ratio: 1:3 Product Description The Gearboxes are designed for connecting gear pumps to farm tractor power take offs (PTO). Output speed of power take offs is 540rpm which can be compared with the proper running speeds of hydraulic pumps. Different input running speeds can also be suitable,provided that the PTO gearbox output speed does not exceed 3000 rpm. Housing Made in shell-cast aluminum or in high mechanical resistance cast iron. Gears Made in Steel UNI 18 PCR M03.Stub teeth guarantee very high resistance and run very quietly. Shafts Made in steel UNI 16 CRN4.They are coupled with splined gears and are designed to stand the torque values stated in the catalogue. Torques The torque figures mentioned in the technical charts of all the PTO Gearboxes refer to continuous cycles. Torques under intermittent working conditions can be exceeded by 20%. Lubrication SAE 90 gear oi
