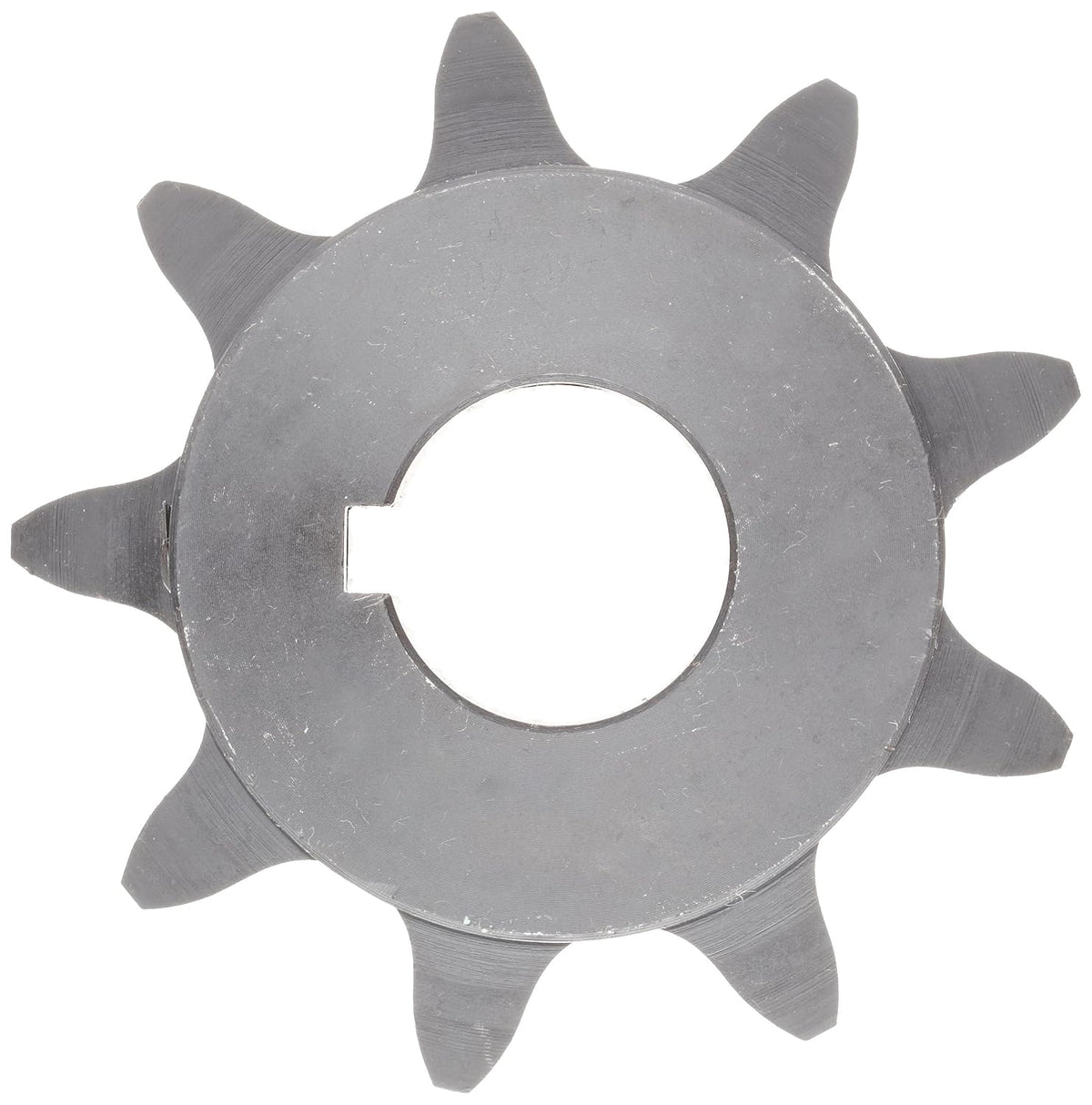

TSUBAKI - H80B9F-1 Tsubaki 80B9F-1 Finished Bore Sprocket, Single Strand, Inch, #80 ANSI No., 1" Pitch, 9 Teeth, 1" Bore

Key features

• Single strand sprocket with one set of teeth around the circumference for applications where a single chain can support the torque and load
• Pitch of 1 inch for size 80 chains
• Ready-to-install finished bore with a wide hub on one side
• Type B sprocket with a hub projection on one side to accommodate various types of bushings to help prevent sprocket from slipping on the shaft
• Sprocket teeth help prevent slipping and binding to avoid power loss in assemblies

This Tsubaki roller chain sprocket has a 1-inch pitch, fits size 80 chains, and is single strand with one set of teeth around its circumference for use with single strand chains. It is a Type B sprocket with a hub projection encircling the bore on one side and is ready for installation on a shaft of the appropriate diameter. The teeth of the sprocket help prevent slipping and binding to avoid power loss in assemblies. It meets International Organization for Standardization (ISO) 9001 for quality assurance. This single strand roller chain sprocket is suitable for use in a broad range of applications involving light to moderate loads and ongoing, high-cycle operations, including vehicle transmission systems, construction and agricultural equipment, conveyors, and factory manufacturing and assembly lines, among others.A roller chain sprocket is a thin wheel with deep, uniformly spaced teeth ringing its circumference. The distance from the peak of one tooth to the next is called the pitch, and is commonly measured in 1/8-inch increments. The sprocket transfers power and motion by a roller chain that is threaded over the teeth of the sprocket. The alignment of the chain with the sprocke
