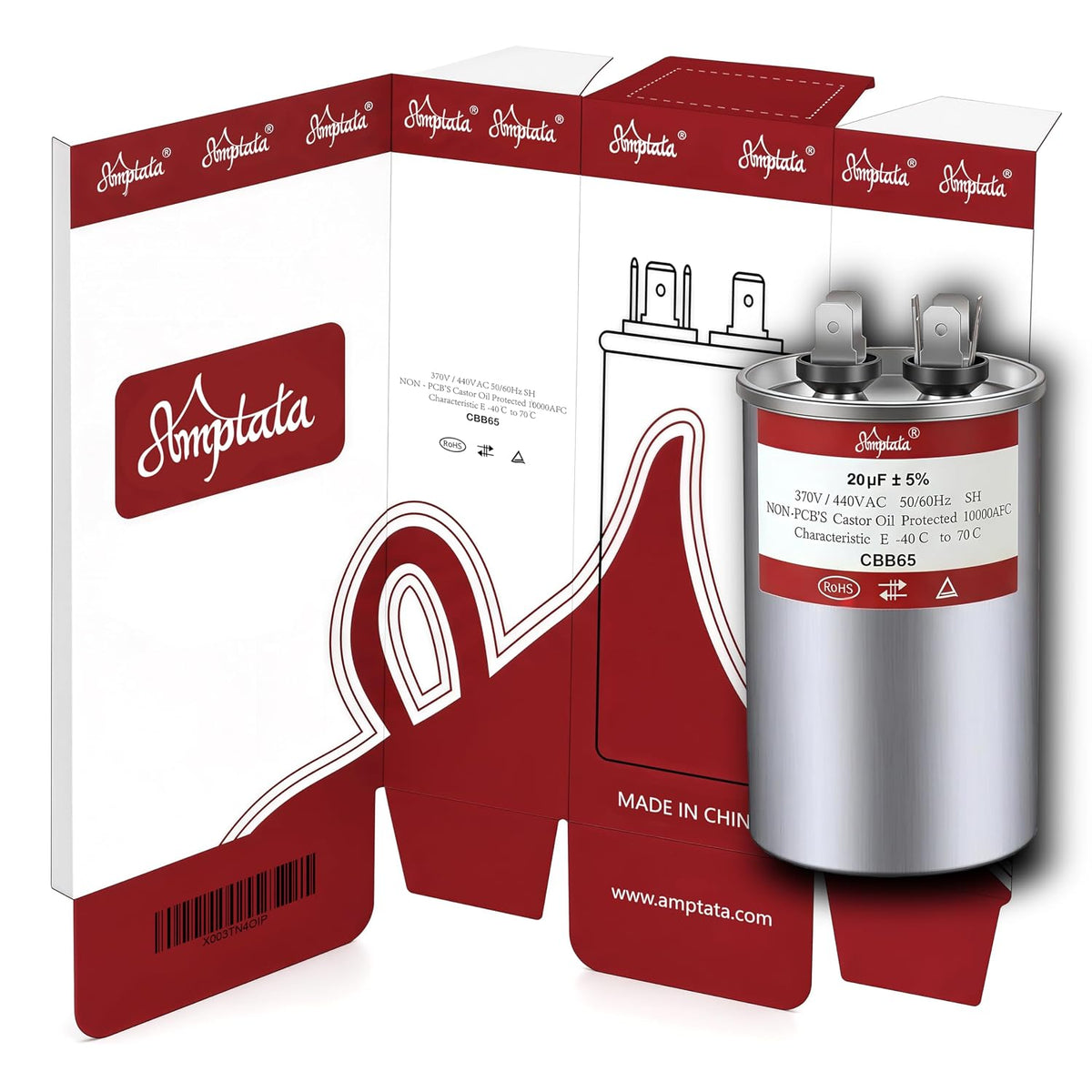

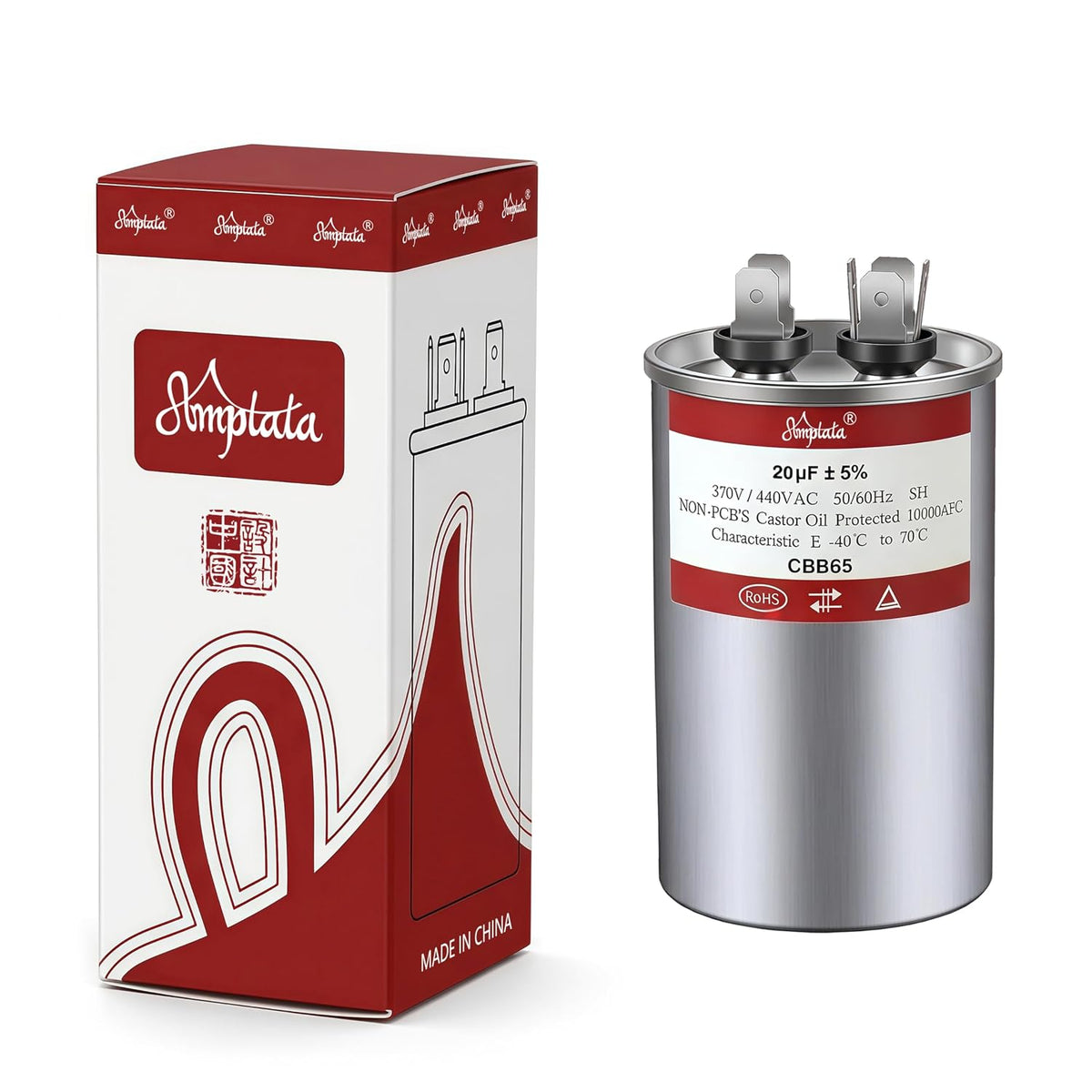

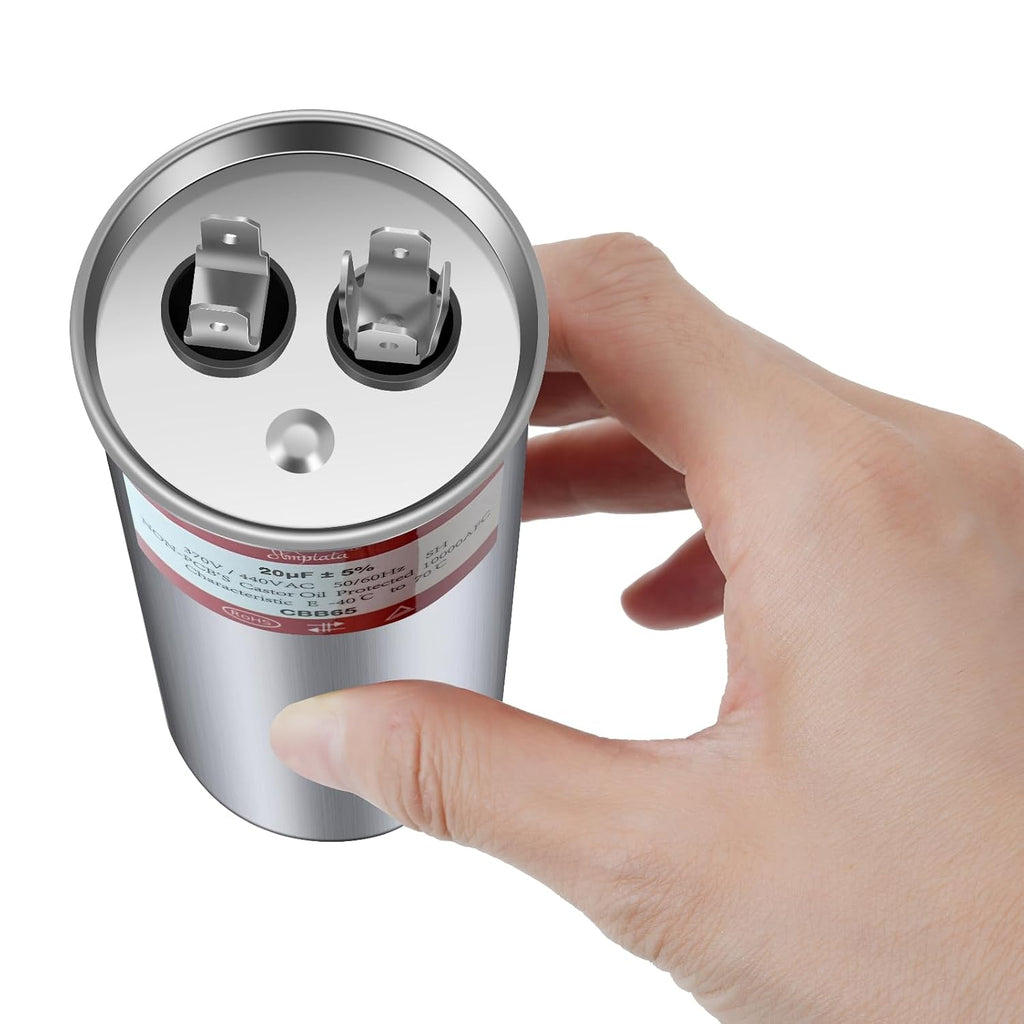

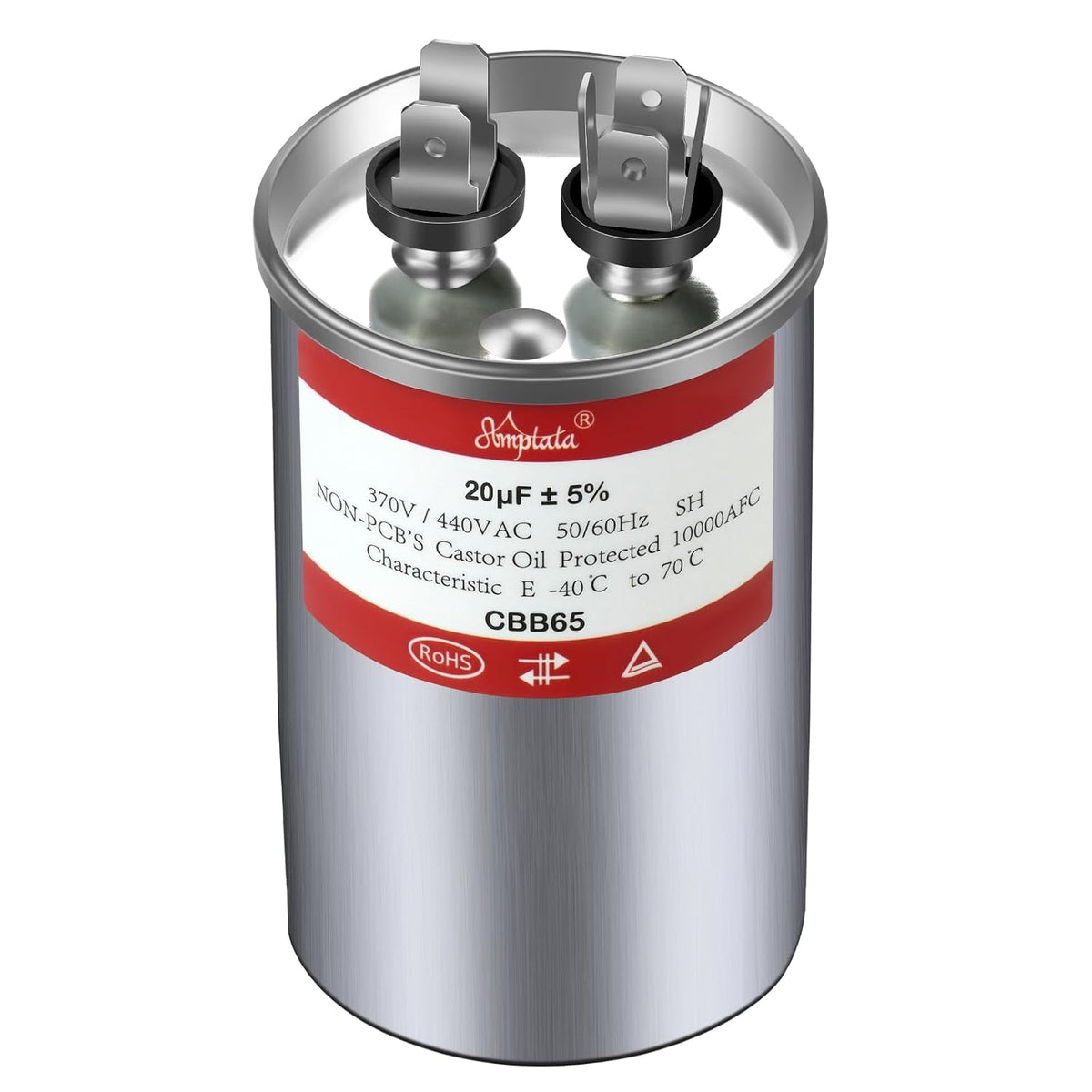

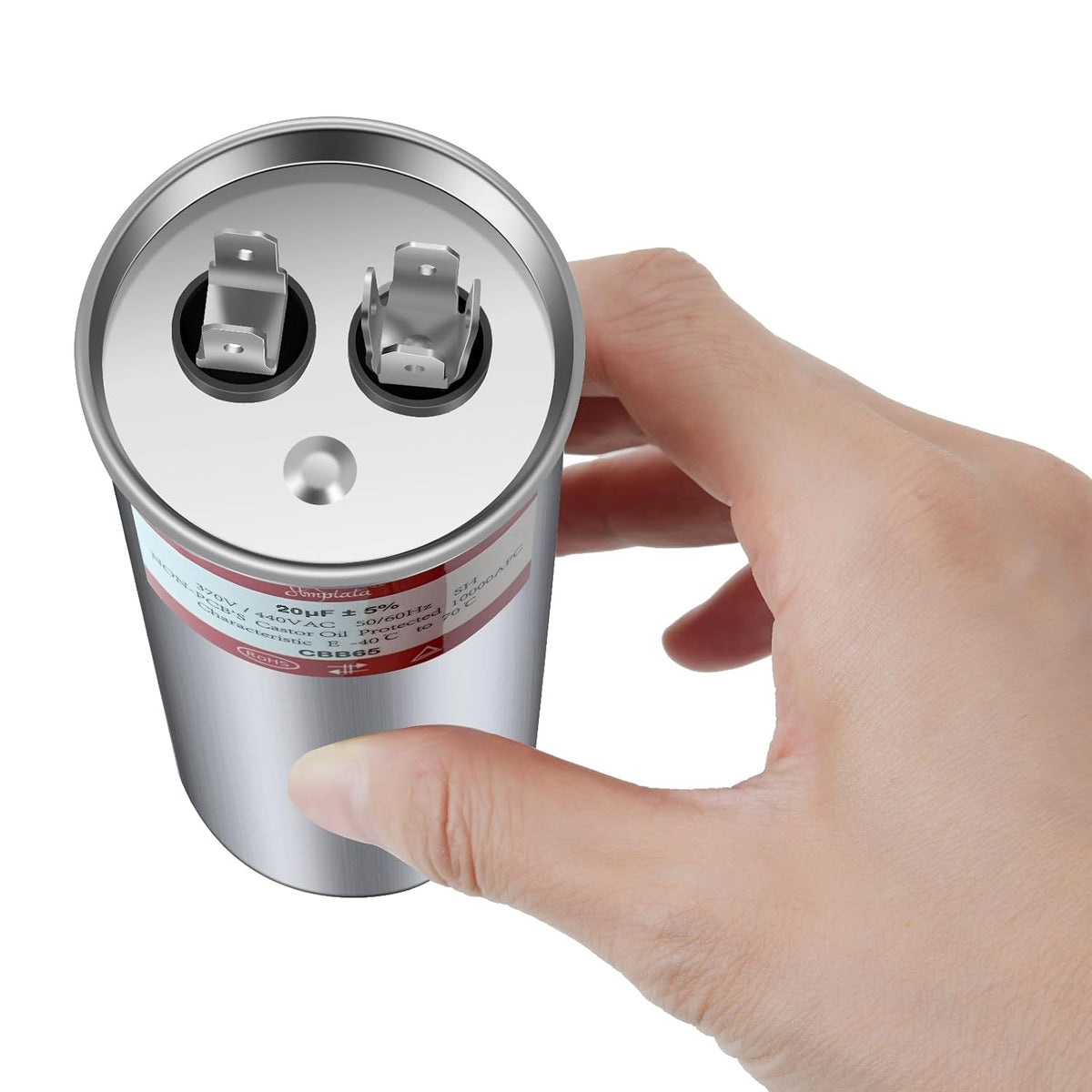

[UL Tested] AC Capacitor, 20 uf CBB65 HVAC Capacitor for AC Unit

Key features

• UL Tested Safety & 10,000 AFC Protection: UL tested with flame‑retardant epoxy and anti‑explosion pressure switch. Rated 10,000 AFC fault current. Ideal for AC compressor, HVAC system, and motor start
• Precision 20 MFD Dual Run Performance: ±5% tolerance, <0.001 dissipation factor. Works as 20 uf 440V dual run for condenser fan motor and compressor (HERM/FAN). Great for air conditioner capacitor and motor run replacement
• Wide Voltage & Temperature Range: Replaces 370V and 440V capacitors. Operates -40°C to +70°C. Perfect as 20 mfd 370/440v run for pool pump, hvac compressor, and start capacitor
• CBB65B High‑Quality Metalized Film: Heavy‑duty round run start capacitor with self‑healing metallized film. Corrosion‑resistant case ensures 10,000+ hours. Direct replacement for cbb65 and round run
• Easy DIY Replacement & 2-Year Warranty: Direct fit for 20 mfd. Works for ac compressor, hvac compressor, condenser fan motor, capacitor for ac unit, and air conditioner compressor. Terminals labeled – no rewiring

A capacitor is an electric component that temporarily stores an electrical charge.This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as Industrial Grade Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and compressors.It is small in size, lightweight, heat resisting and anti-explosion.Technical SpecificationModel: CBB65（Universal model）Shell material: Case Material Aluminum, Cover Material SteelDielectric Material: metallized polypropylene filmCapacity: 20ufTolerance: ±5%Shape: RoundRated voltage: 370V/440V ACFrequency: 50 / 60HzSafety rated: 10,000 AFCOperating temperature: -40 ℃ to +70℃/-104℉to+158℉Capacitors come in a variety of sizes, depending on the capacitance (µF or MFD), such as 20µF, and also the voltage. A 440 volt capacitor can be used in place of a 370 volt, as it is build better, but the 370 can’t be used in place of a 440 volt. It will work for a while and will fail prematurely, as exceeding the capacitor's rated voltage will cause the dielectric to break down and the capacitor to short out.The capacitance(µF or MFD) must be the same or stay within 10%+ or 5%- of its original value. But use the s
