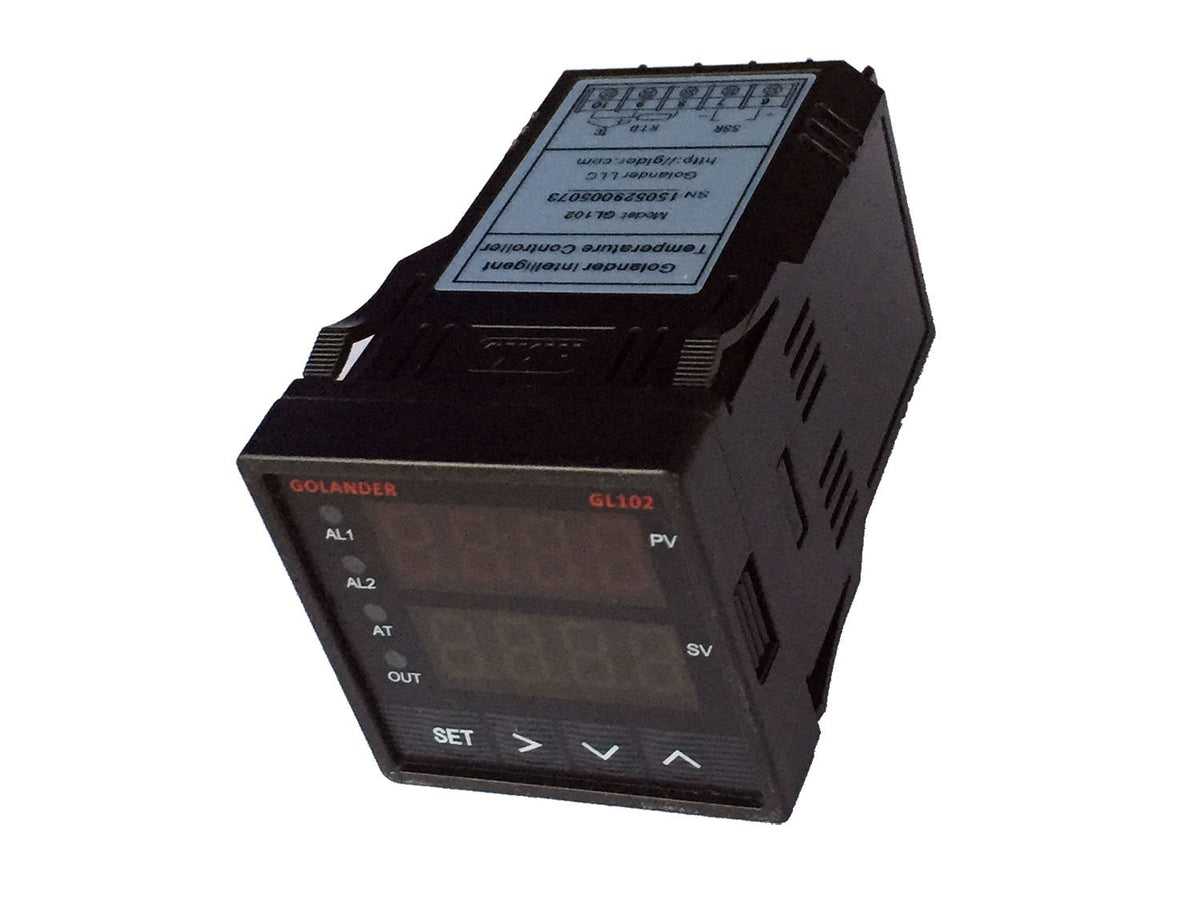

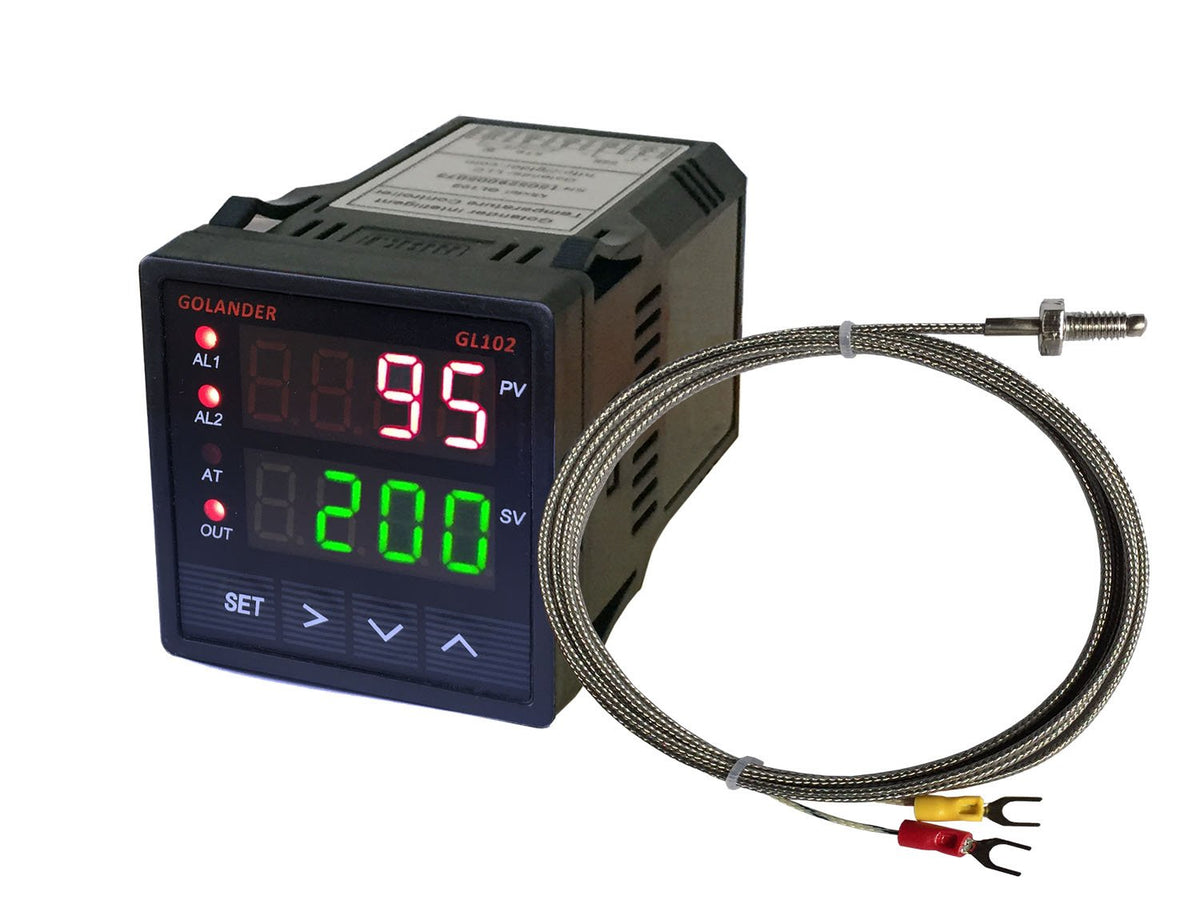

Universal 1/16DIN PID Temperature Controller, PID, On/Off, Manual Control, with K Thermocouple

Key features

• Supports 10 different types of commonly used temperature sensor inputs
• The PID, on/off or manual control output can be configured by the user for either relay contact or SSR
• Displays temperature in either Fahrenheit or Celsius
• On/Off control mode for refrigerator, motor and solenoid valve control application
• Bump less transfer between Auto and Manual control

Housing of the probe: 0.5 “ long, stainless steel with thread. Cable: 6 ft of Stainless steed braided. Maximum working temperature: 1000ºC (1800ºF). Color code: Yellow positive, red negative. Universal controller to work with either contactor or SSR Display: Two lines, Four digits. ºF or ºC Input type TC: K, E, S, R, J, T, B, WRe3-WRe25 RTD: Pt100, Cu50 Input range:K (-200~+1300ºC), S (-50~+1600ºC), WRe3-WRe25 (0~2300ºC), R (-50~+1600ºC), T (-200~400ºC),E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (-99.9~600.0ºC) or (-200~+600ºC), Cu50 (-50~150ºC) Display Resolution: 1ºC, 1ºF, or 0.1ºC, 0. 1ºF, with Pt100 Accuracy: 0.2% or 1 unit of full input range Control mode: PID, On-Off, Manual Output mode: Relay contact: 3A at 240 VAC, SSR: 8VDC, short circuit 40 mA Alarm: Process high/low alarm Power consumption: <2 Watt Power supply voltage rating 85~260VAC/50~60Hz or 85-360 VDC Dimension 48 x 48 x 75mm (1/16 DIN).
