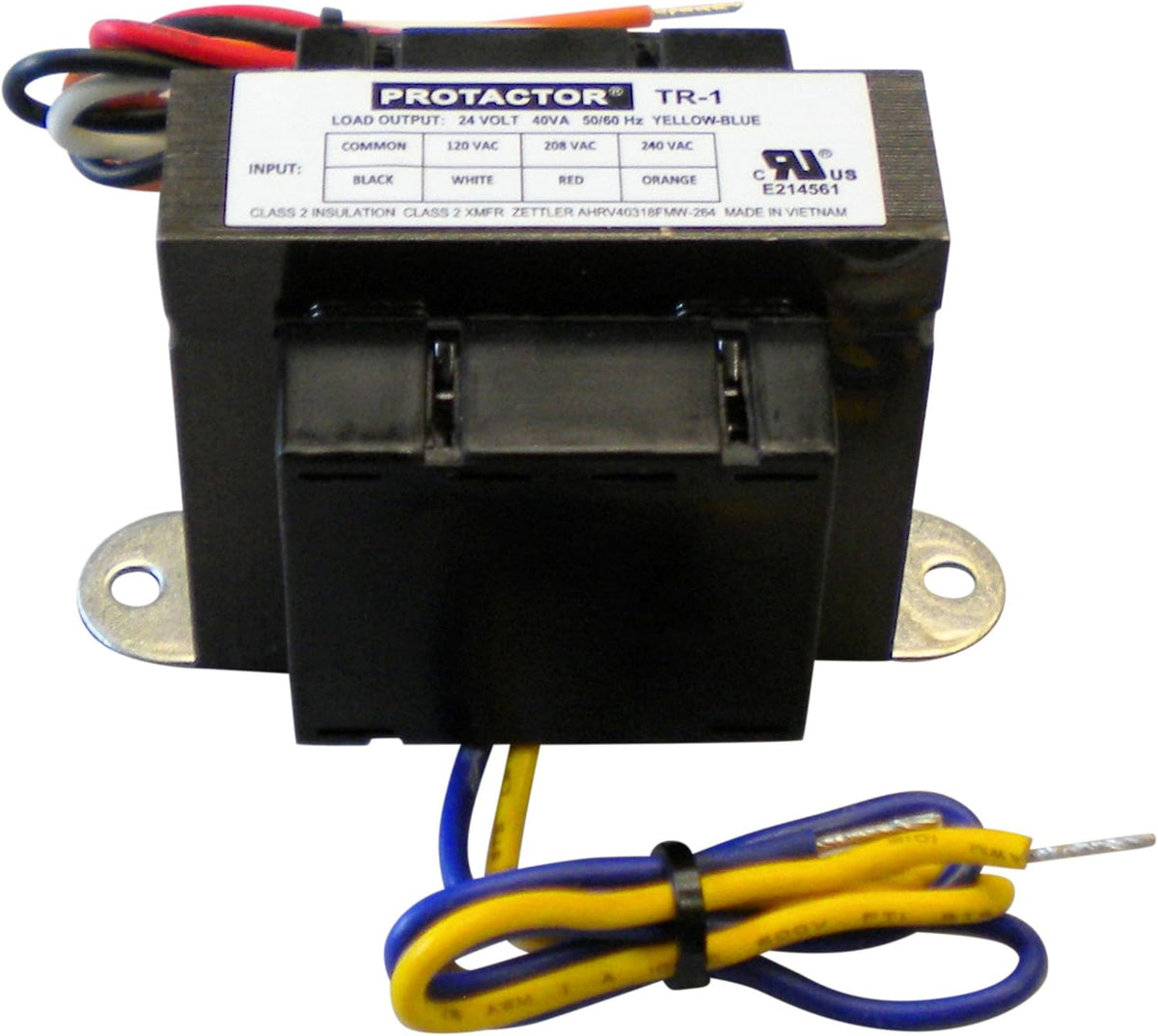

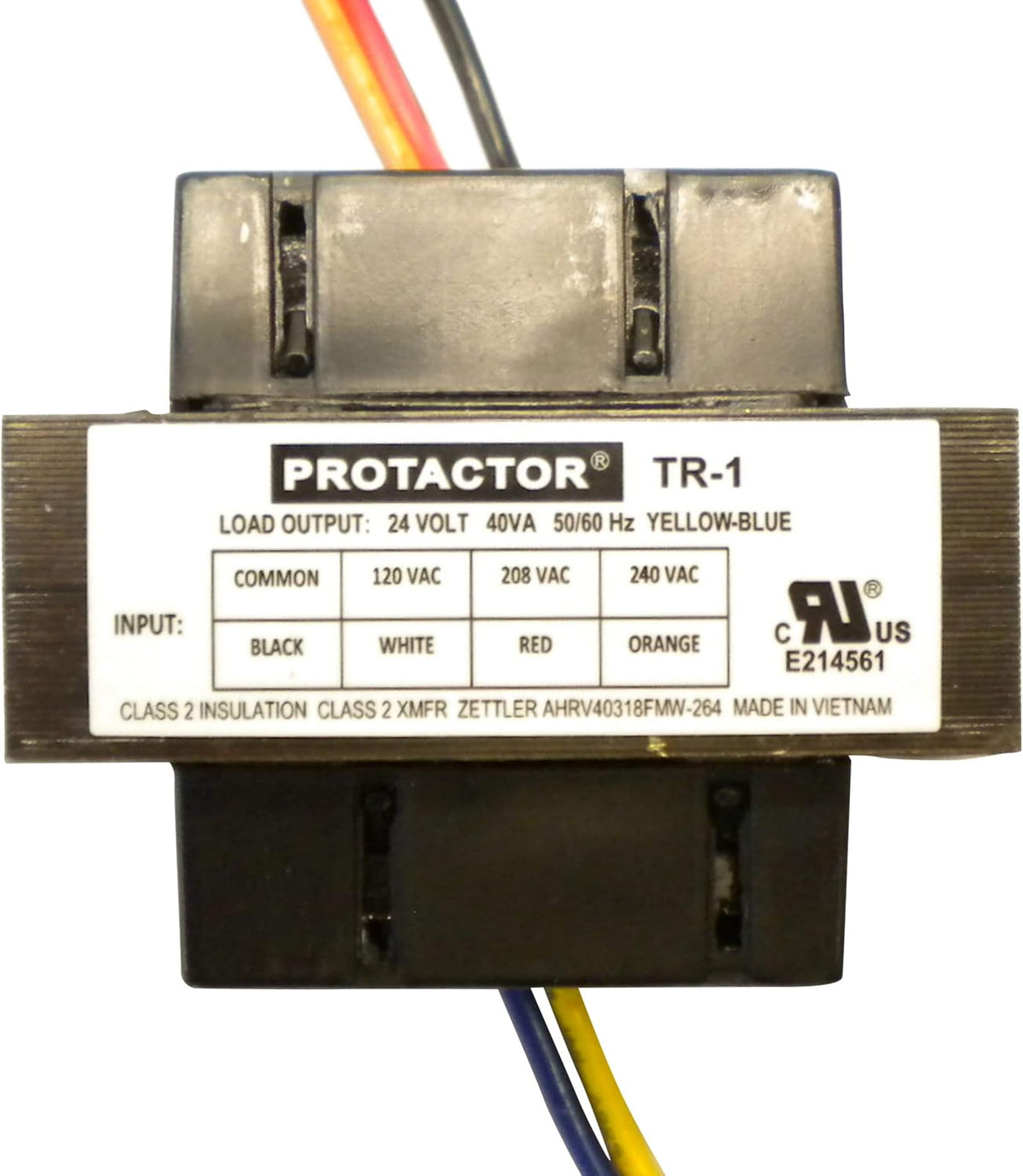

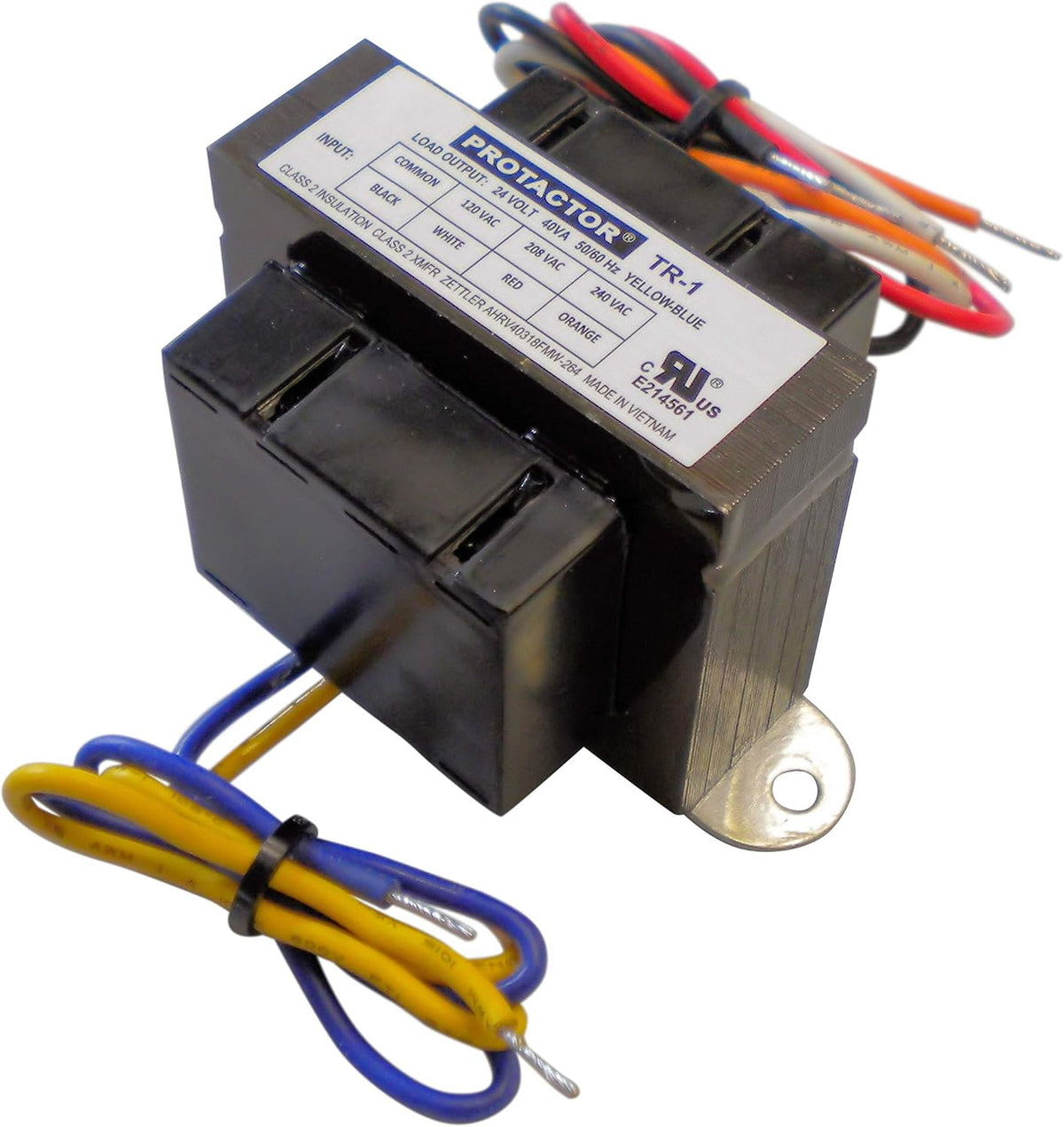

Universal Furnace Transformer 40 VA

Key features

• Two Year Replacement Policy: Covered by the Protactor two year limited replacement policy for reliable performance and peace of mind
• Voltage Specifications: 115 - 208 - 240 Volt Primary with 24 Volt Secondary output and 40VA power rating
• Universal Compatibility: Universal replacement designed to fit most foot mounted furnace transformers for gas and electric furnace models

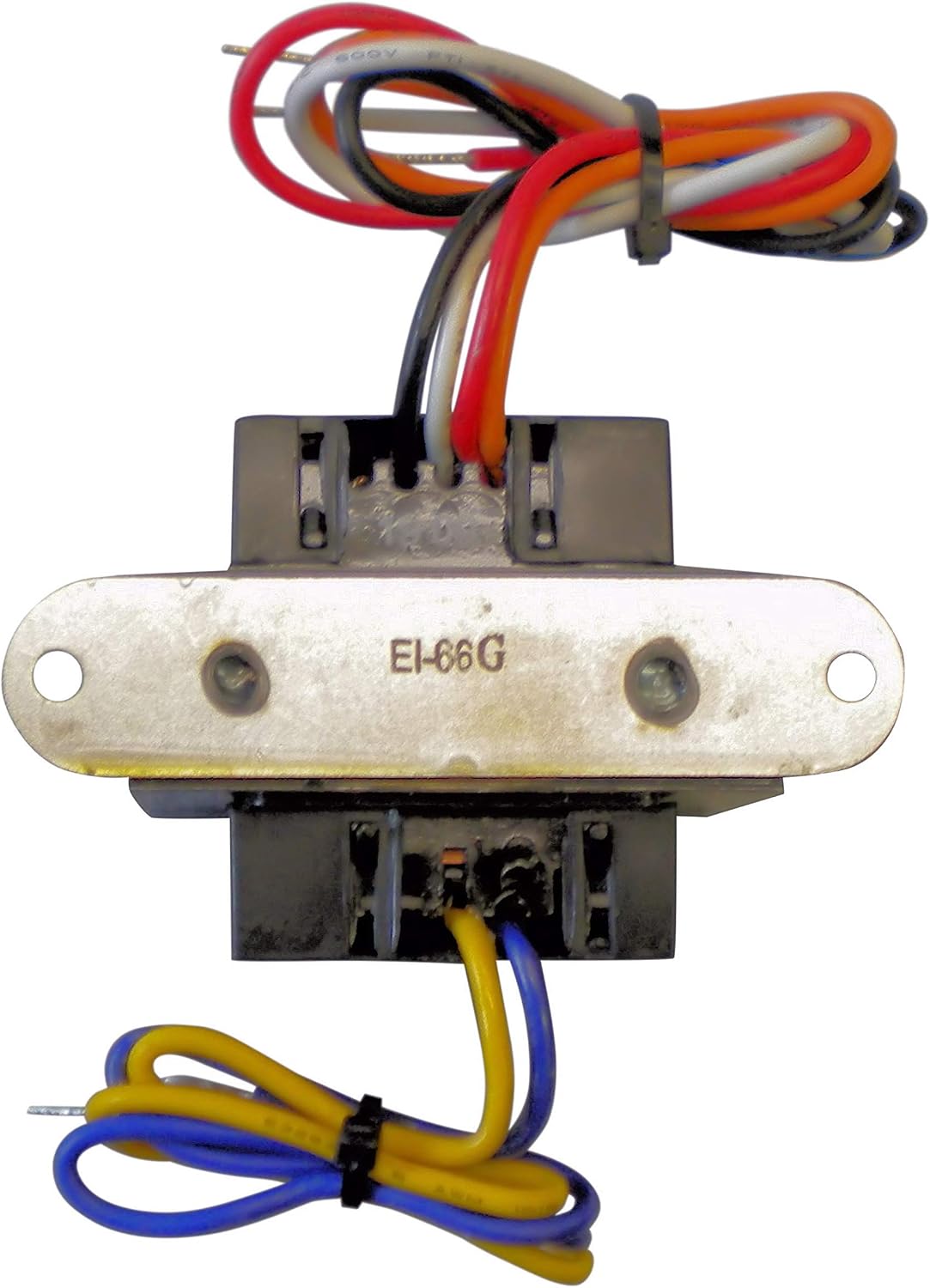

• Mounting Configuration: Two mounting holes spaced 3-1/8 inches on center for easy installation and secure fit
• Wire Lead Configuration: Black wire for common connection, White for 120 Volt, Red for 208 Volt, and Orange for 240 Volt applications
• Secondary Voltage Leads: Blue and yellow leads provide 24 volt supply to the low voltage control system
• Convenient Wire Ends: Six wire leads feature tinned ends for easy and secure electrical connections

This transformer is a universal replacement for many gas and electric furnace models. The two foot mounting holes are spaced 3-1/8" on center. There are six wire leads which have tinned ends. The blue and yellow leads are the 24 volt supply to the low voltage control system. On the line voltage side the black wire is common and is connected for all incoming voltages. Connect the white wire for 120 volts, the red wire for 208 volts, or the orange wire for 240 volts. Cap or insulate the unused primary leads.This part is covered by the exclusive Protactor two year limited replacement policy. If this part fails within two years from date of purchase, return the defective part and a copy of the original invoice to the place of purchase for replacement. Contact the authorized Protactor dealer that you purchased the part from for details. Original equipment manufacturer's brand name(s) and part numbers are used for identification purposes only. This item is supplied by OneTrip Parts and meets or exceeds original equipment specifications.
