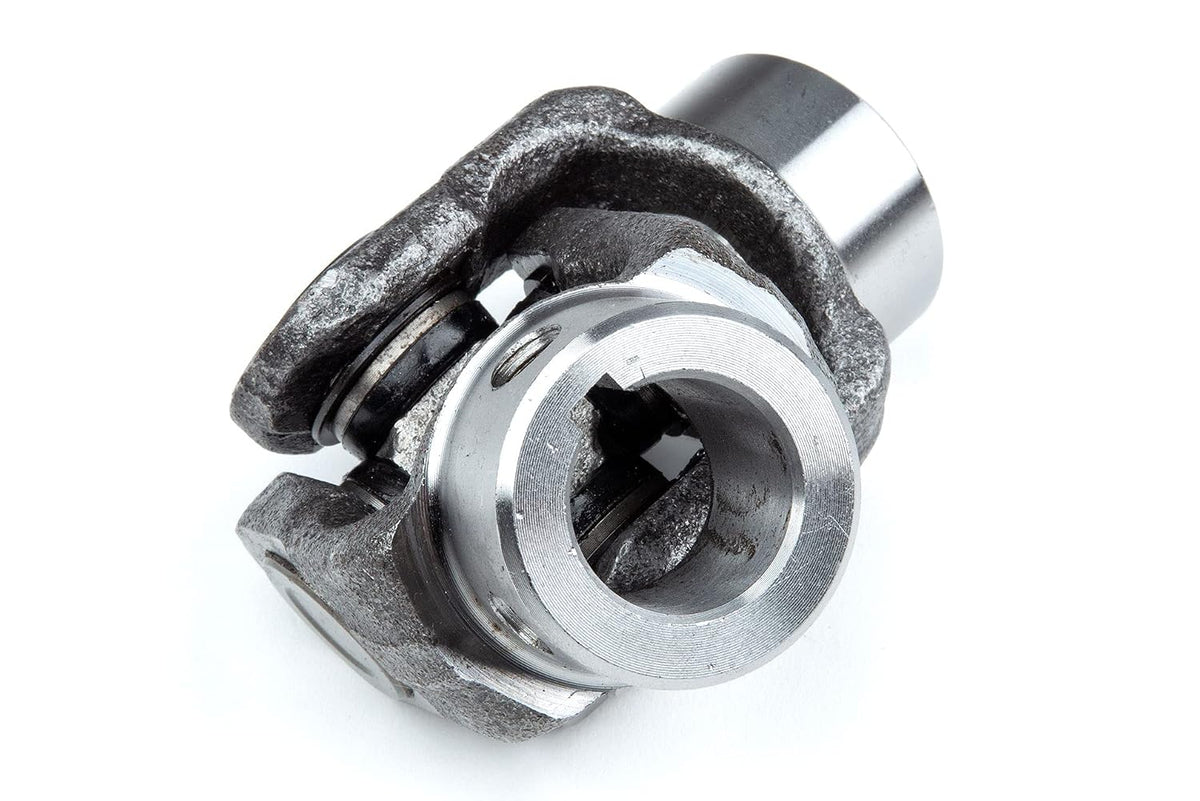

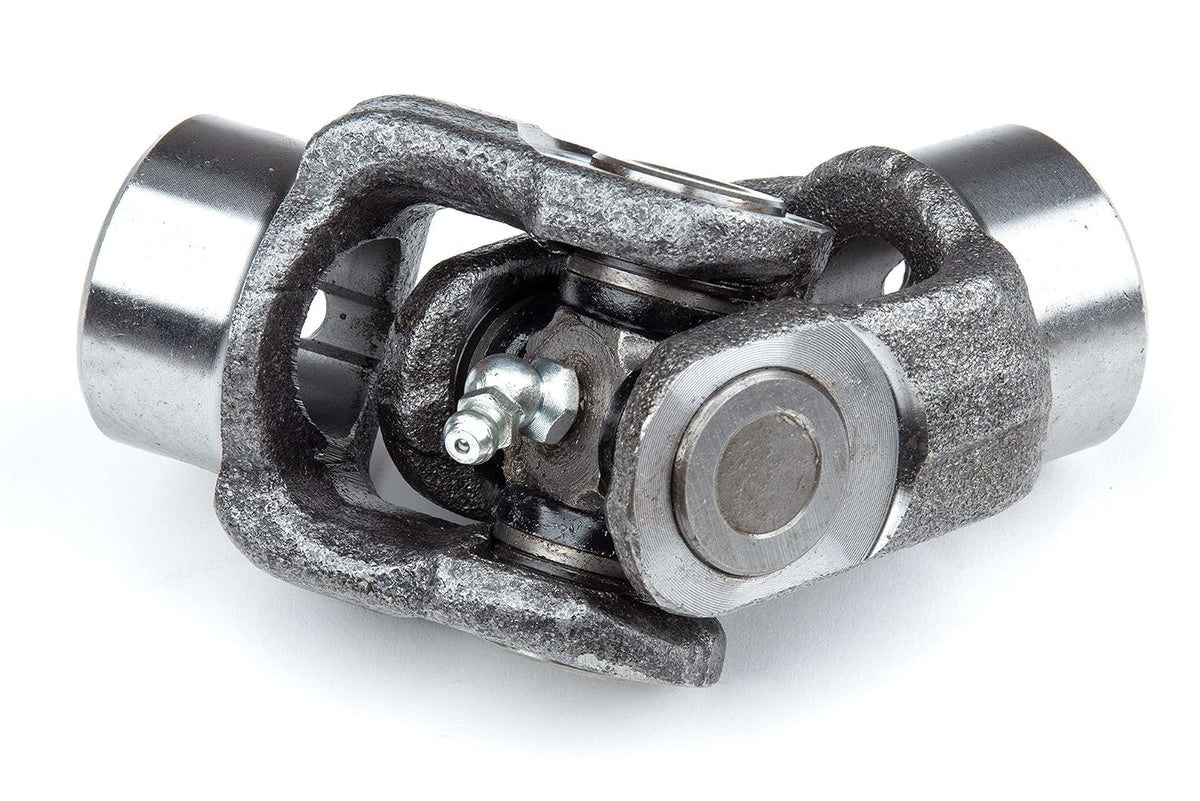

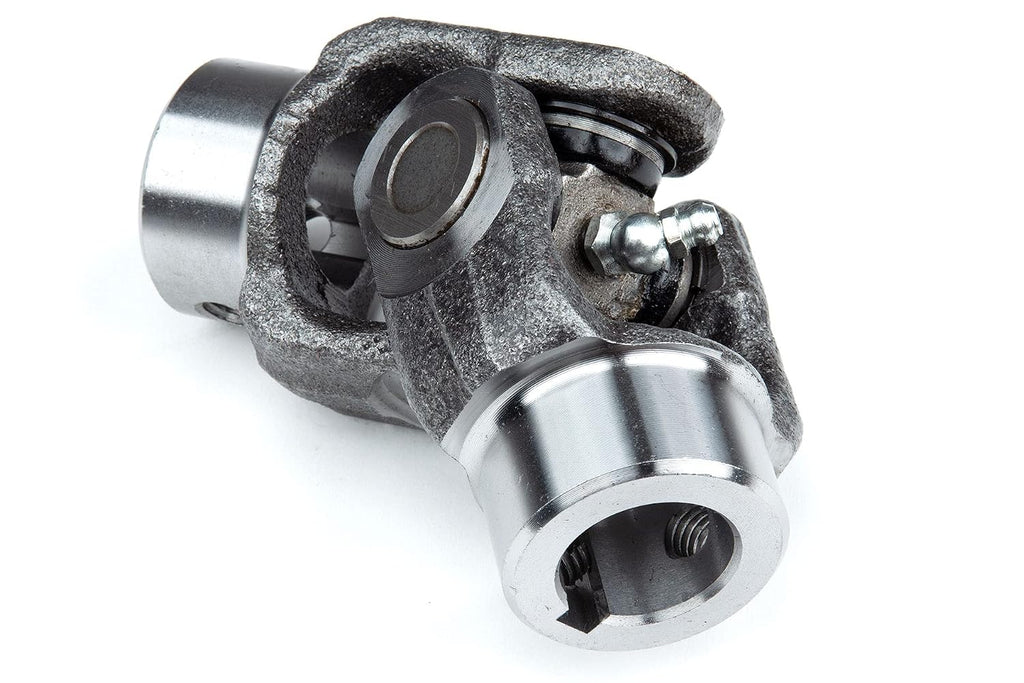

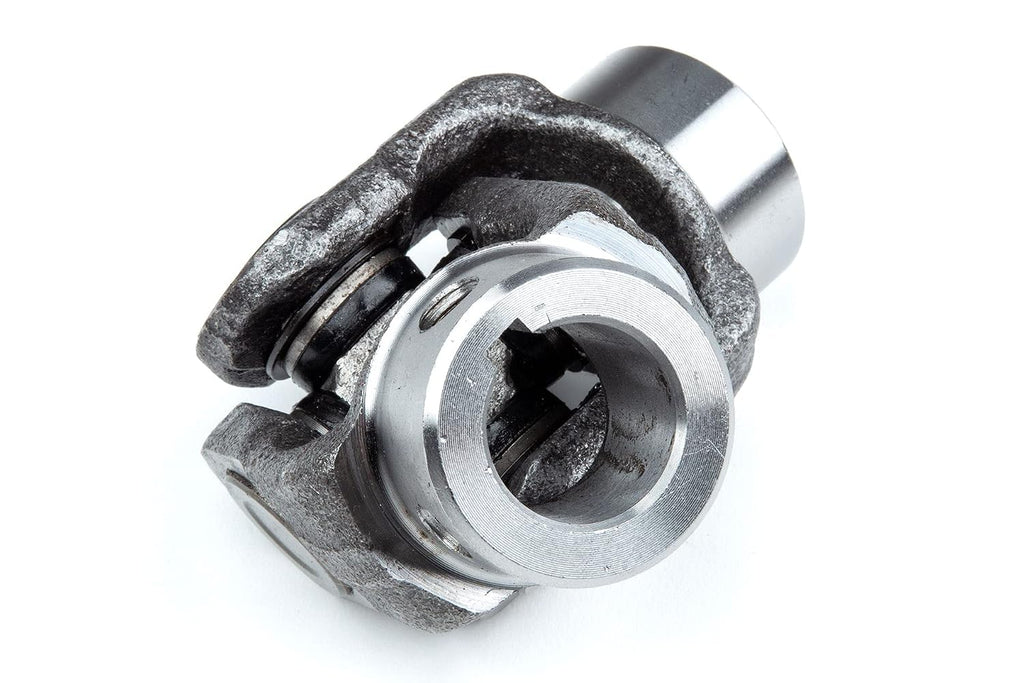

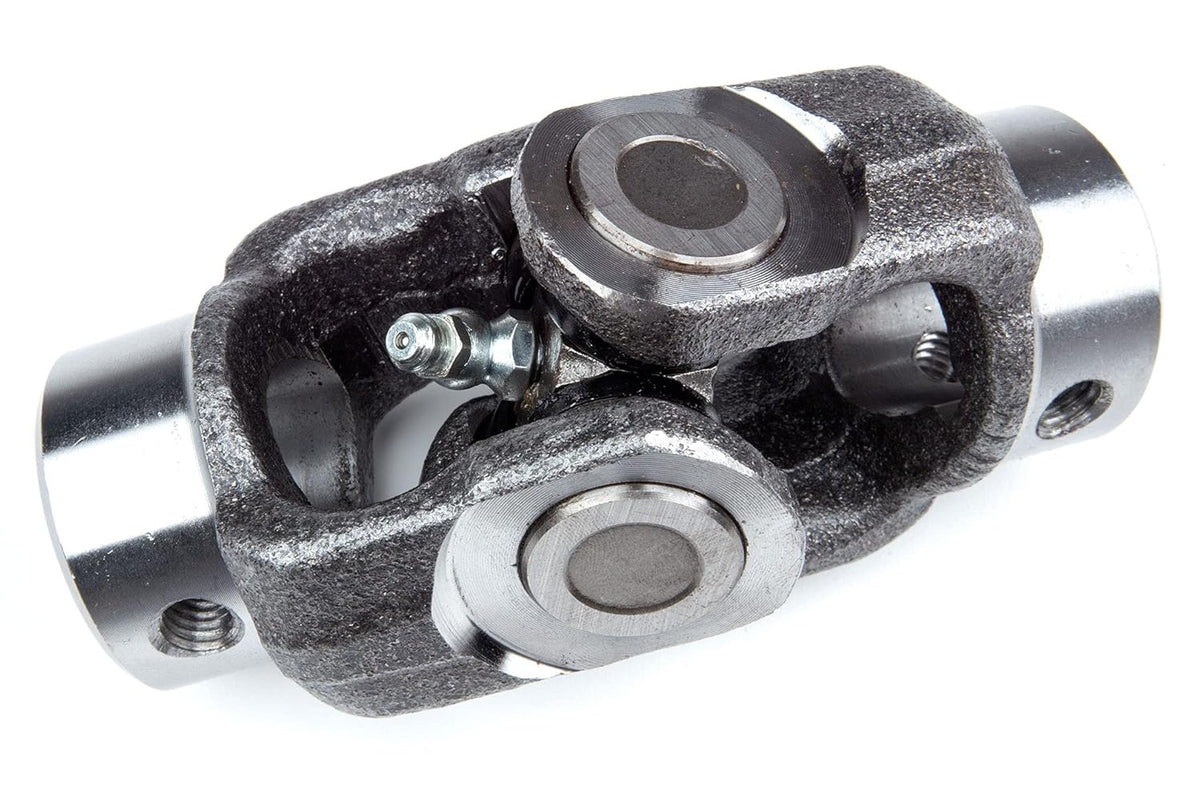

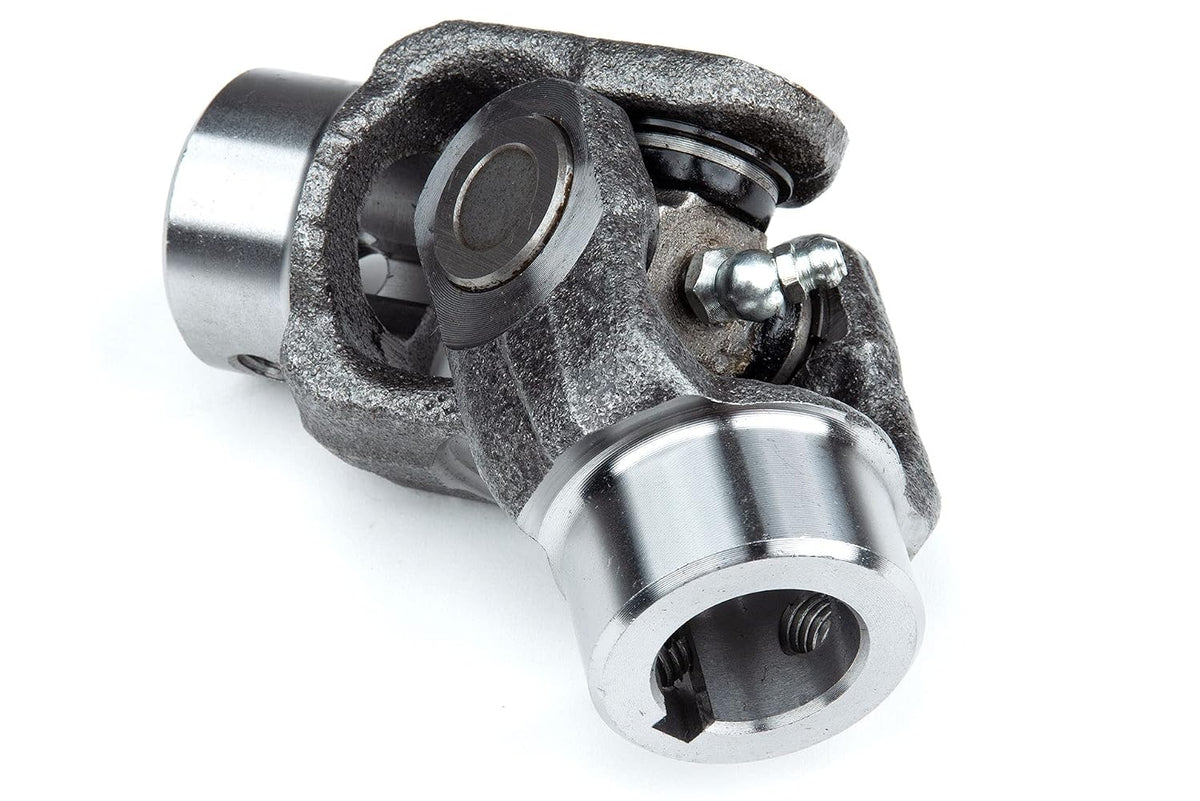

Universal Joint Assembly, UJ-0808, 1" ID, 1/4" Keyways, 5" Length

Key features

• SPECIFICATIONS: Standard rod end U-joint with 1" x 1" inner diameter, 1/4" keyway, and 5" overall length. Supports up to 90 deflection and operates at 1000 RPM. Total weight: 2.52 lb
• HIGH-SPEED TORQUE: Built for demanding use, this Cardan-style joint delivers 800 in-lbs torque at a consistent 1000 RPM for high-speed, high-torque systems in demanding applications
• PRECISE AND PROTECTIVE: Engineered to reduce side thrust on bearing bushings, helping extend service life even under misaligned or offset shaft conditions
• FLEXIBLE OPERATION: Handles up to 15% angular displacement at peak velocity and supports smooth shaft movement in industrial, automotive, and commercial equipment
• BUILT TO LAST: Includes drop-forged slip yokes and regreaseable needle bearings for added durability. Designed for long-term use in rugged environments. Model number UJ-0808
• VERSATILE APPLICATION: Functions as a keyed universal joint or shaft coupling, suitable for equipment with lateral shaft movement or variable loads in offset or misaligned systems
• Set Screws Not Included
