Universal Process Indicator Control Master 1/4 DIN (Panel Mounting) with Totalization and Counter Function for Pharmaceuticals, Laboratories | programmable Process Indicator | Model: ABB CM30

Key features

• Model: CM-30/000S0E0/STD | Features: Crystal-clear, full-color TFT display that shows detailed process information including historical trending | Intuitive operator interface and clear text prompts simplifies installation, commissioning and operation | Scalable in both hardware and software functionality | Powerful control functionality including cascade, feed-forward, ratio, predictive and adaptive control strategies along with dual-loop capability
• Extensive functionality to provide flexible problem solving capability including math and logic providing power to solve application | Rugged design with IP66 and NEMA 4X environmental protection
• I/O build: 2 analog inputs, 1 analog O/P and 1 relay (Basic) | Template / Functionality level: Base | Communications: None | Approval: Standard CE | Power supply: 100 to 240 V AC | Configuration: Standard | Input impedance: > 10 MΩ (mV input), 10 Ω (mA input)
• Environmental Operating temperature range: 0°C to 55°C (32°F to 131°F) | Operating humidity range: 5 to 95% RH (non-condensing) | Storage temperature range: –20°C to 70 °C (–4°F to 158°F) | Temperature stability: 0.02 %/°C or 2 µV/°C (1 µV/°F) | Long term (input) drift: < 0.1 % of reading or 10 µV annually
• Supply Scope: 1 Unit of ABB CM30, Panel mounting clamps, Instruction manual, Bezel release tool, Cold junction thermistor | Applications: Deep Freezers, Display, Pastry Cabinet, Steam Bath Systems and Chillers, Pharmaceuticals, Laboratories, Manufacturing

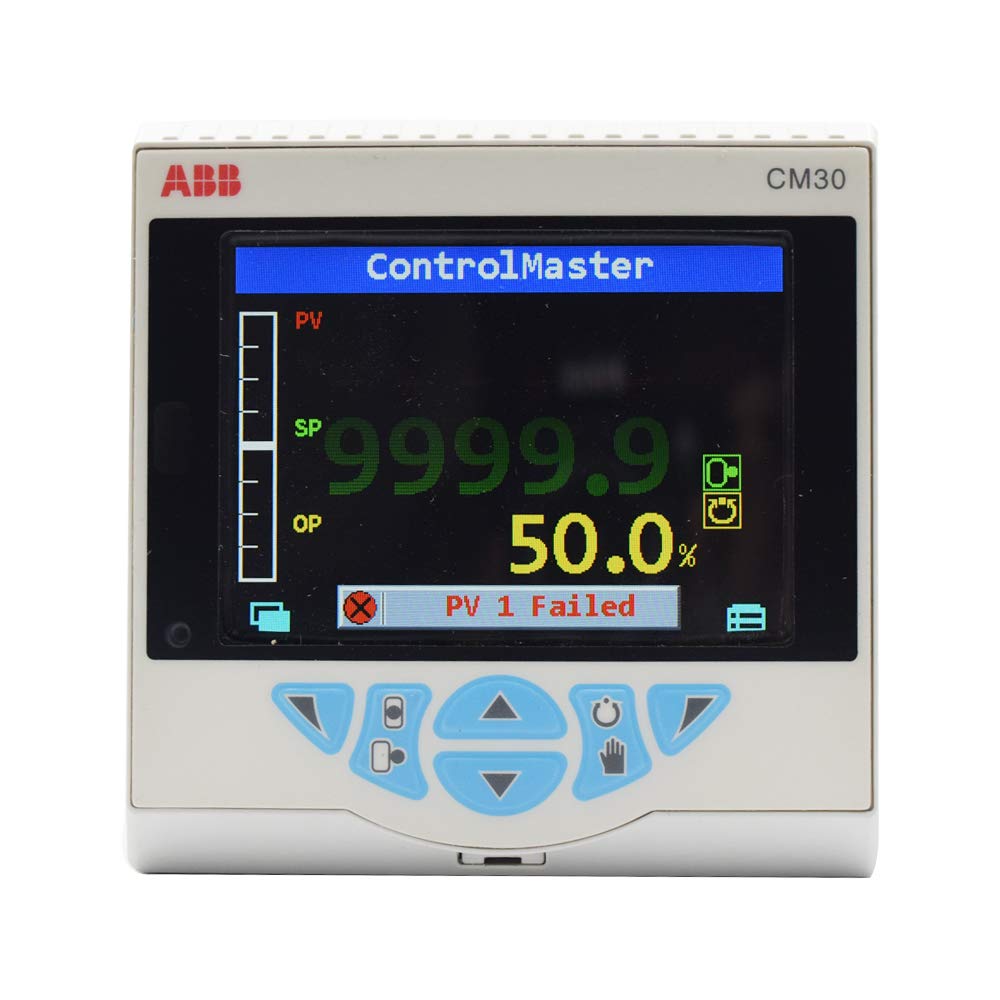

The ControlMaster CM30 is a flexible, 1/4 DIN, universal PID process controller that boasts a clear, full-color TFT display and an intuitive operator interface that simplifies configuration and operation.Highly scalable in both hardware and software functionality, a CM30 can be specified easily to meet the needs of virtually any process control application – simple or advanced. Powerful control functions such as adaptive control, math, logic and totalization provide problem-solving flexibility and make the CM30 suitable for a wide range of process applications.Fully configurable via the easy-to-navigate front panel menus or ConfigPilot configuration software, the CM30 can be commissioned rapidly and then tuned via the advanced autotune capability.Easy integration into a control system with MODBUS and Ethernet communication options.
