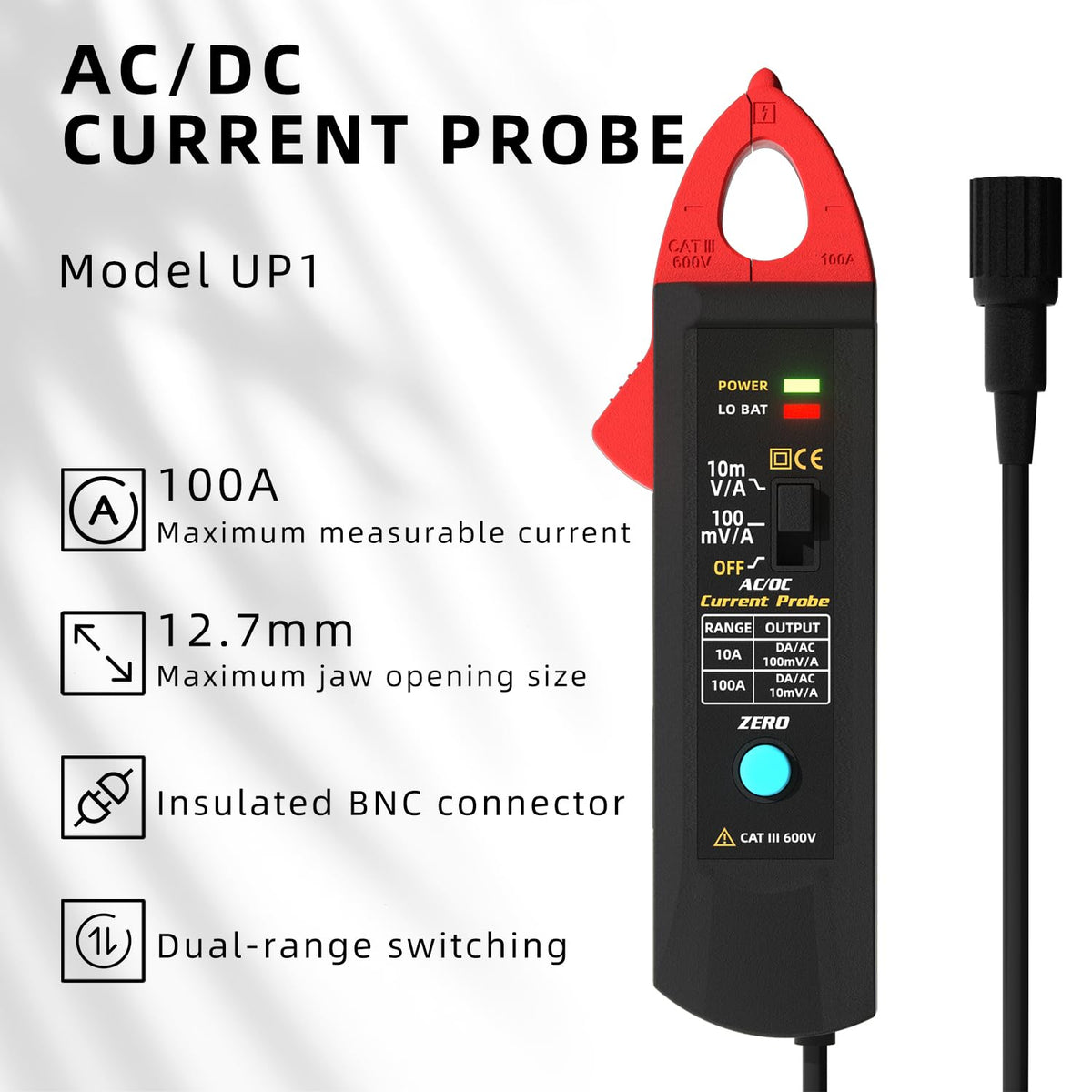

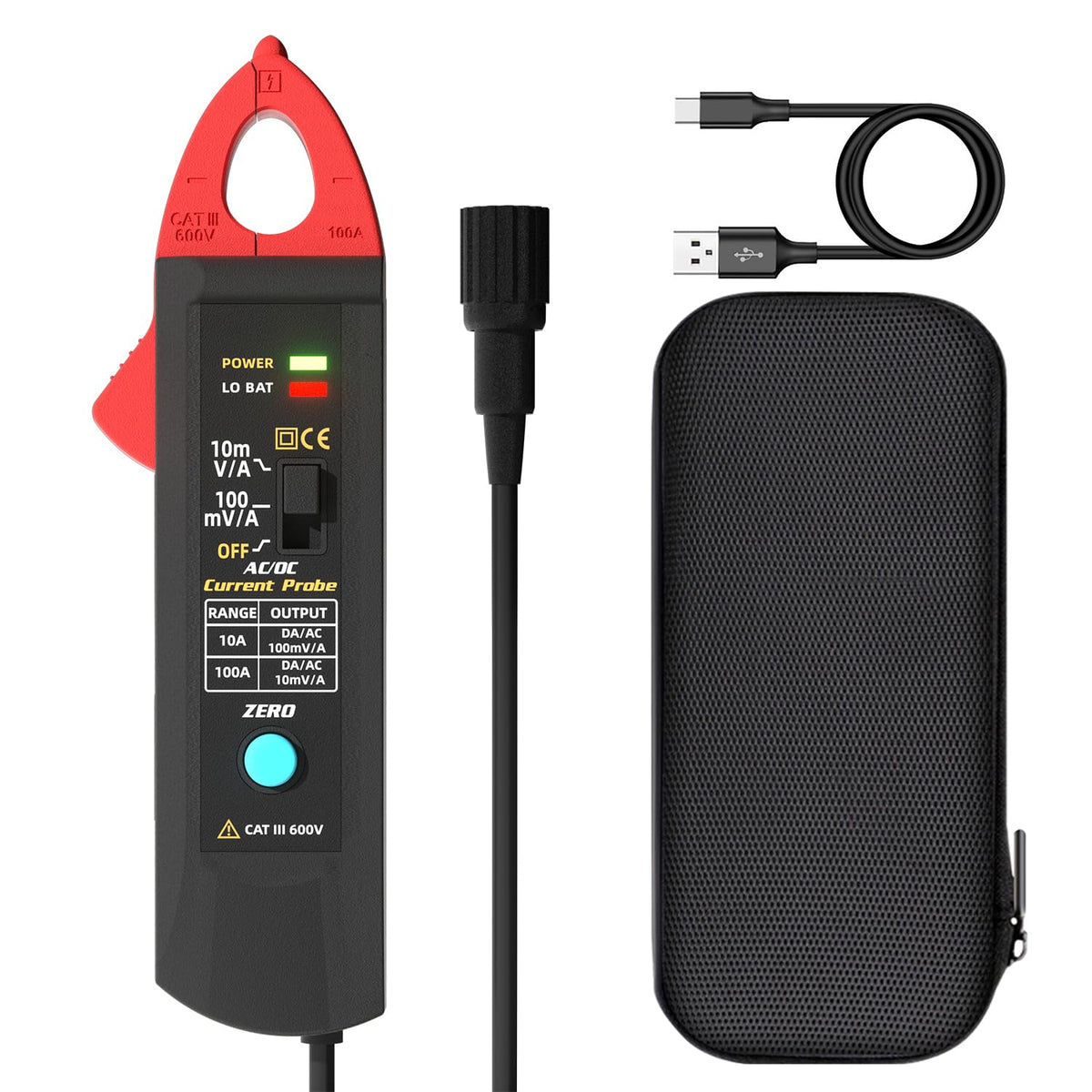

UP1 AC/DC Current Clamp Meter Transducer for Digital Oscilloscope 100A

Key features

• Current clamp AC/DC frequency range: Up to 20 kHz;
• Effective Measurement Range: 10mA to 100A AC/DC Current;

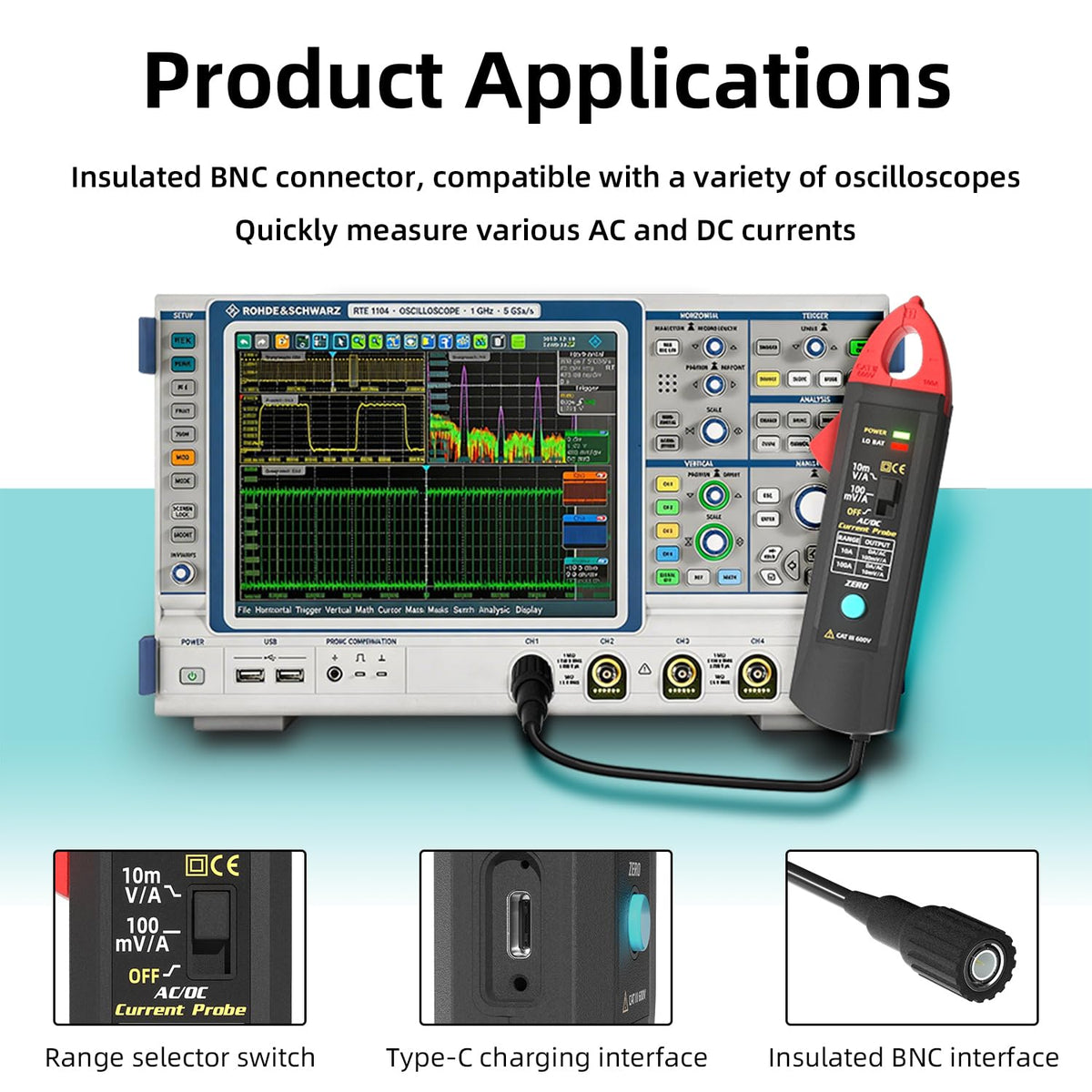

• The oscilloscope current probe is with Accurate circuit measurement and suitable for DSO;
• Amp clamp is Friendly in use: turn on, clamp it over a conductor, and get a reading;
• The current probe is with Output: BNC connector;

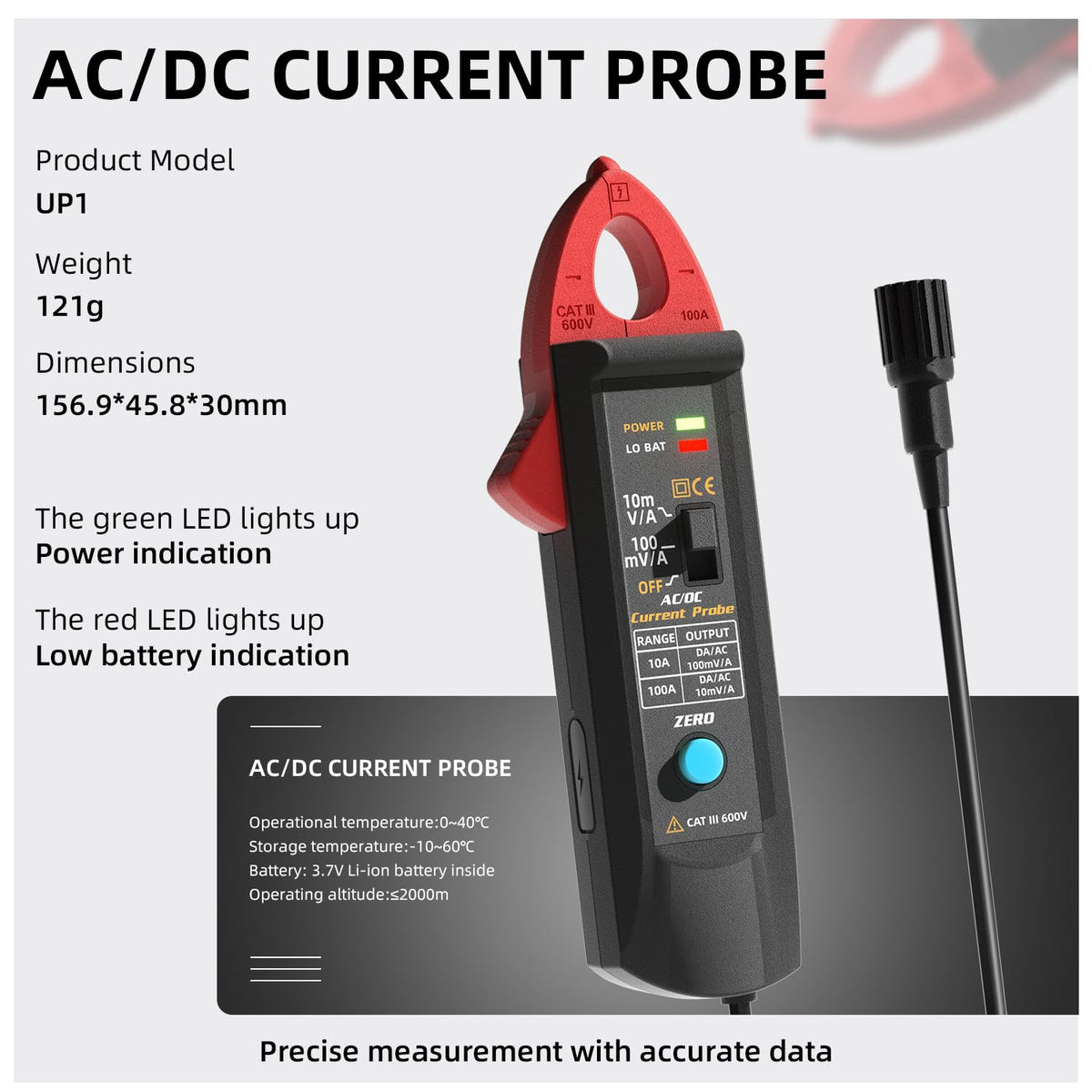

Features: Current clamp with BNC oscilloscope probe AC/DC frequency range: Up to 20kHz. Effective Measurement Range: 10mA to 100A DC/AC. Built-in 3.7V, 400mA lithium battery. It is a transducer which allows your meter to measure current data and enable your oscilloscope to measure the current waveforms. Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms. More than an automotive tool This is helpful in troubleshooting electrical issues in injectors, ignition coils, pumps and motors. With the jaw fully clamped around conductors, you can see how much power are drawing right from the clamp meter. Application Power circuit measurement and malfunction analysis; Motor drive of frequency converter (or other electronics) measurement; Power electronics equipments measurement. Specification: DC current: 100mV/A： 1mV-2V/10mA-20A/±(1.5%+1mV) 10mV/A： 1mV-400mV/100mA-40A/±(2%+1mV) 400mV-1V/40A-100A/±(4%+3mV) AC current: 100mV/A： 40Hz-2KHz/1mV-1V/10mA-10A/±(2%+3mV) 2KHz-10KHz/1mV-1V/10mA-10A/±(4%+3mV) 10KHz-
