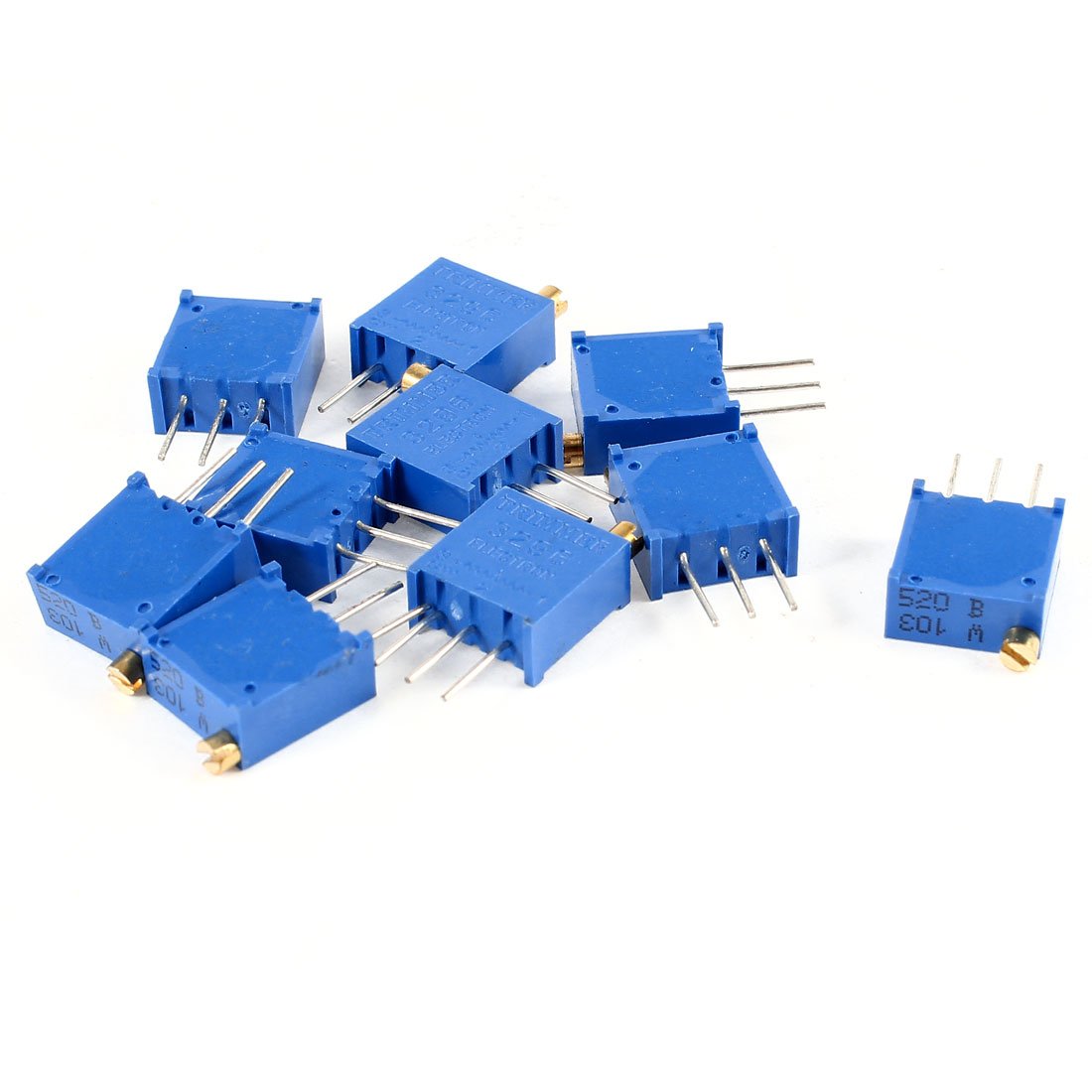

uxcell 10Piece 10K Ohm 3296W 3 Pins Trim Pot Trimmer Potentiometer

Key features

• Product Name : Trimming Potentiometer;Type : 3296W-103;Resistance : 10K ohm;Tolerance : +10%
• Absolute Minimum Resistance : < =1%;Contact Resistance Variation : < =3%;Insulation Resistance : > = 1G ohm at AC 100V;Withstand Voltage : AC 640V
• Power Rating ,315 volts mas : 0.5W at 70C, 0W at 125C;Temperature Range : -55C to +125C;Temperature Coefficient : +250%ppm/C;Temperature Variation : 55C, 30min, +125C
• Vibration : 10~500Hz, 0.75mm,6h;Collision : 390m/s², 4000cycles;Total Size : 9.5 x 5 x 17.5mm/0.37" x 0.2" x 0.69"(L*W*H)
• Color : Blue;Weight : 5g;Package Content : 10 x Trimming Potentiometer

A common element in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob. Cermet resistive material trimming potentiometer for device interior or printed circuit boards which adjustable the resistance less. Through hole dip mounting Type. Single turn design cermet potentiometer, square linear
