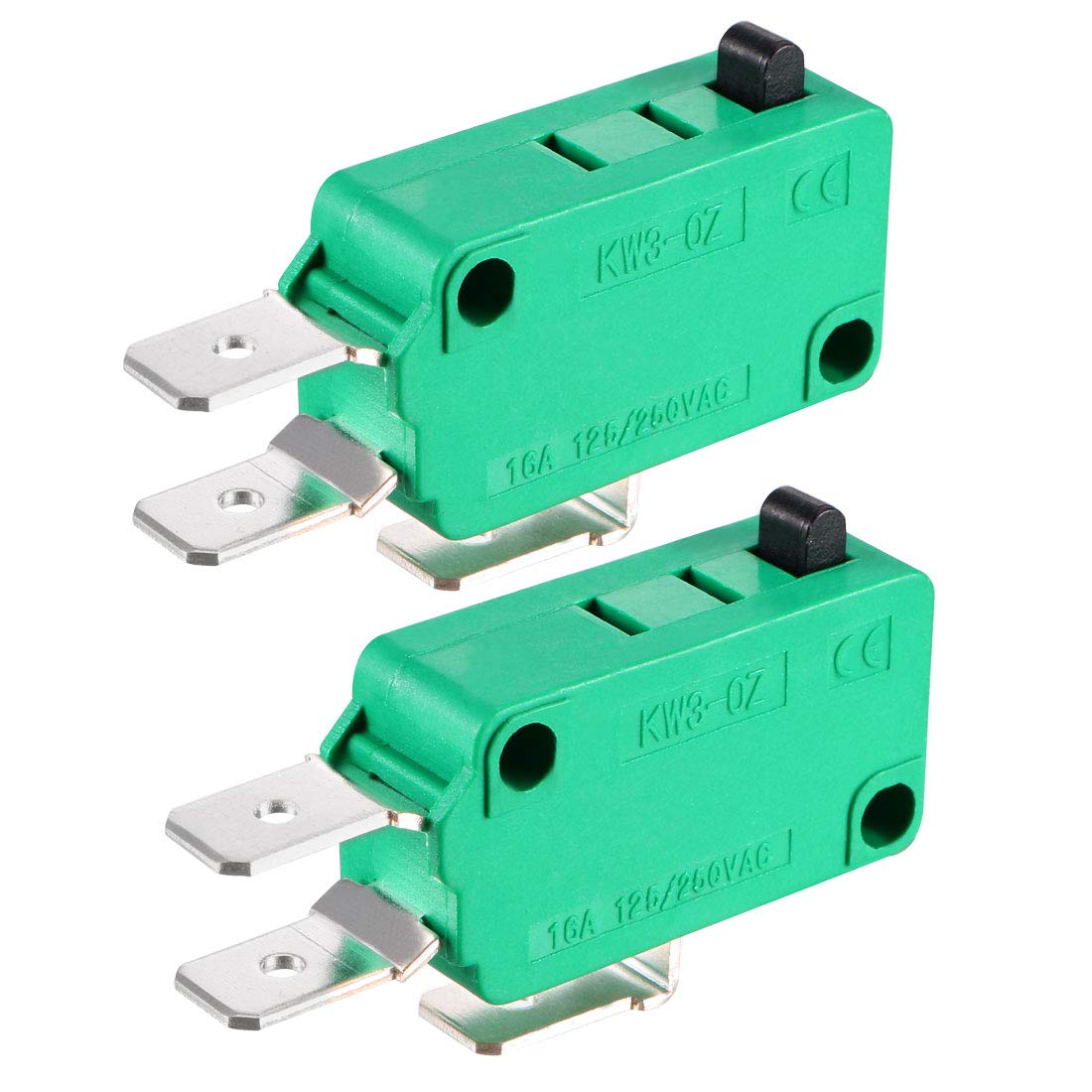

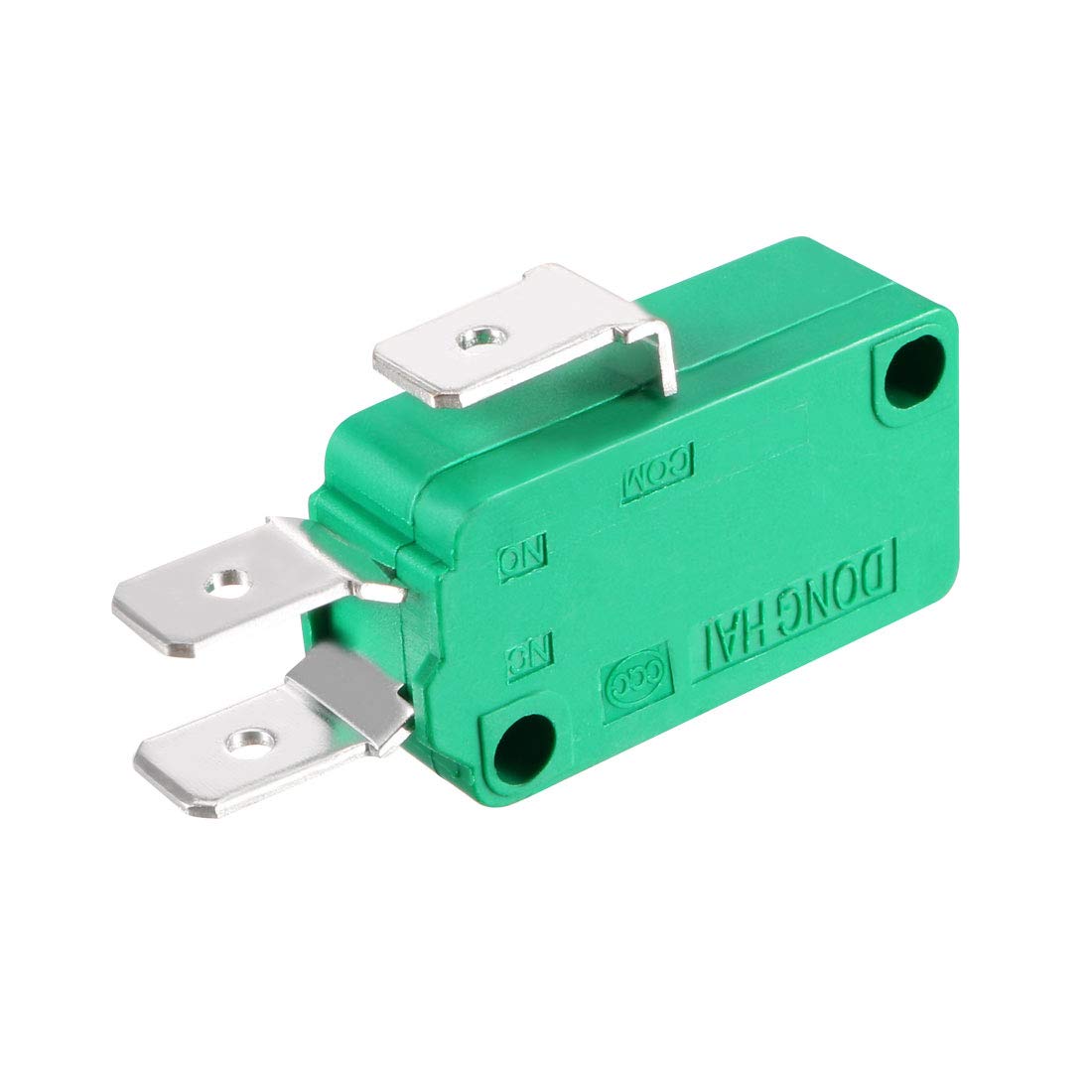

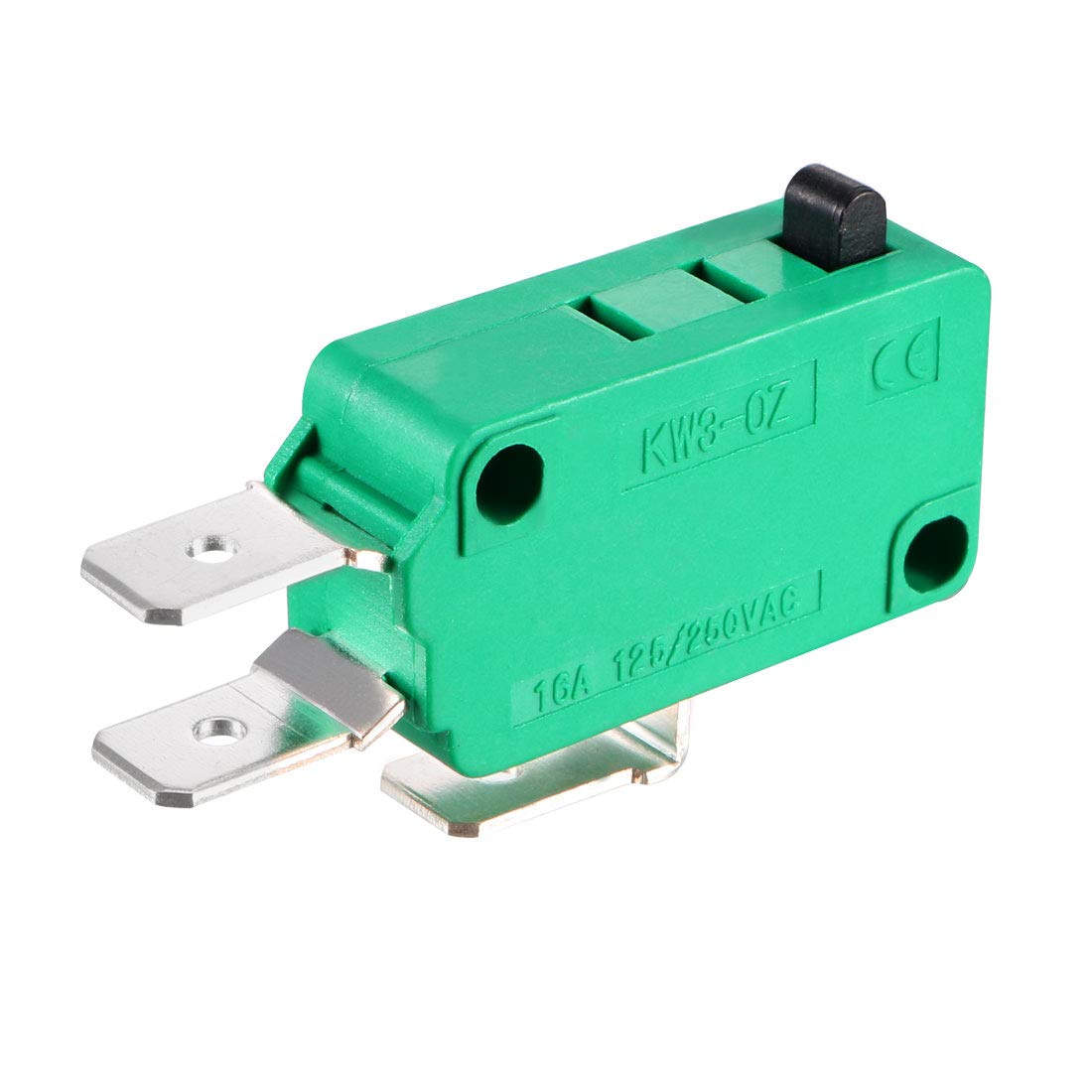

uxcell 2PCS KW3-OZ 16A 125/250VAC SPDT NO NC Push Button Action Type Micro Limit Switches

Key features

• Rating Load: 16A 125/250VAC. And the contact type is SPDT NO+NC
• 3 pins, applicable to AC DC control circuits.Reliable for years
• High precision design, use easily.Designed to control the movement of a mechanical part.
• IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
• Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...

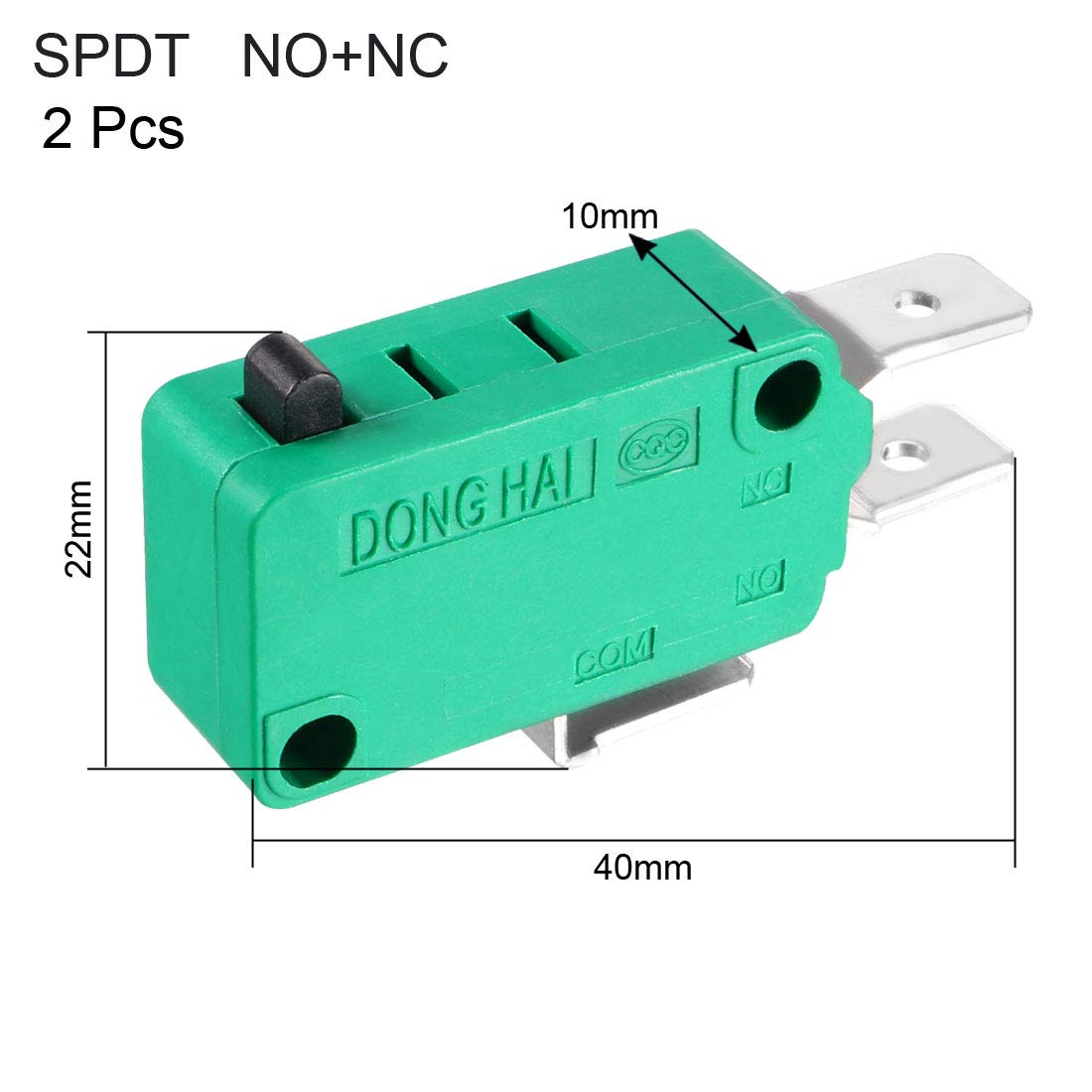

Features Adopt thermosetting plastic or thermoplastic; Offers long service and operations life. Small contact gap, snap sction, high sensitivity and small operatng travel Widly used in appliance, elctronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool etc... Specification Rating Load: 16A 125/250VAC Operation speed: 0.1mm-1m/s Contact resistance: 15m Ohm max. (initial) Insulation resistance: 100m Ohm min. (at DC500V) Dielectric strength: 1,000 VAC 50/60 Hz for 1minute Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical) Operating temperature: -25~+80°C Contact Form: SPDT NO+NC Pin number: 3 Overall size: 40x22x10mm/1.57x0.87x0.39inch(L*W*H) Total weight: 15g Package Content 2 x Microswitch
