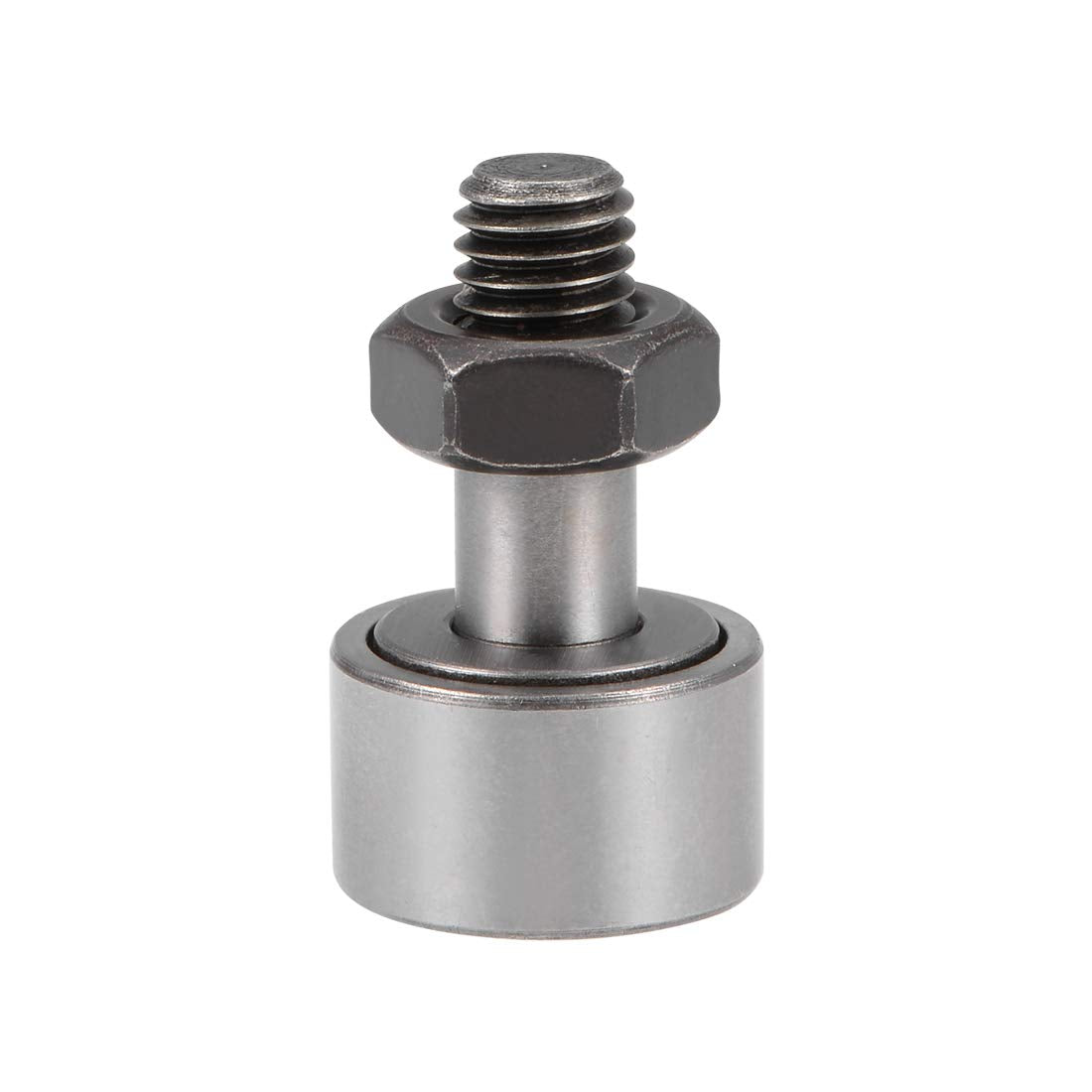

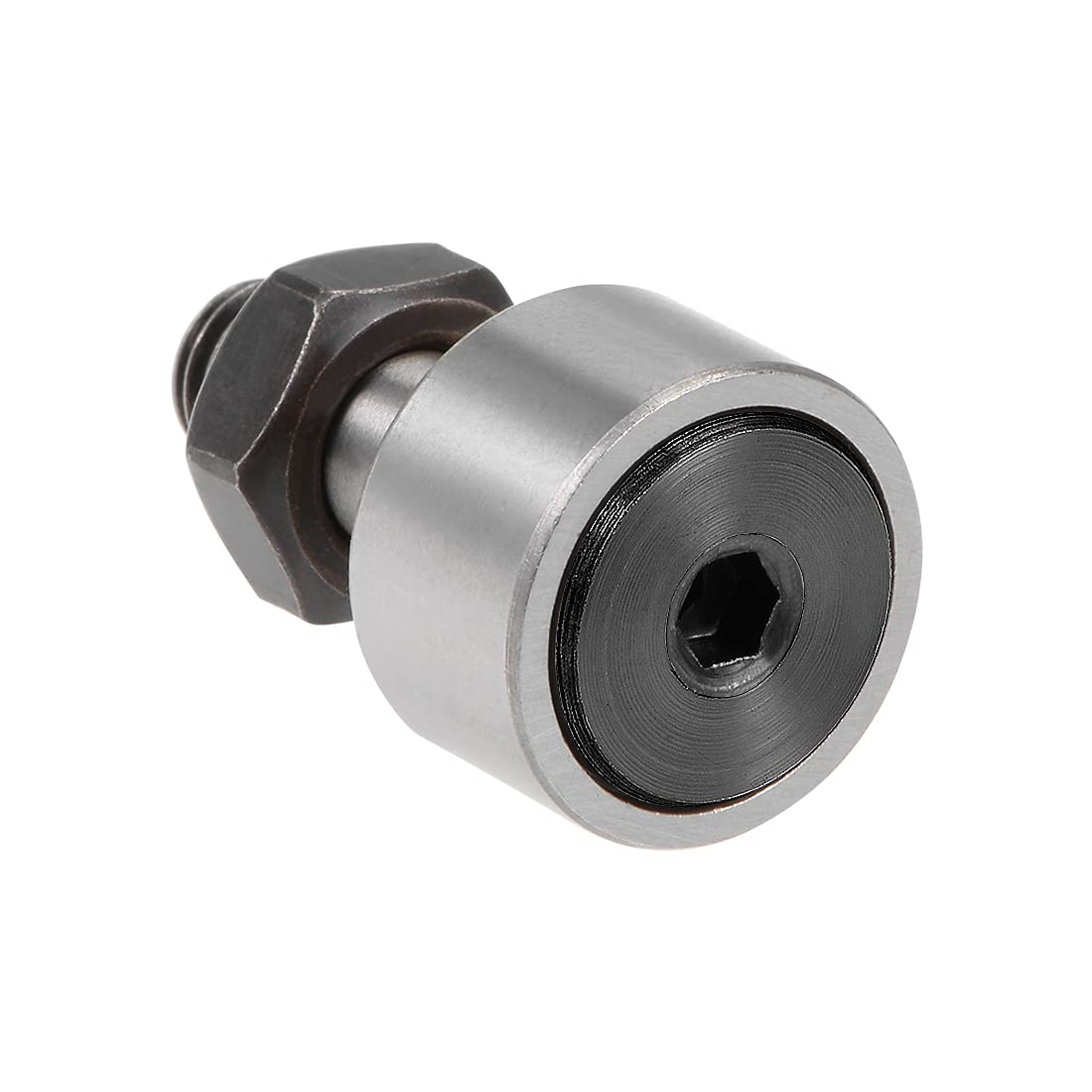

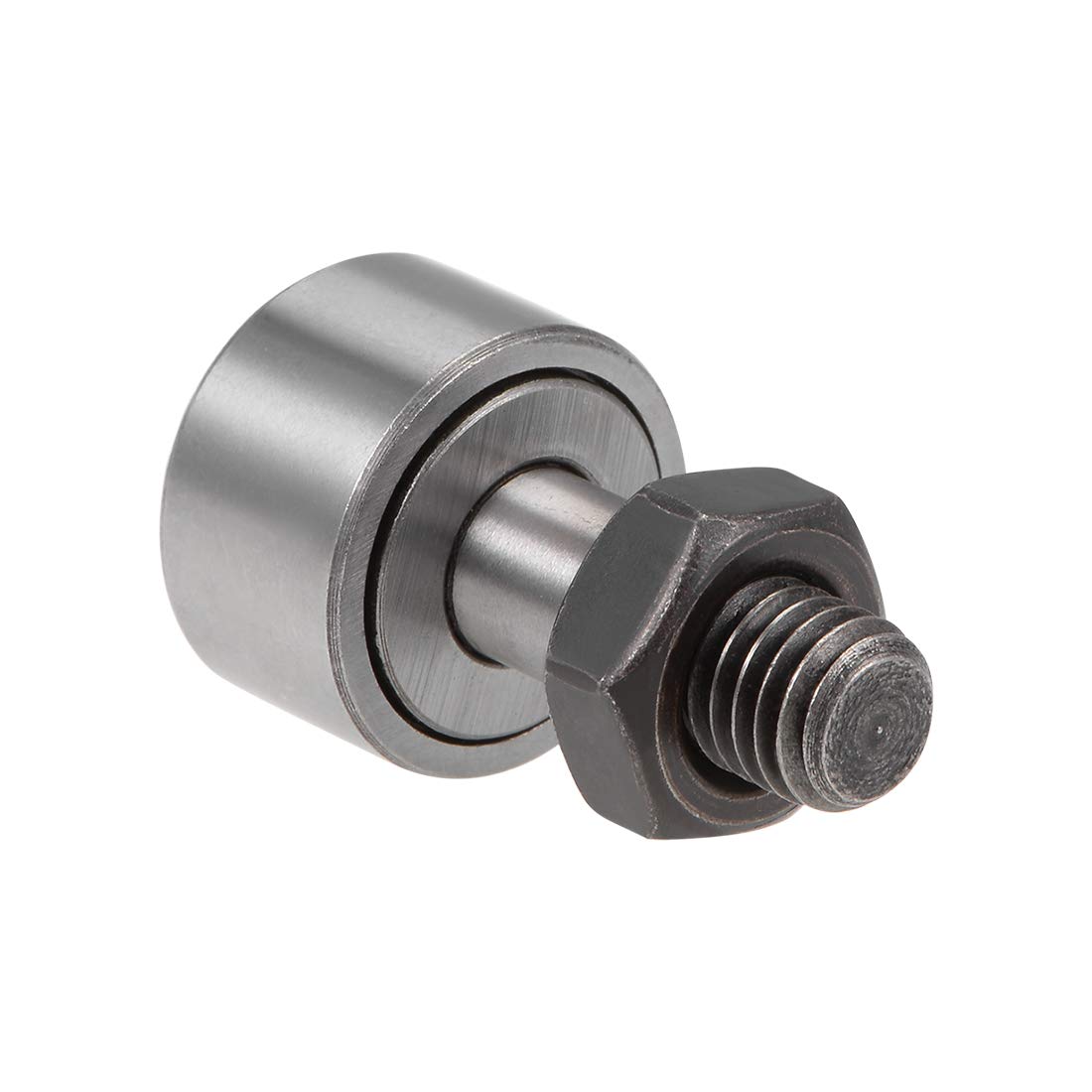

uxcell CF8 Cam Follower KR19 Needle Roller Bearing 19mm Roller Diameter

Key features

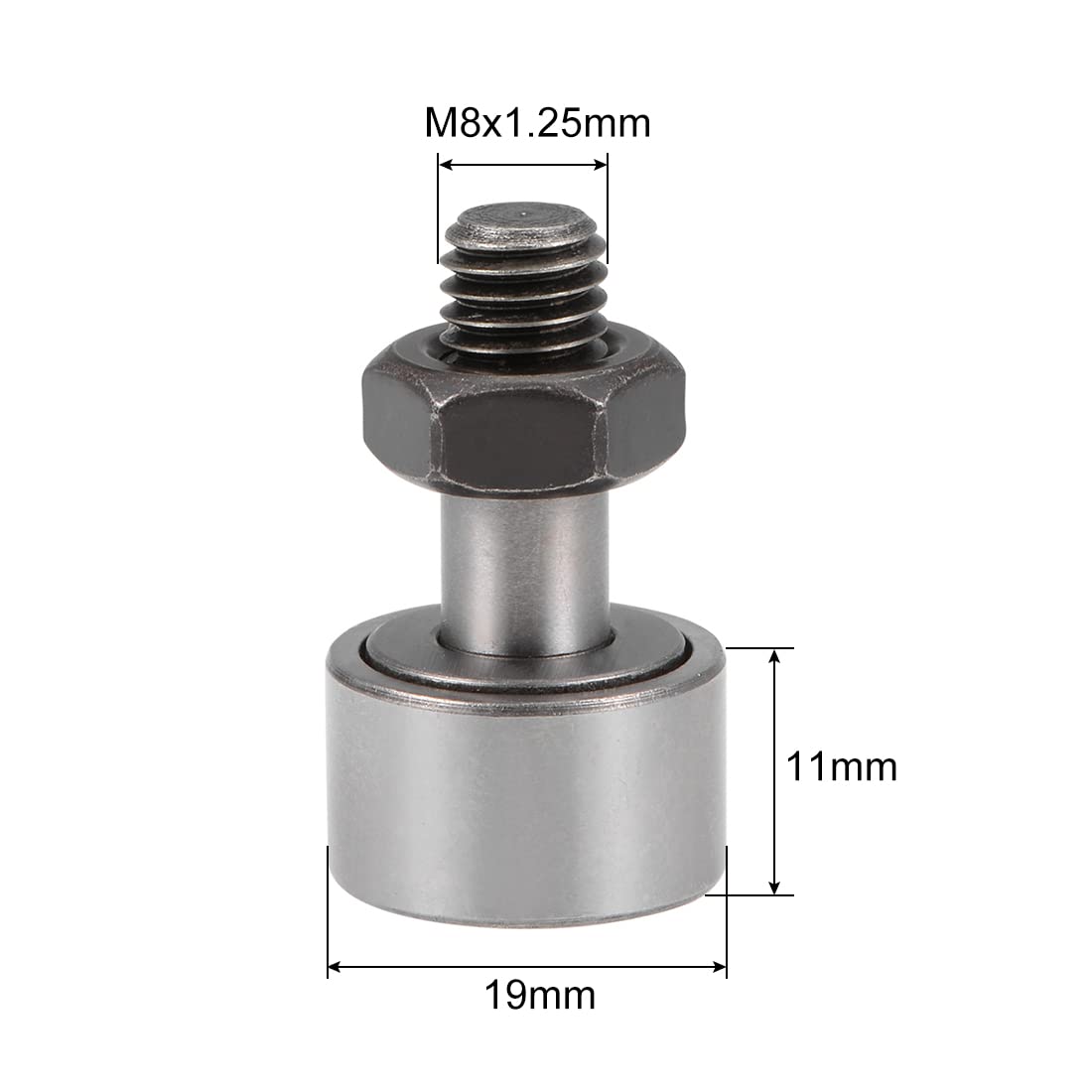

• CF8 (KR19) (Roller Dia.: 19mm; Roller Width: 11mm; Stud Diameter: 8mm; Thread Size: M8x1.25mm)
• Cam follower with needle rollers supports high static and dynamic loads in cam- and track-type applications
• Made of high rigidity bearing steel, more durable and longer working life
• Solid sealed. Preventing the entry of foreign matters like dust, this would extend the life of needle roller bearing
• It particularly suitable for the occasions when the radial space is limited

Description: -A cam follower, also known as a track follower, is a specialized type of roller or needle bearing designed to follow cam lobe profiles. -The thick-walled outer ring enables high radial loads, while reducing distortion and bending stresses. -The stud type follower replaced using a standard bearing and bolt. They are easier to use and could also handle higher loads. -Cam followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery. -Cam followers are used as a guide roller for cam mechanisms or linear motion. Specification： Model: CF8 (KR19) Bearing Material: GCr15 Steel Cage Material: Mild Steel Roller Diameter: 19mm Roller Width: 11mm Stud Diameter: 8mm Stud Length: 20mm Thread Size: M8x1.25mm Thread Length: 10mm Overall Length (Max.): 32.2mm Dynamic Load Rating (Cr): 0.3kN Static Load Rating (Cor): 0.21kN Limited Speed: 20000 rpm
