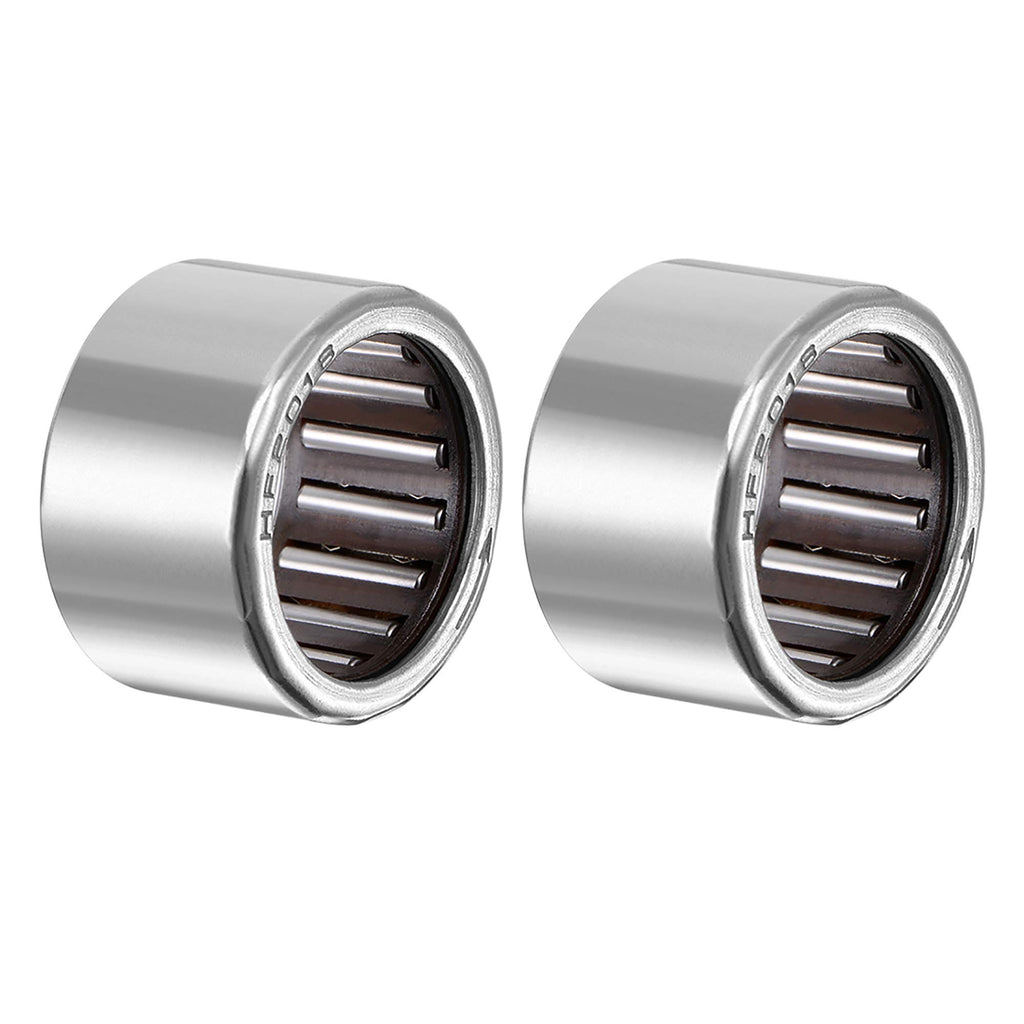

uxcell Needle Roller Bearings 20mm Bore 26mm OD 16mm Width 2pcs
uxcell Needle Roller Bearings 20mm Bore 26mm OD 16mm Width 2pcs
Key features
- Size: (I.D. (Fw)= 20mm, O.D. (D)= 26mm, Width (C)= 16mm)

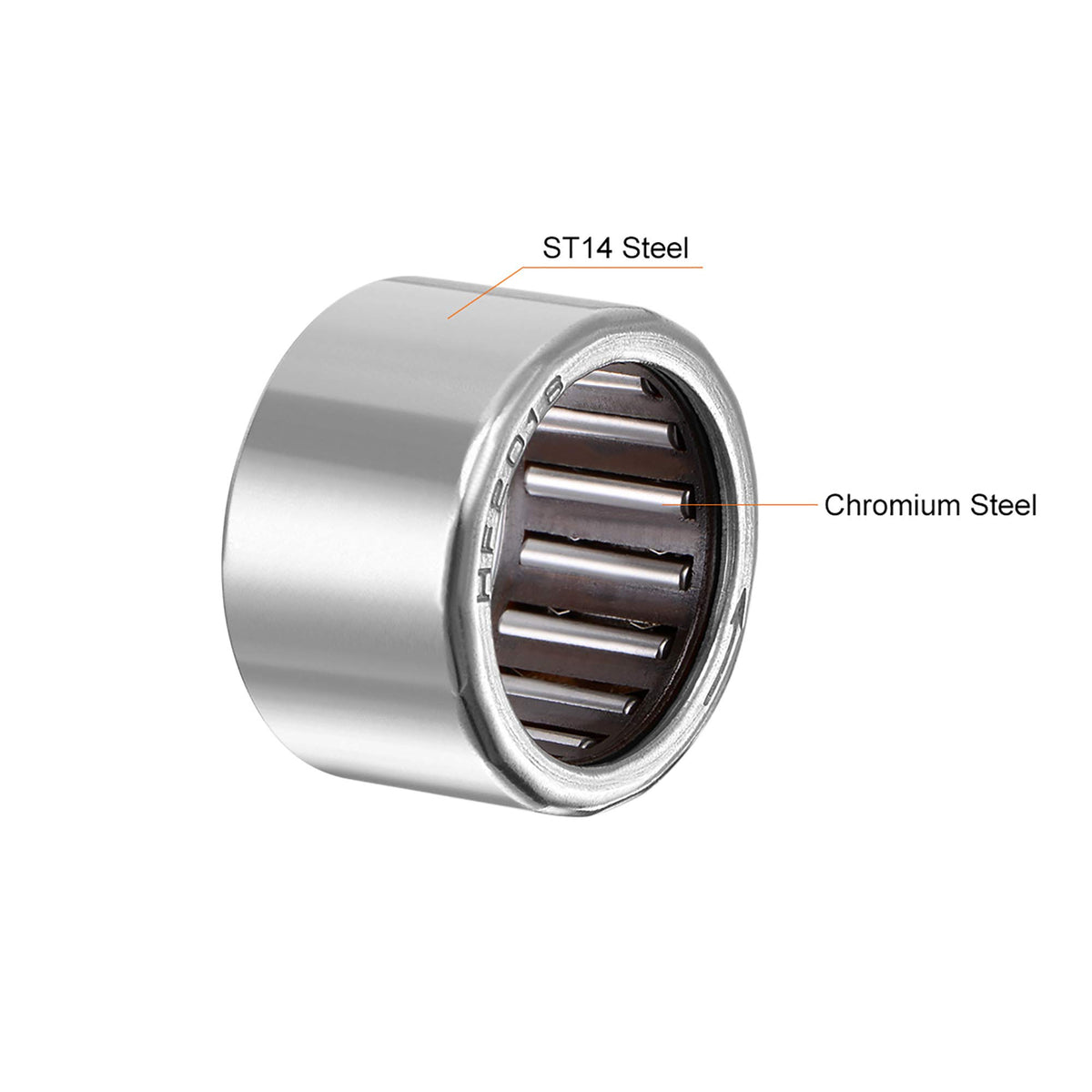

- ST14 steel drawn cup, GCr15 needle rollers one way clutch
- Good heat tolerance, high load carrying capacity and stiffness
- Low cross section, enable downsizing and suit for use in restricted mounting spaces
- Pre-Lubricated. Good running properties
Specification: Drawn Cup Material: ST14 Steel Needle Roller Material: Chromium Steel (GCr15) Bore Diameter (Fw): 20mm Outside Diameter (D): 26mm Width: 16mm Torque: 28.5N*m Rotating Shaft Limiting Speed: 7000rpm Rotating Outer Ring Limiting Speed: 6500rpm Number of Pack: 2 Pcs Description: -Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness. -These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing. -Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore. -For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others. -NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation.
Free shipping on orders $50+. 30-day hassle-free returns.
