uxcell NTA1625 Thrust Needle Roller Bearings with Washers 1" Bore 1-9/16" OD 5/64" Width 2pcs

Key features

• [Model] - Bearing Model: NTA1625 (I.D.=1", O.D.=1-9/16", Thickness=5/64"); Washer Model: TRA1625
• [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
• [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
• [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
• [CAPABILITY] - 67.8kN Static Load Capacity, 13.8kN Dynamic Load Capacity, 7000RPM Maximum Rotational Speed

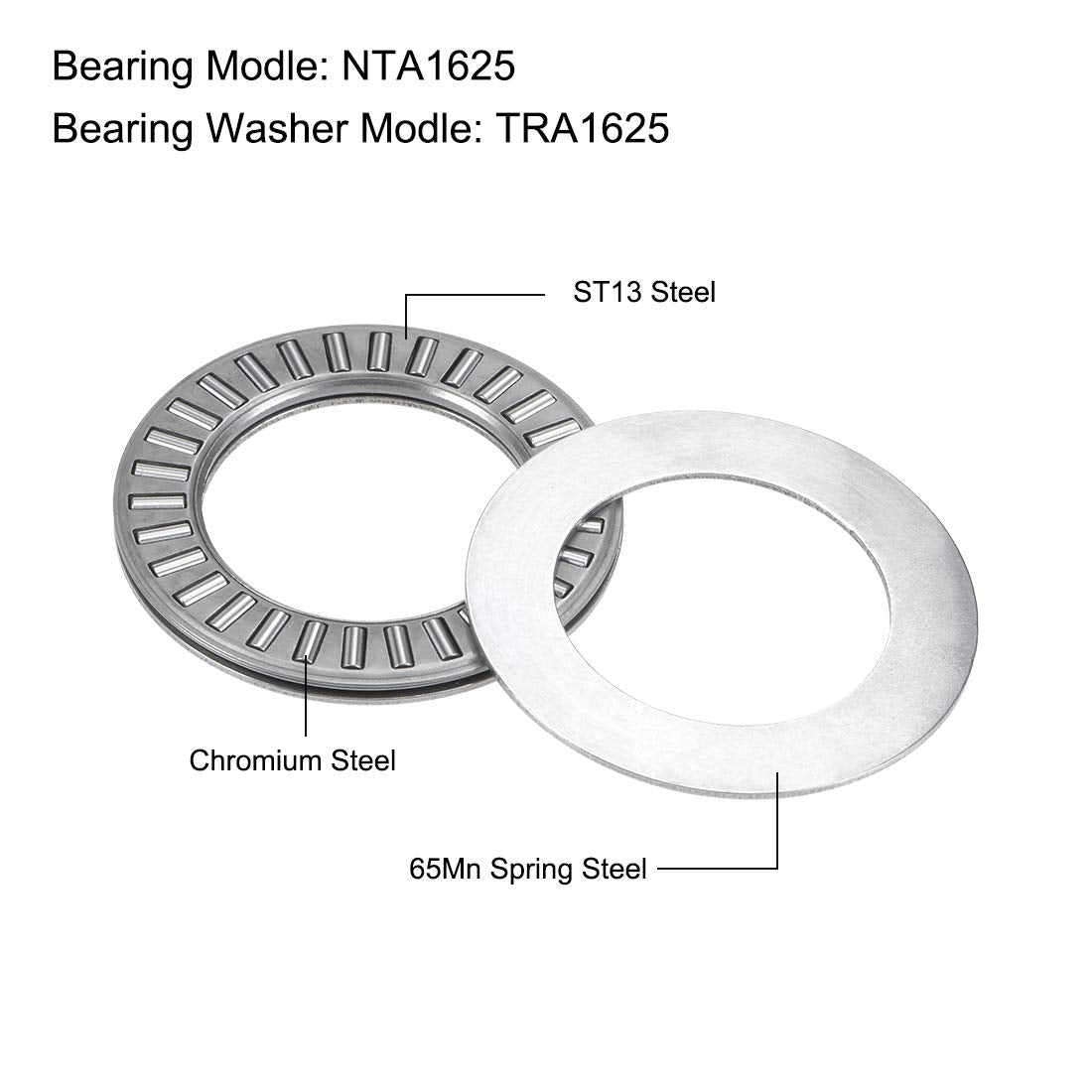

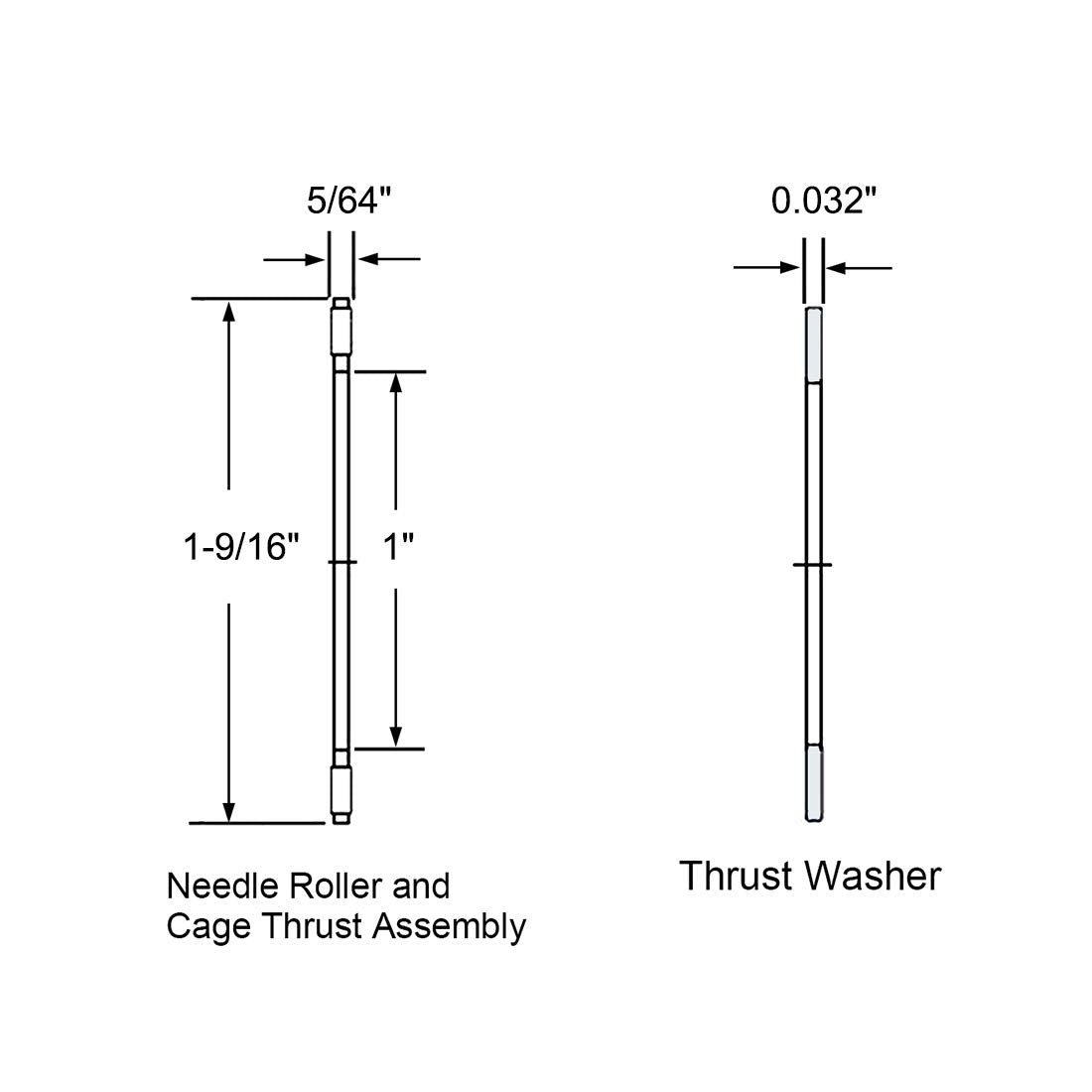

Description: Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces. These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly. AXK Thrust Bearings can be combined with washers in the TRA series in applications where adjacent components cannot serve as raceways. Made of hardened spring steel, both faces of the washers are polished and can be used as raceways. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others. Specification: Bearing Model: NTA1625 Bearing Washer Model: TRA1625 Needle Roller Material: Chromium Steel (GCr15) Cage Material: ST13 Steel Bearing Washer Material: 65Mn Spring Steel Bore Diameter (d): 1" Outside Diameter (D): 1-9/16" Bearing Thickness (T1): 5/64" Washer Thickness (T2): 0.032"(Approx.) Dynamic Load Capacity (Cr): 13.8kN Static Load Capacity (Cor): 67.8kN Limiting Speed (Oil): 7000RPM Package Contents: 2 x Bearings
