uxcell NTA2233 Thrust Needle Roller Bearings with Washers 1-3/8" Bore 2-1/16" OD 5/64" Width

Key features

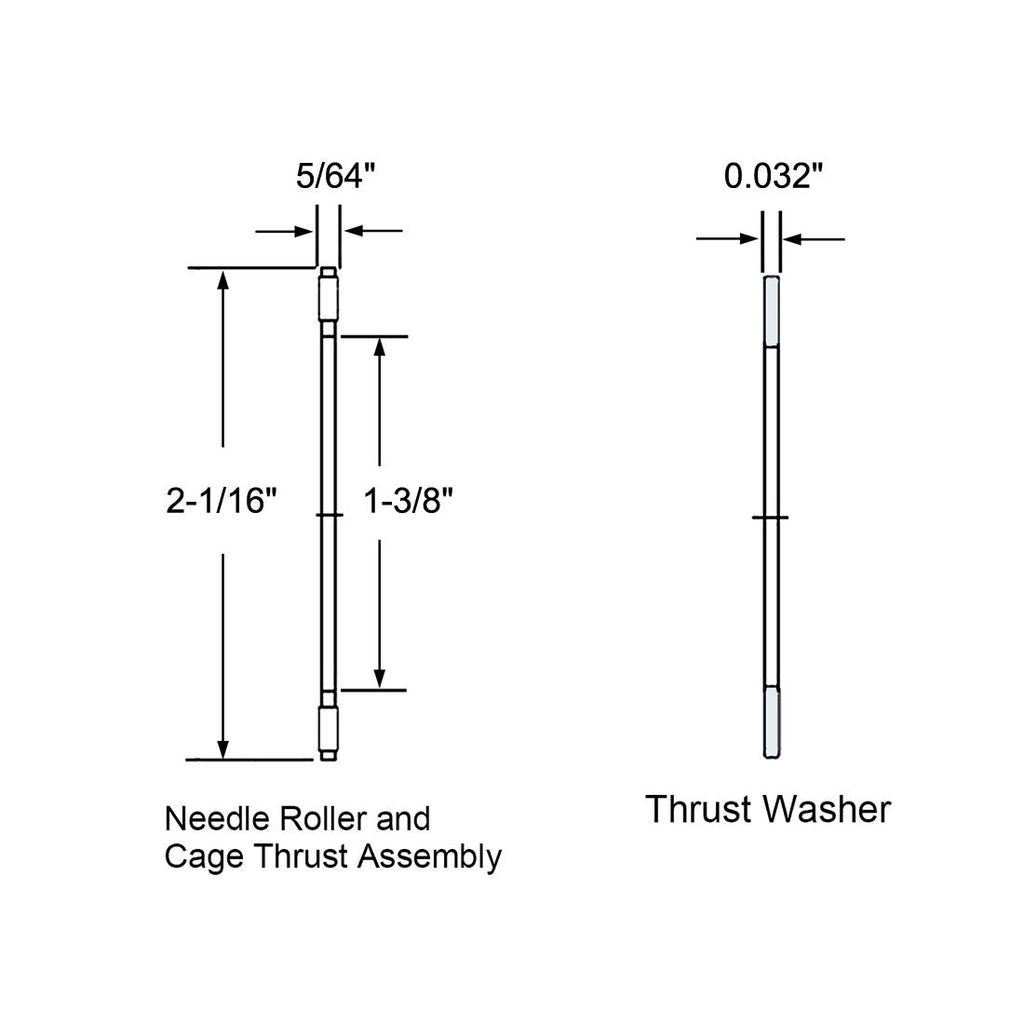

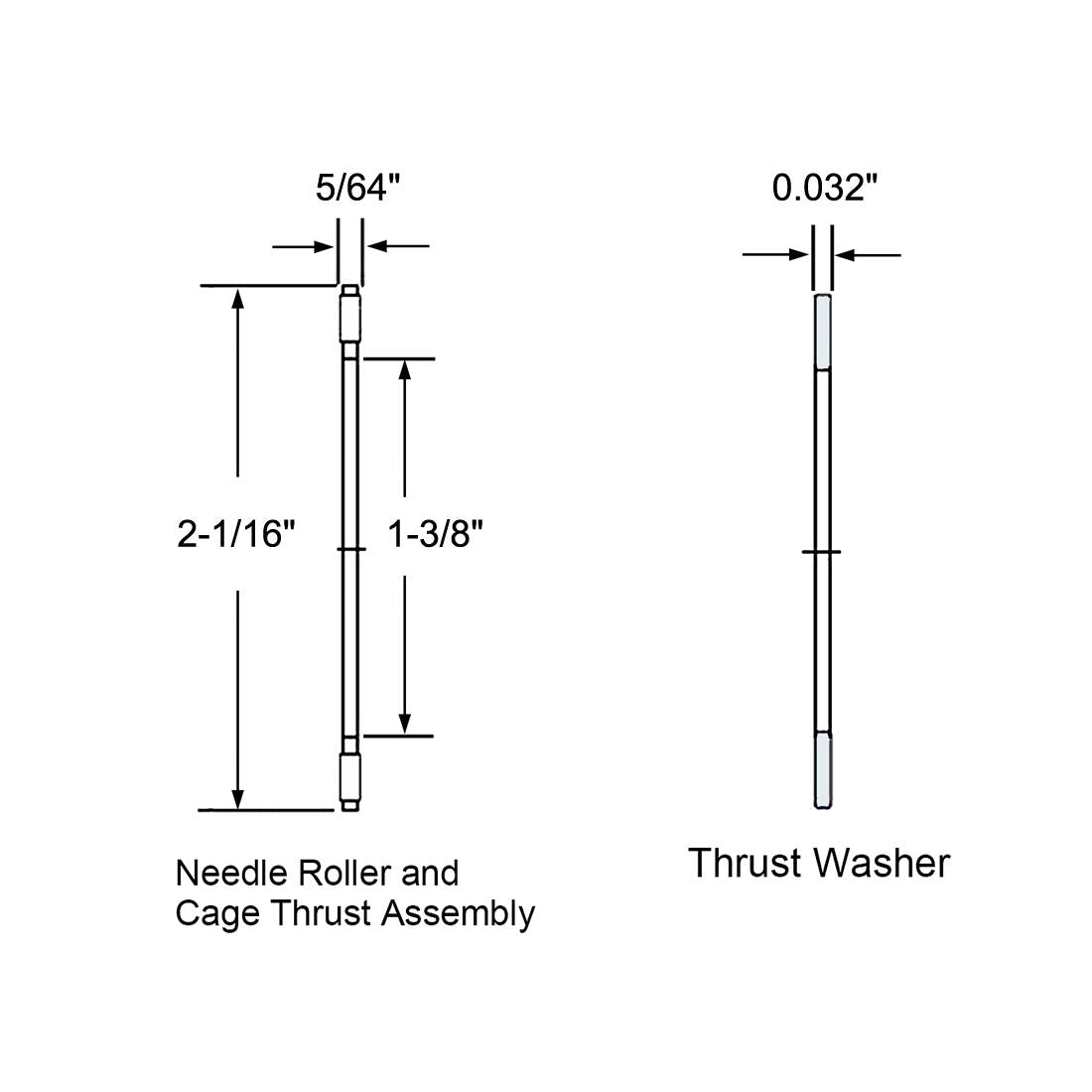

• [MODEL] - Bearing Model: NTA2233 (I.D.=1-3/8-inch, O.D.=2-1/16-inch, Bearings Thickness(T1)=5/64-inch; Washer Thickness (T2): 0.032-inch(Approx.)); Washer Model: TRA2233
• [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
• [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only

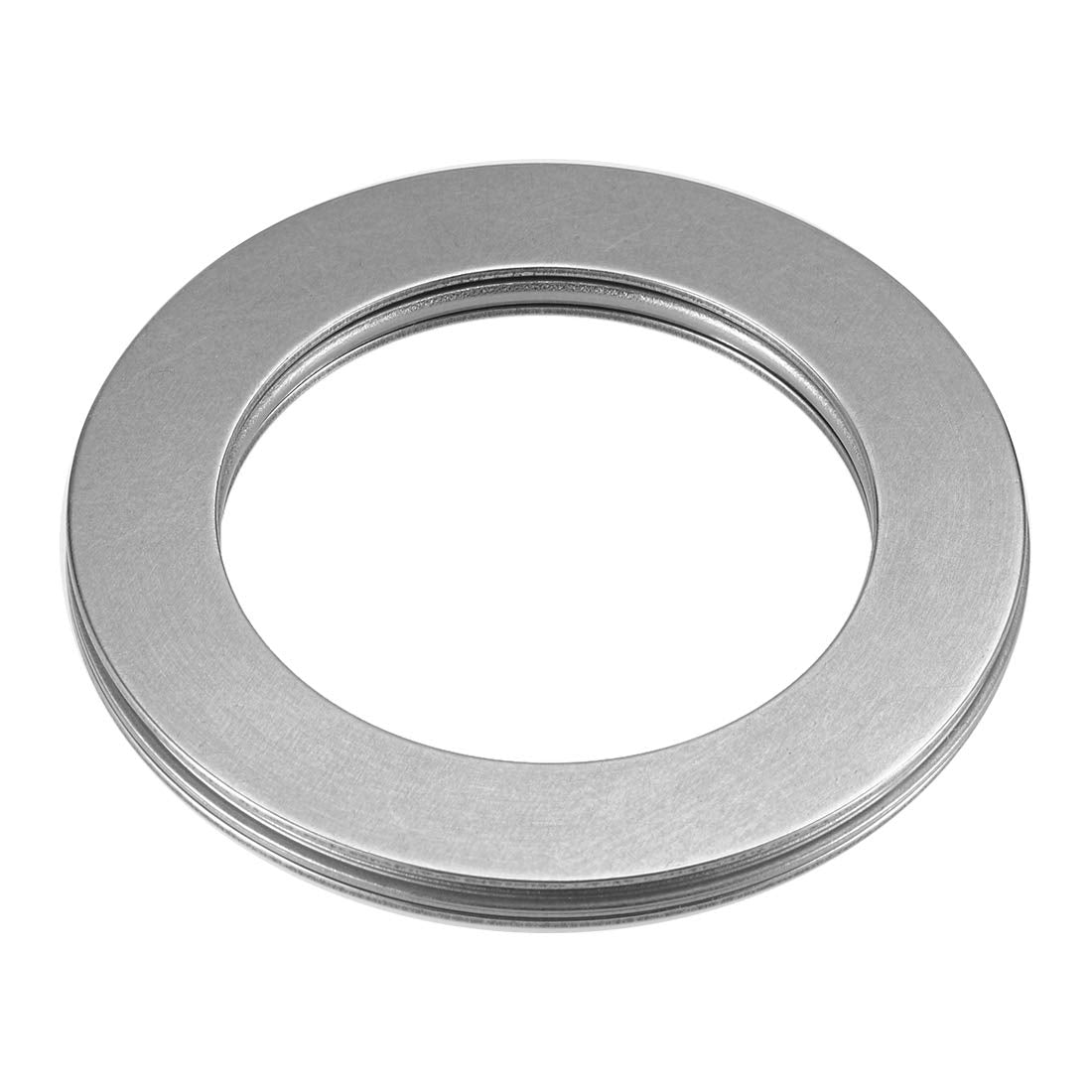

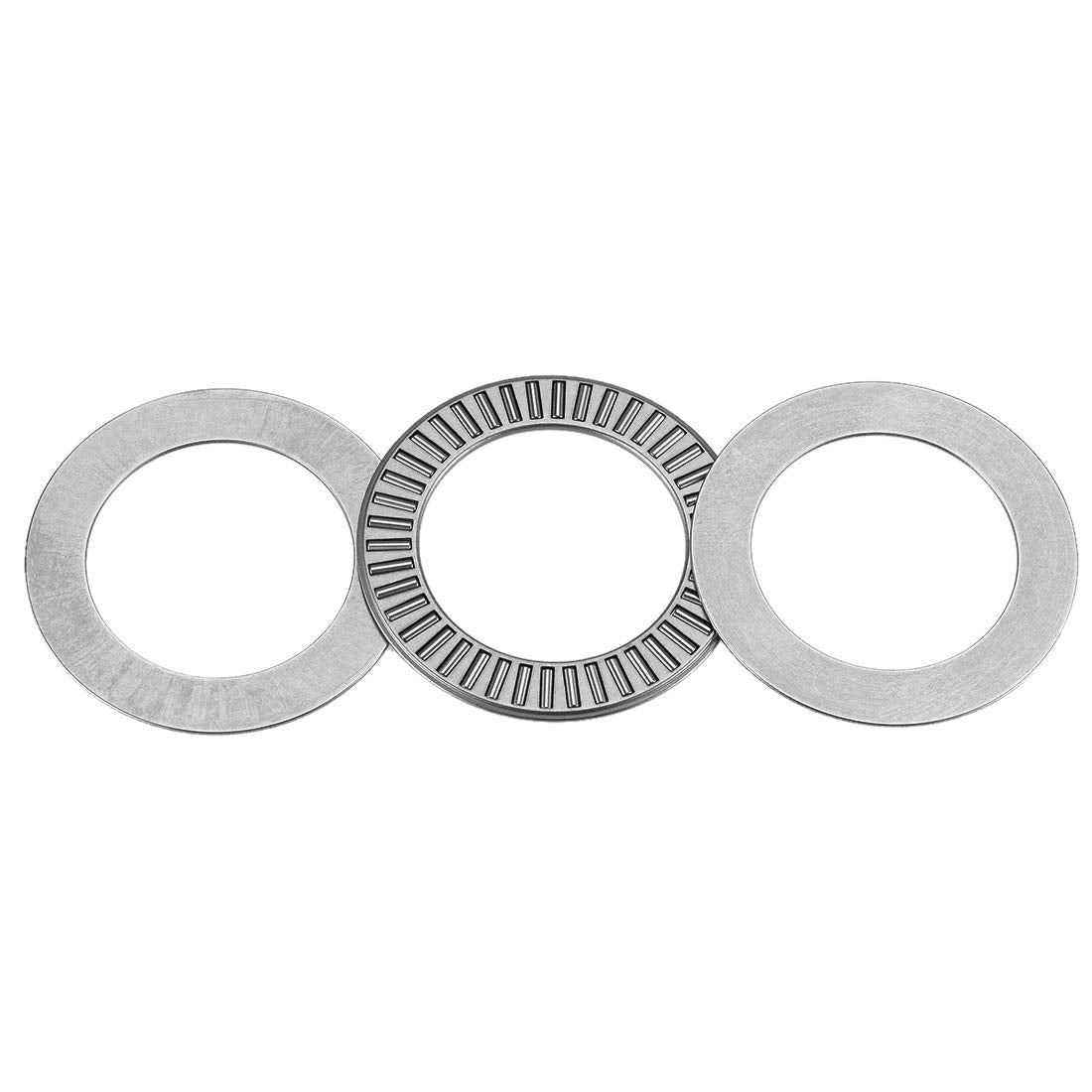

• [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
• [CAPABILITY] - 17400N Static Load Capacity, 89400N Dynamic Load Capacity, 8200RPM Maximum Rotational Speed

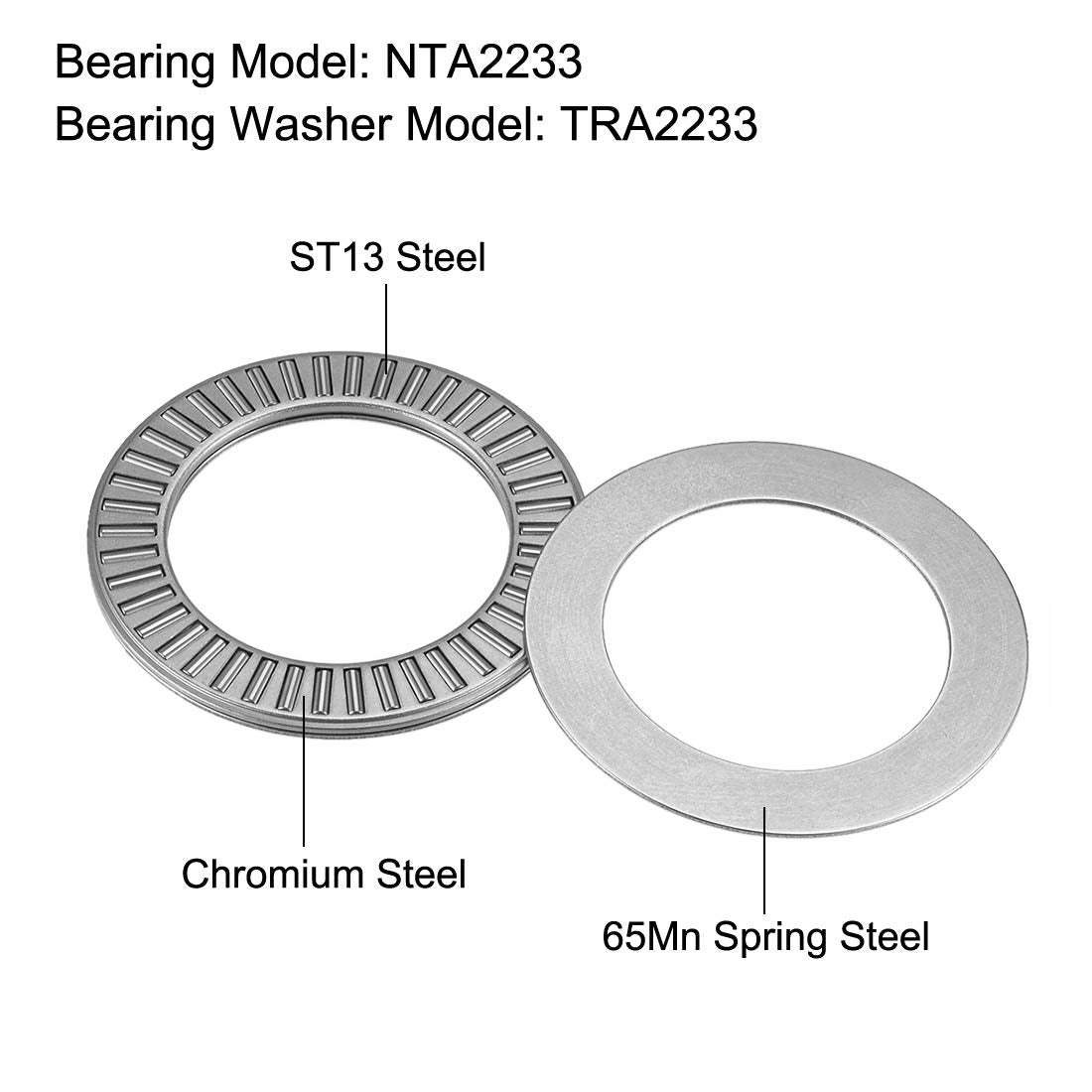

Description: Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces. These bearings to accommodate heavy axial loads and peak loads due to the small diameter deviation of the rollers within one assembly. NTA Thrust Bearings can be combined with washers in the TRA series in applications where adjacent components cannot serve as raceways. Made of hardened spring steel, both faces of the washers are polished and can be used as raceways. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others. Specification: Bearing Model: NTA2233 Bearing Washer Model: TRA2233 Needle Roller Material: Chromium Steel (GCr15) Cage Material: ST13 Steel Bearing Washer Material: 65Mn Spring Steel Bore Diameter (d): 1-3/8-inch Outside Diameter (D): 2-1/16-inch Bearing Thickness (T1): 5/64-inch Washer Thickness (T2): 0.032-inch (Approx.) Dynamic Load Capacity (Cr): 17400N Static Load Capacity (Cor): 89400N Limiting Speed (Oil): 8200RPM Packa
