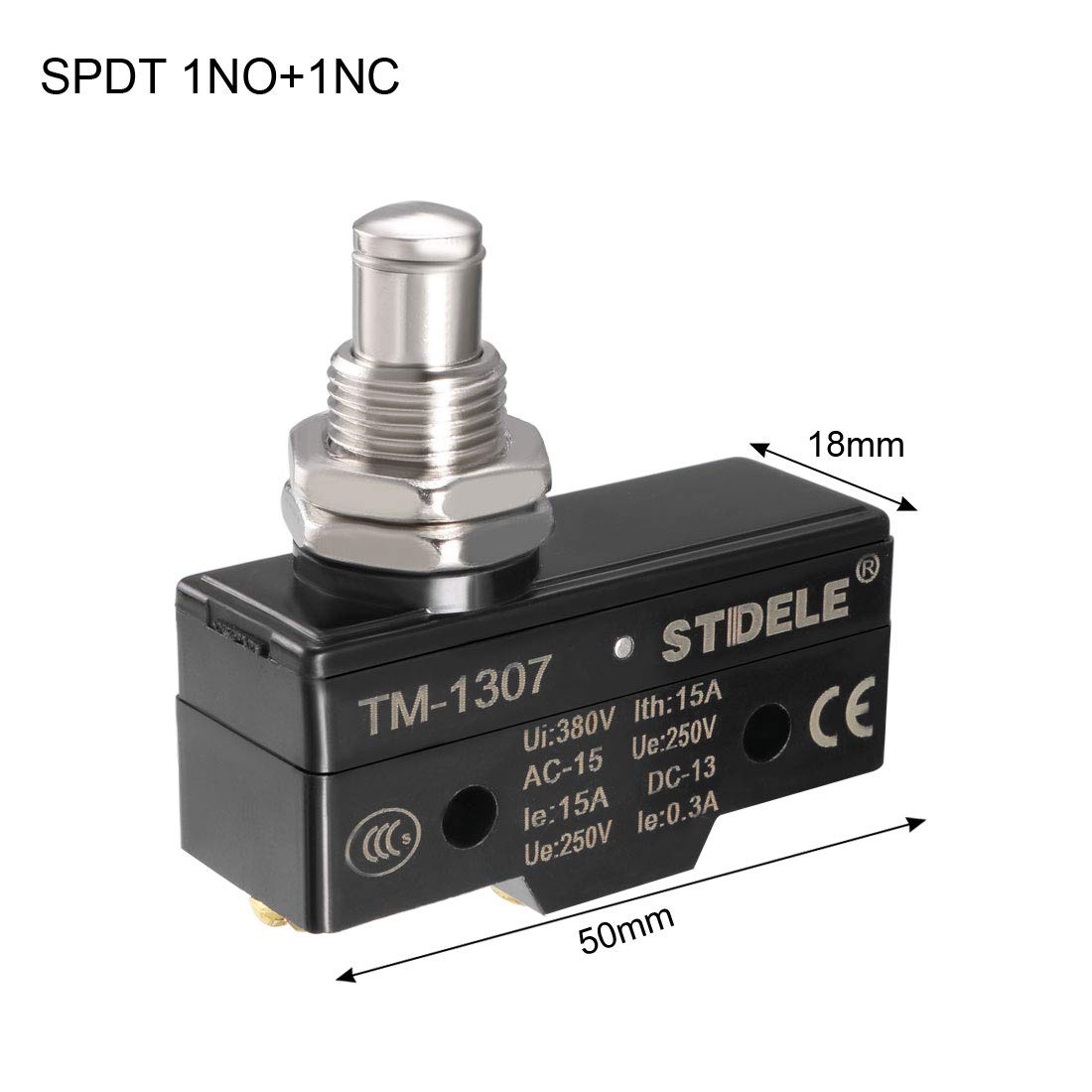

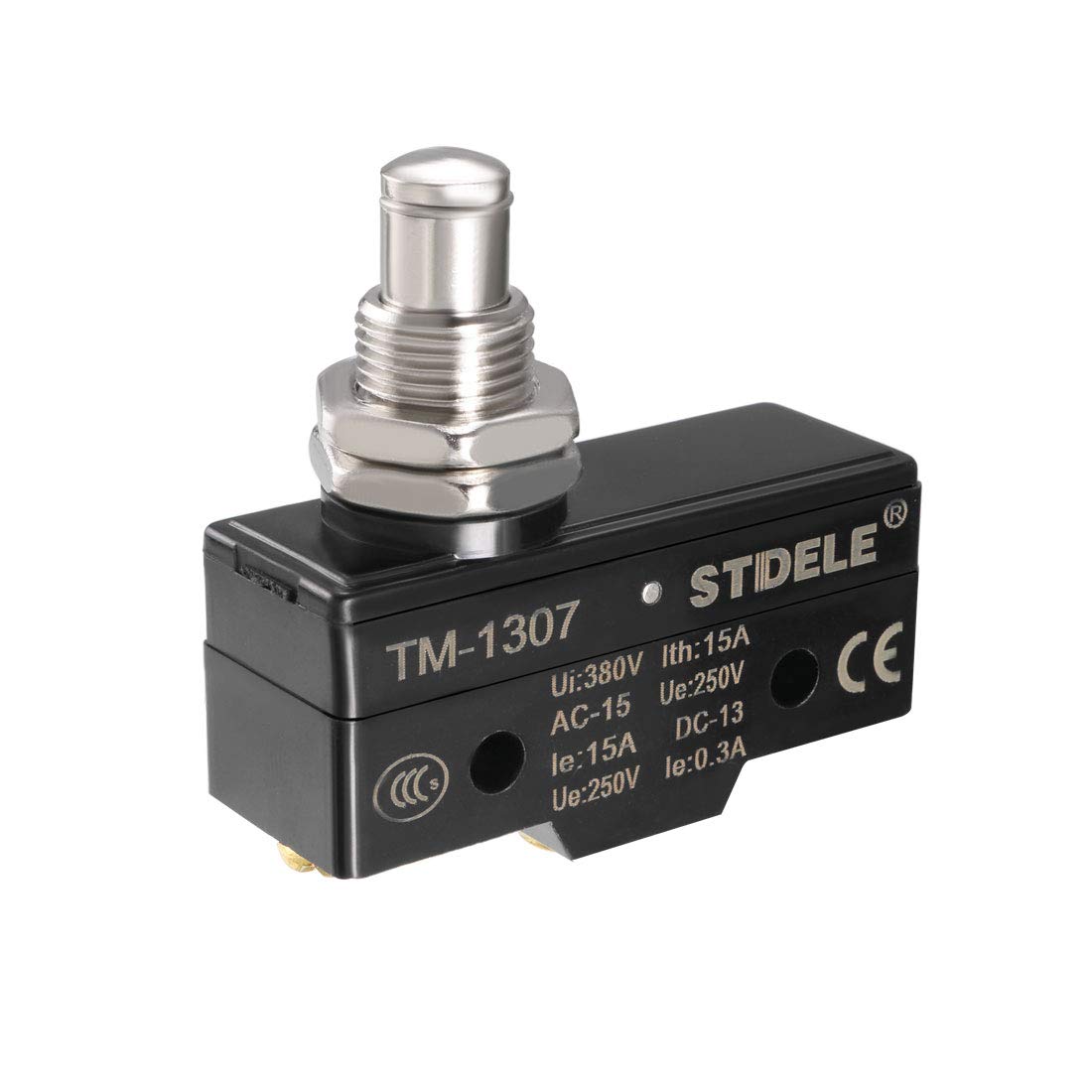

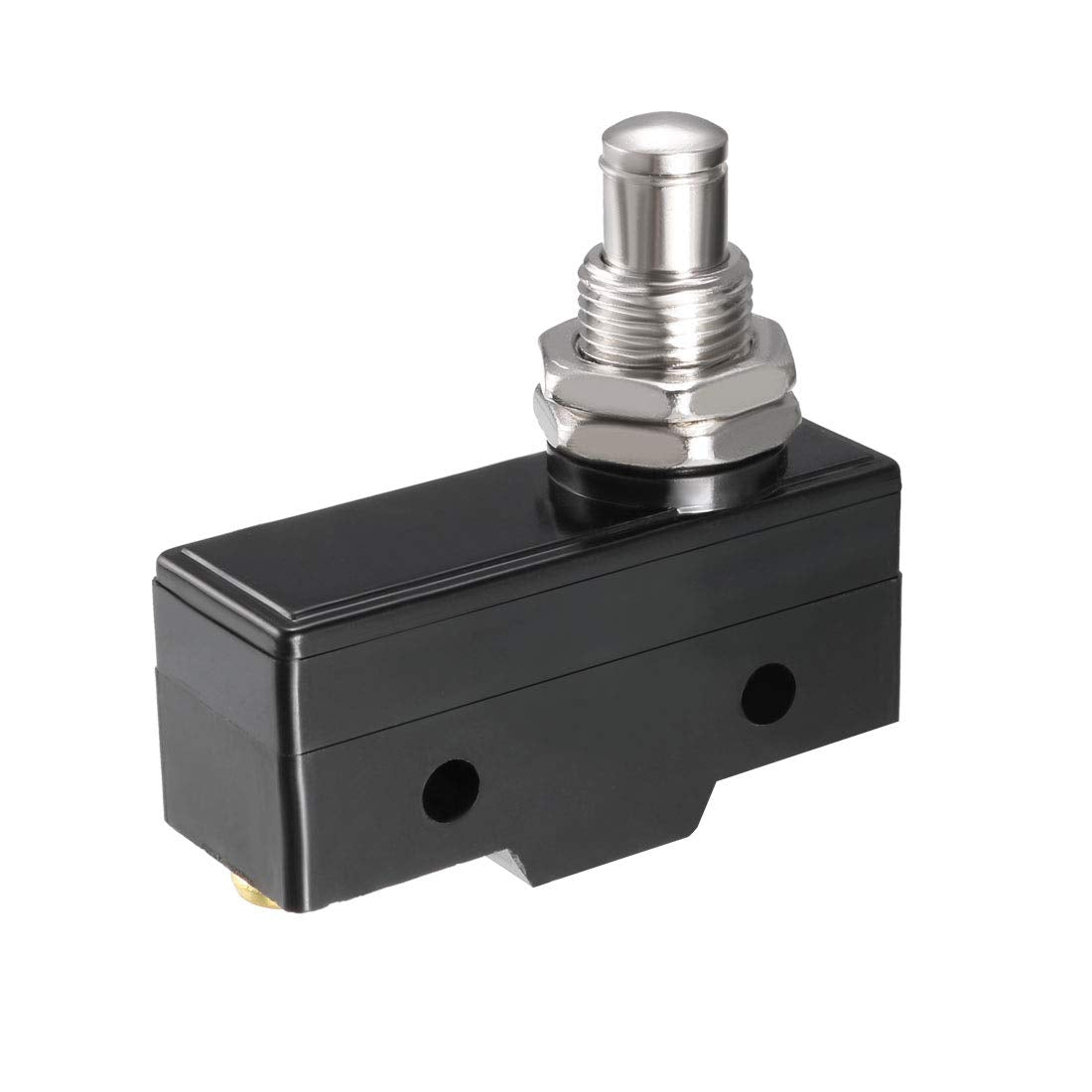

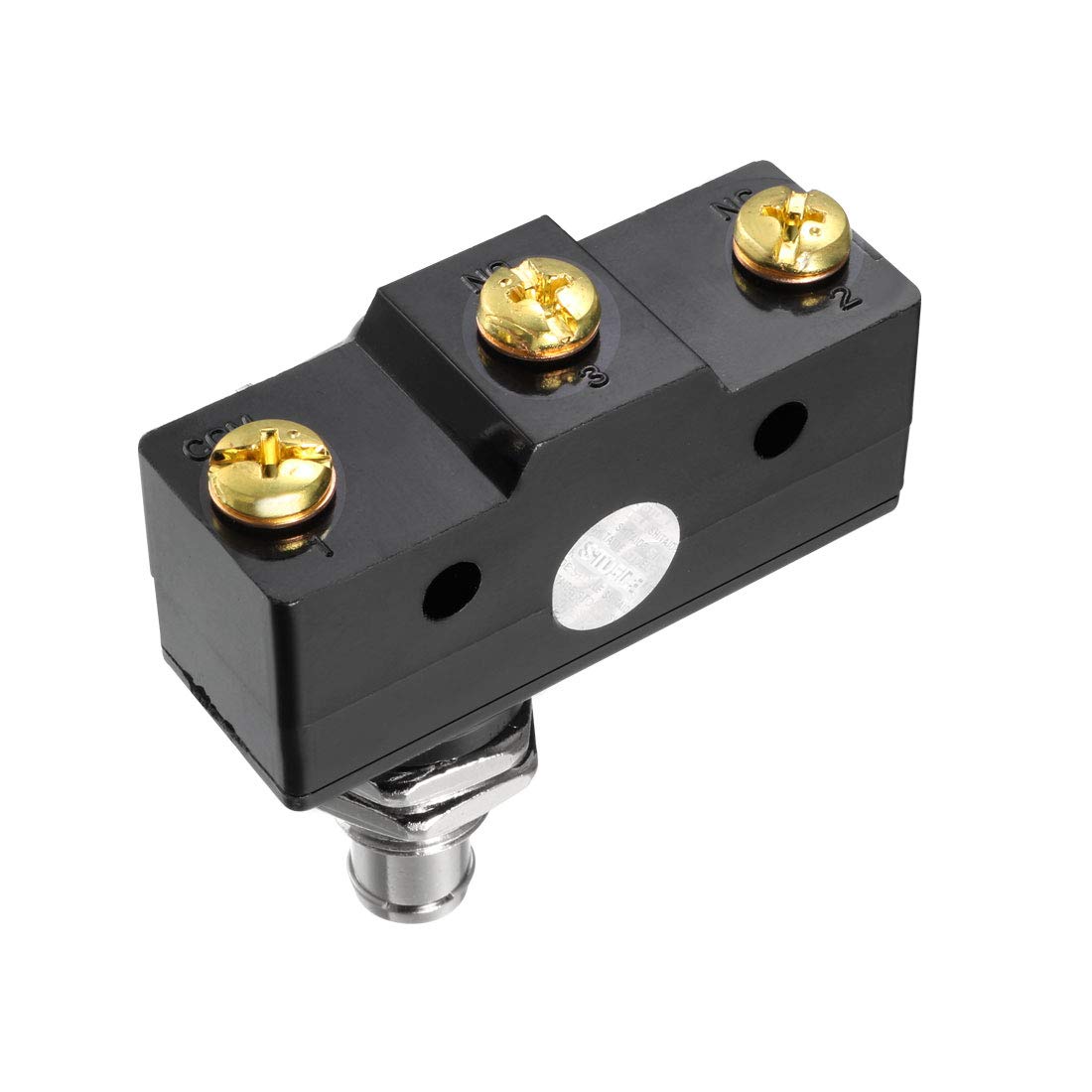

uxcell TM-1307 SPDT 1NO+1NC Panel Mount Snap Button Type Micro Limit Switch Screw Terminals

Key features

• Rating: Ui: 380V Ith:15A. And the contact type is SPDT NO+NC
• Applicable to AC DC control circuits.Reliable for years
• High precision design, use easily.Designed to control the movement of a mechanical part.
• IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
• Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...

Features: Excellent accessibility, stable performance, practical and convenient This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and equipment. Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection. Specification Product Name: Micro Switch; Model No.: TM-1307; Contact Form: SPDT NO+NC Mounting Type: Panel Mount; Actuator Type: Snap Button Type Termination Style: Screw Terminal; Terminal Number: 3 Rating: Ui: 380V Ith:15A; AC-15 Ue: 250V Ie: 15A; DC-13 Ue: 250V Ie: 0.3A; Protection degree: IP62 Overall Size: 50x50x18mm/1.97x1.97x0.71inch(L*W*H) Fixing Holes Dia.: 4mm/0.16inch; Thread Diameter: 12mm/0.47inch; Net Weight : 47g; Package Content 1 x Microswitch
