Valterra 6201 PVC Gate Valve, White, 2" Slip

Key features

• APPLICATIONS: Ideal for quick opening and shut off in low vacuum or pressure applications - Can be used with air or clean/gray/waste water
• KEY FEATURES: Unrestricted flow - Full port opening - Simple push/pull operation
• SPECIFICATIONS: Maximum Pressure - 20 psi Open/40 psi Closed, Schedule 40 PVC Slip fittings
• REPAIRS: Bolted assembly allows for replacement of valve body and gate seals - Handle simply unscrews
• Please note: Paddle is slightly smaller than opening to ease opening/closing. Valve seal gaskets block any gaps to ensure no leaks.

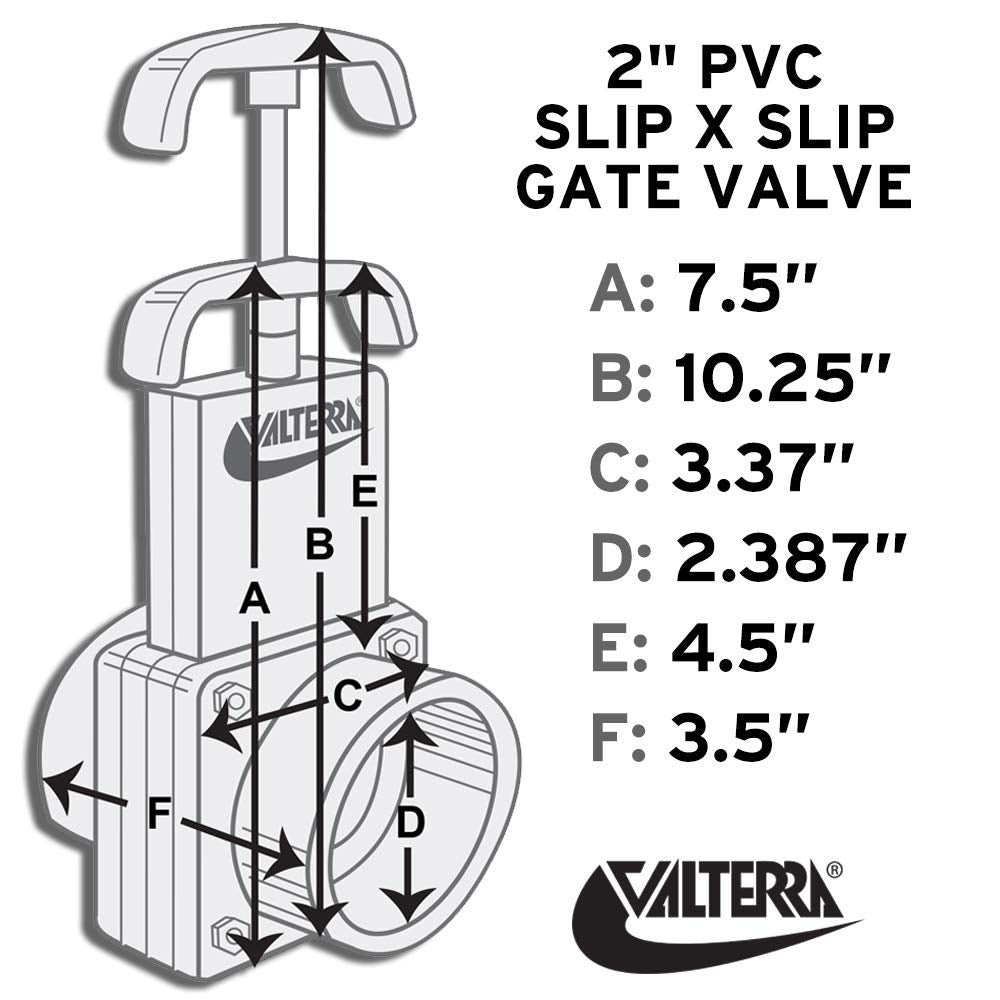

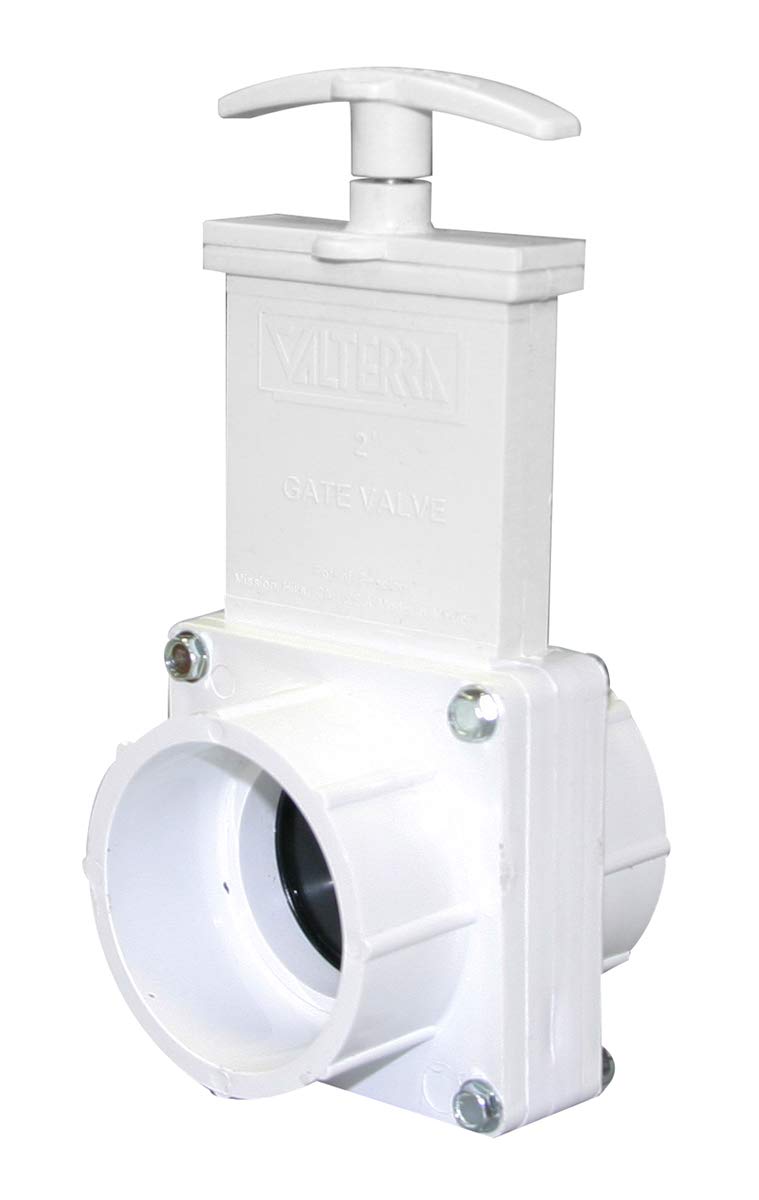

This Valterra 6201 gate valve has 2" female slip connection openings, and a white PVC (polyvinyl chloride) body and hubs for resistance to corrosion and mild chemicals. Its shaft is made of 304 stainless steel and its paddle is made of polypropylene for resistance to corrosion and chemicals. Its seals are made of thermoplastic vulcanizate (TPV) for dimensional stability and resistance to chemicals. It has a maximum pressure rating of 40 pounds per square inch (psi), a mid-flow maximum pressure rating of 1 psi, and a maximum temperature rating of 167 degrees F (75 degrees C). This gate valve measures 10.25 x 3.37 x 3.5 inches/260 x 86 x 105mm (H x W x D) in a fully open position. (H is height, the vertical distance from bottom to top; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.) It is suitable for use with landscape and irrigation, pool and spa, aquaculture, and general purpose applications.Gate valves control flow in a piping system by lifting a gate out of the path of steam, fluids, or gases. They are designed to block or permit flow, as the vibrations and force of flow repeatedly striking a partly lowered gate ca
