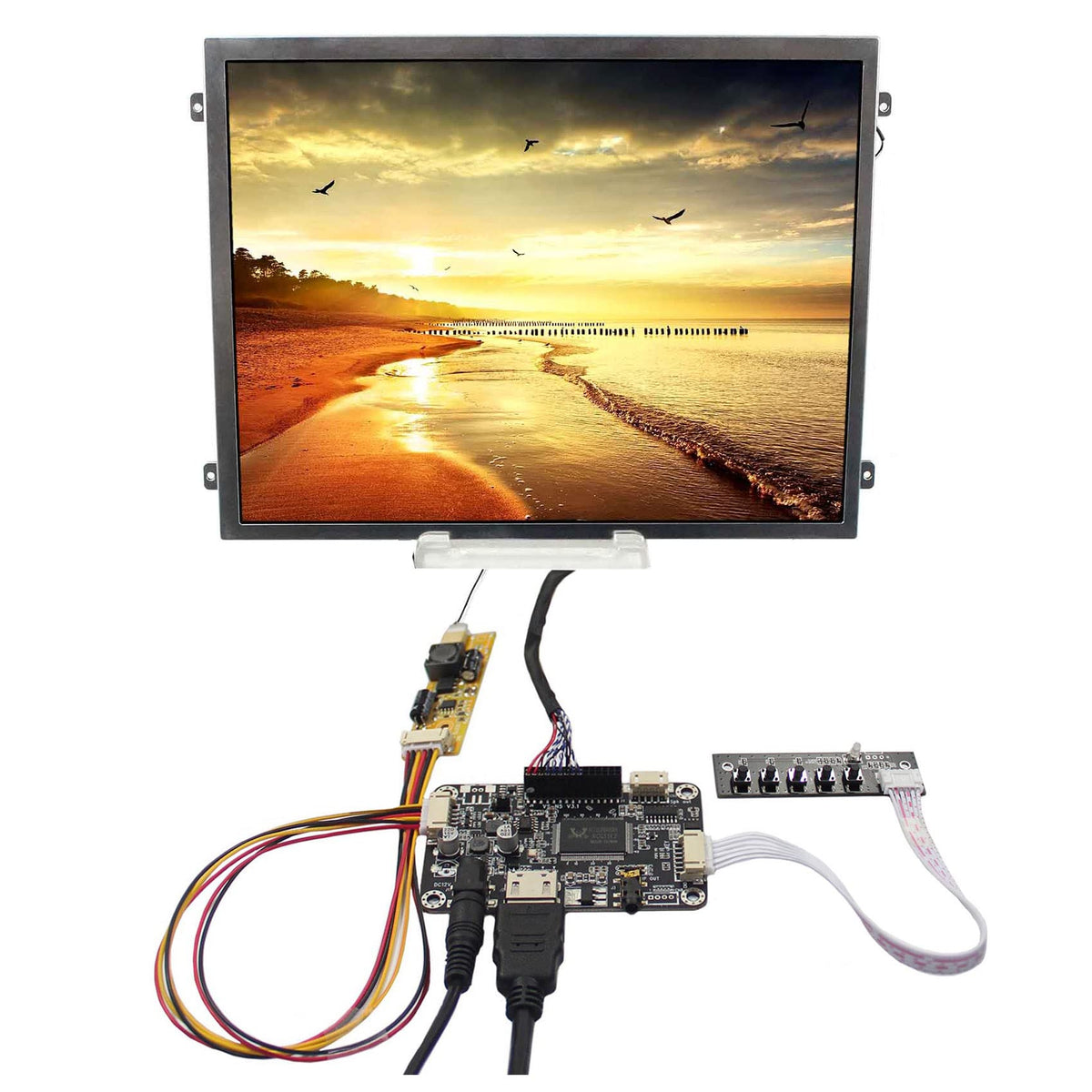

VSDISPLAY 10.4" 1024X768 IPS LCD Display with H/D Controller Board

Key features

• 10.4" VS104T-003A 1024X768 LCD Screen:Resolution 1024(RGB)×768 Outline Size 225.8 × 174.3×5.6(H×V×D) Display Area 211.2× 158.48 (H×V) Brightness 500 cd/m2 (Typ.) Contrast Ratio 700:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 6/8-bit) , Connector , 30 pins.
• Audio LCD Board Work for LVDS Interface LCD Screen
• Video Input: Audio Input: Audio Output: Speaker earphone
• Recommend Power Adapter Spec. Input Power Adapter: 12Vdc More than 2A.

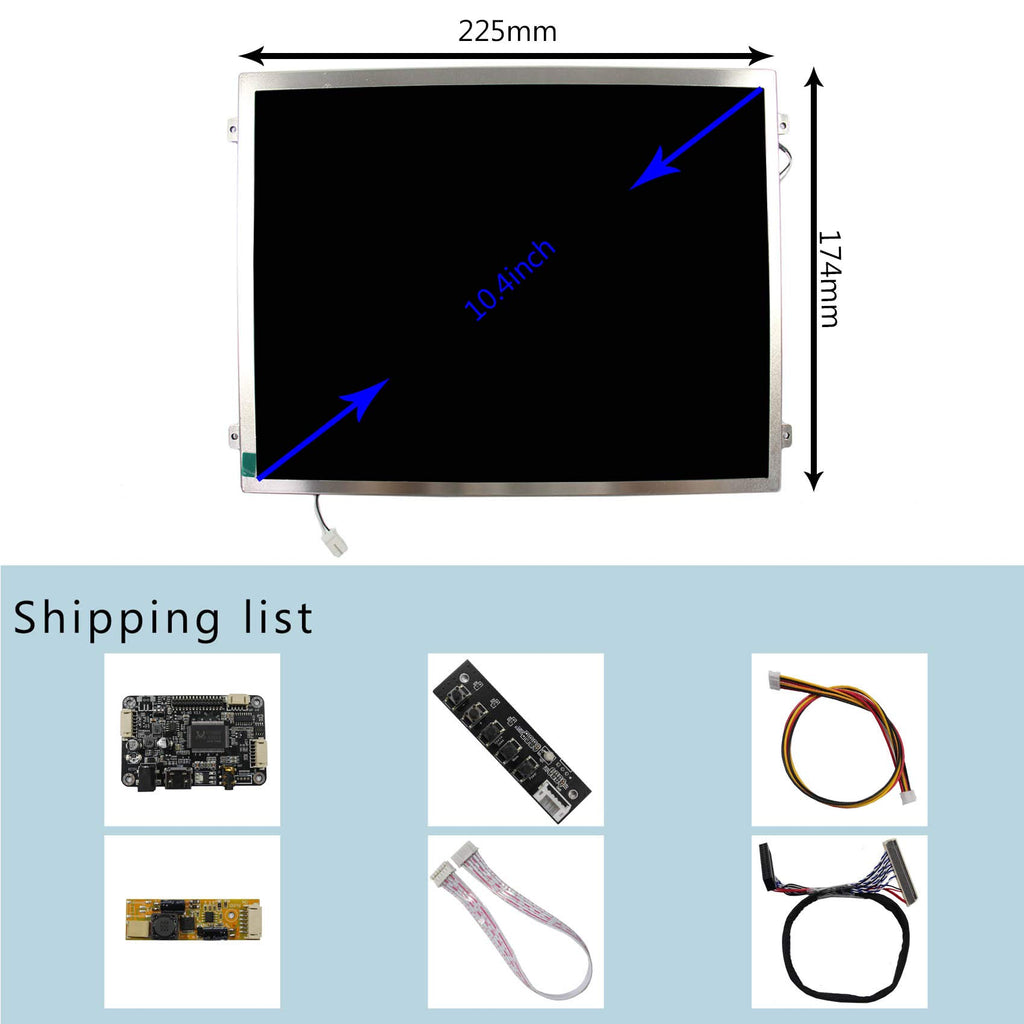

• Packing list: 1× Audio LCD Controller Board 1× 10.4inch VS104T-003A 1024x768 IPS LCD Screen 1× LVDS Cable 1× Inveter Board 1× Keyboard With Cable (Please Notice There is No Power Adapter in The Packing List.)

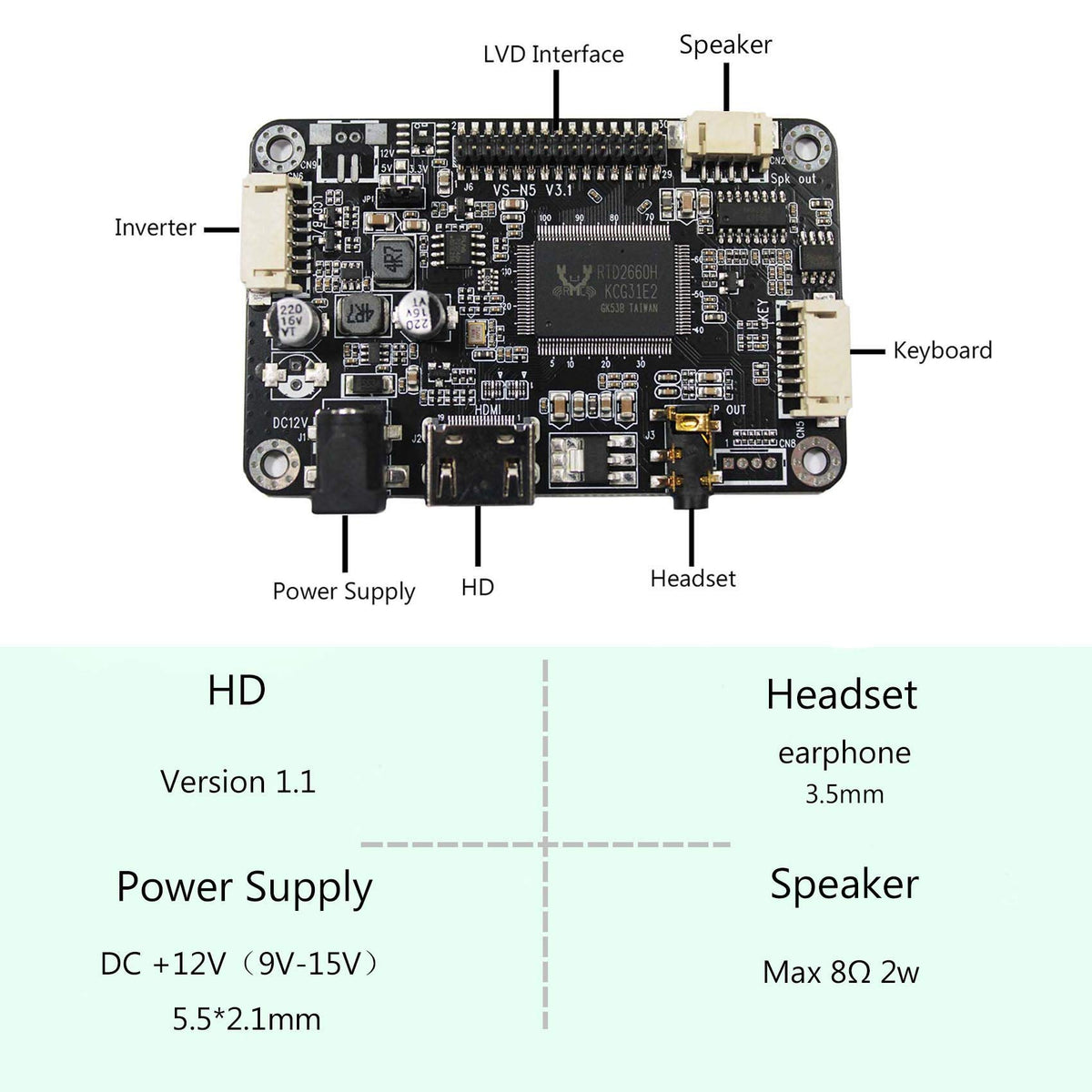

LCD Controller Board: LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: Audio Input: Audio Output: Speaker earphone OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 85mm x 54mm x 14mm 10.4" VS104T-003A 1024X768 LCD Screen: Display Mode IPS, Normally Black, Transmissive Resolution 1024(RGB)×768 Outline Size 225.8 × 174.3×5.6(H×V×D)mm Display Area 211.2× 158.48 (H×V)mm Brightness 500 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 6/8-bit) , Connector , 30 pins Backlight WLED Input Voltage 3.3V (Typ.) Packing list: 1× Audio LCD Controller Board 1× 10.4inch VS104T-003A 1024x768 IPS LCD Screen 1× LVDS Cable 1× Inveter Board 1× Keyboard With Cable
