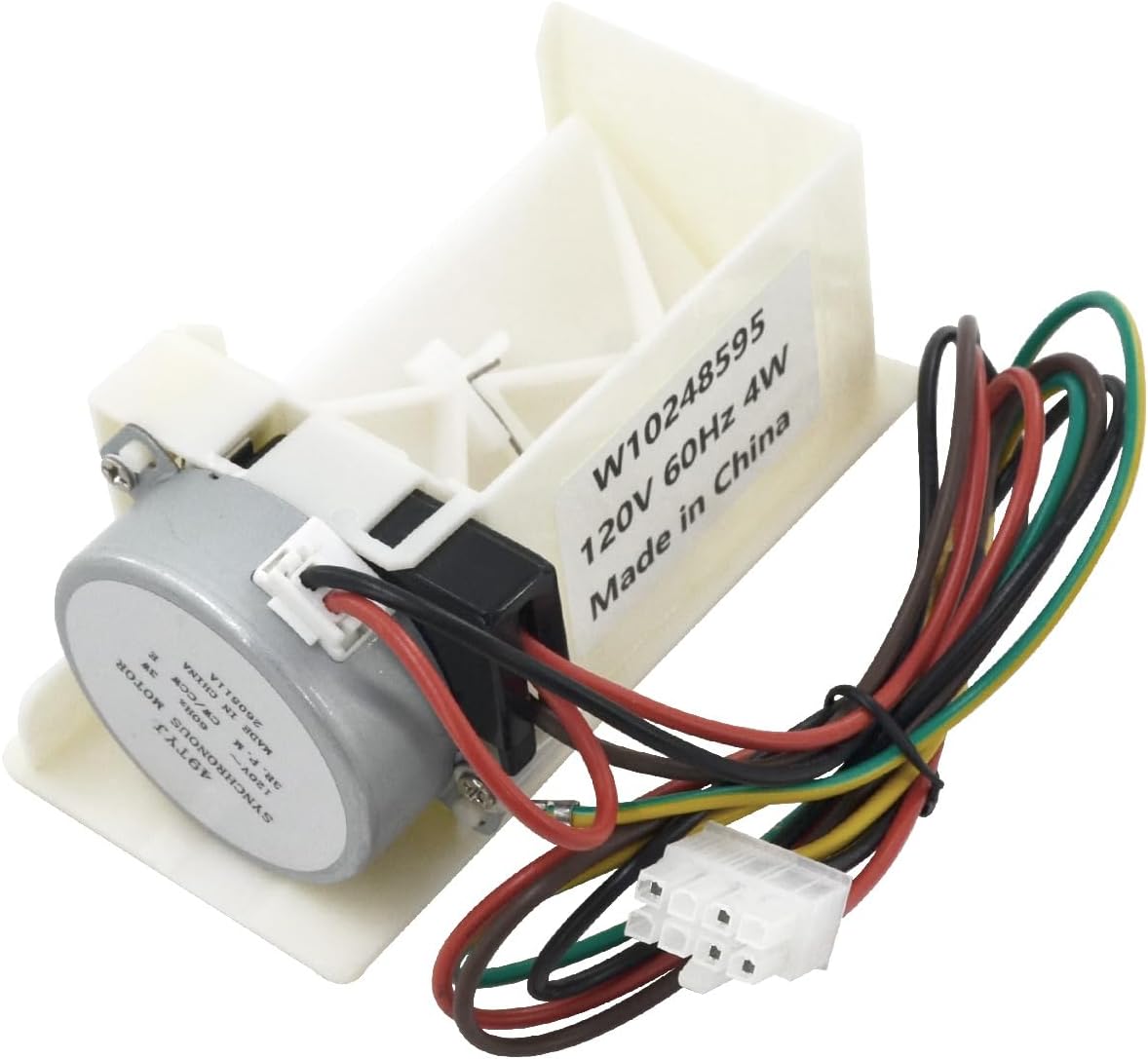

W10248595 Air Damper Control Assembly for Refrigerator

Fits models: 596.72383410, 596.72389410, KFIS29BBMS03, KFIS29BBWH00, KRFF507EBL01, KRFF707EBS00, KRMF1706EBS00, MFT2776DEE02, MFT2976AEB03, WRF757SDEH01, WRF989SDAB00, WRX986SIHV00. Check your model number before ordering.

Key features

• Features: The air damper control assembly controls a small door to open or close to control the air, when the damper fails, it will get too cold or warm up, so if your refrigerator has encountered a similar problem, or strange noises coming from your fridge, please consider this as the reason
• Tools Required: Before replace the air damp control assembly, you should prepare a quarter inch nut driver and a flathead screwdriver, putty knife, please refer to the images and text for installation instructions

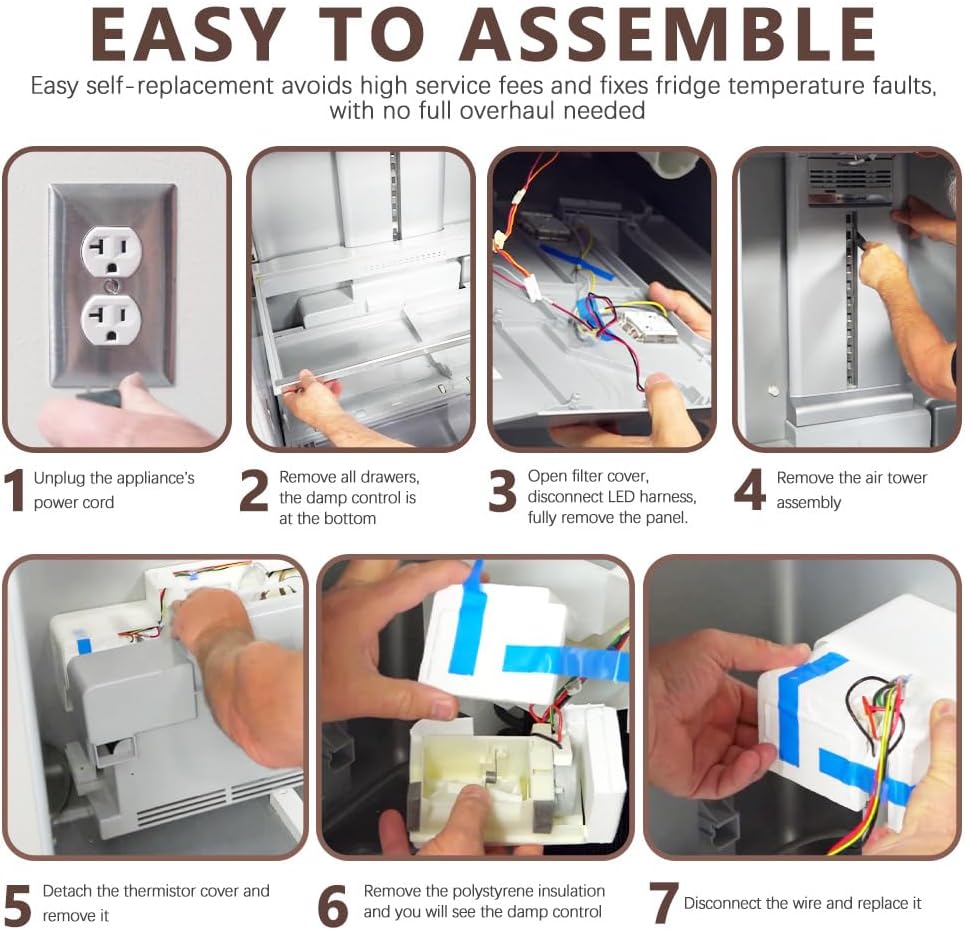

• How To Install: 1. Unplug the appliance’s power cord 2. Remove all drawers, the damp control is at the bottom 3. Open the water filter cover and disconnect the led wire harness to fully remove the panel 4. Remove the air tower assembly 5. Detach the thermistor cover and remove it 6. Remove the polystyrene insulation and you will see the damp control 7. Disconnect the wire and replace it
• Directly Replaces: It can be replaced by following part numbers: WPW10248595, 2310607, AP6017758, PS11751058
• Fit Models: KRFF707EBS00, WRX986SIHV00, WRF757SDEH01, WRF989SDAB00, KFIS29BBWH00, KRFF507EBL01, KRMF1706EBS00, KFIS29BBMS03, MFT2776DEE02, MFT2976AEB03, MFX2876DRE02, MFT2776DEE02, 596.72383410,596.723834102, 596.72389410, etc.

Free shipping included. 30-day hassle-free returns.
