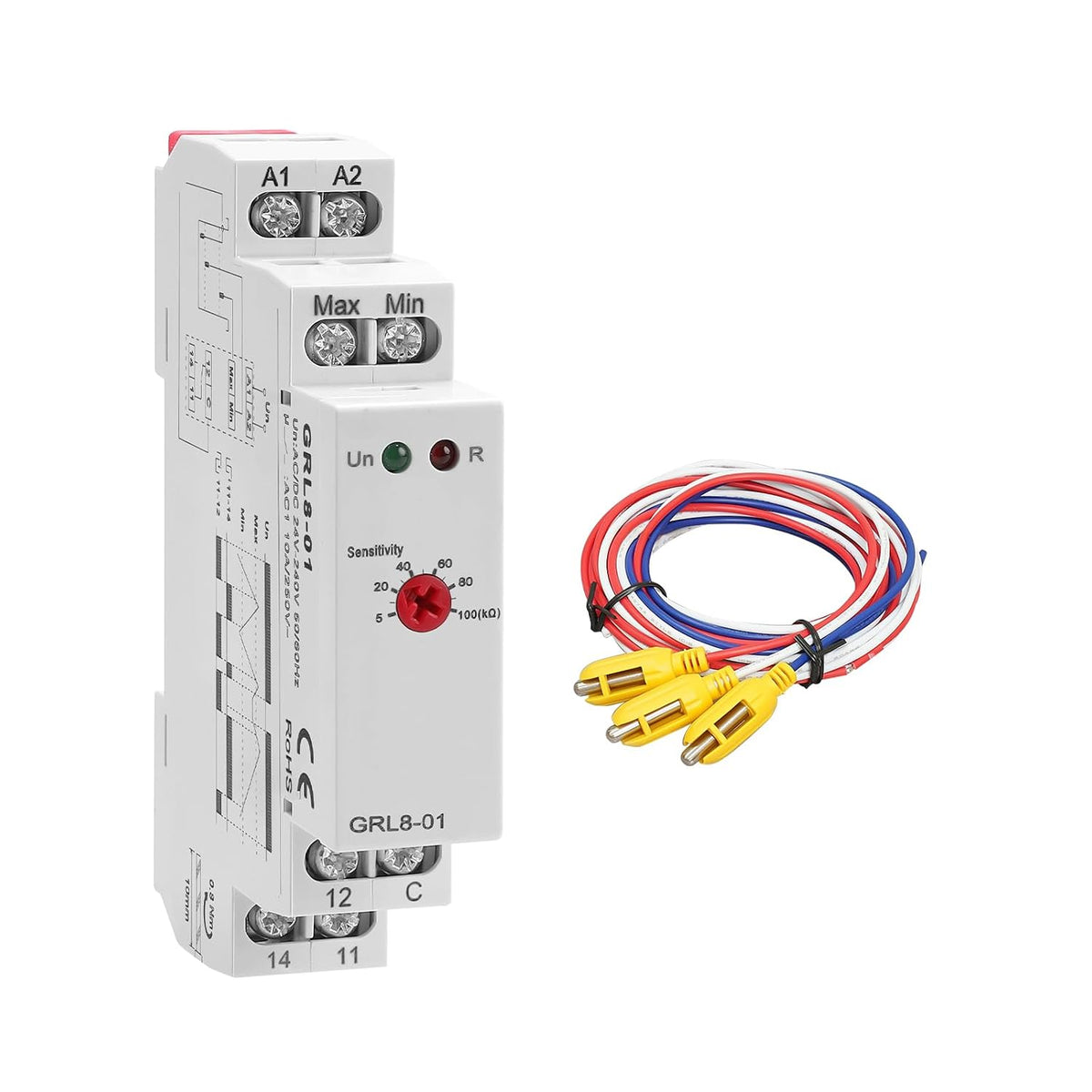

Water Level Sensor Control Relay 10A GRL8-01 AC/DC 24V-240V Liquid Level Control Relay in Din Rail, Automatic Drain and Inlet Electronic Liquid Level Controller with 5ft Detector Sensor PLT-01

Key features

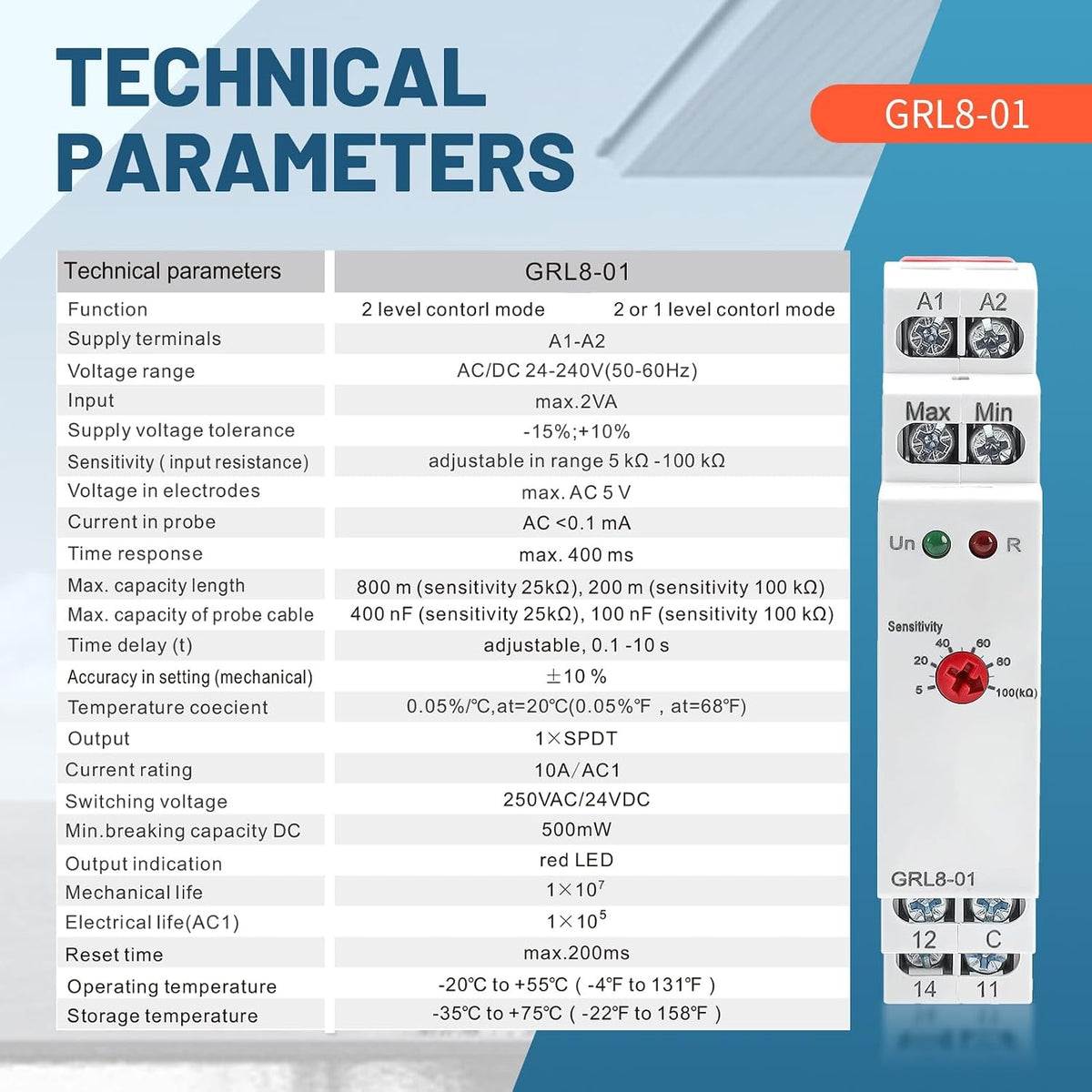

• FUNCTION & APPLICATION : grl8-01 water level controller liquid level relay, with 5ft detector sensor PLT, a wide operating voltage of AC/DC 24-240V (50-60Hz), and a rated current of 10A. Sensitivity 5-100kΩ, maximum and minimum water level monitoring and control. By connecting electric ball valves, water pumps, and controllers, it can realize automatic water supply and drainage in fish ponds, reservoirs, swimming pools, water tanks, etc.

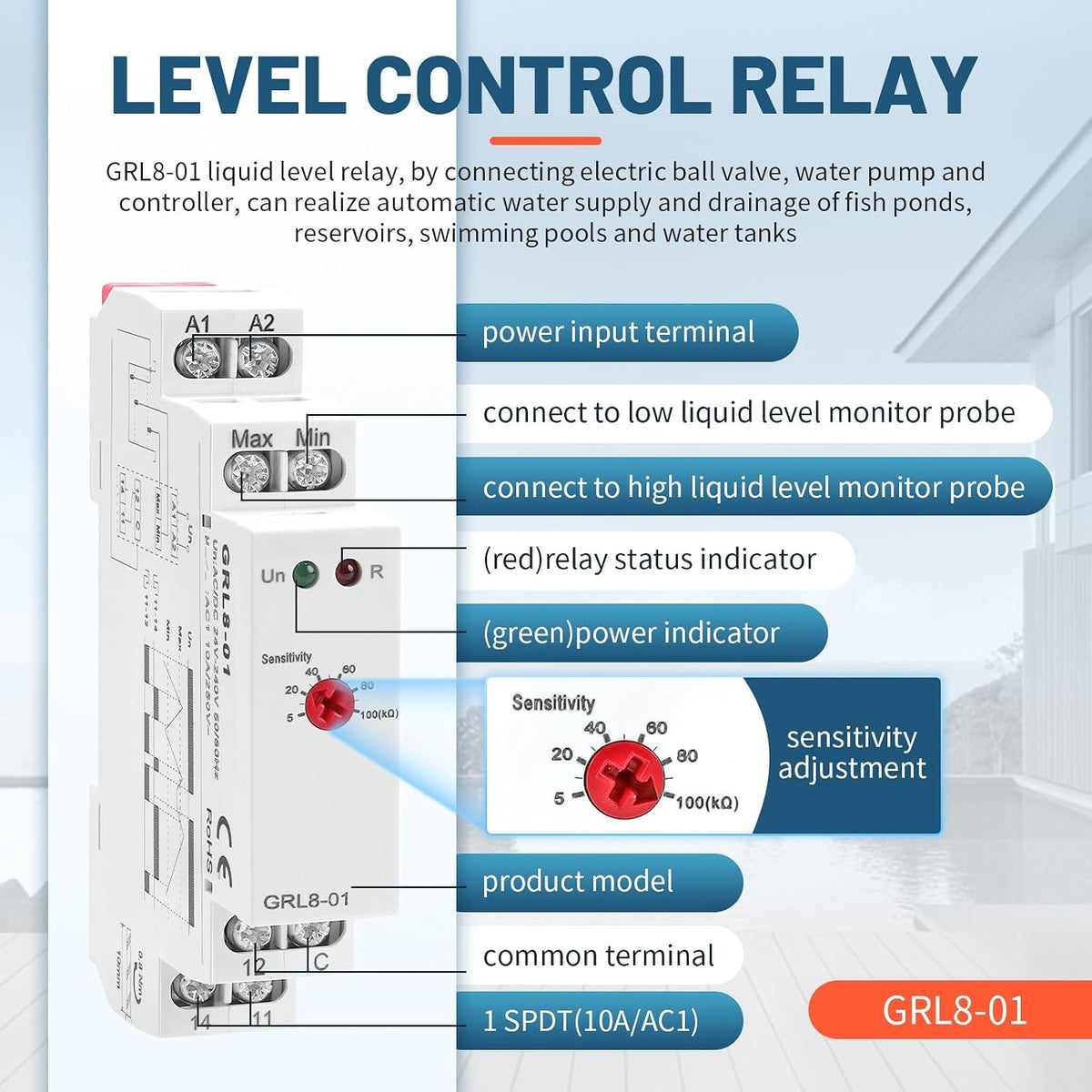

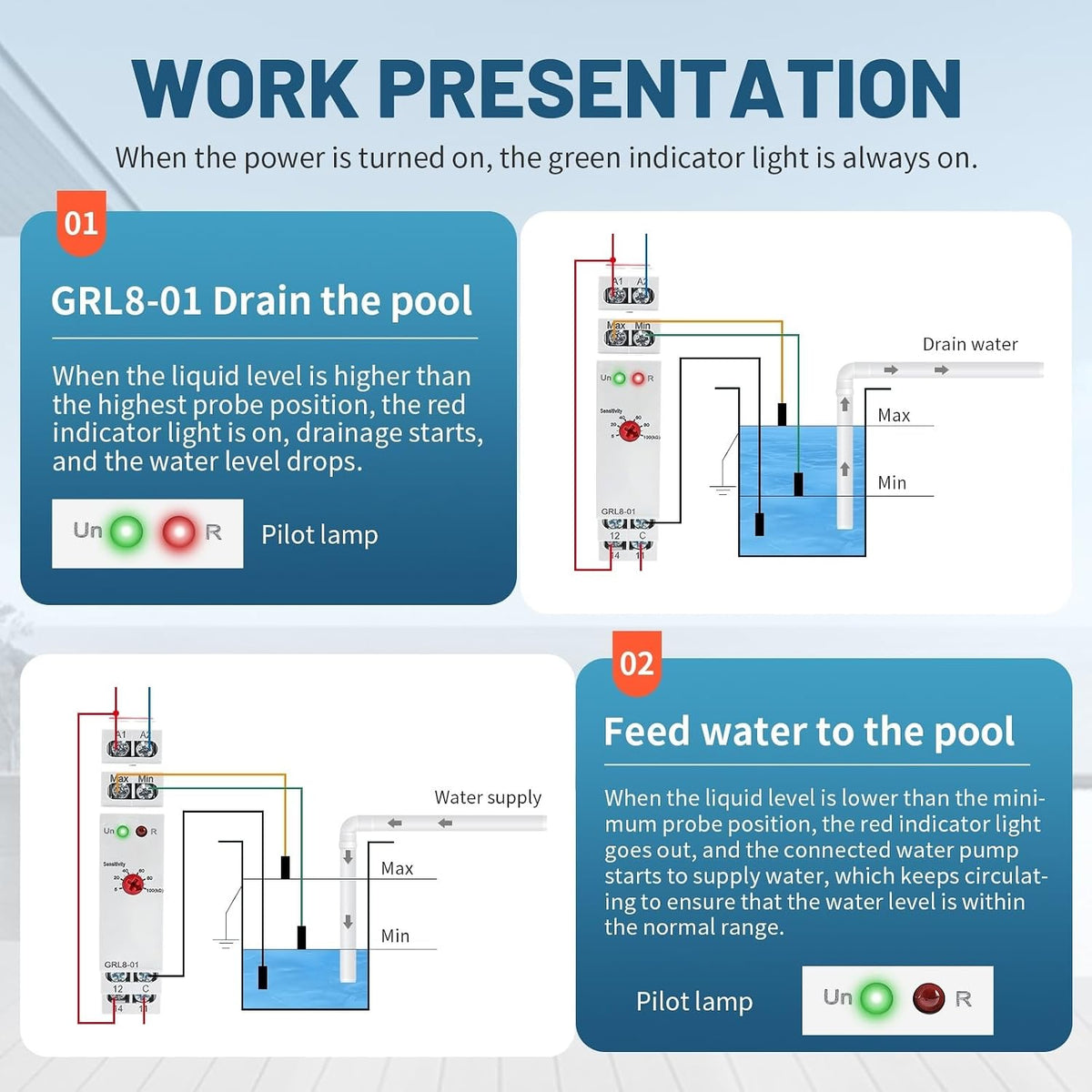

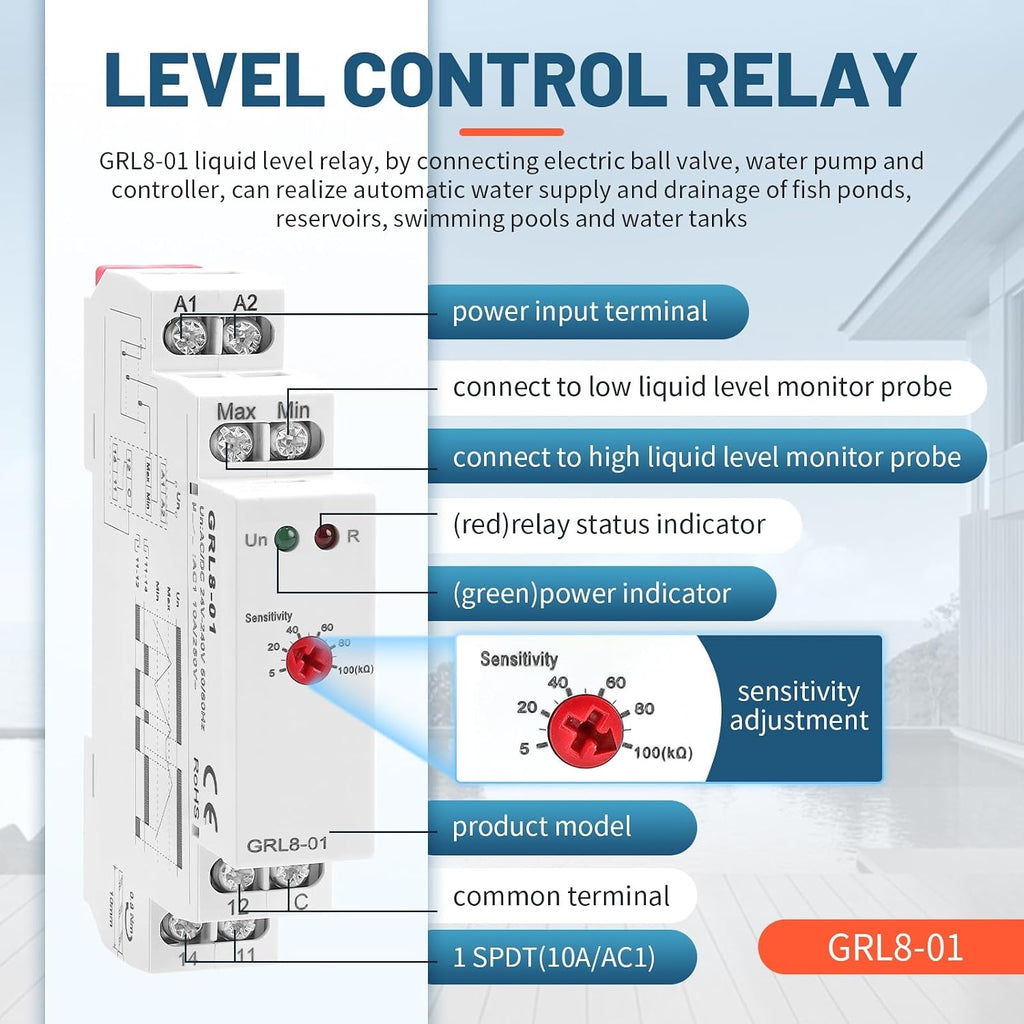

• INDICATOR BUTTON : grl8 01 ac dc 24-240v adjustable liquid level relay working status is indicated by LED indicator: power indicator: green LED (constantly on means the input power terminal is normal). Take the relay connected to the water pump as an example. When the water level in the container is higher than the highest probe position, the red indicator light is on, the connected water pump starts to drain, and the water level drops; when the water level is lower than the lowest probe position, the red indicator light goes out, and the connected water pump starts to supply water. This cycle ensures that the water level is within the normal safety range
• COMPACT AND EASY TO INSTALL: grl8 01 liquid level control relay dimensions are dimensions: 90 x 18 x 64mm/3.5 x 0.7 x 2.5 inches, mounted on 35mm DIN rail, 3.8 ounces, easy to install, portable and compact, electrical components supporting this standard can be easily clipped on the rail, no screws required, maintenance is also very convenient
• CHOICE MATERIALS : grl8 01 level relay relay made of industrial grade plastic , compliant with , CE, CB, RoHS standards, flame retardant, relay switch has a sealing ring that can isolate dust and oxygen, and can work stably in humid environments to protect your expensive equipment
• WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time, watch the video and instructions before operation, which can better help you use the grl8 01 relay

Free shipping included. 30-day hassle-free returns.
