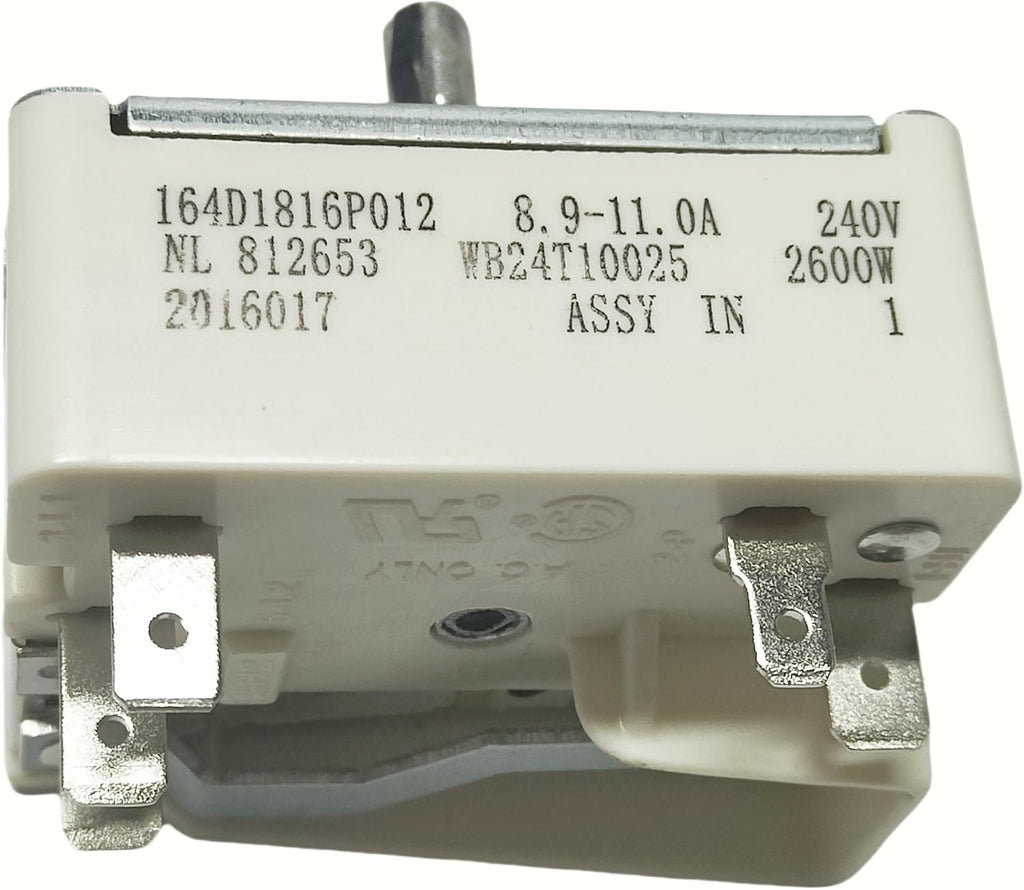

WB24T10025 769692 AP2024072 PS236750 Electric Range Infinite Control Switch Replacement

Key features

• Replacement Burner Switch for GE part number WB24T10025.
• It is rated at 8.9 - 11.0 Amps; 2600 Watts; 240 Volts, it is for the large 8" burner.
• Other number's on switch are 1404513; NL 812677.

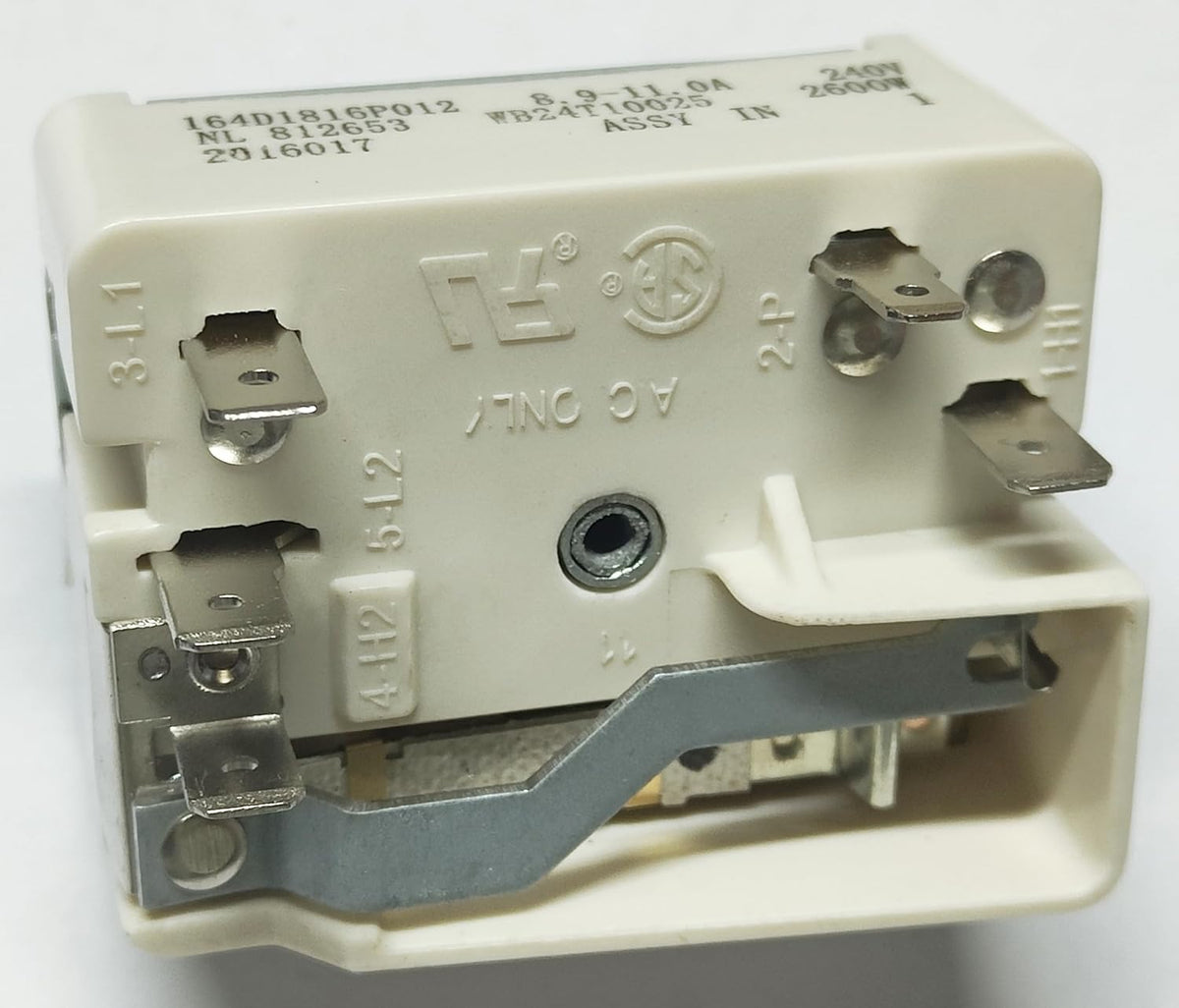

• It is a 5 wire switch, terminals are labeld L1, L2, H1, H2, P; terminals are 1/4" male spade except P which is 3/16" male spade.
• It is a push to turn switch with a figure 8 style shaft that is 3/4" long.
• Replacement for numbers 164D1816P12; NL 812653, AP2024072 and PS236750.
• Designed to fit GE model range including GE, Hotpoint and RCA.
• Replacement part number： WB24T10025

WB24T10025 769692 AP2024072 PS236750 Electric Range Infinite Control Switch Replacement Replacement Burner Switch for GE part number WB24T10025. It is rated at 8.9 - 11.0 Amps; 2600 Watts; 240 Volts, it is for the large 8" burner. Other number's on switch are 1404513; NL 812677. It is a 5 wire switch, terminals are labeld L1, L2, H1, H2, P; terminals are 1/4" male spade except P which is 3/16" male spade. It is a push to turn switch with a figure 8 style shaft that is 3/4" long. Replacement for numbers 164D1816P12; NL 812653, AP2024072 and PS236750. Designed to fit GE model range including GE, Hotpoint and RCA. Replacement part number WB24T10025 Burner Infinite Switch for GE
