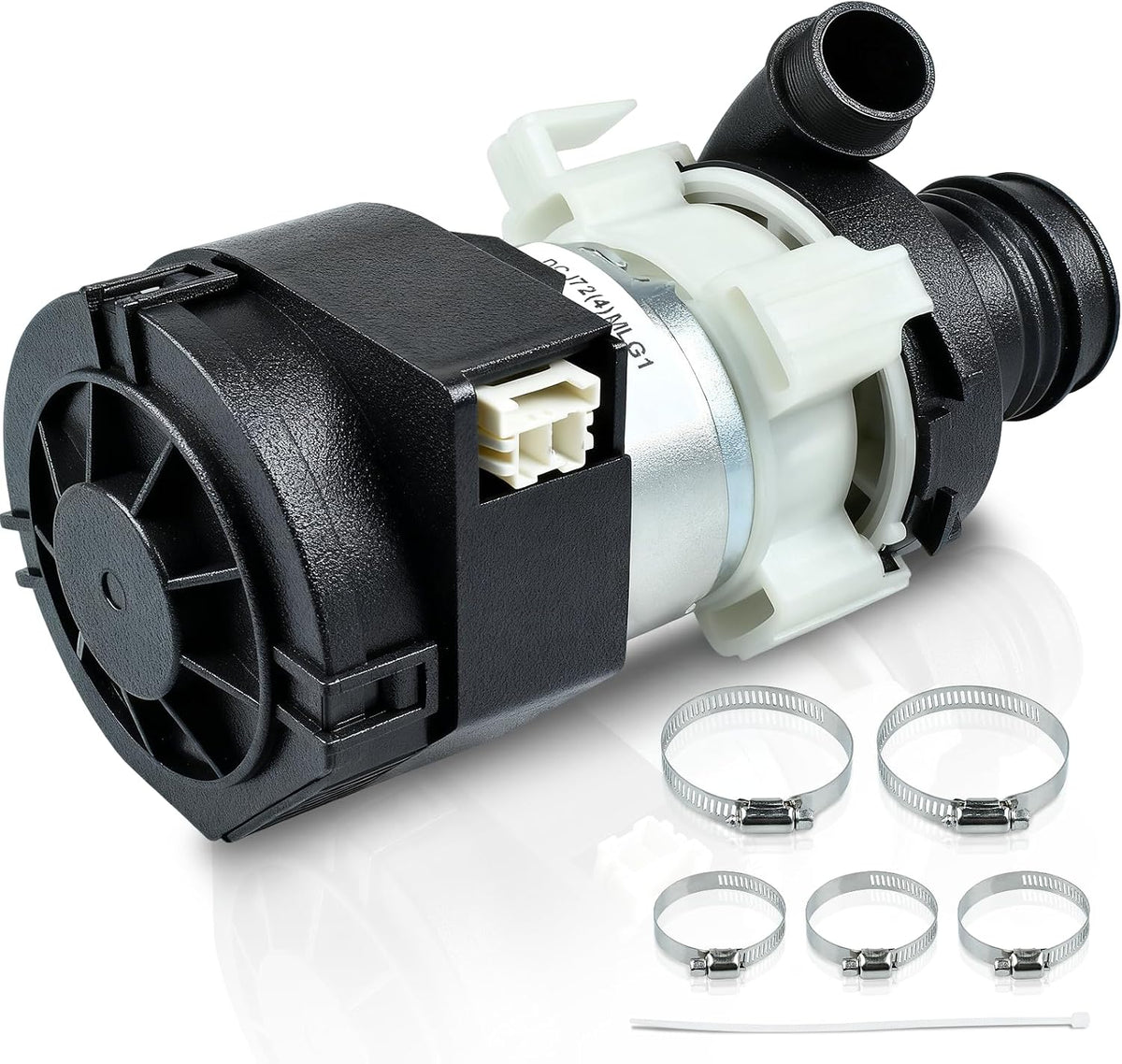

WD26X23258 Brushless Circulation Pump for GE Dishwasher

Key features

• FITS 17+ GE DISHWASHER MODELS - VERIFY YOUR MODEL BEFORE ORDERING: Direct replacement for GE dishwashers using part WD26X23258, compatible with GDT535PGJ2WW, PDF820SSJ4SS, ADT521PGJ0WS, GDF650SMJ4ES, PDT825SSJ2SS, GDT695SBL4TS, GDT695SMJ2ES, GDF570SGF7BB, GDF640HGM0BB, GDF520PGJ6BB, GDT655SMJ2ES, DDT595SBL5TS, GDT635HGJ0WW, PDT720SGH7BB, PDT825SGJ4BB, PDF820SGJ5BB, PDF820SSJ5SS. Also replaces part numbers WD26X22285, WD26X22826, WD26X22518. Your model number is on the label inside the door frame. Not all GE dishwashers use this part-please confirm your model before purchasing
• BRUSHLESS DC MOTOR - QUIETER, MORE EFFICIENT THAN STANDARD BRUSH MOTORS: The WD26X23258 uses a Brushless DC (BLDC) motor, which consumes less energy, generates less heat, and operates more quietly than conventional brush motors. This directly restores factory-spec water pressure to both upper and lower spray arms, eliminating spotty dishes and cloudy glasses caused by weakened flow. Engineered to withstand GE's high-temperature sanitize cycles and hard water mineral buildup for long-term reliable operation
• 20-MINUTE DIY INSTALL - INSTALLATION INSTRUCTIONS INCLUDED: Replace your circulation pump in approximately 20 minutes using basic household tools. Steps: Turn off power at breaker, remove lower access panel, disconnect old pump connectors, mount new pump using included brackets, reconnect and test. This kit includes mounting brackets and connectors-no separate parts needed. Detailed video installation guides are also included, covering every step with no plumbing experience required
• DISASSEMBLY PROCESS: Disconnect power to the dishwasher, shut off the water supply and disconnect the dishwasher's inlet and drain hoses, pull out the dishwasher and place it on its back to expose the bottom. The circulation pump is located at the bottom of the dishwasher. Remove the wiring harness on the circulation pump, loosen the clamps on the inlet and outlet of the circulation pump, slide the circulation pump off of the hanger, and remove and discard the one time use clamps
• INSTALLATION PROCESS: Put the included new clamps on the inlet and outlet of the new circulation pump, reinstall the new circulation pump to its original position and tighten the clamps to secure the circulation pump, reconnect the wiring harness to the circulation pump. Stand the dishwasher up and put it back in place, connect the drain and inlet hoses of the dishwasher, restore power and water supply to dishwasher and test
• COMPATIBLE REPLACEMENT PART NUMBERS - CROSS-REFERENCE BEFORE ORDERING: This pump directly replaces OEM parts WD26X22285, WD26X22826, WD26X22518, 4466766, AP6039424, PS11772000, and EAP11772000. If your dishwasher currently uses any of these part numbers, this WD26X23258 assembly is the correct direct replacement. Electrical specifications: 120V AC, 56W, 2900 RPM - standard US household current, no special wiring required. Always disconnect power before servicing
• BUILT FOR LONG-TERM RELIABILITY - WITHSTANDS SANITIZE CYCLES, HARD WATER, AND DAILY VIBRATION: The SPORDA WD26X23258 pump housing is constructed from stainless steel and high-density polymer to meet GE's original engineering standards. It resists degradation from high-temperature sanitize cycles, hard water mineral buildup, and the constant vibration of daily dishwasher operation. The Brushless DC motor design further extends service life compared to brush motor alternatives by eliminating mechanical wear on commutator components
• TESTED ELECTRICAL SPECIFICATIONS: Each unit is tested at 120V AC / 56W / 2900 RPM specifications to ensure flawless communication with your dishwasher's control board. Eliminates error codes related to low flow or pump failure

Free shipping included. 30-day hassle-free returns.
