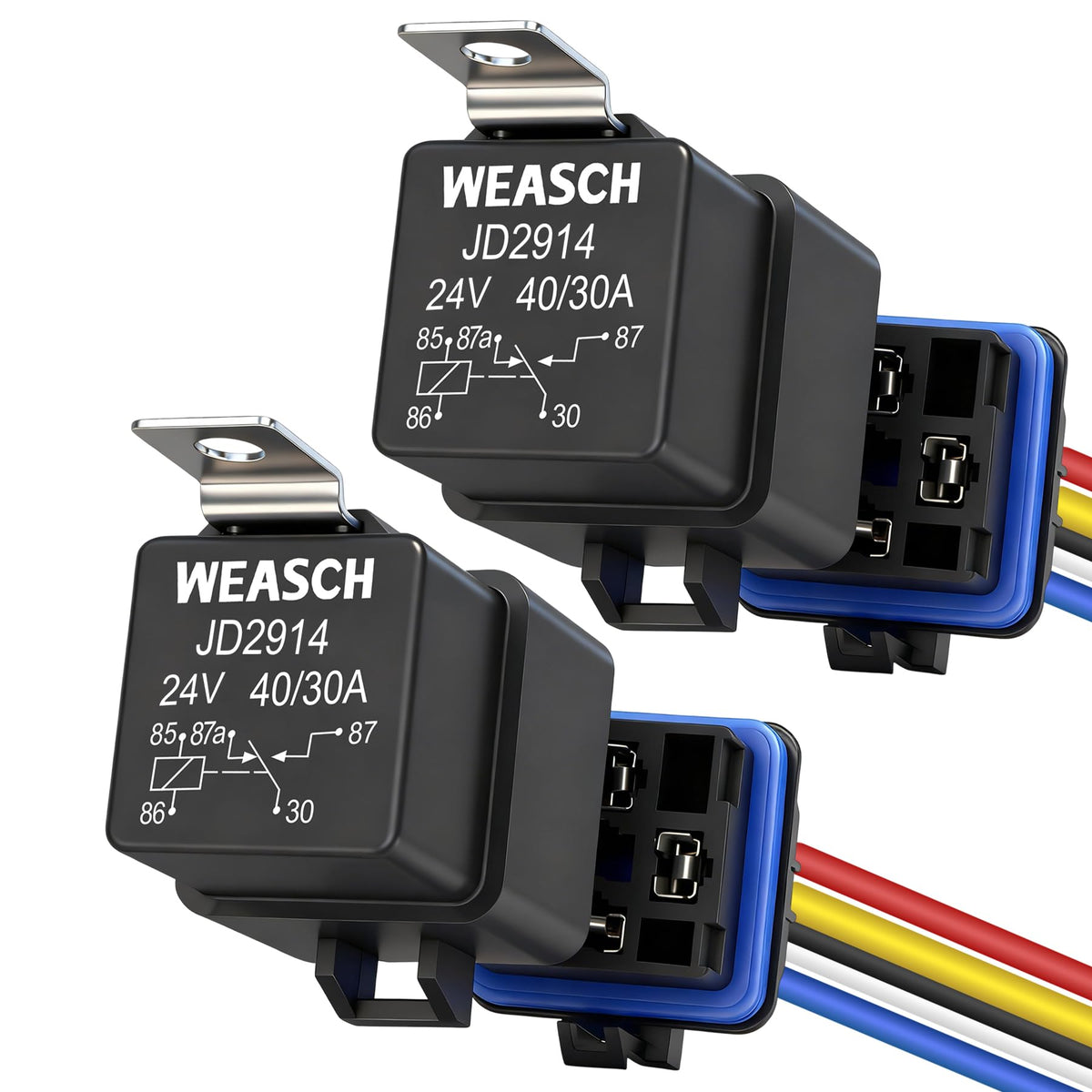

Weasch 2 Pack 24V 40/30A 5-Pin SPDT Waterproof Relay and 14AWG Harness Kit

Key features

• HEAVY-DUTY 12V 40/30A SPDTHigh-performance 12 volt 40 amp relay kit featuring 5 pin SPDT (1 Form C) JD1912 relay switch with 1.8W coil power and 80Ω resistance. Built with premium AgSnO2 contacts for maximum conductivity, anti-arcing, and long electrical lifespan

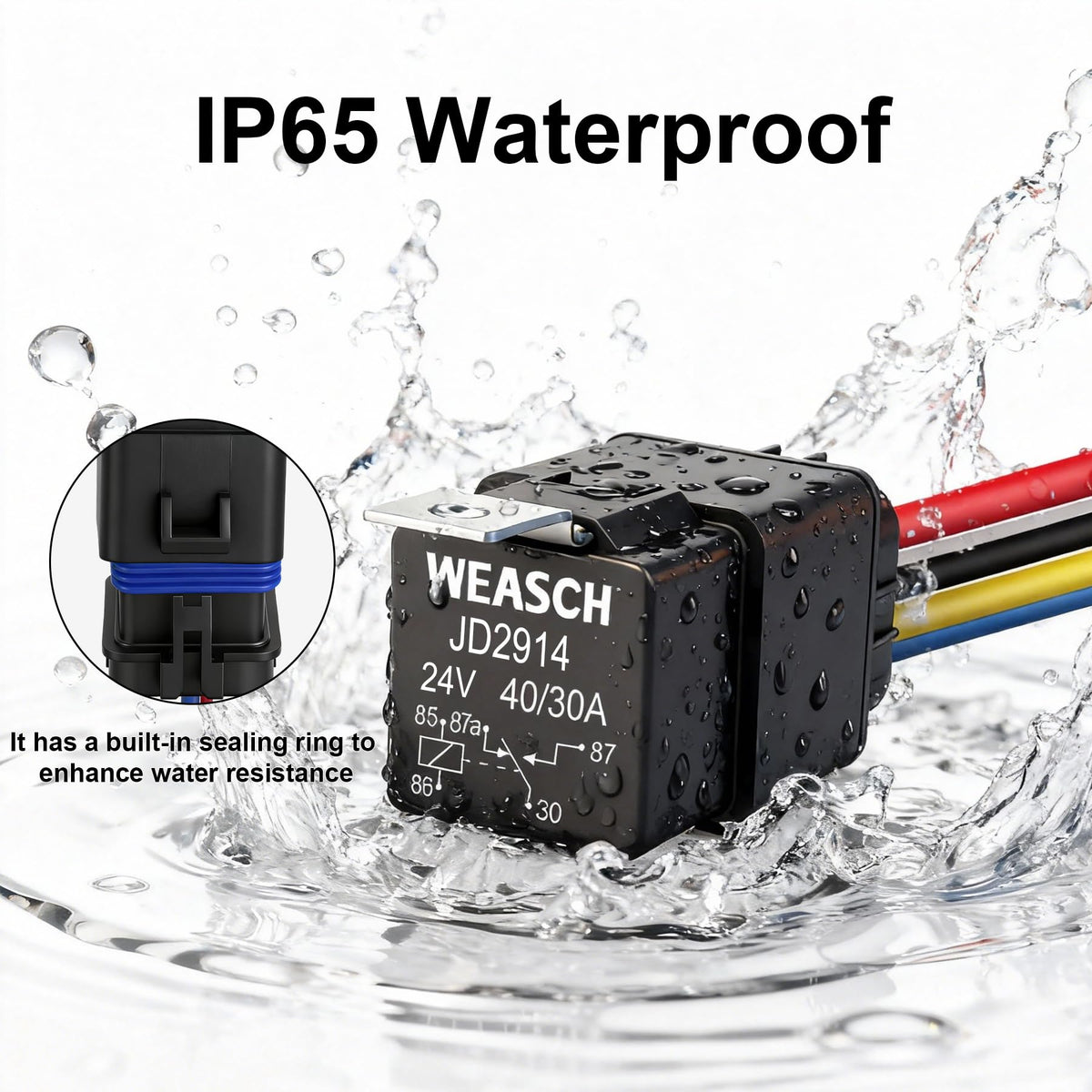

• WATERPROOF & DUSTPROOFHeavy duty waterproof relay 12v designed with a tightly sealed housing and high-grade rubber gasket socket to isolate moisture, rain, and dust. Engine-bay ready for harsh marine and outdoor environments
• FLEXIBLE 14AWG TINNED COPPER WIRESEngineered with pure tinned copper wires (14AWG load / 16AWG control) that offer superior conductivity and corrosion resistance over cheap CCA wires. Pliable 14AWG design enables easy routing and installation in tight engine bays without stiff cable stress

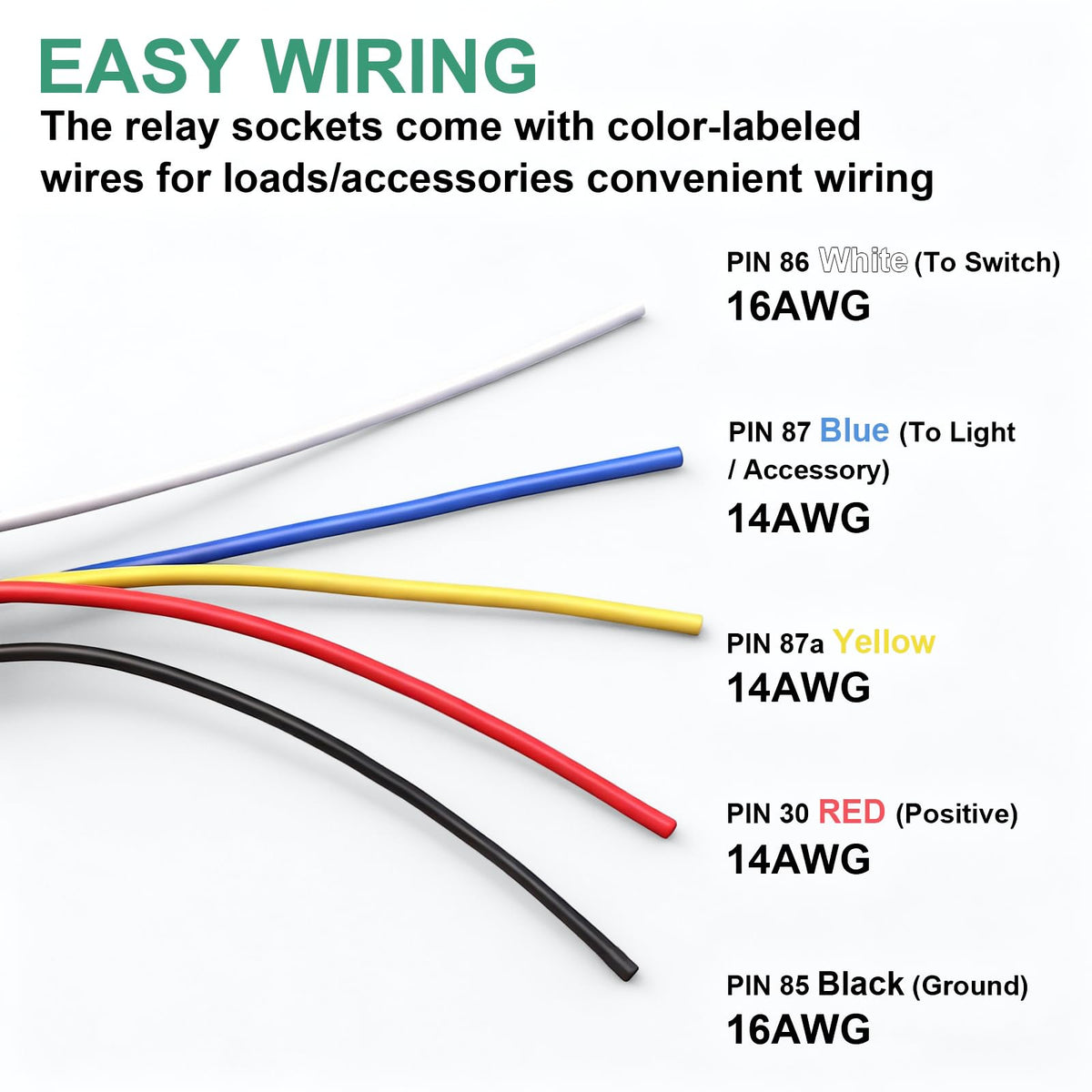

• COLOR-CODED 5-PIN EASY WIRINGClear color-labeled wires for effortless setup: Red 14AWG - Pin 30 (Positive), Blue 14AWG - Pin 87 (To Light/Accessory N/O), Yellow 14AWG - Pin 87a (N/C), White 16AWG - Pin 86 (To Switch), Black 16AWG - Pin 85 (Ground)
• SAFETY LOAD & DIMENSION NOTICENever exceed its capabilities—always keep continuous loads 10% to 15% below the rated value for safe operation. Please check overall dimensions (1.37" x 1.65" x 9" with wires / 2.44" x 1.77" x 1.38" housing) before buying to ensure proper mounting clearance
