Wengart 1/2" NPT Solenoid Valve for DIYers, Zero PSI Water/Gas, Iron Shell
Wengart 1/2" NPT Solenoid Valve for DIYers, Zero PSI Water/Gas, Iron Shell
Key features
- Zero-PSI Instant Response: Stop valve sticking in gravity-fed or low-pressure systems. Direct-drive structure opens reliably from 0 to 100 PSI (0-7 kgf/cm²) across water, air, gas, and light oils.
- Rugged Iron Shell Coil: Eliminate coil damage caused by external physical impacts or heavy enclosure heat. Features an IP54 Class F insulated steel-hulled coil built for long-term continuous durability.
- High Flow Cv 4.8 Orifice: Solve flow restriction issues in high-volume fluid lines. Designed with a 16mm large flow aperture delivering high Cv 4.8 flow performance for rapid fluid movement.
- Leak-Free US NPT Thread: Eliminate thread mismatch leaks common with BSP imported fittings. Precision 1/2" NPT threads seal tight directly into standard US household and industrial pipes.

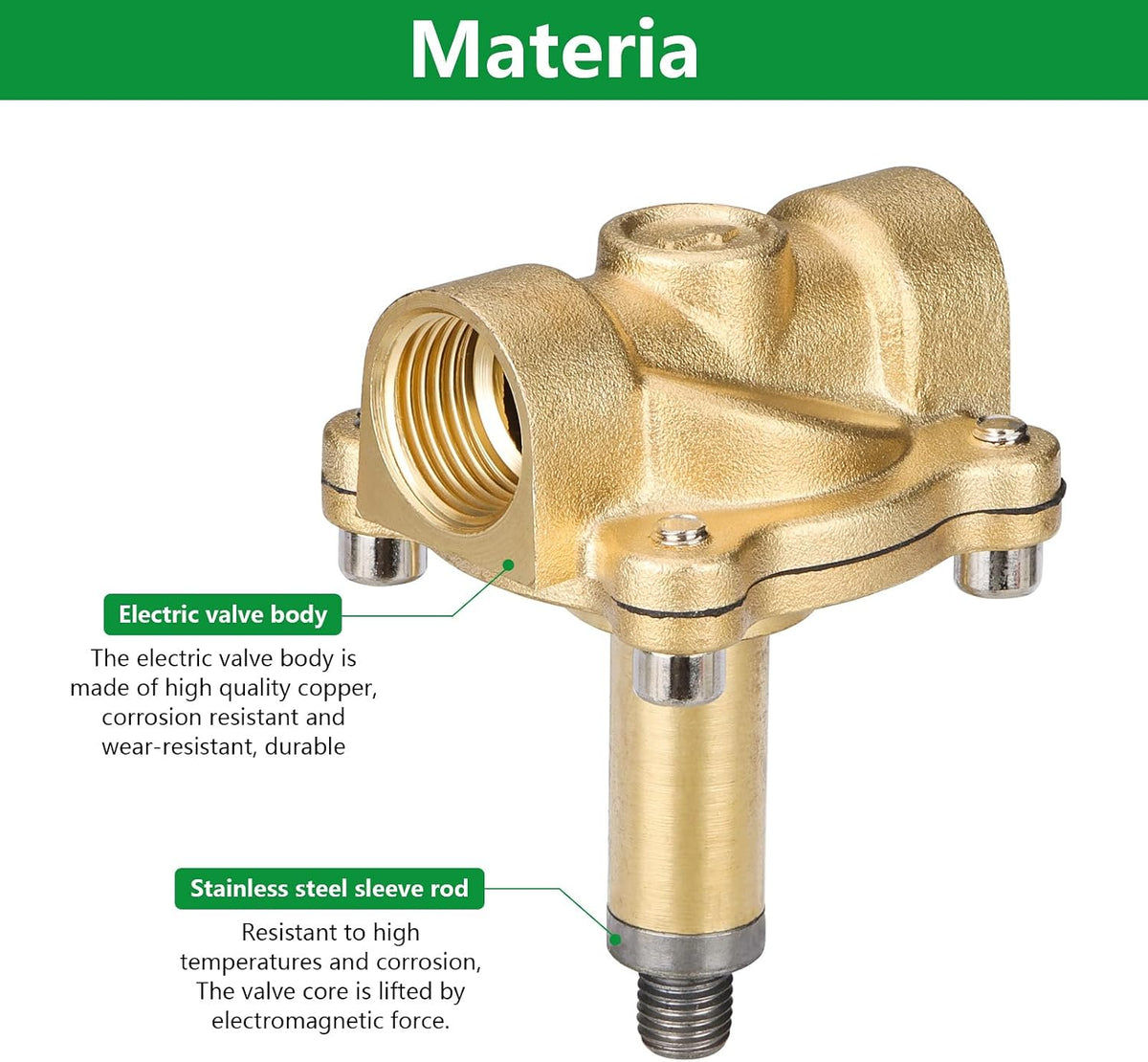

- Solid Forged Brass Quality: Prevent rust, internal corrosion, and body cracking under pressure surges. Solid forged brass body withstands 10 kgf/cm² max pressure with fluids up to 20CST viscosity.
Reliable Low-Voltage Fluid Control for Your Toughest DIY ProjectsStop guessing if your valve will open under low pressure. The Wengart 2W-160-15 Direct Acting Solenoid Valve is the professional solution for systems where water pressure is inconsistent or non-existent. Whether you are building an automatic chicken waterer, managing a hydroponic reservoir, or upgrading your RV's water line, this 12V DC brass valve delivers industrial reliability in a compact package.Why the Wengart Direct-Drive Advantage Matters:Zero PSI Start: Engineered for gravity-fed tanks. It opens instantly even when the water level is low, a common failure point for cheaper pilot-style valves.Zero PSI Start: Engineered for gravity-fed tanks. It opens instantly even when the water level is low, a common failure point for cheaper pilot-style valves.Off-Grid Ready: The 12V DC coil is perfectly matched for solar-powered setups, campers, and boat applications where standard 110V power isn't available.Off-Grid Ready: The 12V DC coil is perfectly matched for solar-powered setups, campers, and boat applications where standard 110V power isn't available.Rugged Durability: The solid brass body and heat-resistant seals e
Free shipping included. 30-day hassle-free returns.
