Wengart Pneumatic Solenoid Valve DIY Techs Single Acting Air Cylinder DC12V

Key features

• Single-Acting Spring-Return Air Cylinders: Stops sluggish piston returns through a dedicated 3-way 2-position NC fluid path delivering 16.0mm2 effective area and 0.89 Cv flow coefficient.
• Low-Pressure Automated Shifting Rigs: Eliminates sudden internal pilot jamming and exhaust port leaks via a responsive spool matrix that operates smoothly within a regulated 21-114 PSI (0.15-0.8MPa) range.
• Vibrating Industrial Machinery Layouts: Resolves loose wire pullouts and short circuits by deploying a detachable DIN 43650 terminal junction box with an internal gasket for stable DC 12V wiring.

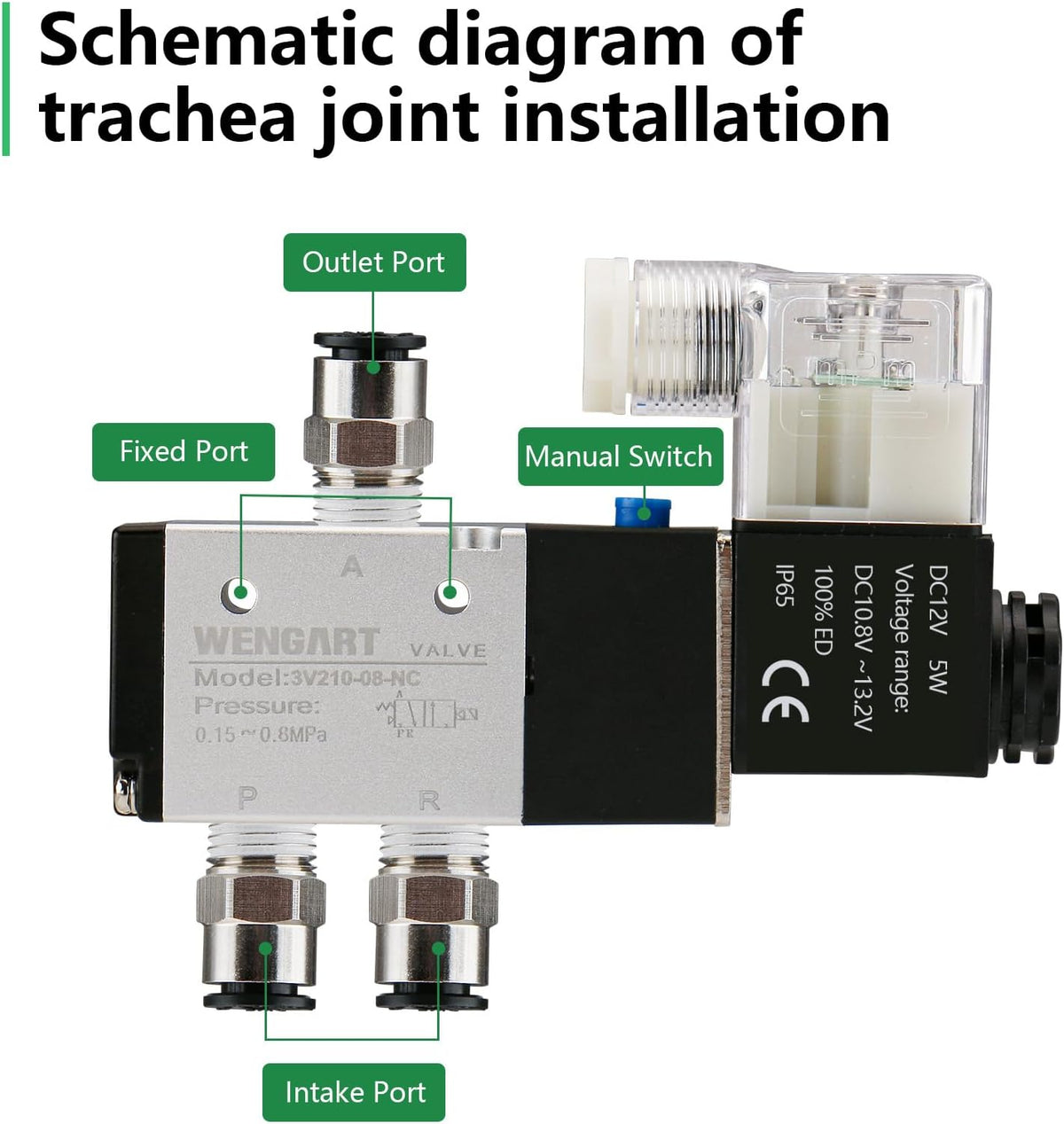

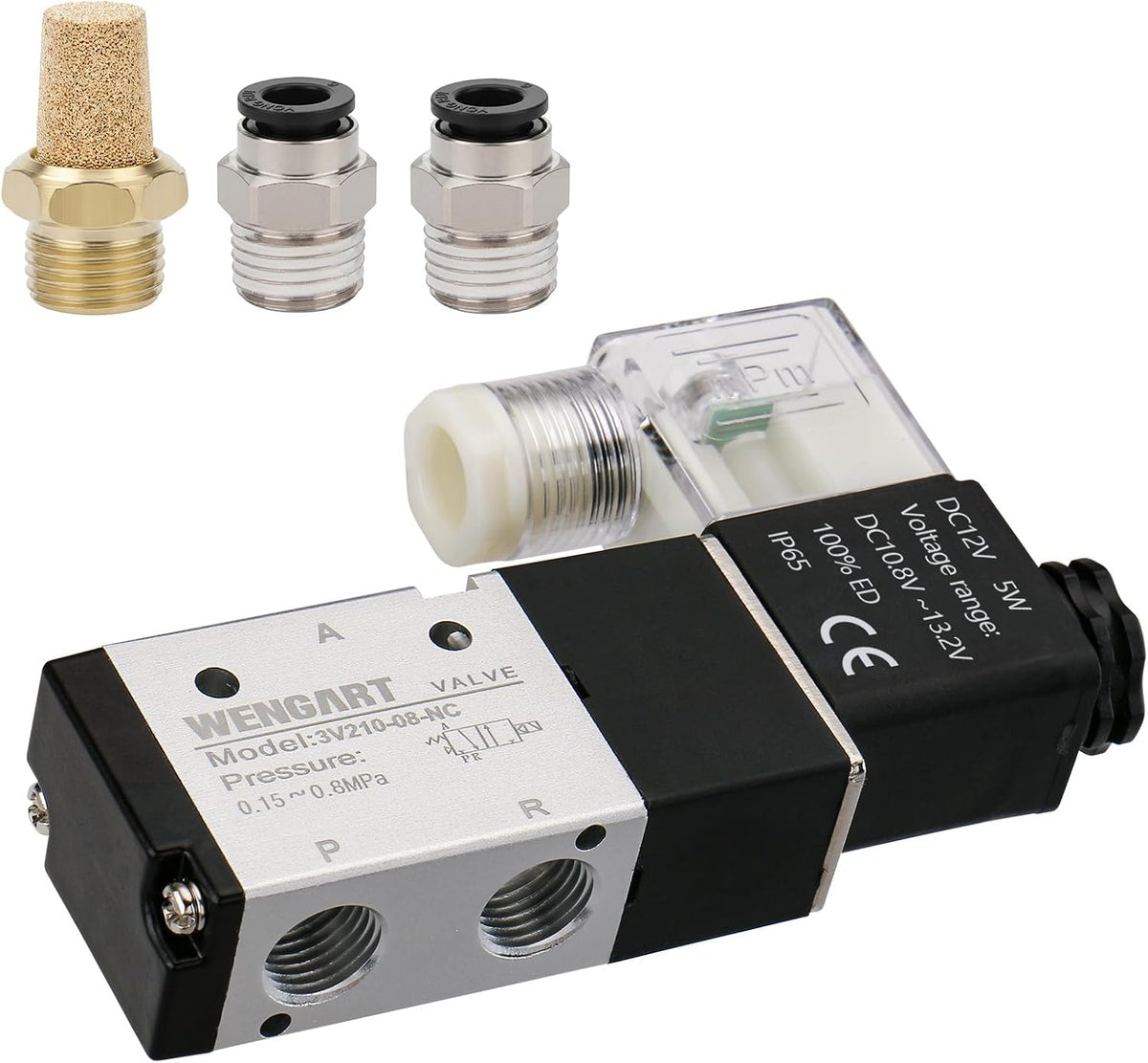

• Custom Manifold Assemblies & Loud Exhaust Noise: Prevents air leaks and blast sounds by providing a complete hardware bundle containing matching 1/4 PT to 6mm OD push-connect fittings and brass mufflers.
• Dusty Workshop Tooling & Automated Gates: Resolves solenoid failure from ambient dirt and oil spray through an IP65 moisture-isolating enclosure handling up to 5 switching cycles per second using 40-micron filtered air.

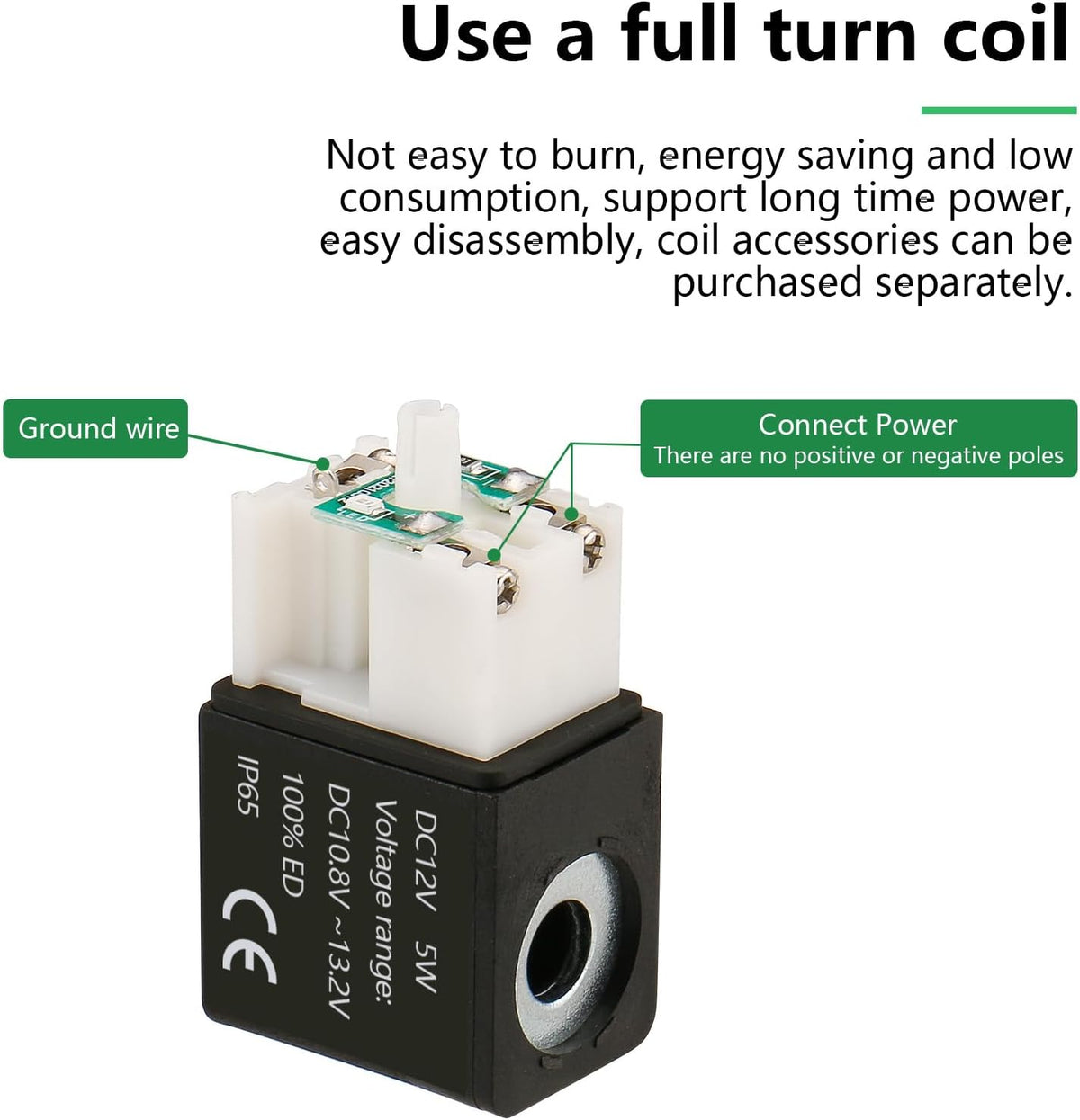

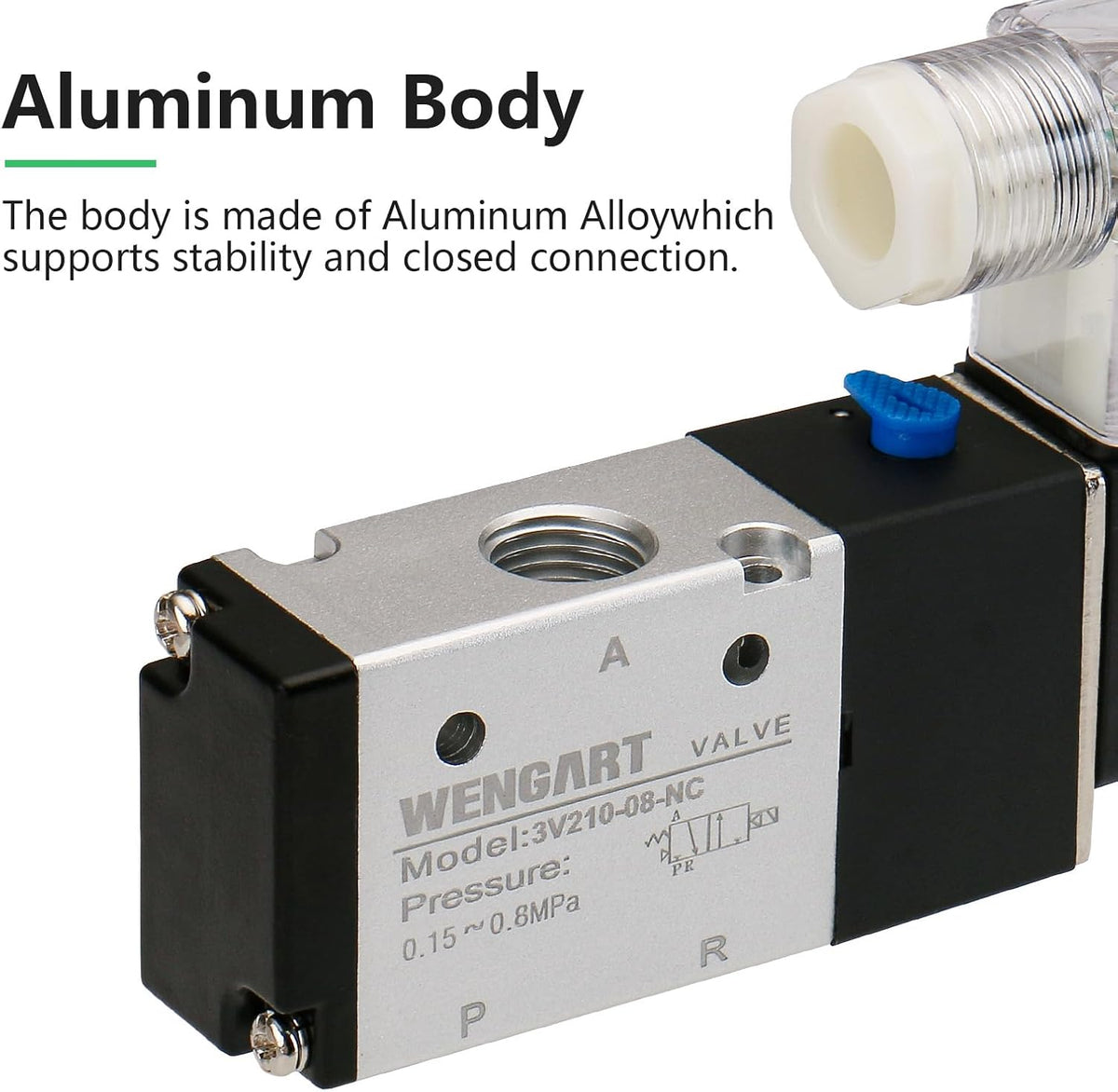

The Wengart 3V210-08 DC 12V Pneumatic Solenoid Valve Kit delivers a complete, leak-free directional air control solution engineered specifically for DIY automation technicians, pneumatic gate builders, and single-acting spring-return air cylinder setups. Built with a high-strength aluminum alloy valve body and low-friction internal seals, this 3-way 2-position electric valve provides rapid, precise air supply and exhaust switching with a high-capacity 16.0 mm2 effective section area (0.89 Cv flow coefficient). Powered by a continuous-duty DC 12V solenoid coil (4.8W power consumption), it features a detachable IP65 rated DIN 43650 terminal junction box with an internal rubber gasket to protect wiring against vibration, dust, and moisture. The included hardware bundle features two 1/4" PT to 6mm OD push-to-connect brass fittings and a matching brass exhaust muffler, eliminating the hassle of hunting for compatible plumbing parts. Frequently Asked Questions (FAQ) -- Critical 3-Way Logic, Pressure and Thread Guidelines:Q1: What is the primary difference between a 3-Way (3V210) and a 5-Way (4V210) pneumatic valve?A1: Model 3V210-08 is a 3-Port 2-Position (3-Way) Normally Closed valve de
