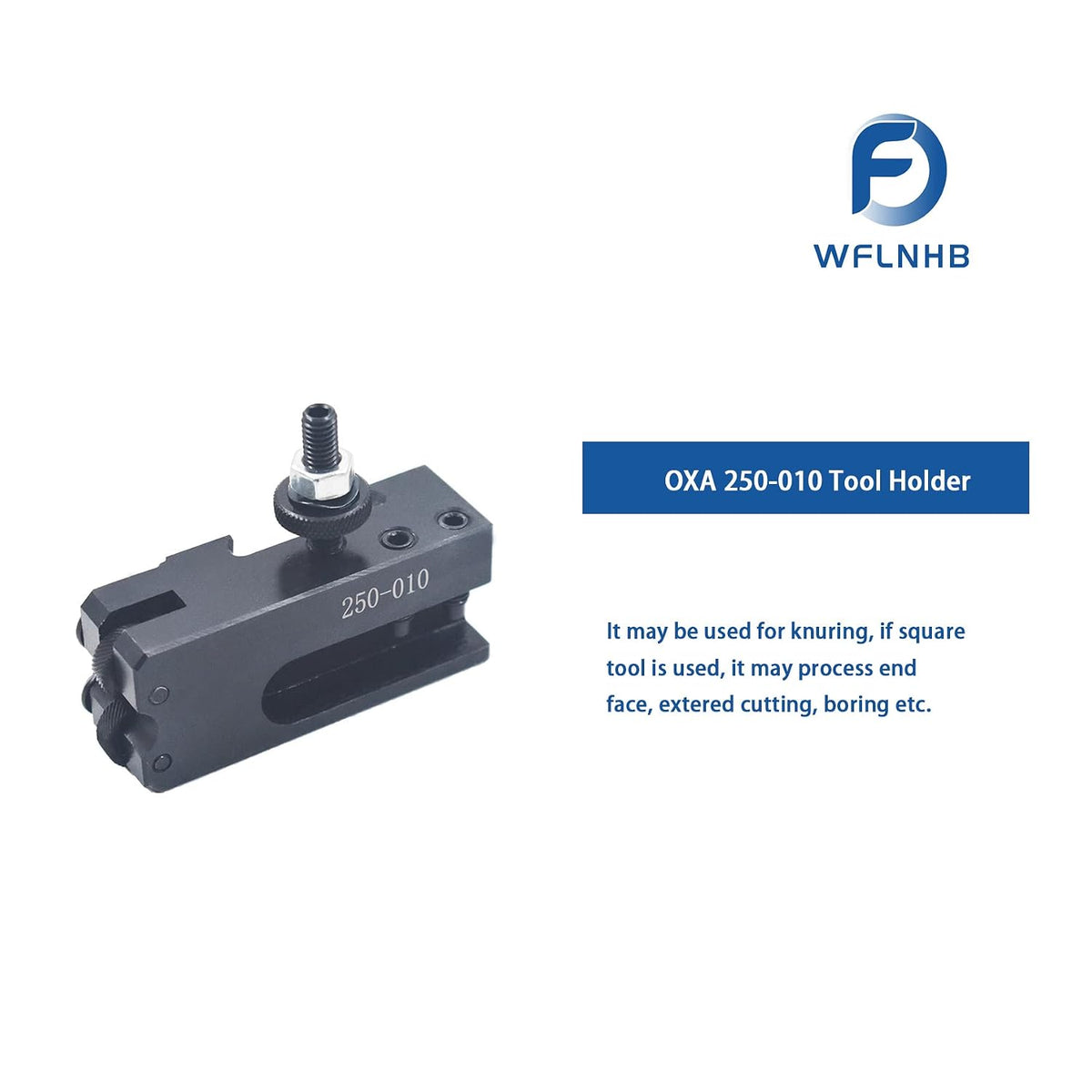

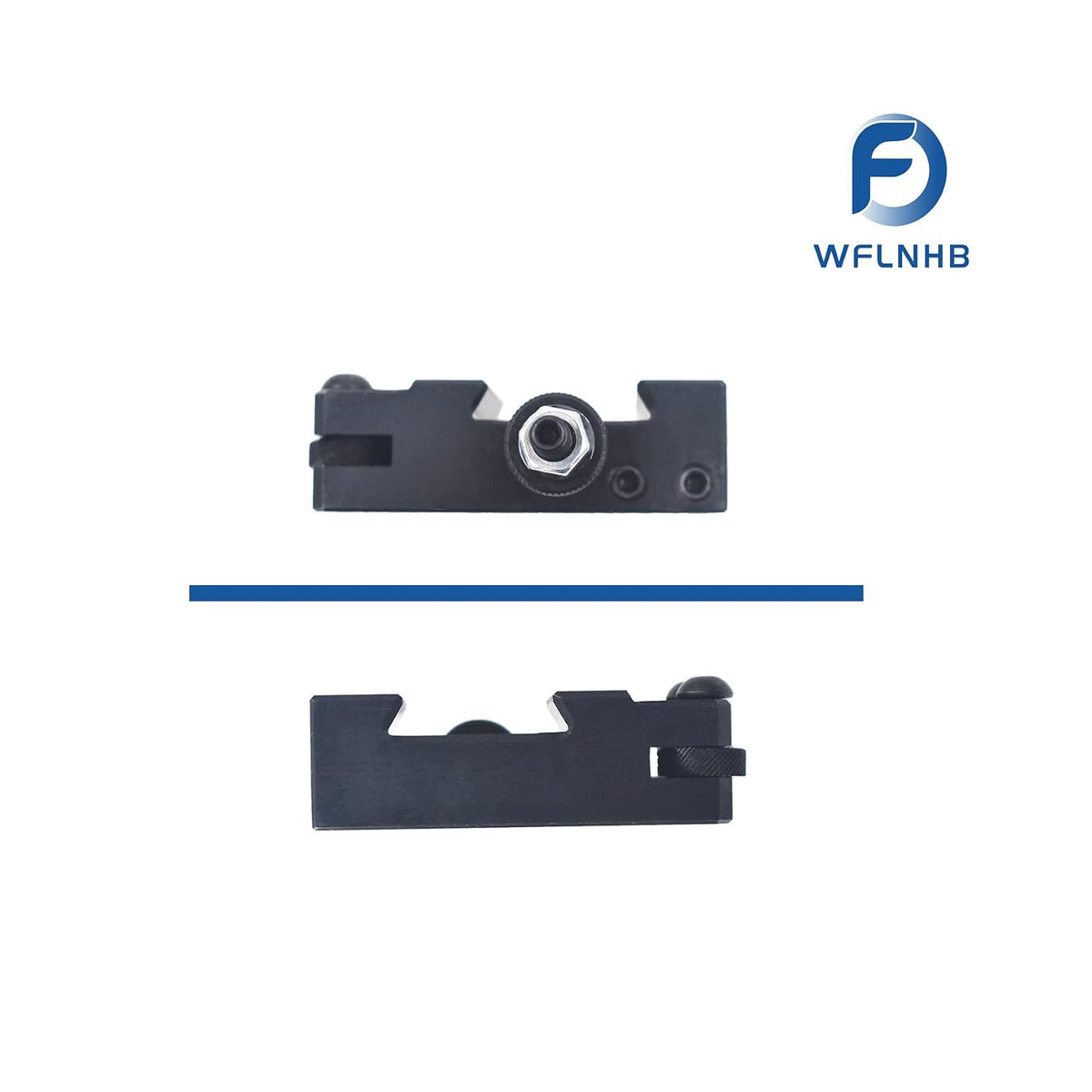

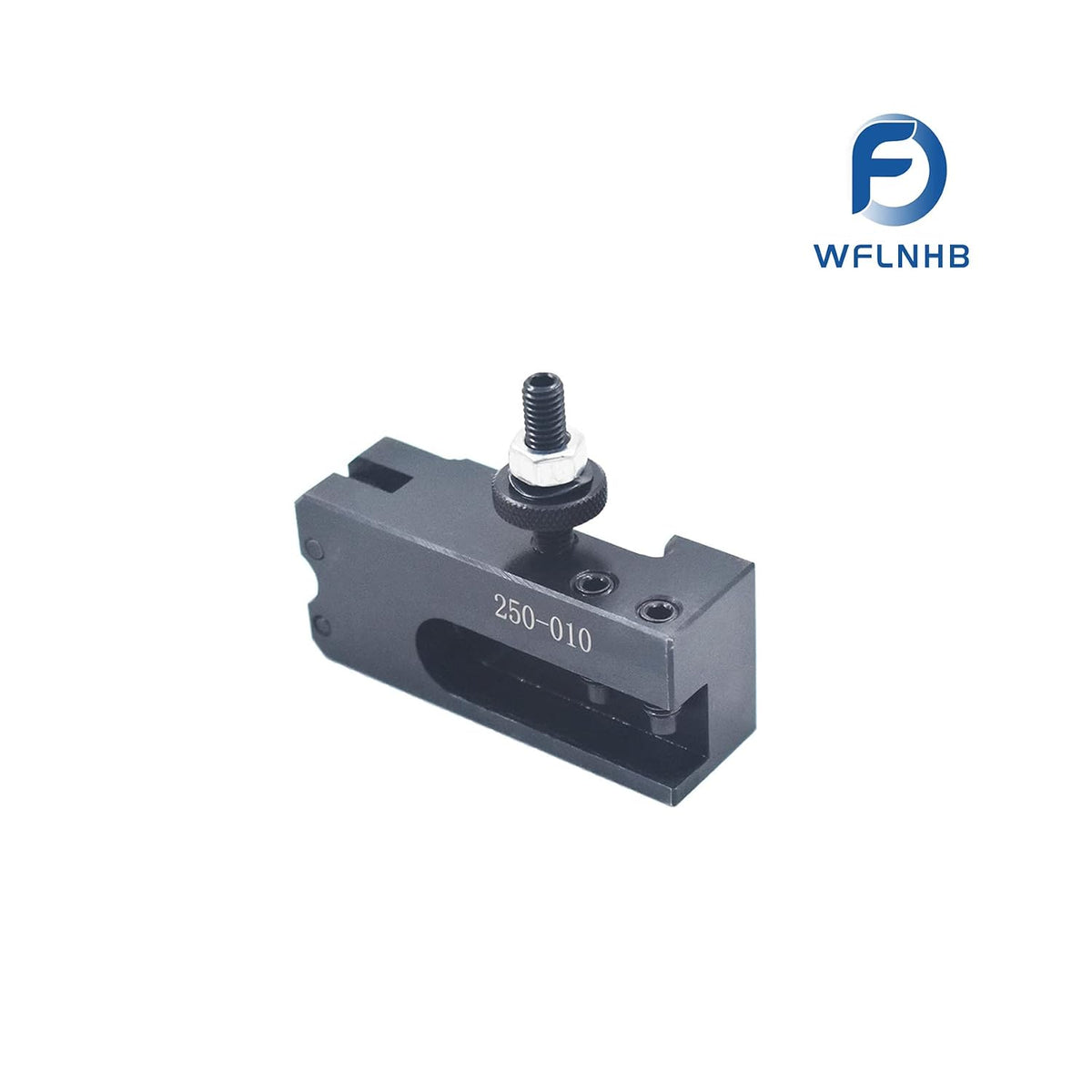

WFLNHB 250-010 OXA #10 Quick Change Knurling Turning and Facing Lathe Tool Post Holder

Key features

• Steel Construction: Crafted from high-strength steel with accuracy heat treatment for extended service life.
• Quick Tool Change: Features a quick-release locking mechanism with high-accuracy locating pins and non-slip handles for straightforward operation and enhanced machining efficiency.
• Manufacturing Process: Utilises an integral casting process with no welded joints, ensuring robust structural integrity.
• Compatibility Range: Precisely engineered to fit multiple machine tool models.
• Package contents: 1Pcs tool holder 250-010 OXA.

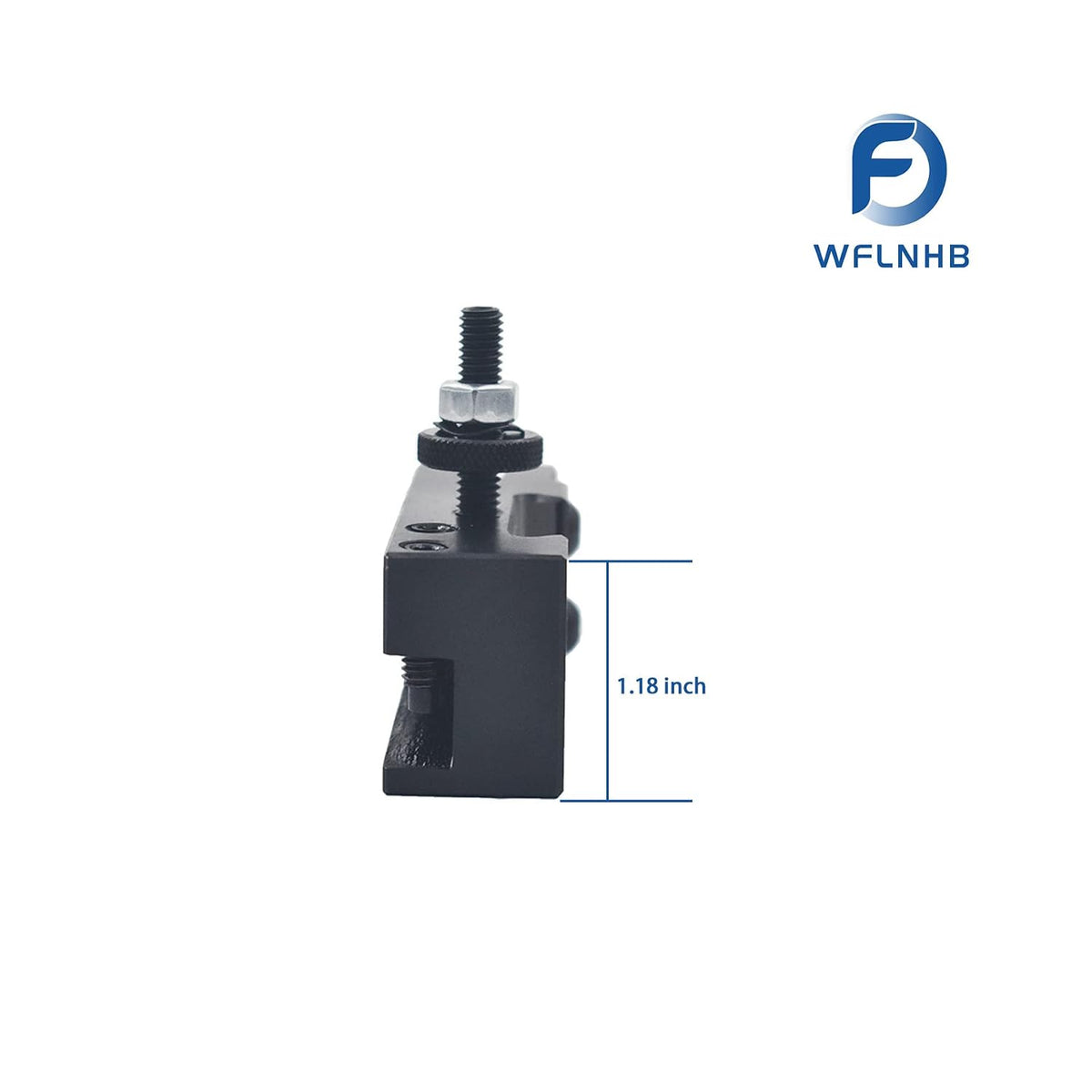

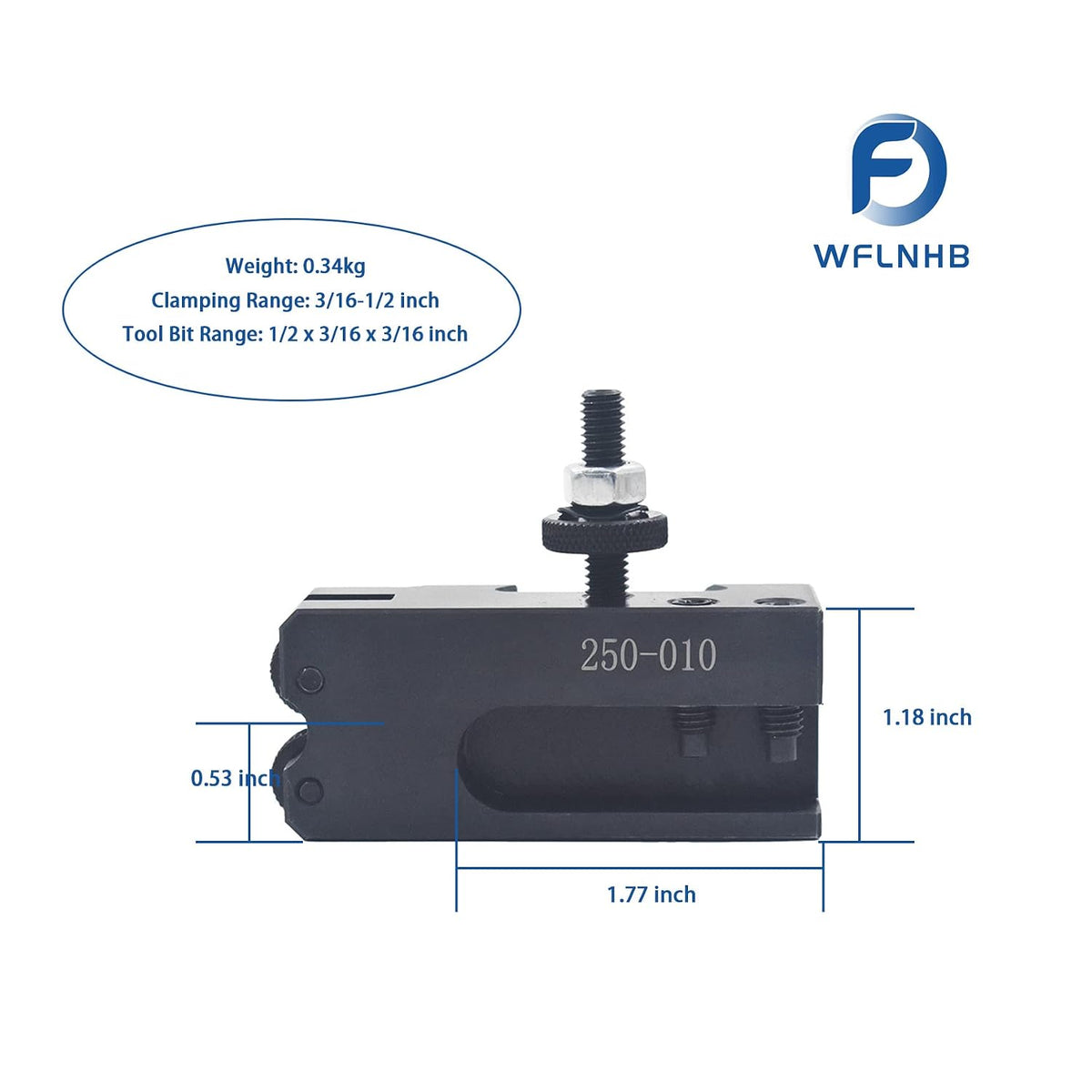

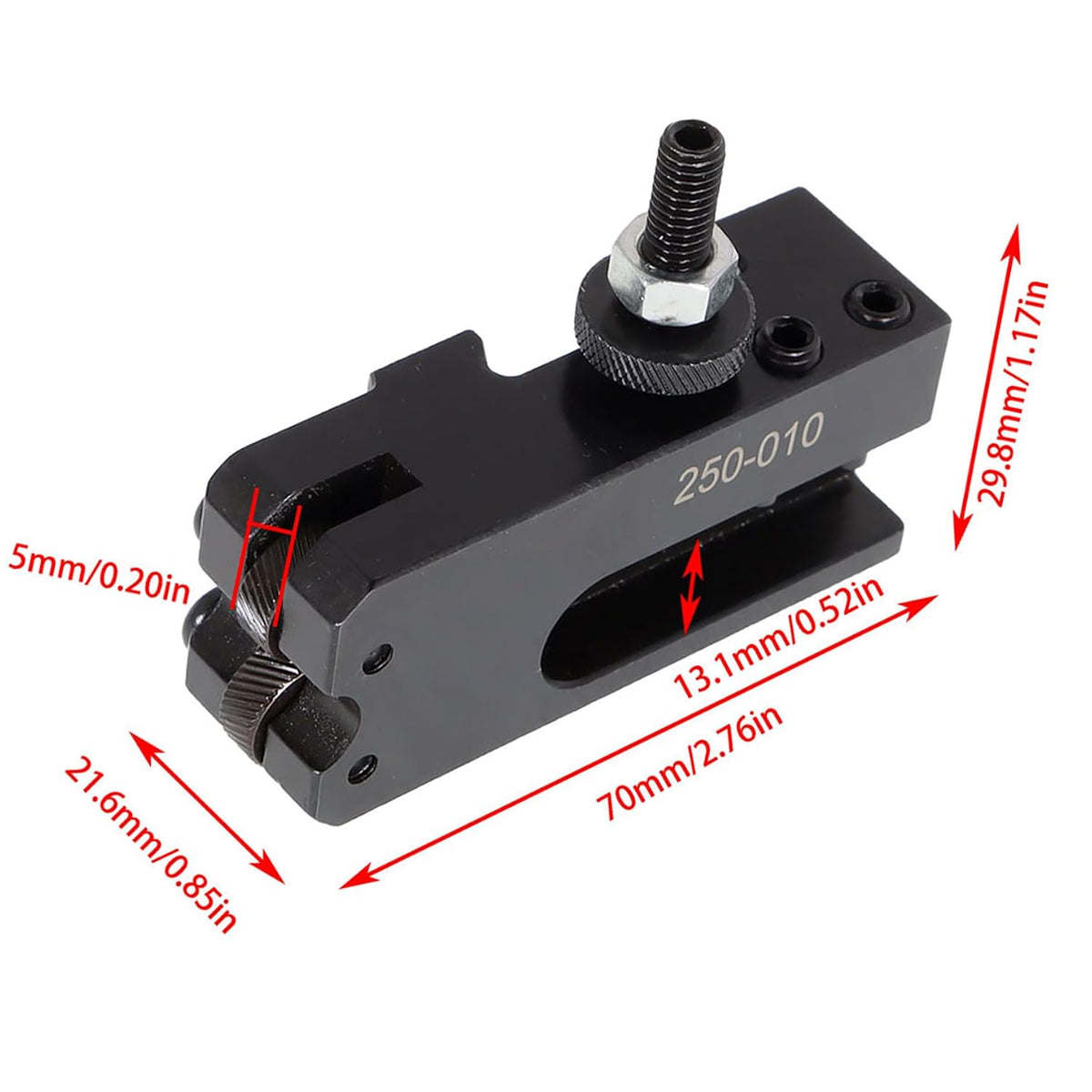

250-010 OXA #10 Quick Change Knurling Turning and Facing Lathe Tool Post HolderFeatures:1. Premium steel construction, built to last, featuring carefully selected high-grade steel subjected to accuracy heat treatment.2. Quick-release mechanism for efficient tool changes.3. Utilises an integral casting process, eliminating weld stress points for enhanced stability and reliability.Overall length: 70mm (2.76 inches) → Standard length of the knife holder body;Overall height: 29.8mm (1.17 inches) → Total height including the installation position of the knurled wheel;Slot width: 13.1mm (0.52 inches) → Compatible with the V-shaped slot of the 250 type quick-change tool holder;Front end width: 21.6mm (0.85 inches) → Standard width of the knurled wheel installation position;Knurled wheel installation hole diameter: 5mm (0.20 inches) → Compatible with the standard Φ5 knurled wheel shaft.Packing List:1Pcs tool holder 250-010 OXA
