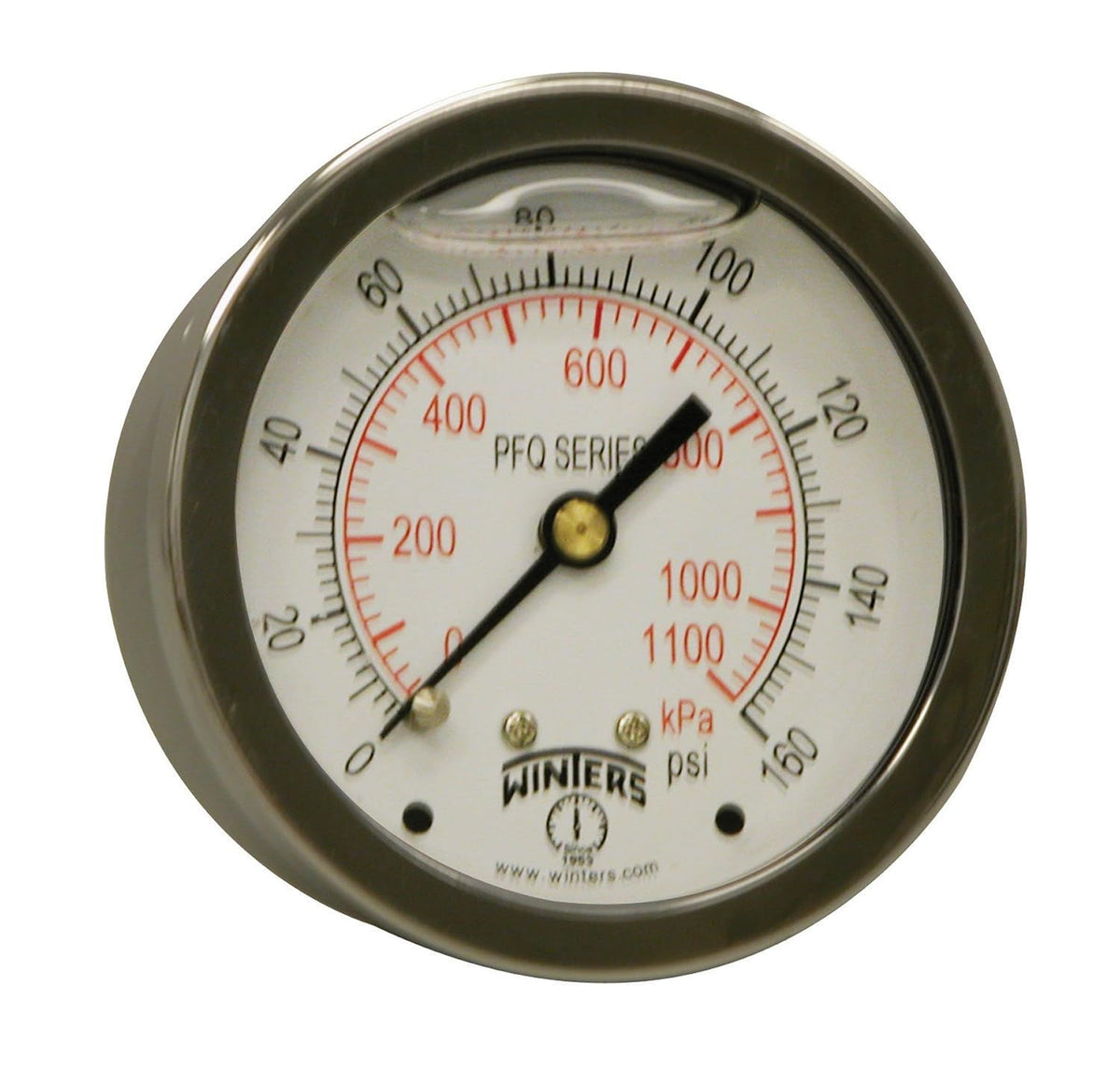

Winters 2-1/2" Dial Size, Liquid Filled Industrial Pressure Gauge, Brass Internals, 304 Stainless Steel Case, Dual Scale 0-160 psi/kPa, 1.5% Acc, 1/4" NPT Back Mount, Glycerin Filled Pressure Gauge

Key features

• Brass wetted parts for measuring non-corrosive liquid and gas pressure
• Circular dial is filled with glycerin and enclosed in a stainless steel 304 case for corrosion resistance
• Measures pressure with single (psi) or dual scale (psi/kPa)/(psi/bar)/(Hg. vacuum/kPa)/(Hg. vacuum/bar)
• Display accuracy is + or - 2.5% of full scale value for the 1.5" (40 mm) and 2" (50 mm) gauges, and + or - 1.5% of full scale value for the 2.5" (63 mm) and 4" (100 mm) gauges
• Lower mount or center back male connection with 1/8", 1/4", or 1/2" NPT rate with restricted orifice

The Winters PFQ series pressure gauge with brass wetted parts has a glycerin-filled circular dial enclosed in a stainless steel 304 case, and a male connection, and measures pressure with a single or dual scale with an accuracy of + or - 1.5% or 2.5%. The OT58 brass wetted parts are for measuring non-corrosive liquid and gas pressure. The stainless steel 304 case is also corrosion resistant and is Ingress Protection certified IP65 for protection against solid objects, including dust or liquids. The circular dial comes in 1.5" (40 mm), 2" (50 mm), 2.5" (63 mm), or 4" (100 mm) diameters and is filled with glycerin for protection against vibration and pulsation. The dial is white aluminum with black and red markings. It has an aluminum, anodized black, pointer and the lens is polycarbonate for high impact resistance. The gauge measures pressure with a single psi scale or a dual scale of psi/kPa, psi/bar, Hg. vacuum/kPa, or Hg. vacuum/bar. The gauge is accurate to + or - 2.5% of full scale value for the 1.5" and 2" dials and accurate to + or - 1.5% of full scale value for the 2.5" and 4" dials. The male connection comes with a 1/8", 1/4", or 1/2" NPT (National Pipe Thread) rate with a
