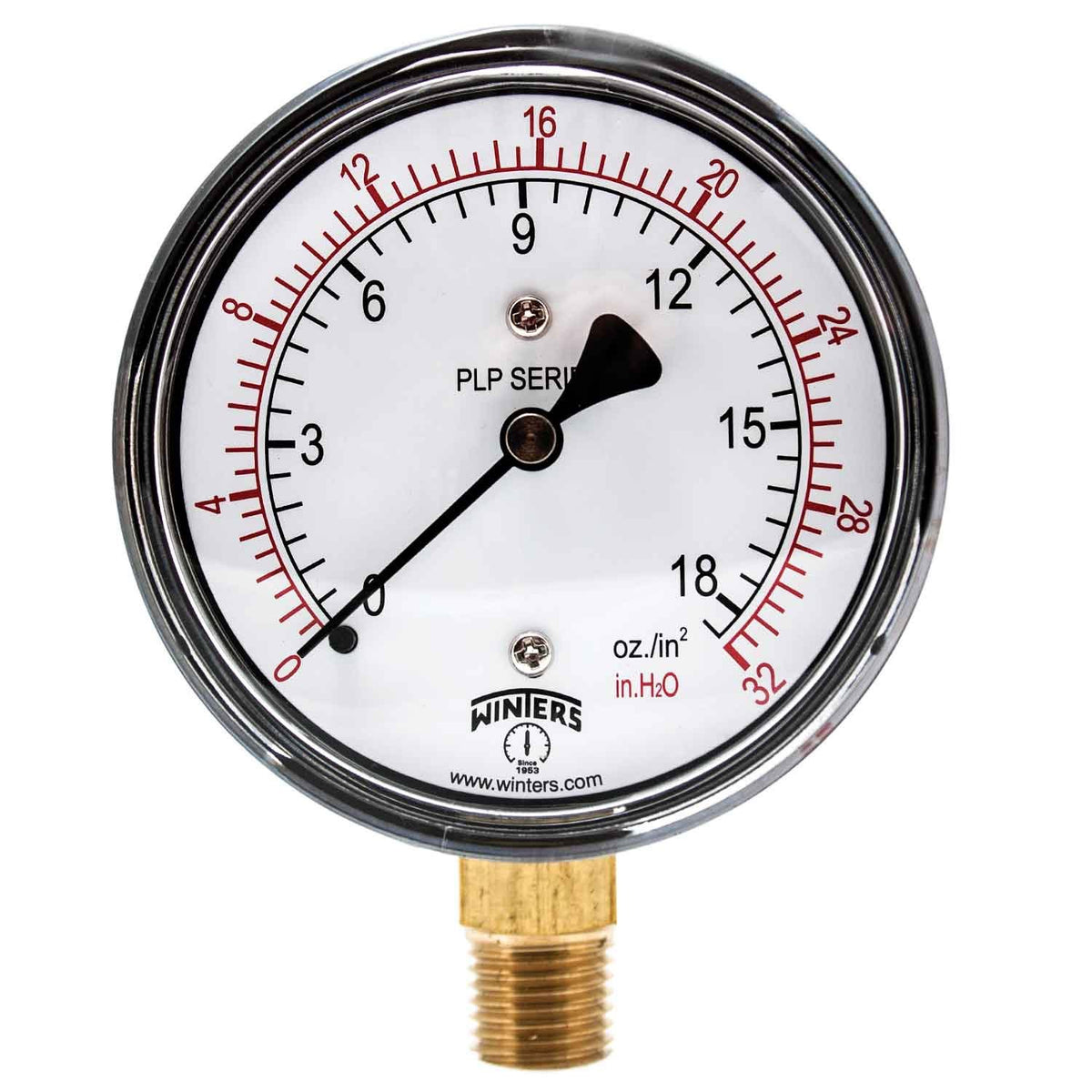

Winters PLP Series Steel Dual Scale Low Pressure Gauge with Brass Internals, 0-32" Water/Oz, 2-1/2" Dial Display, +/- 3-2-3% Accuracy, 1/4" NPT Bottom Mount

Key features

• Brass wetted parts for measuring non-corrosive liquid and gas pressure
• Circular dial is enclosed in a steel case for corrosion resistance
• Measures pressure with single scale (water vacuum) or dual scale (psi/kPa)/(water/oz.)
• Display accuracy is + or - 3/2/3% over the entire range of the gauge (ASME B40.100 Grade B)
• Lower mount or center back male connection with 1/4" NPT rate

The Winters PLP series pressure gauge with brass wetted parts has a circular dial enclosed in a steel case, and a male 1/4" NPT connection, and measures pressure with a single or dual scale with an accuracy of + or - 3/2/3%. The brass wetted parts are for measuring non-corrosive liquid and gas pressure. The steel case is Ingress Protection certified IP52 for protection against dust or liquids. The circular dial comes in 2.5" (63 mm) or 4" (100 mm) diameters. The dial is white aluminum with black and red markings. It has an aluminum, anodized black, pointer and the lens is polycarbonate for high impact resistance. The lens ring is steel. The gauge measures pressure with a single water vacuum scale or a dual scale of psi/kPa or water/oz. The gauge is accurate to + or - 3/2/3% over the entire range of the gauge, American Society of Mechanical Engineers (ASME) B40.100 Grade B accuracy class. The male connection is mounted on the bottom or center back of the gauge and has a 1/4" NPT (National Pipe Thread) rate. The movement for the 2.5" gauge is an engineering plastic upper and lower plate with brass pinion and sector. The movement for the 4" gauge is brass. The welding is brazed solder
