WP4449751 Range Oven High Limit Thermostat Fit for Whirlpool Maytag

Key features

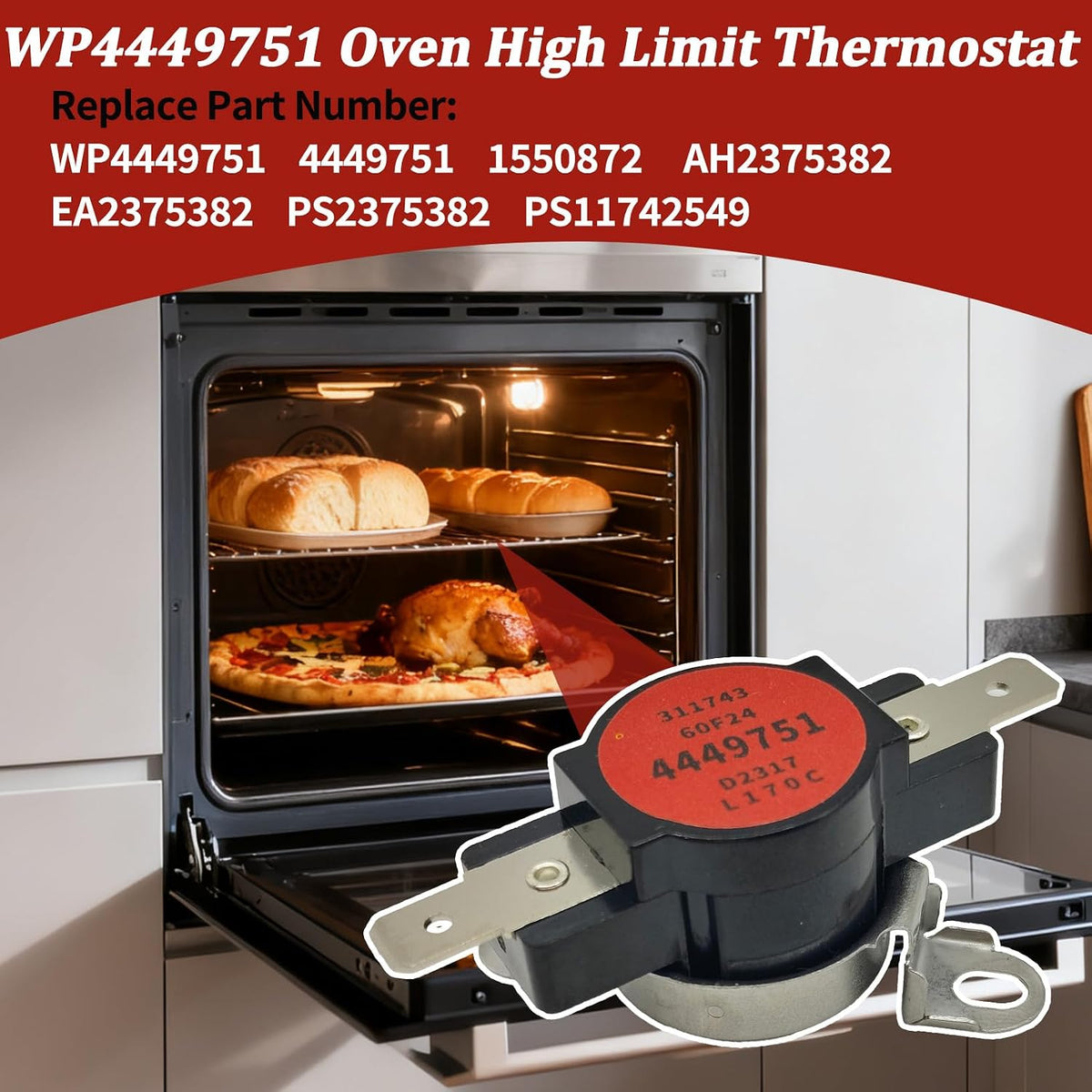

• Oven Limit Thermostat Replacement Part Number：WP4449751 high limit thermostat that replaces part numbers 4449751, AP6009390, PS11742549, EAP11742549, and AH11742549

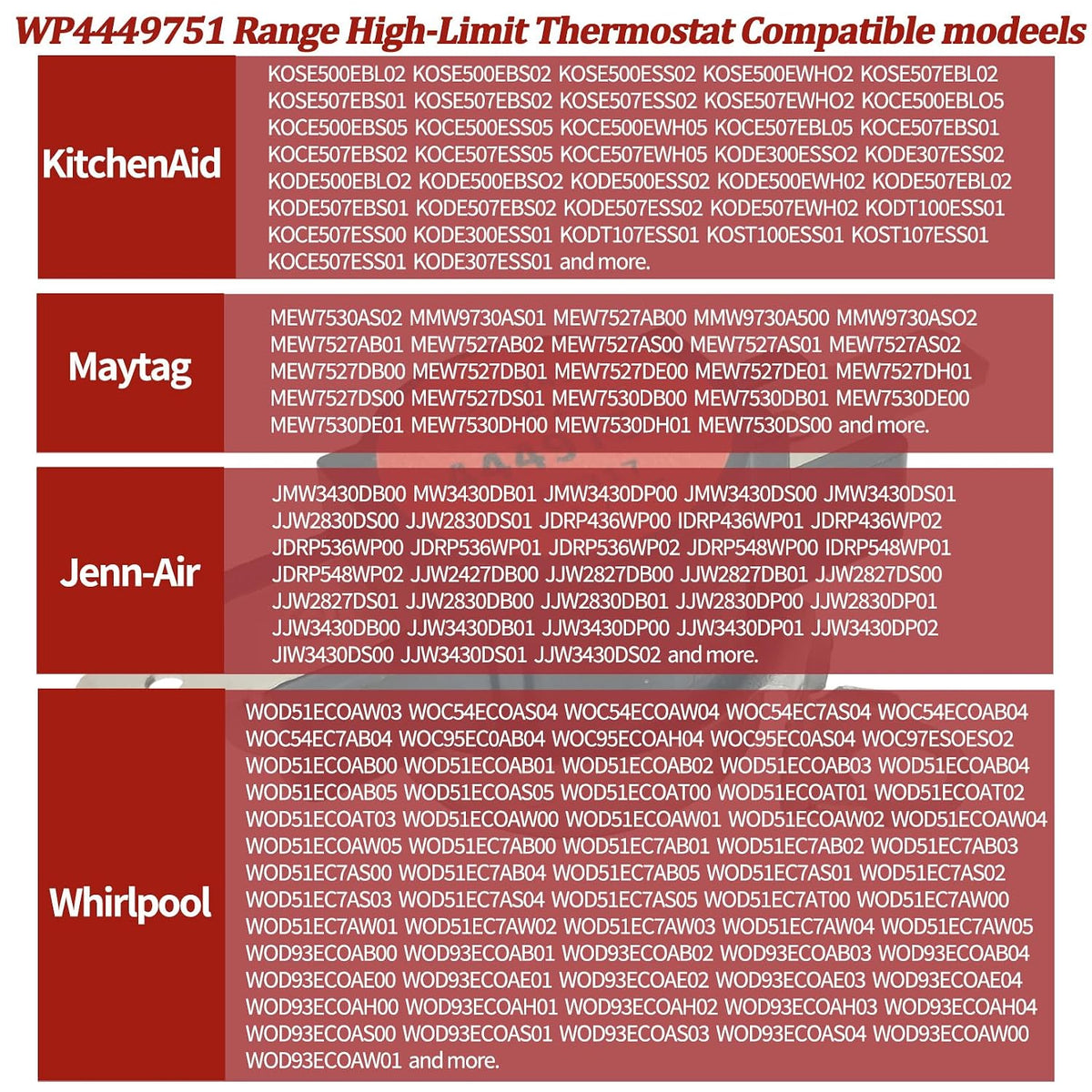

• Wide Compatibility：This range oven limit thermostat is compatible with Whirlpool WOS series (WOS51EC0AS, WOS31ES0JS), WOD series (WOD51EC7HS, WOD93EC7AS) oven thermostat. Suitable for KitchenAid KOSE, KODE, and KOCE series (KOSE500ESS, KODE500ESS, KOCE500ESS) and suitable for Jenn-Air JJW, JMW, JDRP, and JDR series (JJW2430DS, JJW3430DS, JMW2430DS, JDRP430WP, JDRP536WP). Also fits for Maytag and Amana(select wall ovens). Suitable for single or double electric wall ovens and microwave-oven combination units
• Temperature Control：This range oven limit switch automatically cuts off power when oven temperature exceeds 335°F (170°C). It is typically activated when temperature regulation fails due to issues such as faulty control systems, fan failure, blocked ventilation, poor door sealing, disrupted air circulation, or abnormal self-cleaning cycles. It serves as a safety cut-off device to prevent overheating and potential damage

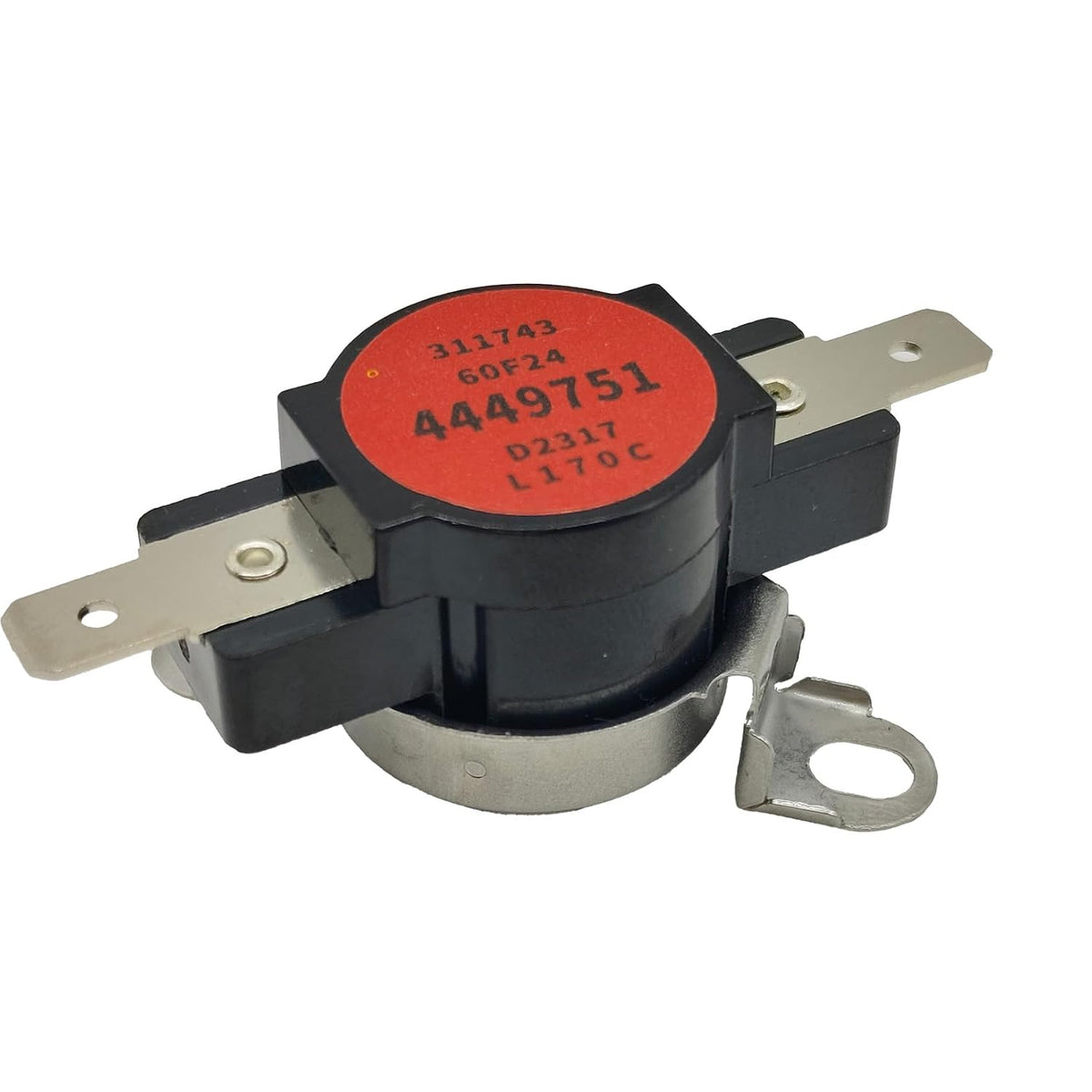

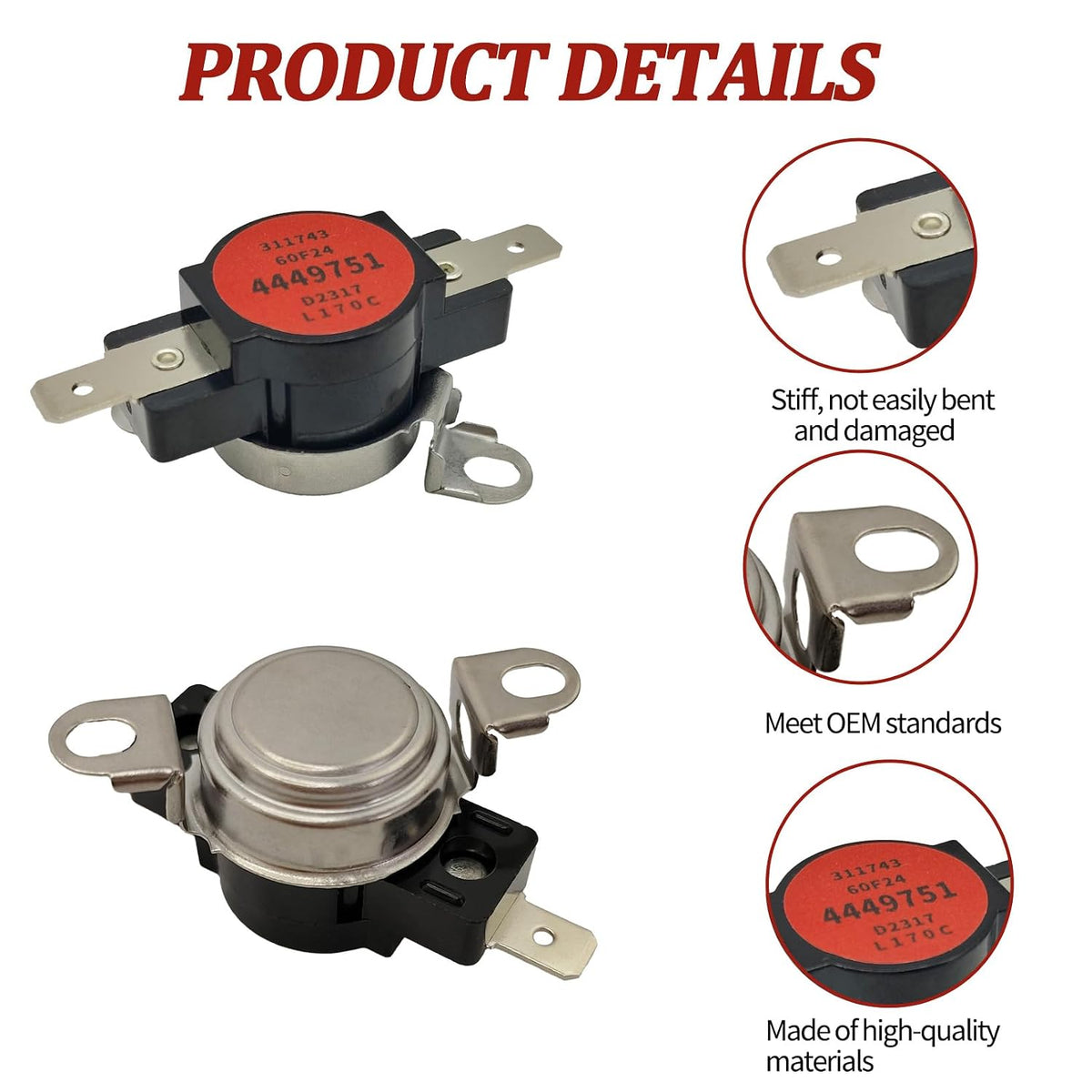

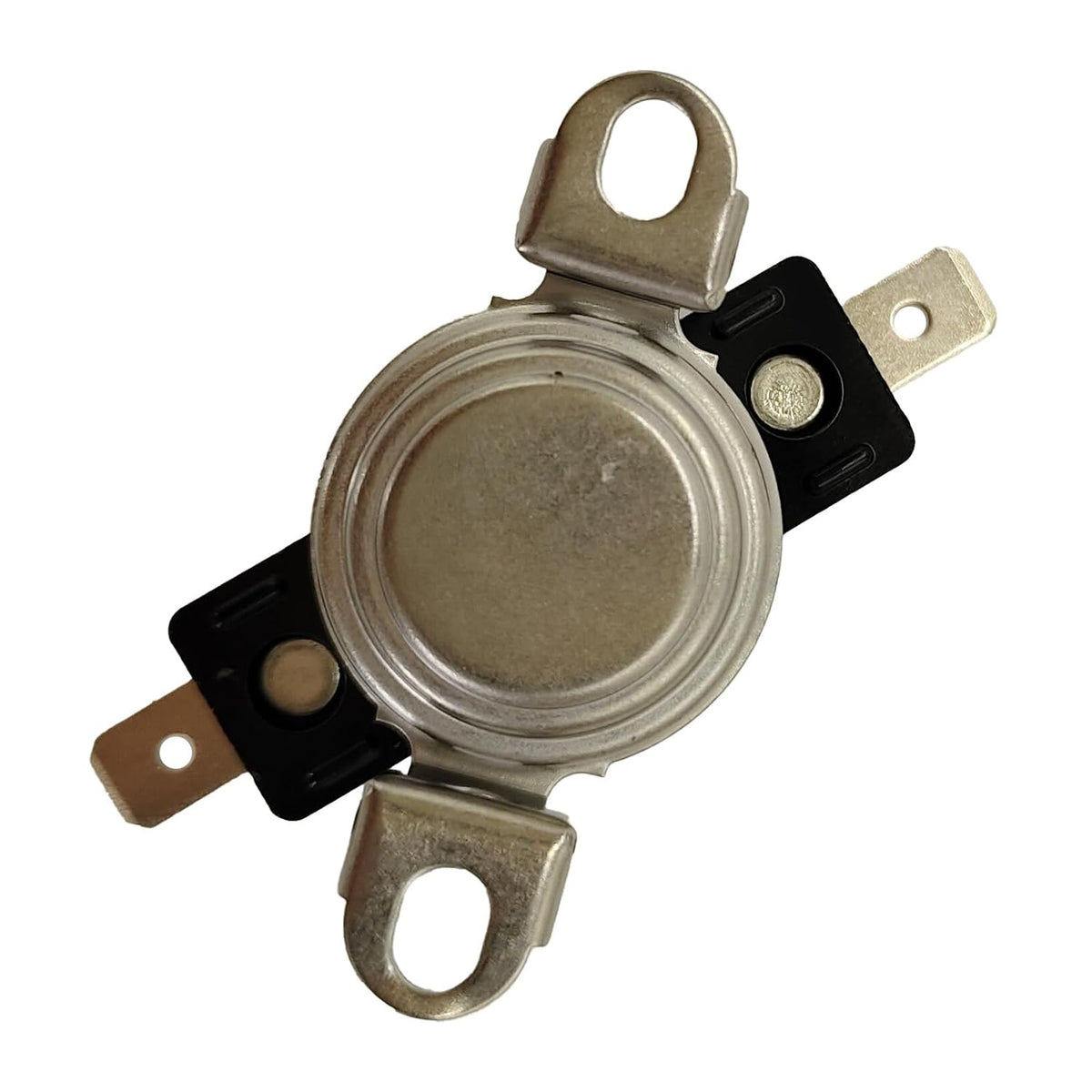

• Durable Materials：Built with a metal mounting base, high-heat-resistant plastic housing, and dual push-on terminals. wp4449751 offers heat resistance, corrosion resistance, thermal conductivity, and electrical performance. The internal bimetal disc responds quickly, making it a key safety component in ovens
• Easy Installation：Typically mounted on the top or back of the oven near the fan duct or control panel to monitor excessive temperatures. Features standard 1/4-inch quick-connect terminals for straightforward wiring. Always disconnect power before installation.

Free shipping included. 30-day hassle-free returns.
