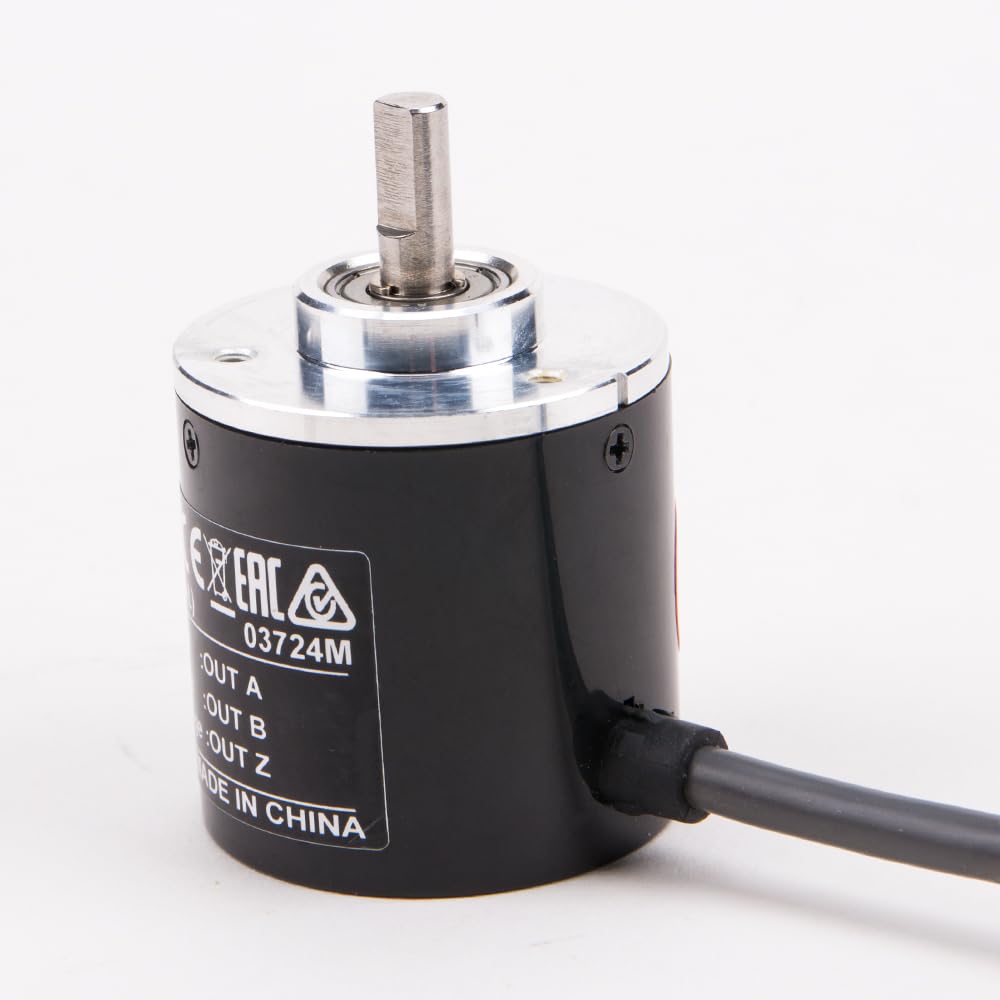

WSDMAVIS 1 Pcs Rotary Encoder E6B2 CWZ6C E6B2-CWZ6C 1024P/R DC 5-24V

Key features

• Type : E6B2-CWZ6C;Resolution ratio : 1024P/R 5-24v;Current consumption : 70 mA(max).
• Supply voltage : 5 VDC -10% to 24 VDC +15%; max. 5% ripple.
• Output phases : A, B, Z (reversible);Output mode: NPN open collector.

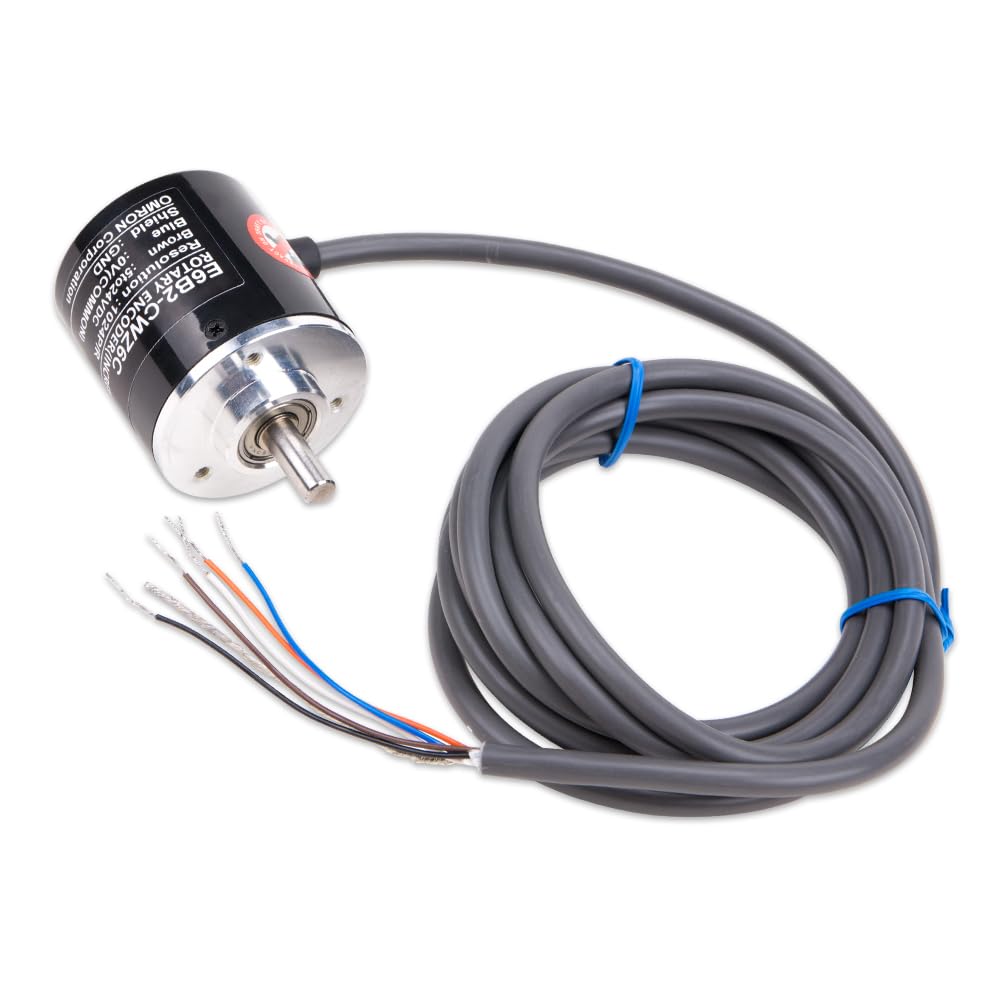

• Starting torque: 0.98mN.m(max); the maximum allowable number of rotations: 6000r/min; allowable shaft force: radial (30N) and axial (20N); connection method: wire lead (standard length 500mm)
• Protection circuit: load short circuit protection, power reverse wiring protection.

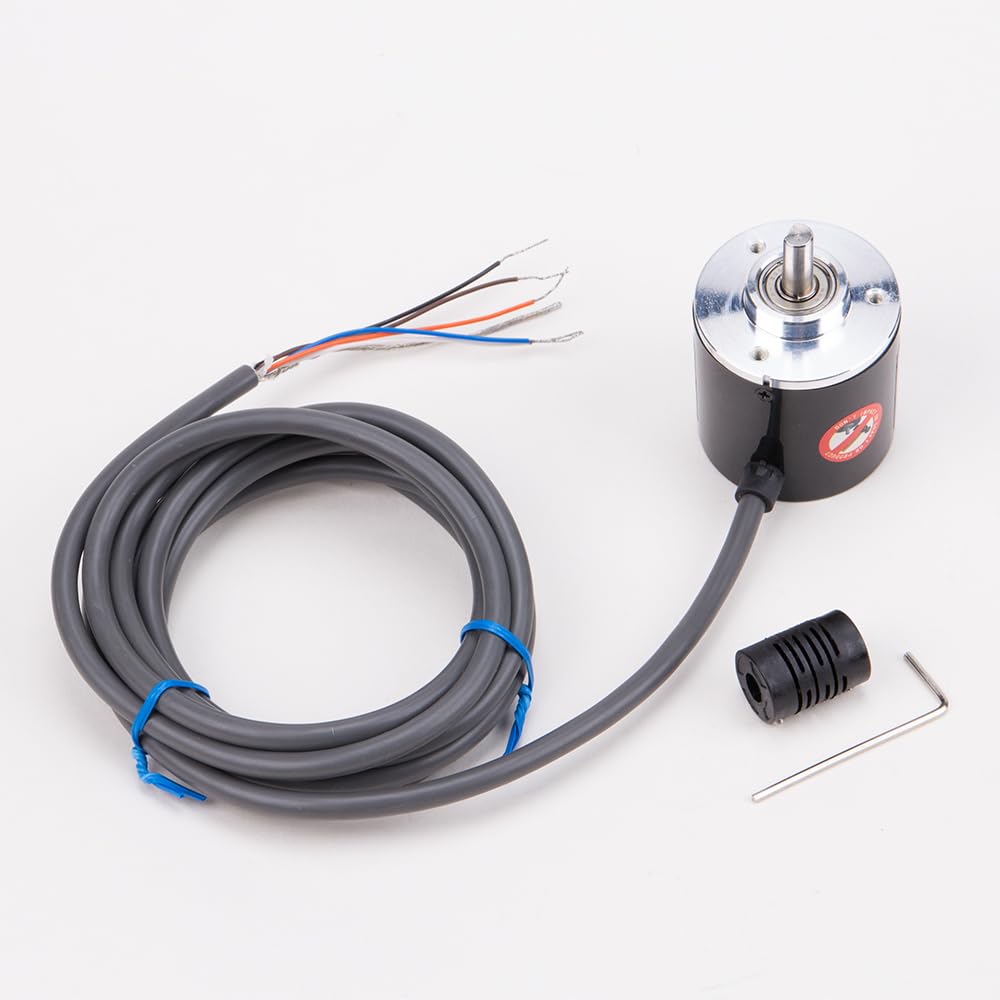

Note: Actual color may be slightly different from the image due to different monitor and light effect. Please allow minor deviation due to manual measurement. We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution. Package Includes: 1PCS x Rotary Encoder
