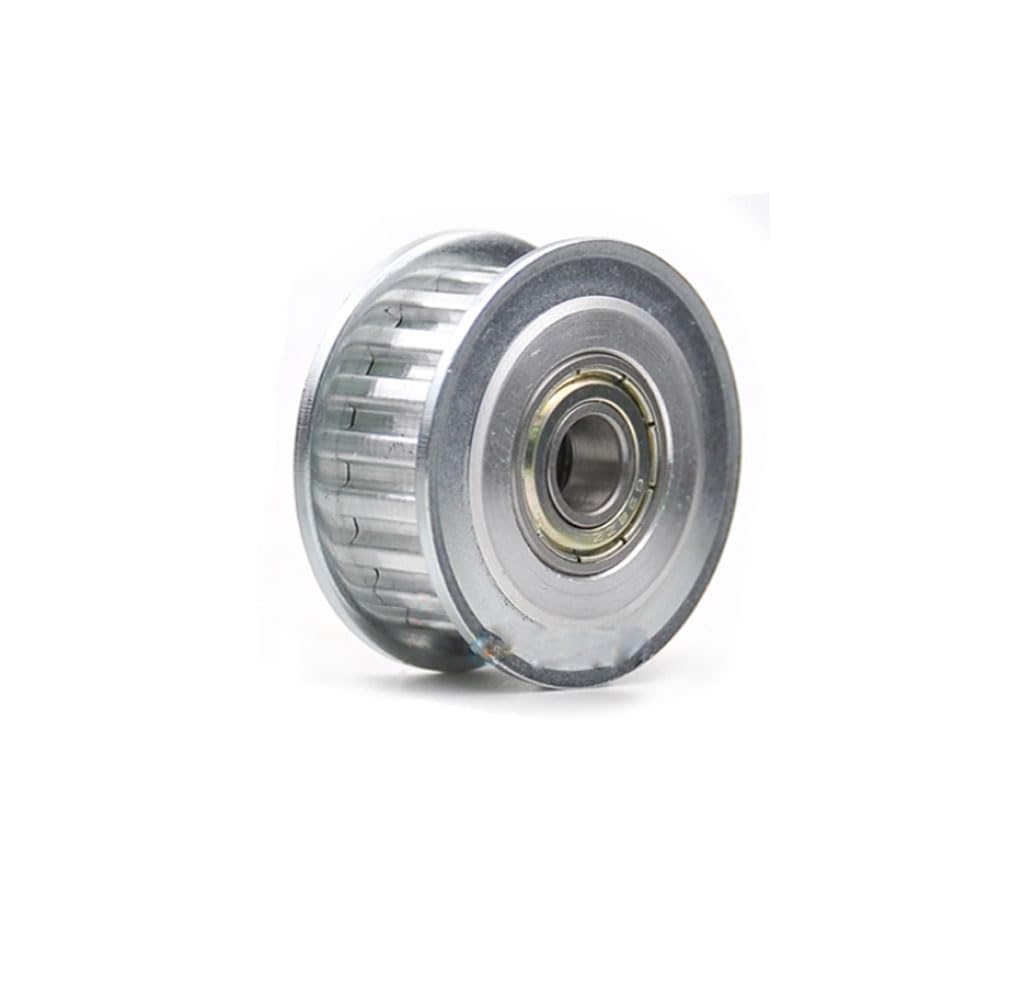

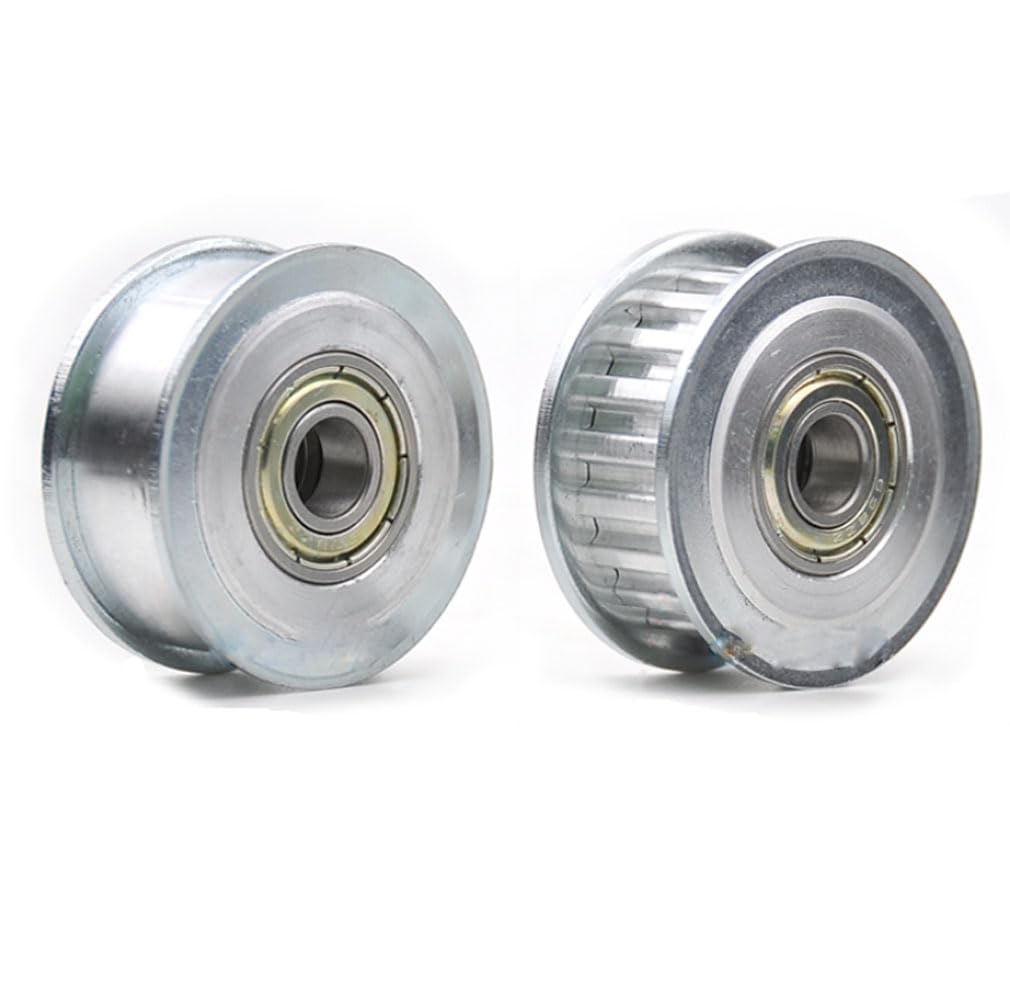

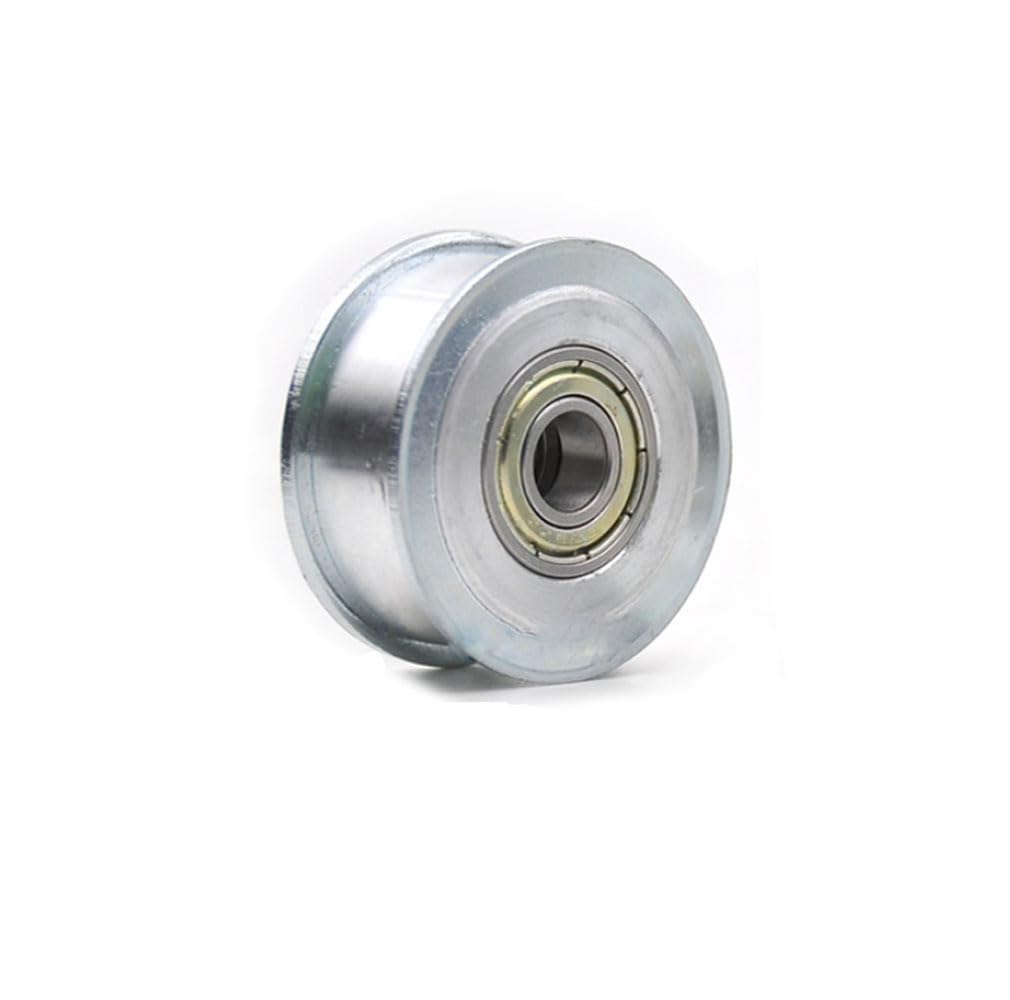

XL 12T Timing Belt Tensioner Pulley Synchronous Wheel 1/5" Pitch 3mm Bore For 10mm Width Belt (XL12T, Teeth surface, Bore: 3mm)
XL 12T Timing Belt Tensioner Pulley Synchronous Wheel 1/5" Pitch 3mm Bore For 10mm Width Belt (XL12T, Teeth surface, Bore: 3mm)
Key features
- XL Type Timing Belt Pulley Tensioner Pulley; Material: Aluminum Alloy
- Used widely in milling machine, CNC engine lathe, gear shaper, hobbing machine, drilling machine or other machinery transmission occassions.
- Tooth shape: trapezoidal teeth
- Tooth width: 11mm (for 10mm wide belt)
Product Size: Product name: XL Type Timing Belt Pulley Tensioner Pulley Tooth shape: trapezoidal teeth Pitch: 5.08MM Tooth width: 11mm (for 10mm wide belt) Total thickness: 15mm Material: aluminium alloy (capped edge: iron plated zinc) Bore: according to your choose Model: XL12T; Outer diameter: 18.8mm(Without teeth) / 18.89mm(With teeth) Model: XL15T; Outer diameter: 23.7mm(Without teeth) / 23.75mm(With teeth) Model: XL20T; Outer diameter: 31.8mm(Without teeth) / 31.83mm(With teeth) Model: XL25T; Outer diameter: 39.9mm(Without teeth) / 39.92mm(With teeth) Model: XL30T; Outer diameter: 48mm(Without teeth) / 47.85mm(With teeth) Model: XL40T; Outer diameter: 64mm(Without teeth) / 64.17mm(With teeth) Package Including: 1Pcs
Free shipping included. 30-day hassle-free returns.
