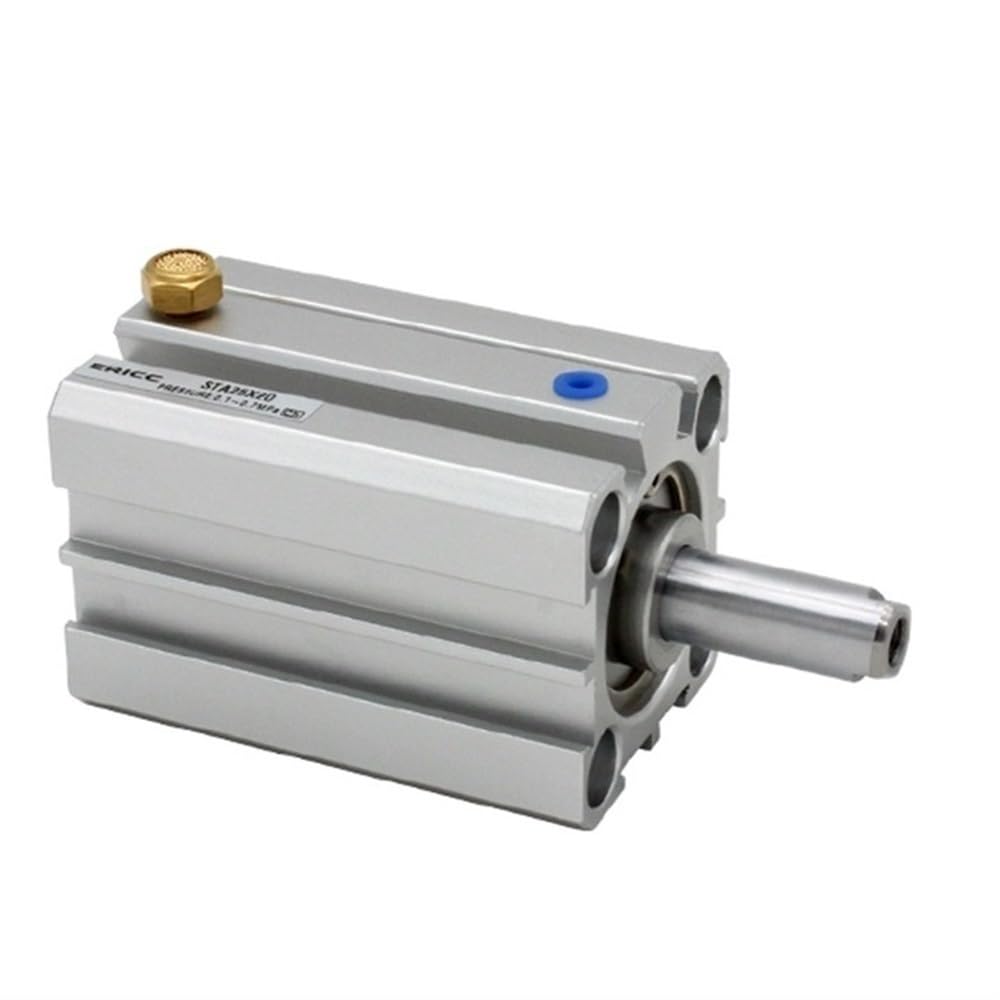

XQSYLE Compact Cylinder Single Acting-Pull, Spring Return STA-S Aluminum Pneumatic Cylinder with Magnetism 1pc(20X5mm)
XQSYLE Compact Cylinder Single Acting-Pull, Spring Return STA-S Aluminum Pneumatic Cylinder with Magnetism 1pc(20X5mm)
Key features
- Spring Return Mechanism: Uses spring for piston return, simplifying use
- High Proof Pressure: Withstands pressure up to 1.5 MPa ensuring durability
- Temperature Tolerance: Functions stably from -20 to 70 degrees celsiu.s
- Magnetism Feature: Enables precise position sensing for enhanced control and automation
- 1pc x aluminum pneumatic cylinder is provided in the package, size means bore * stroke

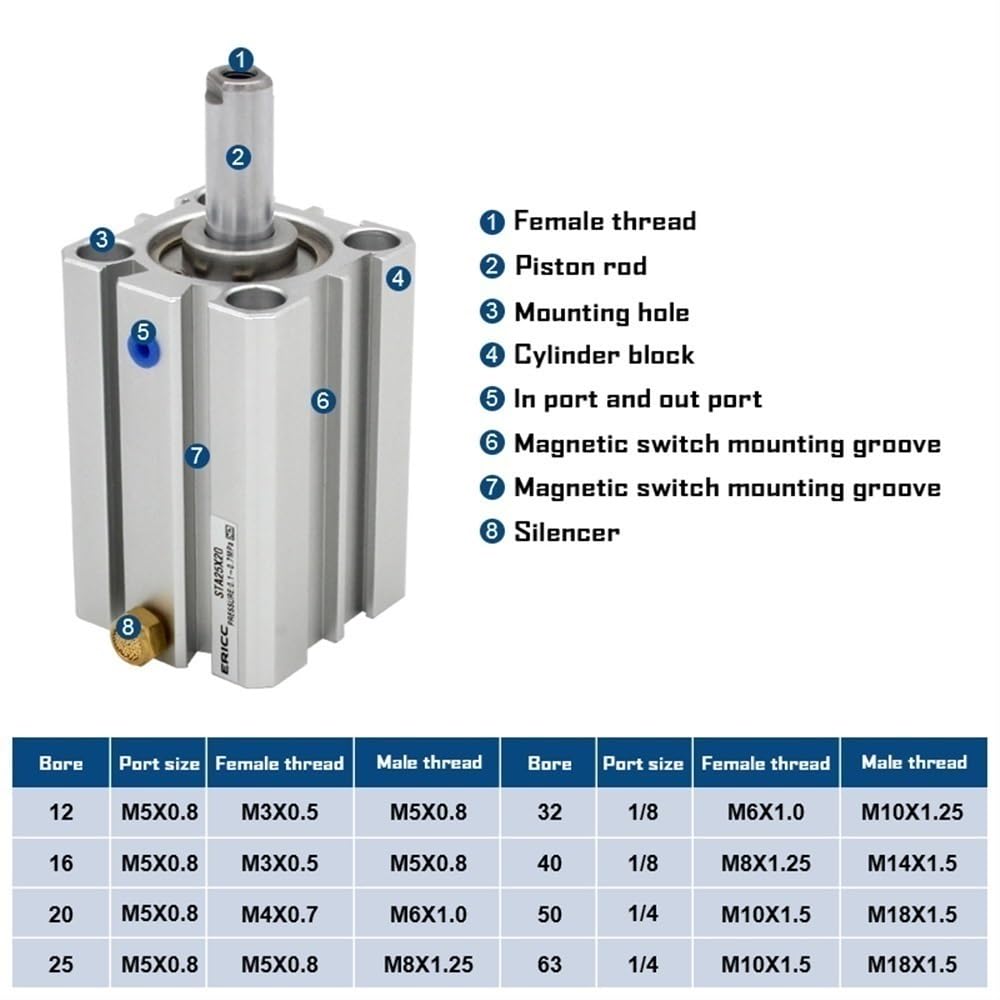

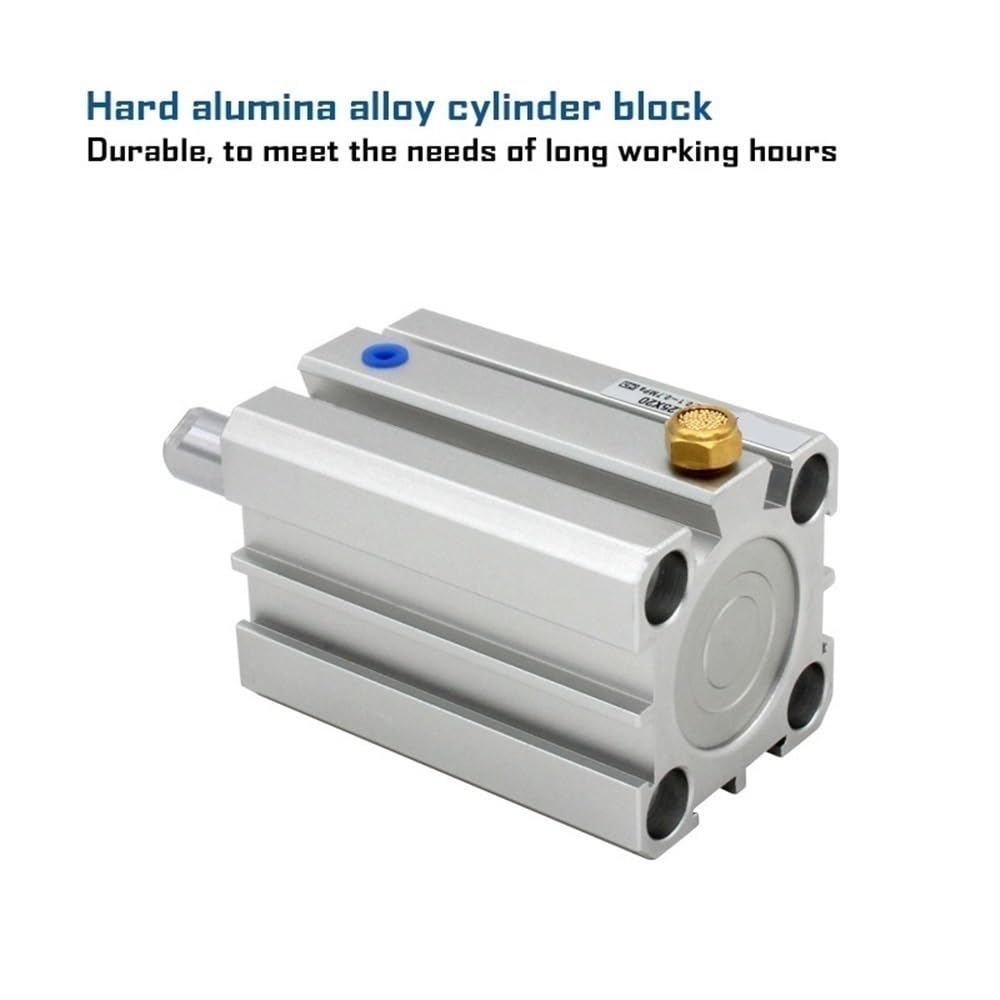

Compact Cylinder Single Acting-pull, Spring Return STA-S Aluminum Pneumatic Cylinder with Magnetism 1pc Detailed Description: Name: STA-S Series Compact Cylinder Type: Single Acting-pull, Spring return Material: Aluminum alloy Operating Pressure: 0.2~1.0 MPa Proof Pressure: 1.5 MPa Temperature Range: -20 to 70 °C Speed Range: 50-500 mm/s Fluid: Filtered air (through 40μm filter element) Compact Design: Space-saving and easy to integrate in equipment There could be a subtle color discrepancy on account of dissimilar monitor displays The actual measurements might be off by ±3mm
