Y Strainer 3/4" Brass Sediment Filter Water Filter with 40 Mesh Screen

Key features

• 40 mesh 304 stainless steel screen
• Min Temperature: -10℃ Max Temperature: +120℃ Max Pressure: 16 bars

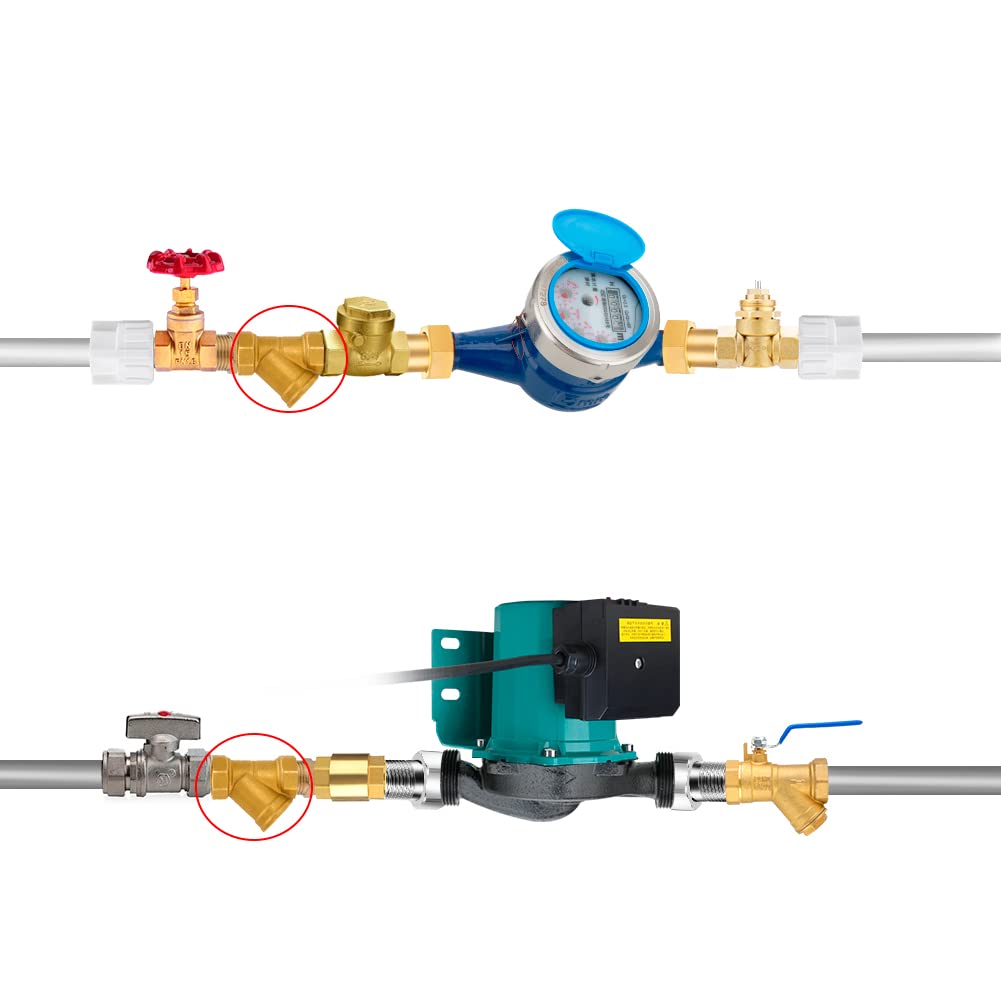

• Brass Y strainer is often used for upstream installations to protect water heater, control valves, and pumps from unwanted solids like rust and pipe scale.
• Y brass strainer has an arrow on its body pointing the direction branches off in the same direction as the flow.
• WYE strainer can be installed in either position as long as the tapping at the bottom of the sediment collector is pointing down. This way, the solids can be properly entrapped and easily purged.

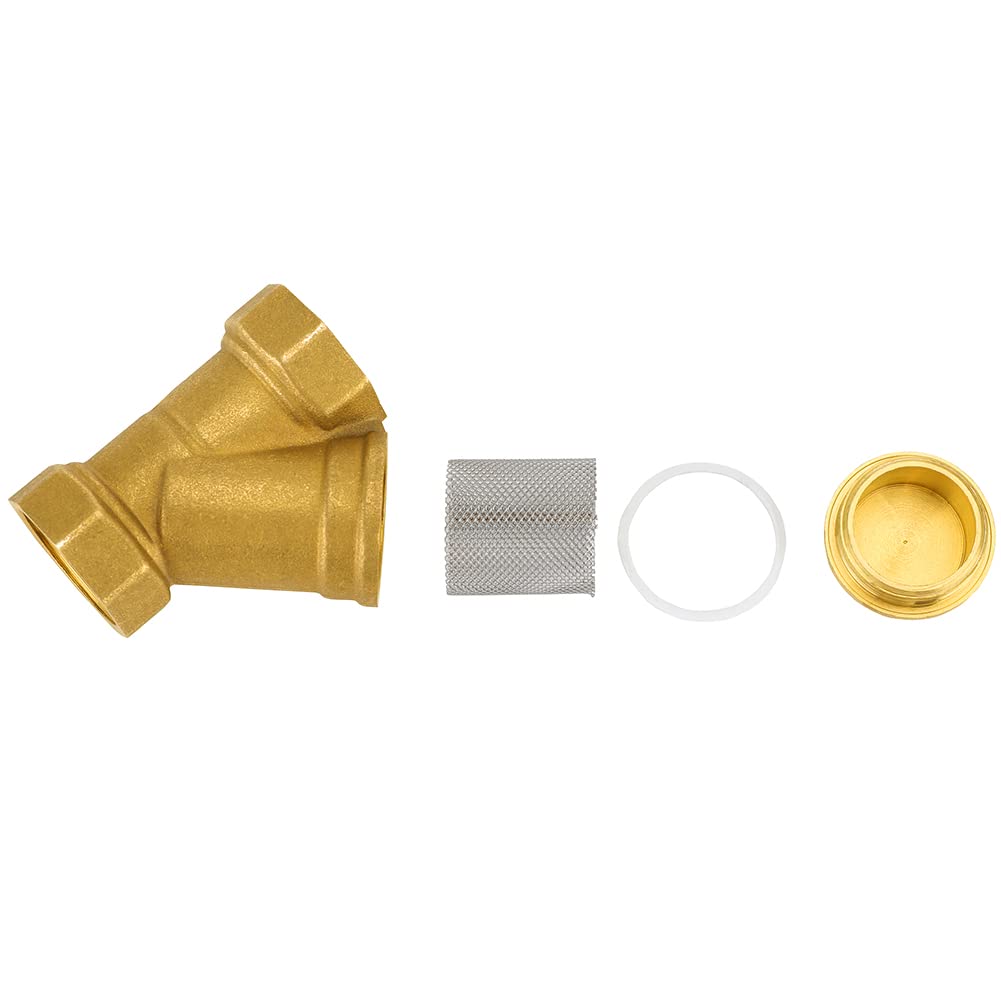

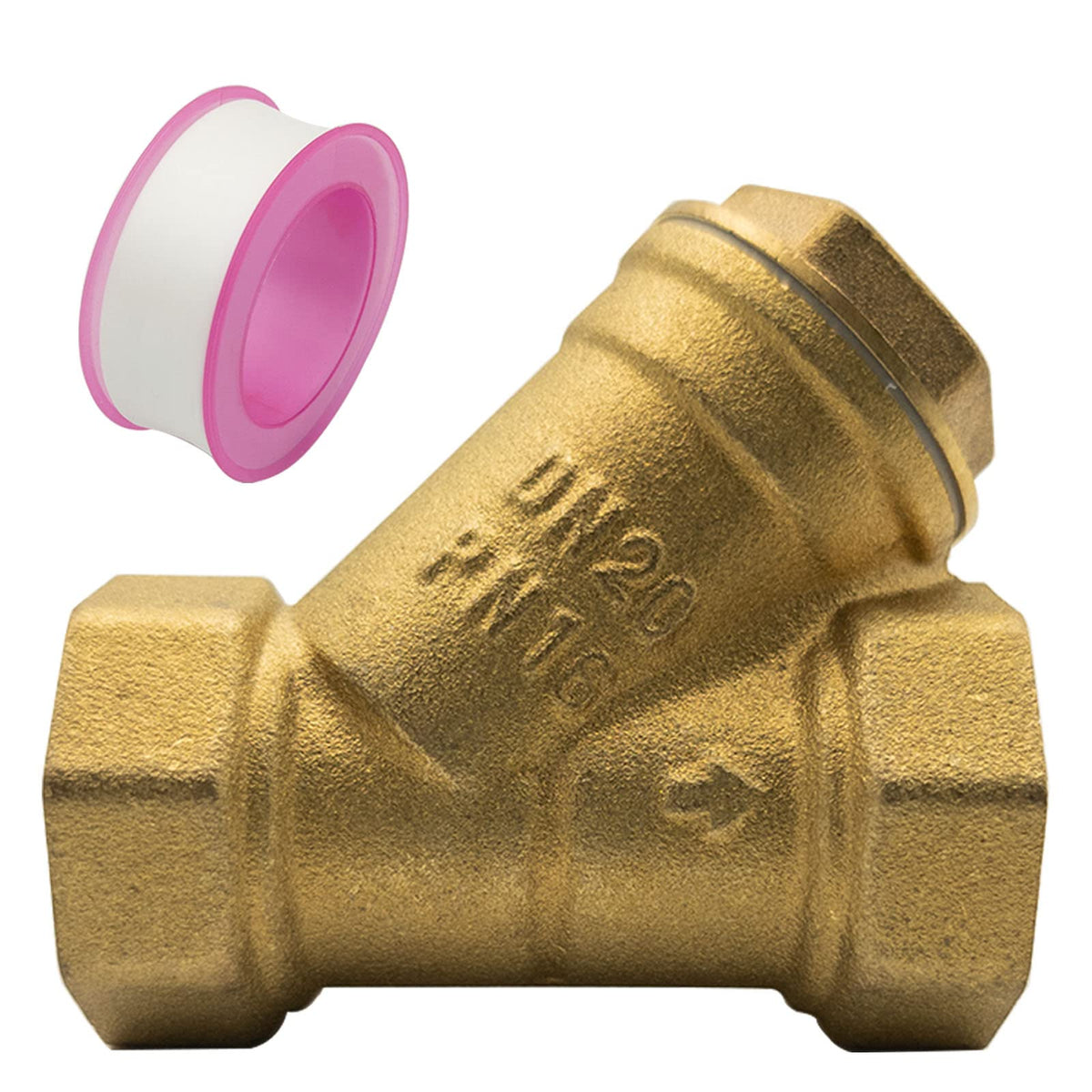

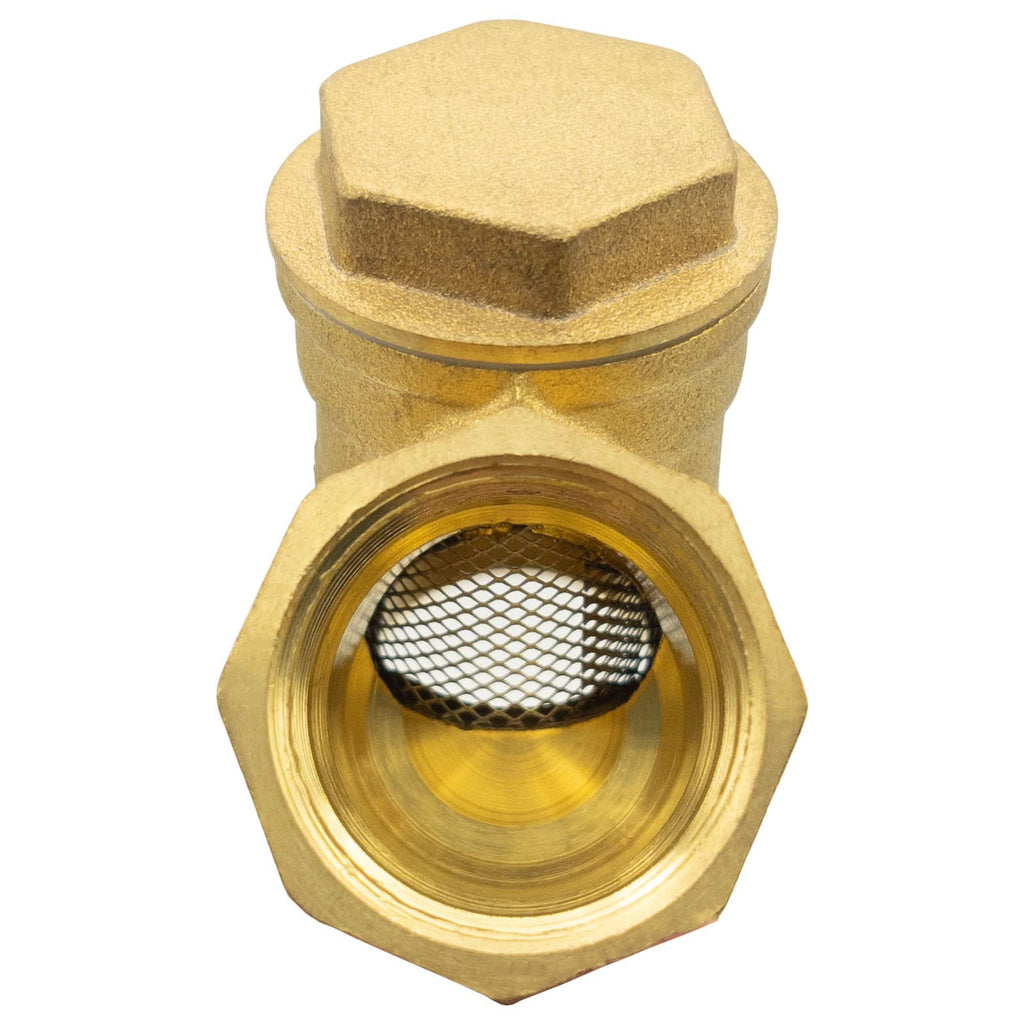

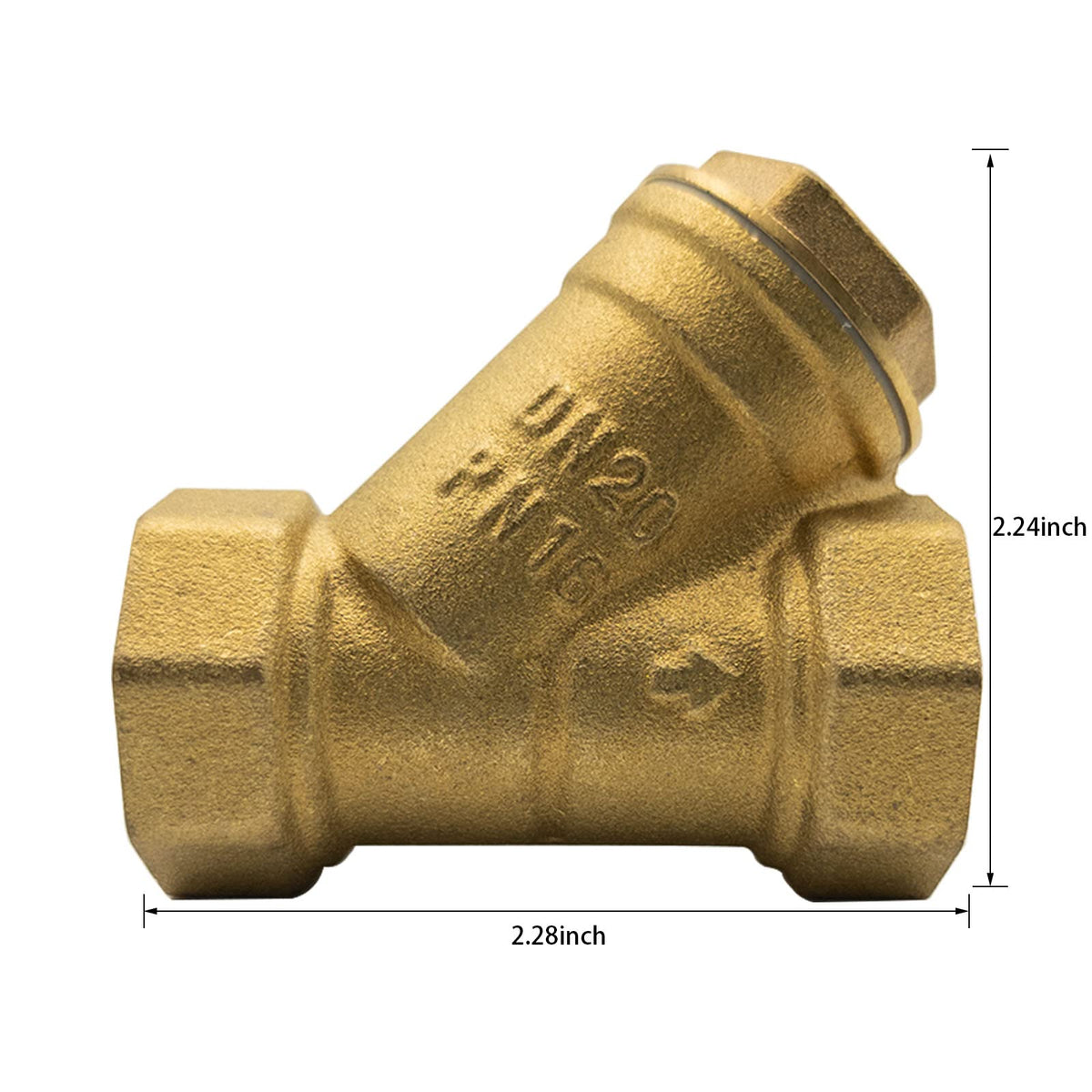

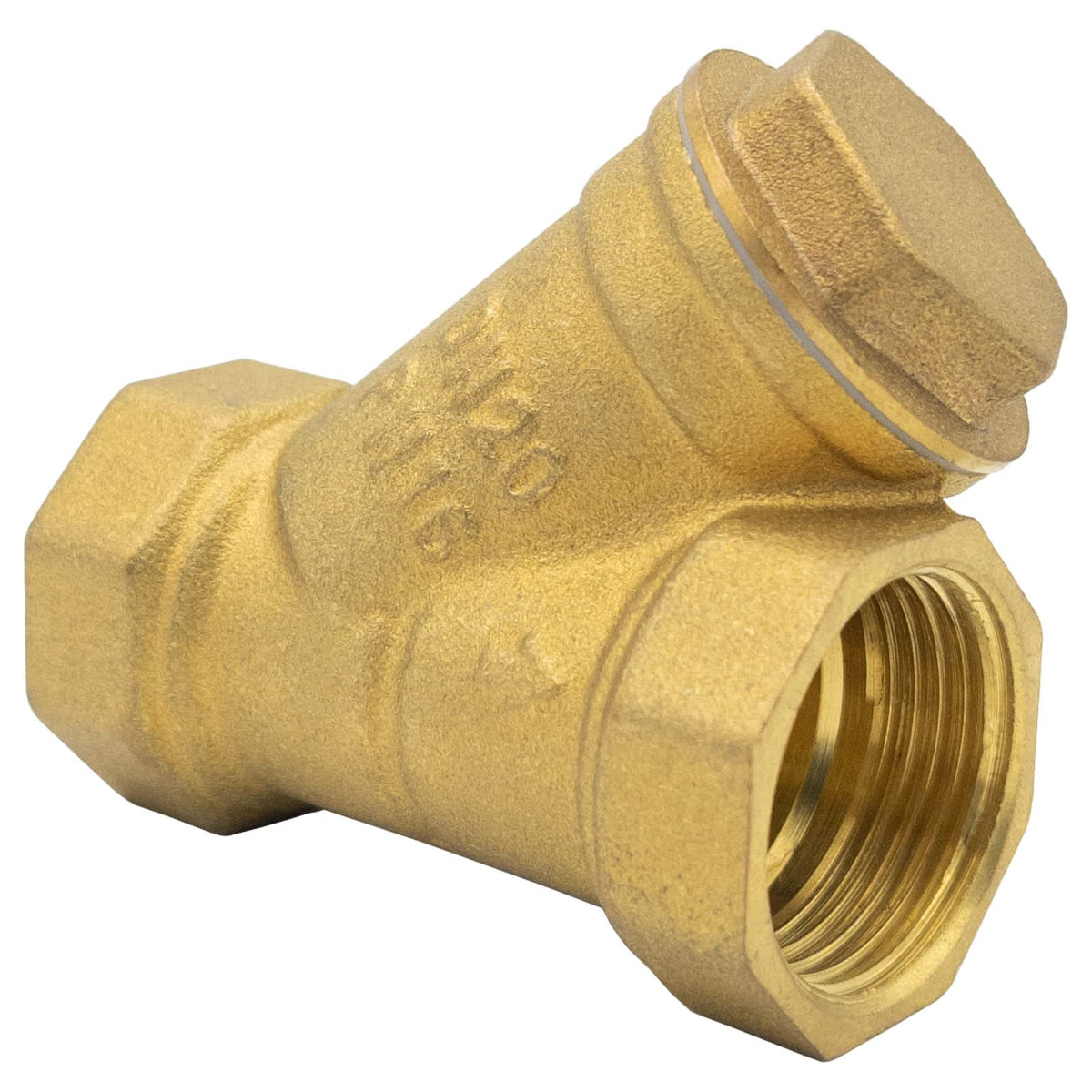

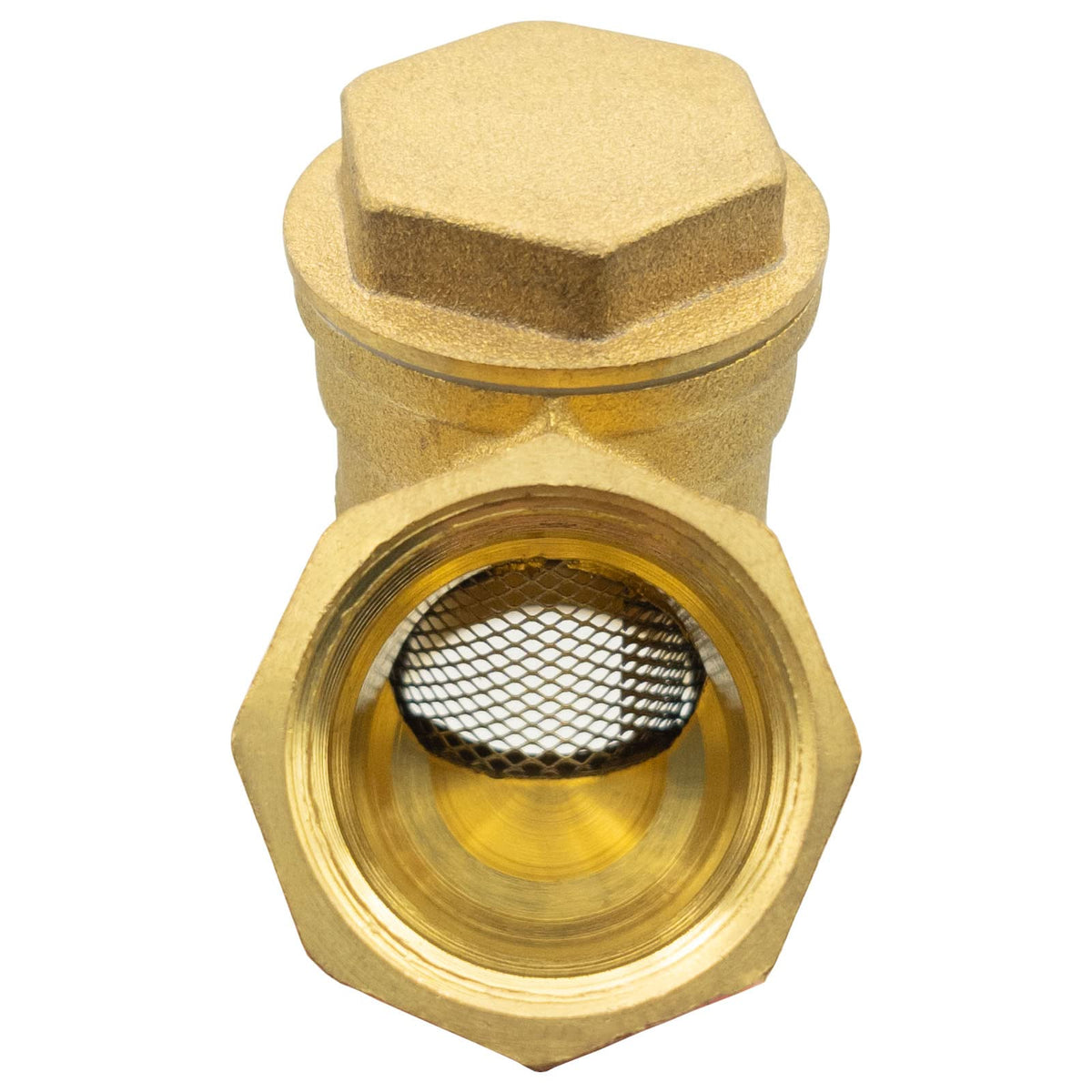

Brass Y strainer with cast brass body and a stainless steel filter gauze. The filter can be easily removed and serviced by unscrewing the hexagonal cap on the strainer. This is an inline strainer with a Y shaped construction. The strainer has female threaded ports. Specification: Mesh: 40 Material: Brass Connection: Female Thread Nominal Pressure: 1.6 MPa Applicable Temperature: -10℃~+120℃ Applicable Medium: Water, Oil Size: DN20(3/4"): Connector: approx 25mm/0.98inch; Length: approx 58mm/2.28inch Package Includes: 1 Y Shaped Strainer Filter Valve 1 Seal Tape Note: 1. Due to the difference between monitors and light effect, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
