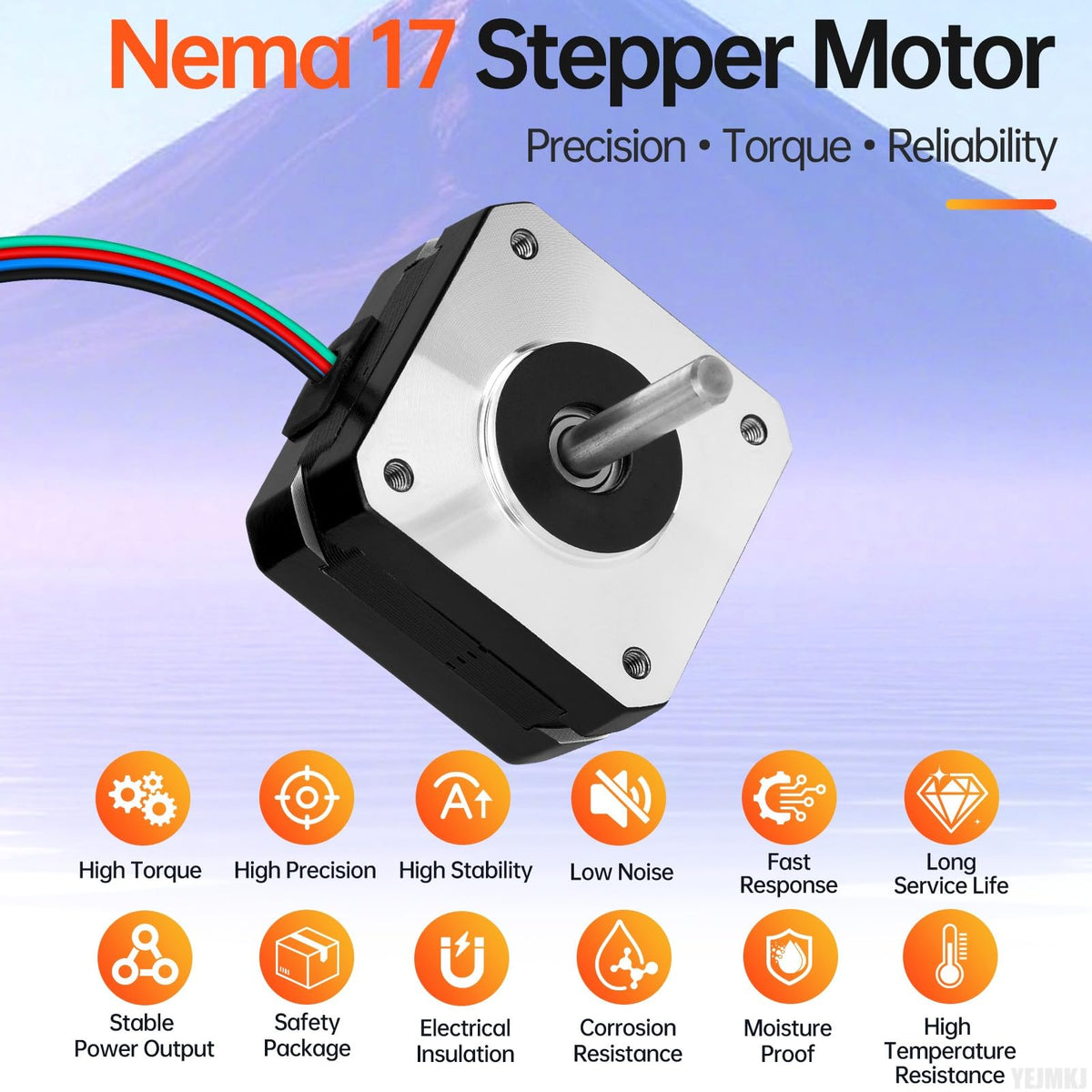

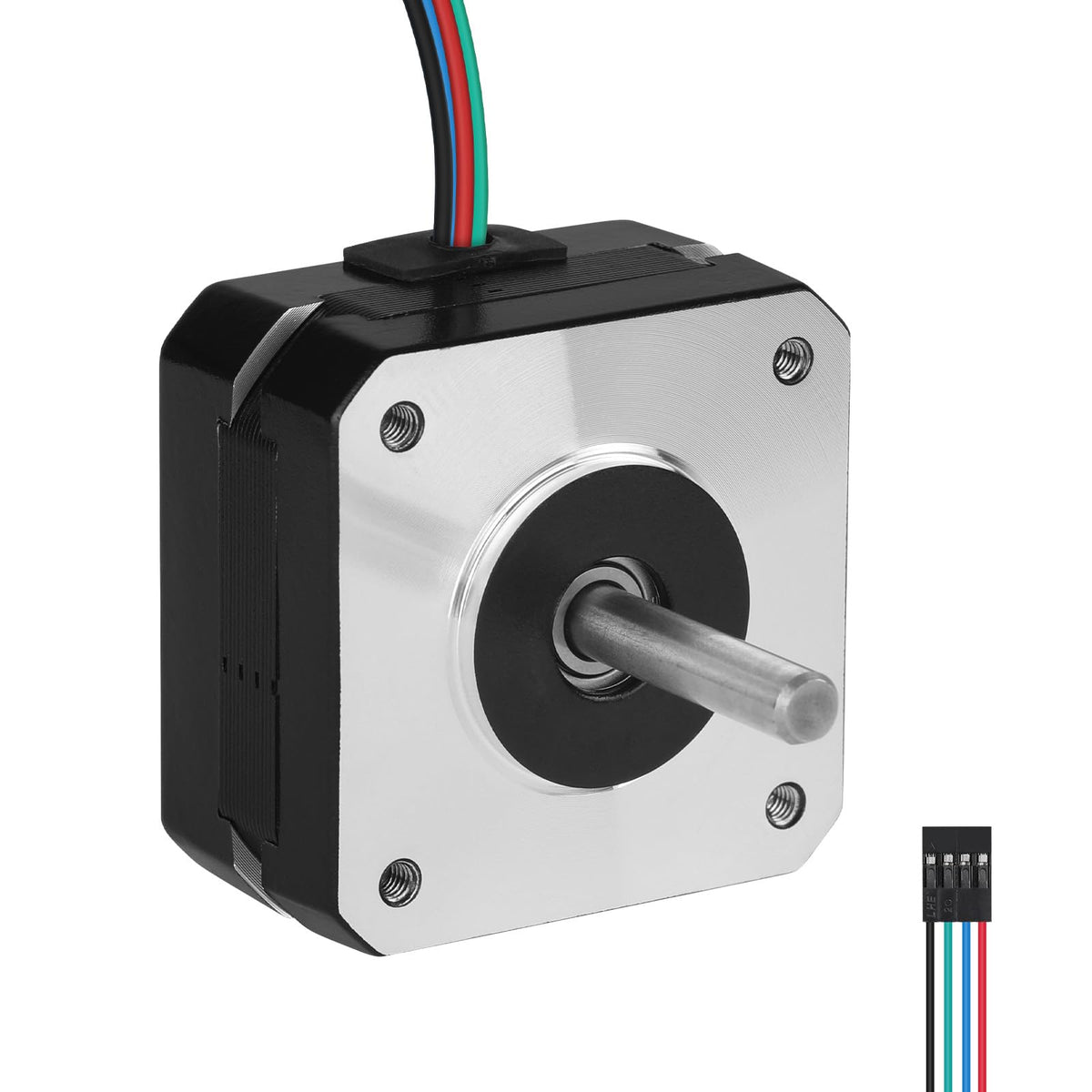

YEJMKJ Nema 17 Stepper Motor 42x23mm 0.16Nm (22.66oz·in) 0.8A 4.2Ω Bipolar

Key features

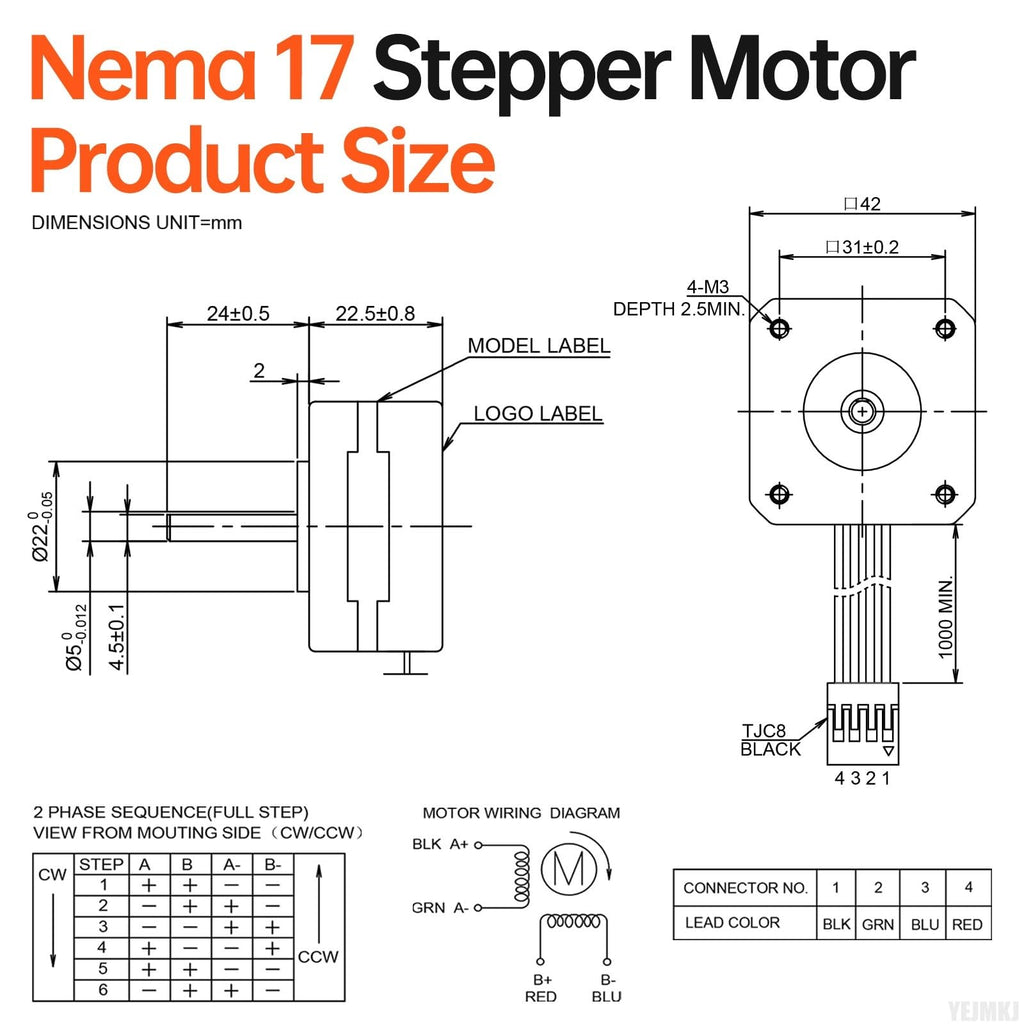

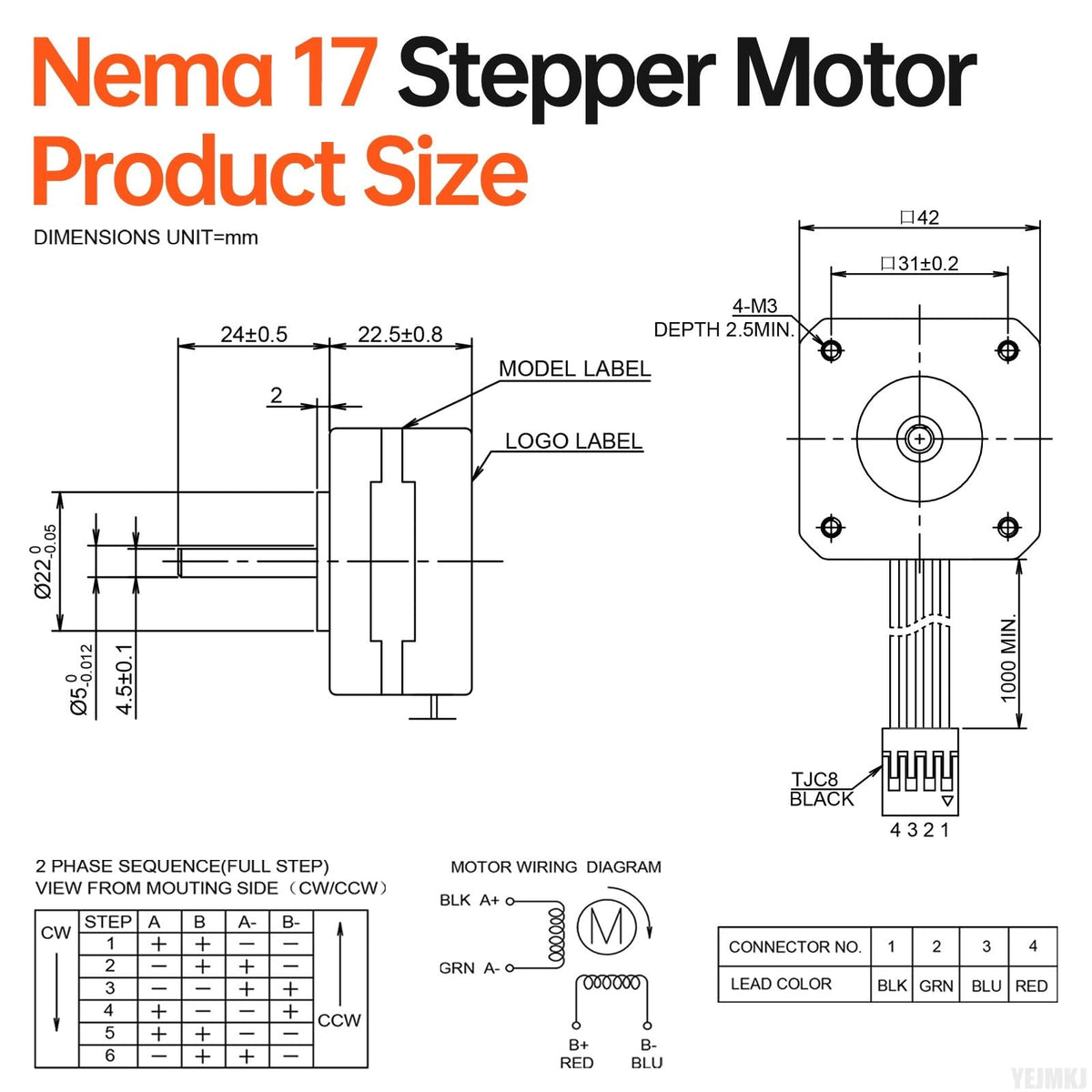

• Dimensional details: The physical dimensions of a Nema 17 Stepper Motor are summarized below. Body size 42x42x22.5mm, (1.66x1.66x0.89in), Installation hole distance 31mm, Shaft length 24±0.5mm, Shaft diameter φ5mm, D-cut length 24mm, incl. Cable 1m, 4-Wire Black (A+) Green (A-) Red (B+) Blue (B-), Weight 143g.

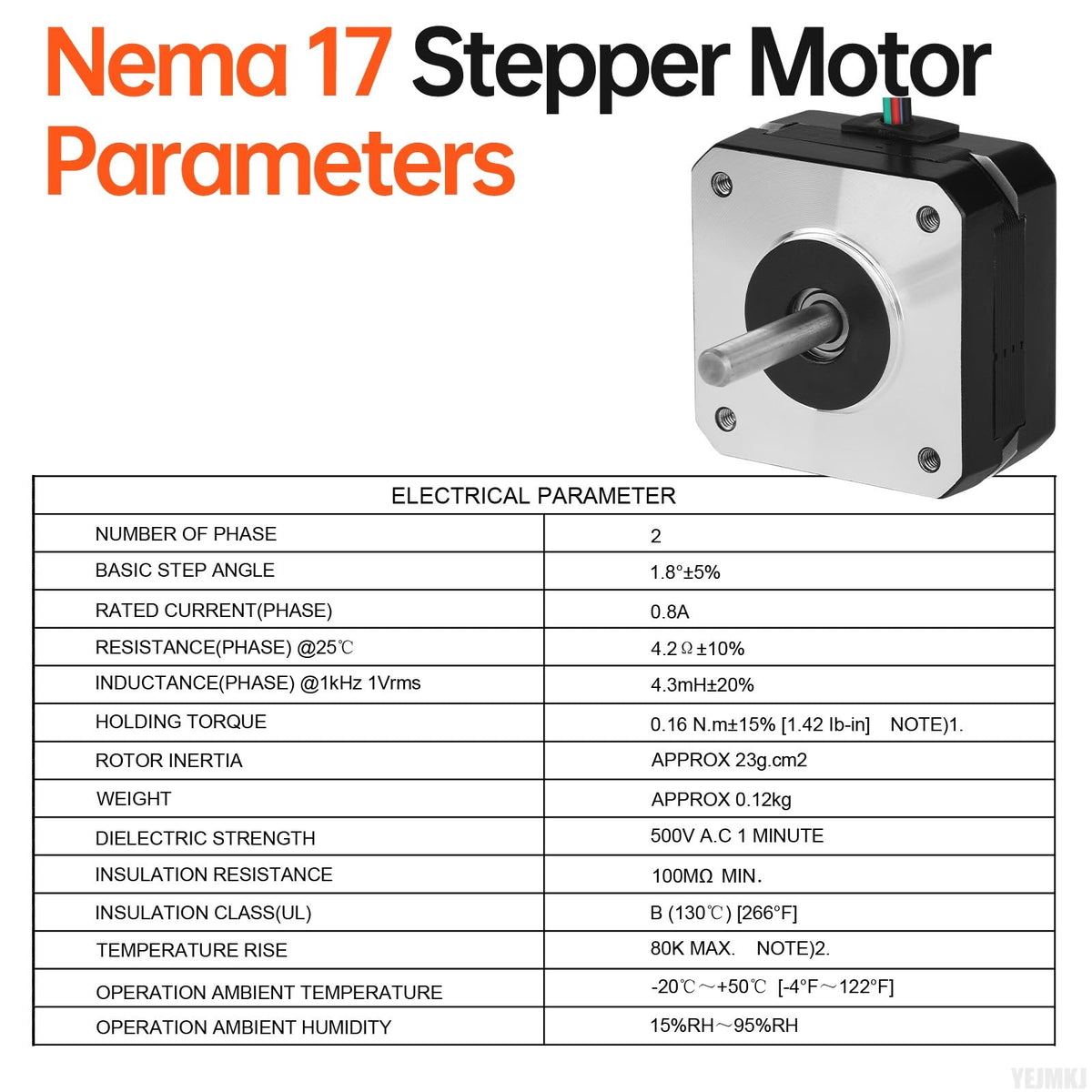

• Specifications: Nema 17 pancake stepper motor 2 Phase, Step angle 1.8‌dge (200 steps/rev), Holding torque 0.16Nm (22.66oz·in), Resistance 4.2Ω, Rated current 0.8A, Rotor inertia approx 23g.cm², Inductance 4.3mH±20%.
• Safety Specifications: Operating safely and reliably, this Nema 17 Stepper motor comes with the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation class(UL) B (130℃) [266°F]; Insulation resistance 100MΩ MIN; Operation ambient temperature -20℃ ～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～95%RH; Temperature rise 80K MAX.
• Safety Specifications: Operating safely and reliably, this Nema 17 Stepper motor comes with the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation class(UL) B (130℃) [266°F]; Insulation resistance 100MΩ MIN; Operation ambient temperature -20℃ ～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～95%RH; Temperature rise 81K MAX.

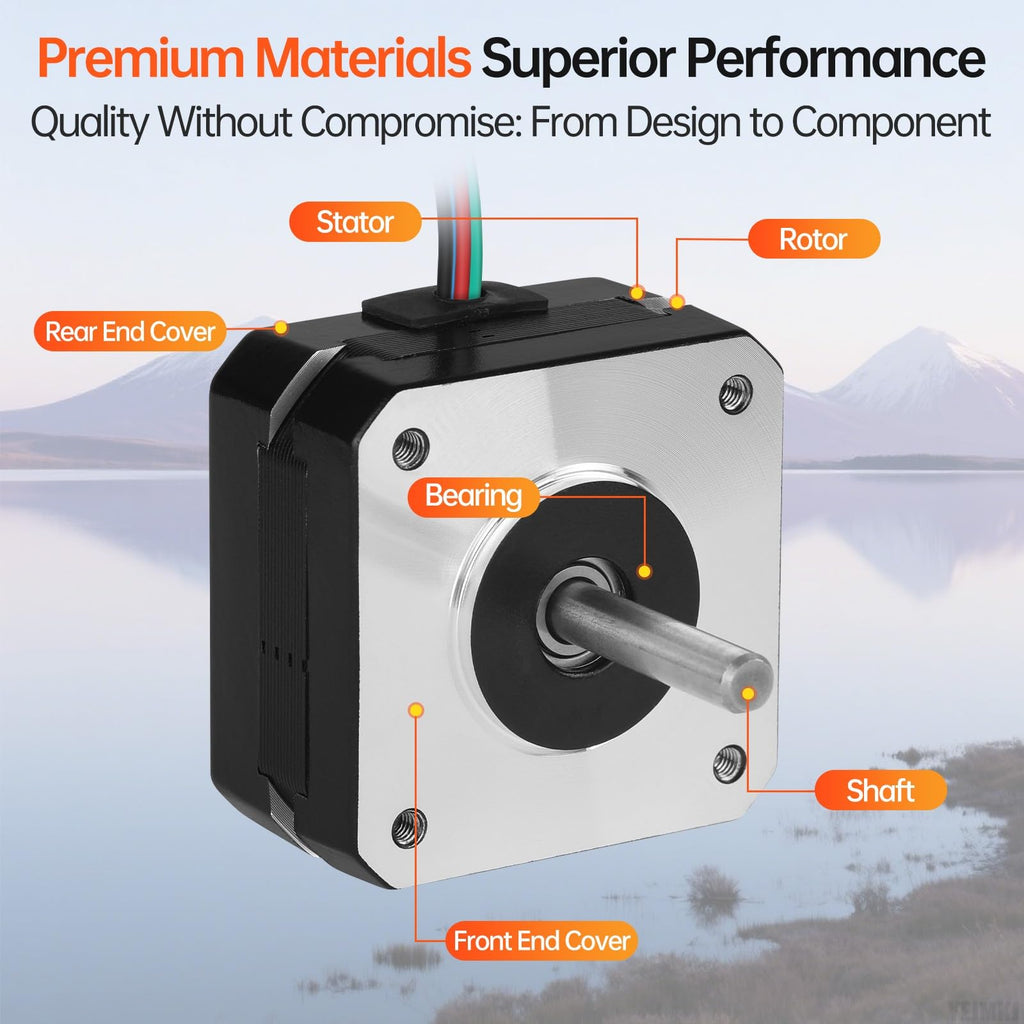

• Elevate Your Equipment: Offering up to 20% more holding torque than typical Nema 17 Step Motor, our version focuses on low-noise operation. Its enhanced steel core and winding design ensure smooth motion and significantly decreased sound emission.
