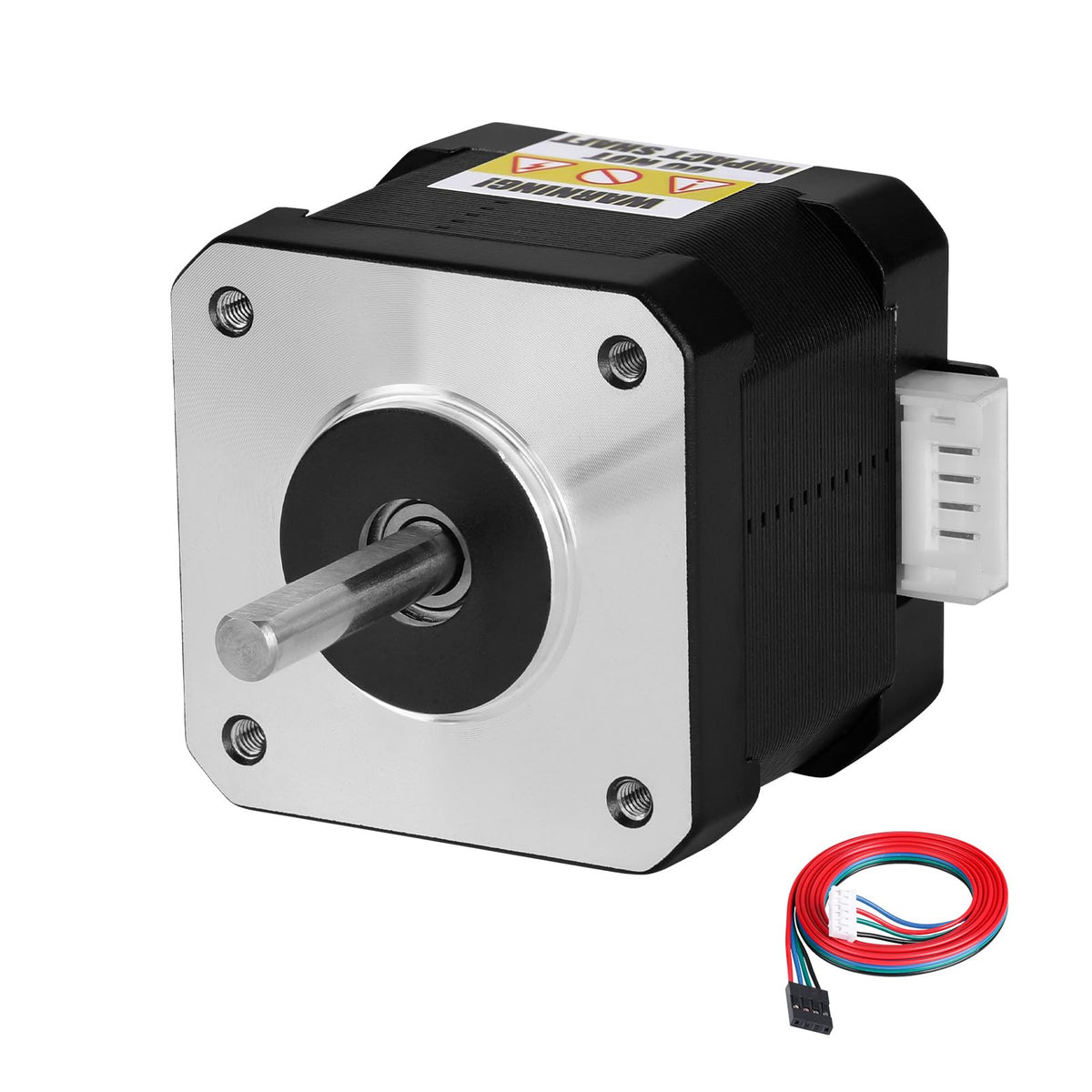

YEJMKJ Nema 17 Stepper Motor 42x38mm 0.47Nm (66.56oz·in) 1.7A 1.7Ω Bipolar

Key features

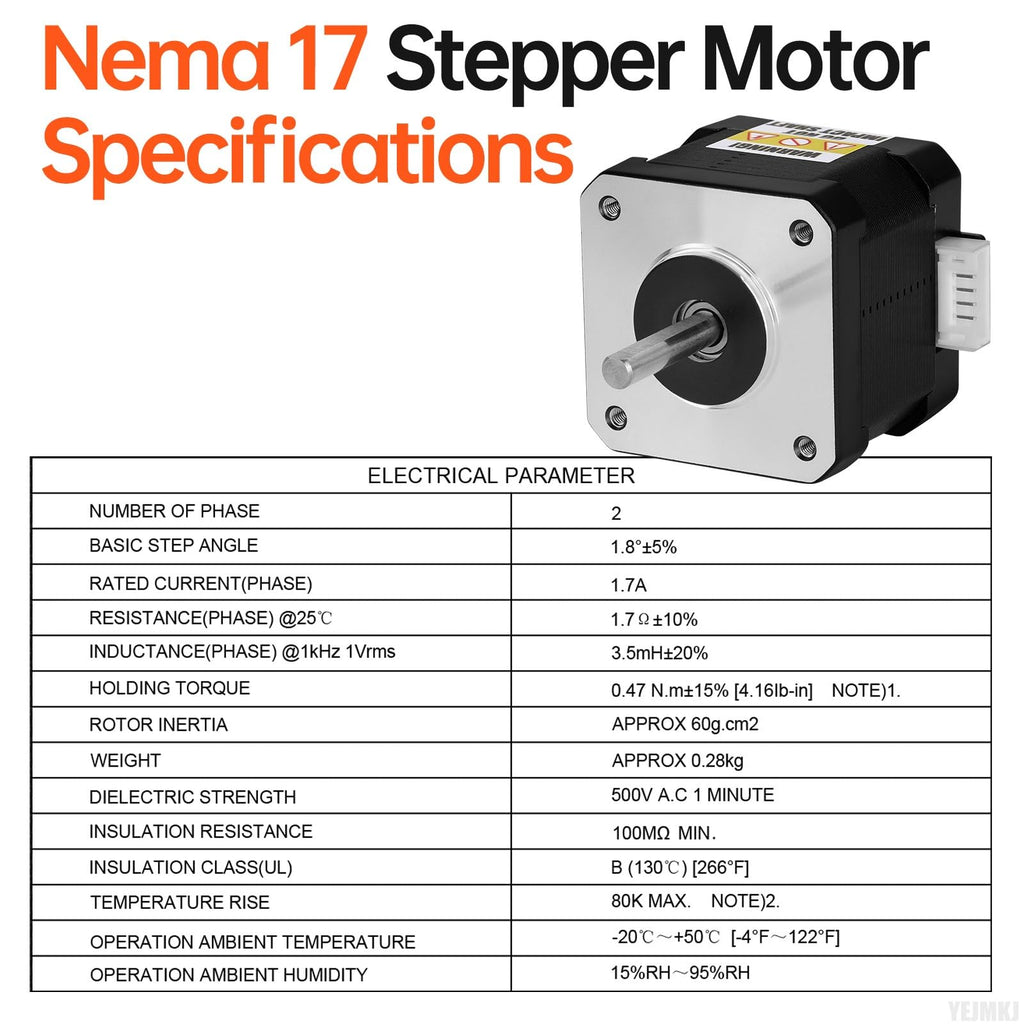

• Characteristics: Nema 17 Stepper Motor 2 Phase, Step angle 1.8‌dge (200 steps/rev), Holding torque 0.47Nm (66.56oz·in), Rated current 1.7A, Resistance 1.7Ω, Inductance 3.5mH±20%, Rotor inertia approx 60g.cm².

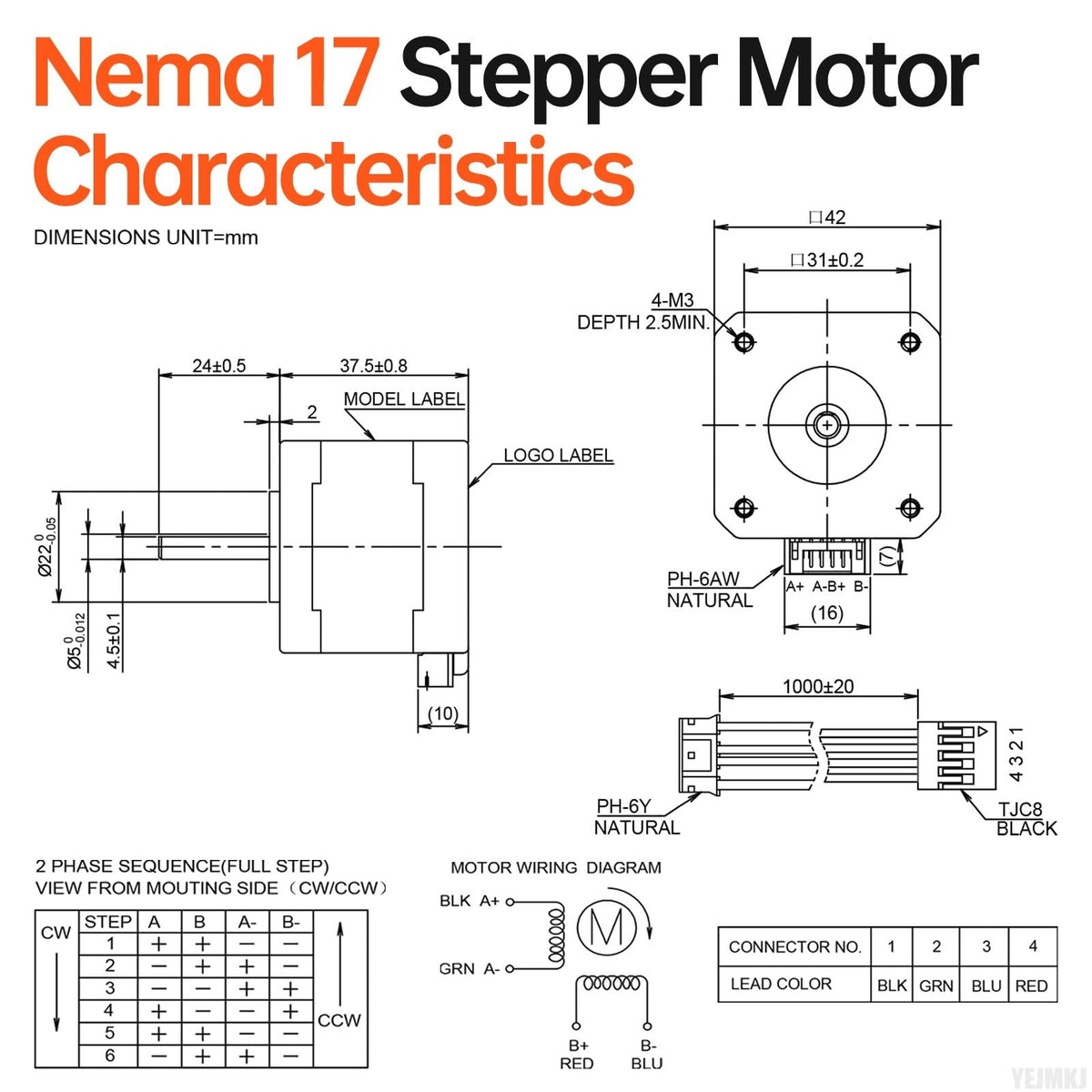

• Dimensional details: The physical dimensions of a Nema 17 Stepper Motor are summarized below. Body size 42x42x37.5mm, (1.66x1.66x1.48in), Installation hole distance 31mm, Shaft length 24±0.5mm, Shaft diameter φ5mm, D-cut length 24mm, Cable 1m, 4-Wire Black (A+) Green (A-) Red (B+) Blue (B-), Weight 291g.
• Safety Specifications: Operating safely and reliably, this Nema17 Step motor comes with the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation resistance 100MΩ MIN; Operation ambient temperature -20℃ ～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～95%RH; Insulation class(UL) B (130℃) [266°F]; Temperature rise 80K MAX.
• Safety Specifications: Operating safely and reliably, this Nema17 Step motor comes with the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation resistance 100MΩ MIN; Operation ambient temperature -20℃ ～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～95%RH; Insulation class(UL) B (130℃) [266°F]; Temperature rise 81K MAX.
• Key Information: With higher speeds, torque decreases. The ideal range for operation is 0–600 RPM, and up to 1800 RPM for closed-loop systems. Lower current results in reduced torque and temperature rise, while lower voltage reduces torque (recommended: 12–24V DC). Used in 3D printers, DIY robots, CNC machines, and other systems, the 42mm Stepper Motor's compact size and high torque make it suitable for tough applications.
