YEJMKJ Nema 23 Closed Loop Stepper Motor with Integrated Stepper Driver

Nema 23 Closed Loop Stepper Motor with Integrated Stepper Driver

Key features

• Specifications: Nema 23 closed-loop stepper motor with integrated driver has the following various dimensional parameters. Body size 57x57x129mm (2.25x2.25x5.08in), Shaft length 21mm, Shaft diameter Ø8mm, D-cut length 15mm, Installation hole distance 47.14mm, Black (A+) Green (A-) Red (B+) Blue (B-), incl. Cable 0.3M, Weight 1699g.

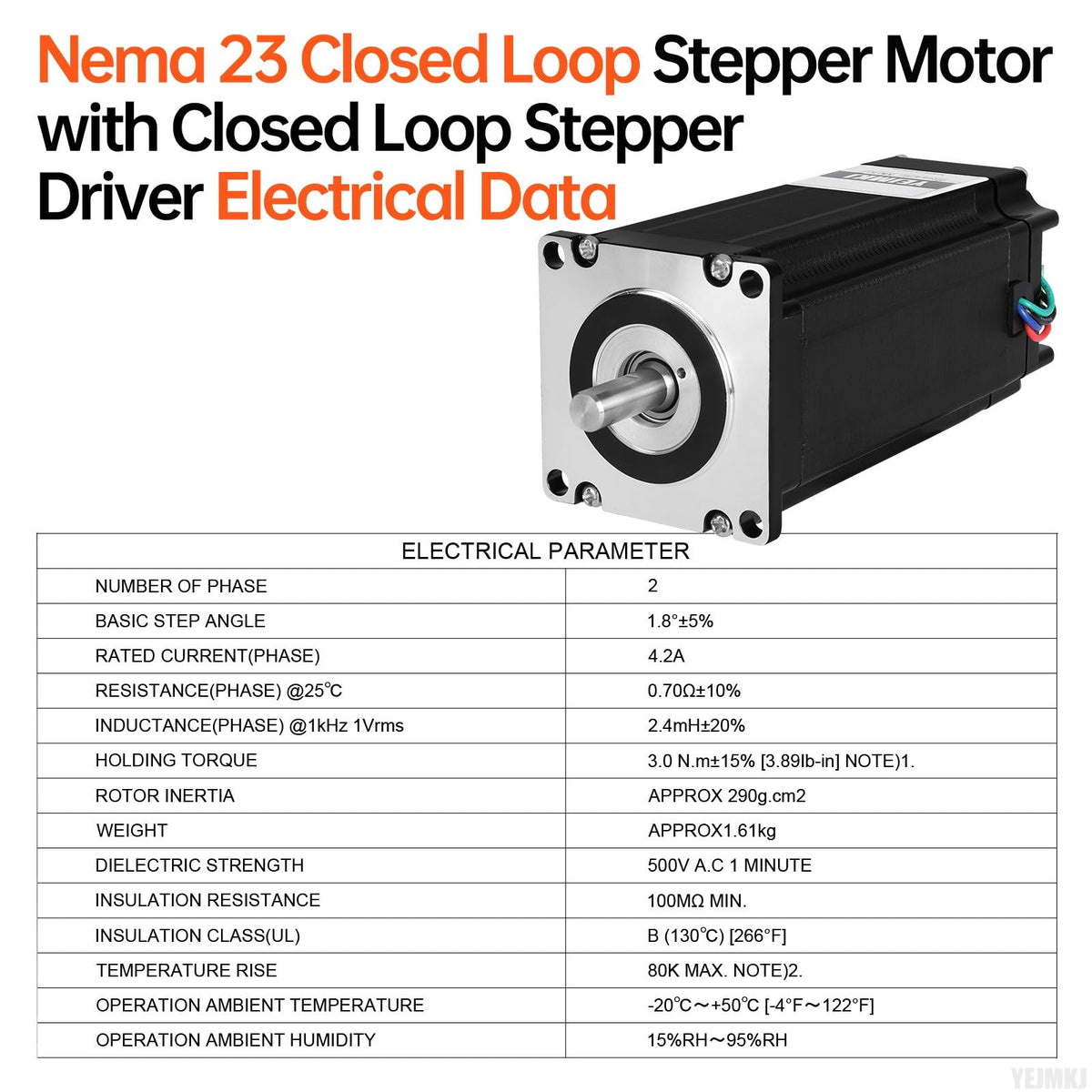

• Characteristics: Nema 23 Closed Loop Stepper Motor with built-in driver, 2 Phase, Step angle 1.8‌dge(200 steps/rev), Holding torque 3Nm (424.84oz·in), Resistance 0.70Ω, Rated current 4.2A, Rotor inertia approx 290g.cm2, Inductance 2.4mH±20%.
• Safety Compliance: With safe and reliable operation, this Nema 23 Step motor with integrated closed-loop controller features the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation resistance 100MΩ MIN; Insulation class(UL) B (130°C) [266°F]; Temperature rise 80K MAX; Operation ambient temperature -20°C~+50°C [-4°F~122°F]; Operation ambient humidity 15%RH~95%RH.
• Safety Compliance: With safe and reliable operation, this Nema 23 Step motor with integrated closed-loop controller features the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation resistance 100MΩ MIN; Insulation class(UL) B (130°C) [266°F]; Temperature rise 80K MAX; Operation ambient temperature -20°C~+50°C [-4°F~122°F]; Operation ambient humidity 15%RH~96%RH.
• Notes to Remember: Increased speed reduces torque, with closed-loop at up to 1800 RPM. A lower current leads to lower torque and temperature rise, and reduced voltage results in lower torque (recommended range: 24-36V DC). The Nema 23 Closed Loop Stepper Motor with Closed Loop Stepper Driver is ideal for 3D printers, DIY robots, CNC machines, and other other automated systems, with compact size and high torque for complex tasks.
