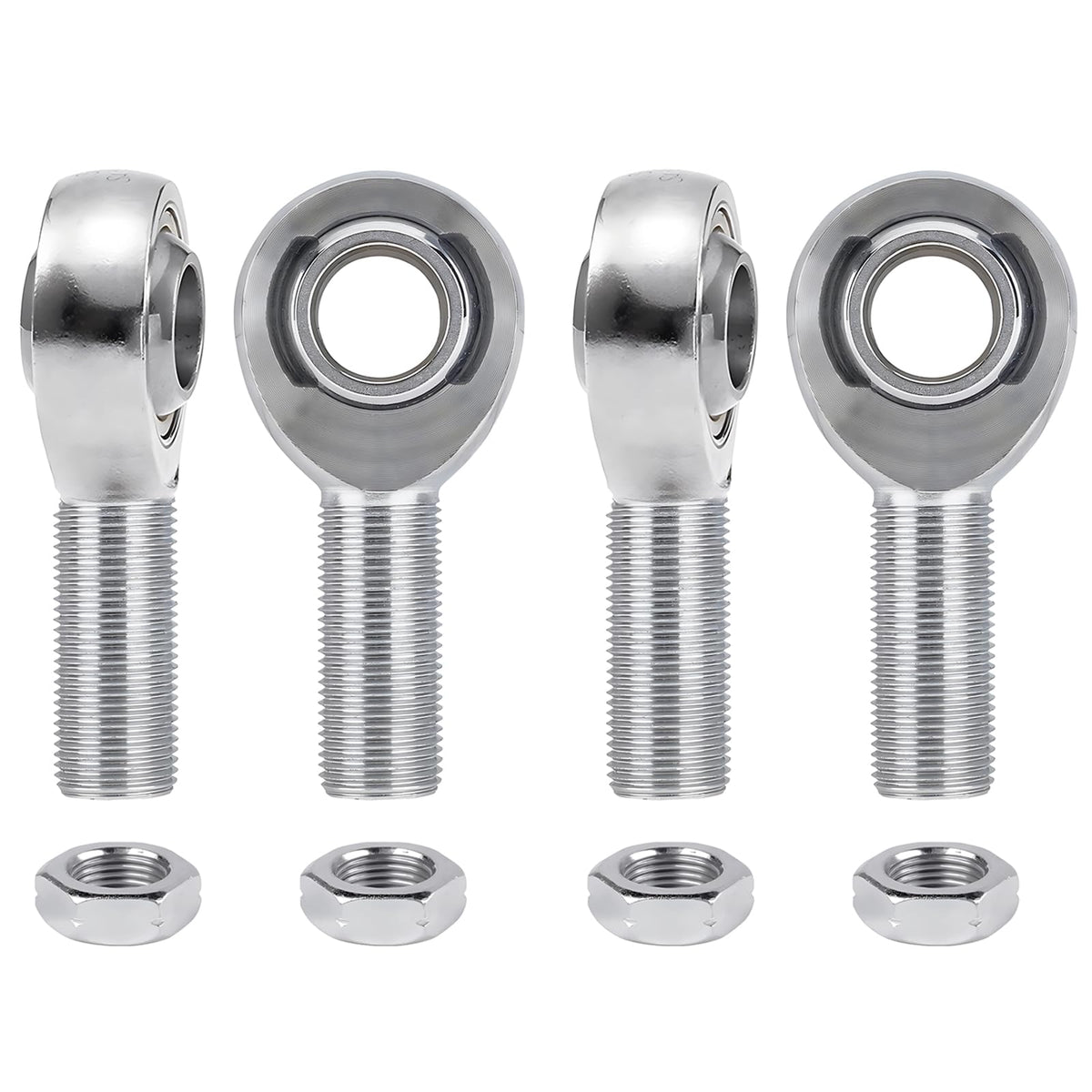

YIFUOK 5/8" Heim Joint Rod End Bearing w/Jam Nut 4-Pack

Key features

• Unmatched Strength for Extreme Duty: Heavy-Duty Chromoly Construction fabricated from C4130 Chromoly Steel, these heim joints offer superior tensile strength and impact resistance compared to standard carbon steel, suitable for handling the massive loads of rock crawling, racing, and high-horsepower vehicles

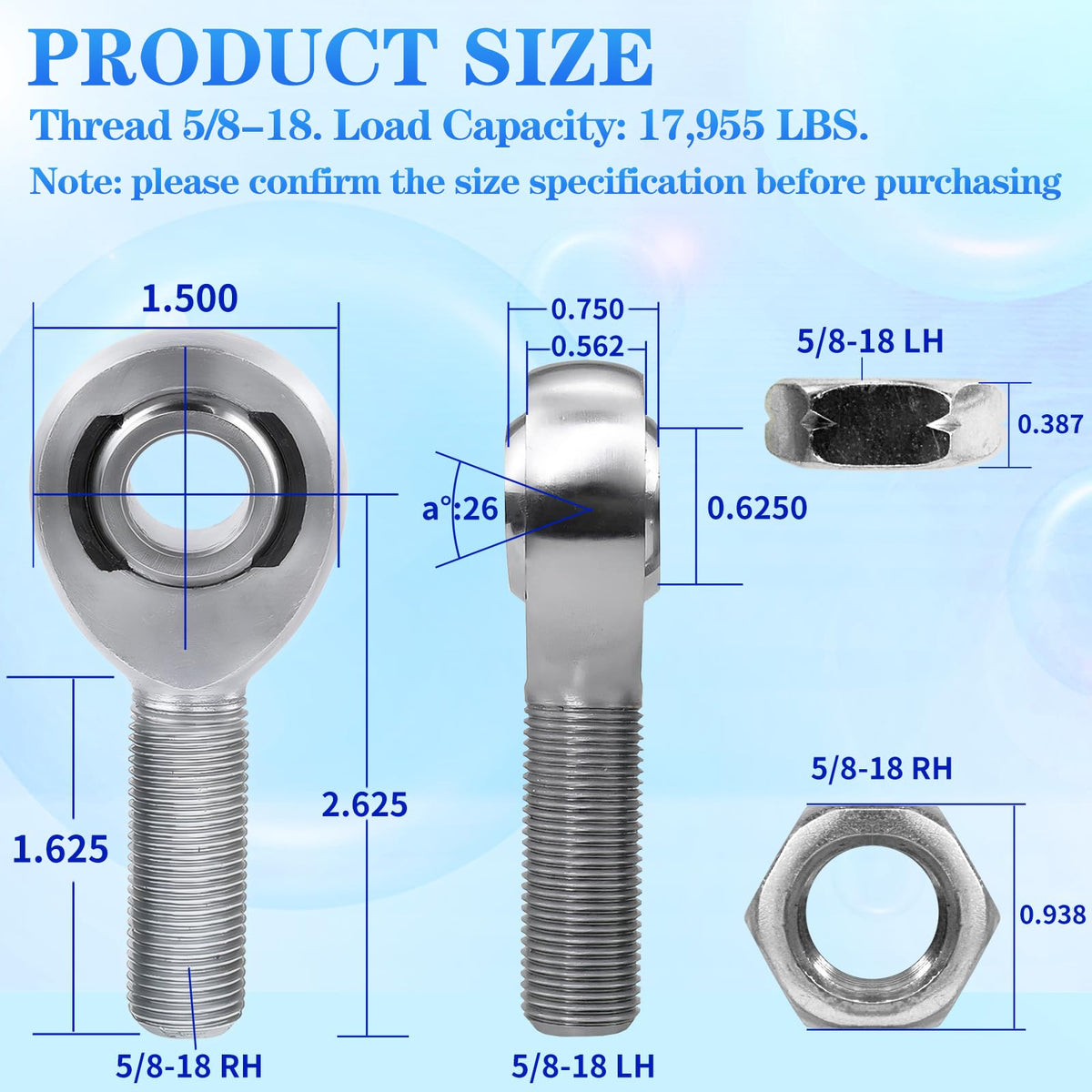

• 5/8" Rod End Bearing Specifications: Product Bore: 5/8" Width: 1.50" Ball Width: 3/4" Thread Size: 5/8"-18 Thread Length: 1.63" Center Line Length: 2.63". Lock Nut: Thread: 5/8". Direct Replacement & Custom Fabrication: Designed to standard heavy-duty dimensions, making them a straightforward upgrade for worn components or a suitable choice for your latest custom fabrication project
• Zero-Slop Performance for Critical Systems: Precision Ground Race & Bore with 0.625" (5/8") bore machined to tight tolerances for a secure fit on clevis pins and bolts. The internal race is hardened and ground for smooth, consistent movement with minimal free-play. High Misalignment Capability: Designed to accommodate angular misalignment, reducing binding and stress in your linkages for smoother operation and longer component life

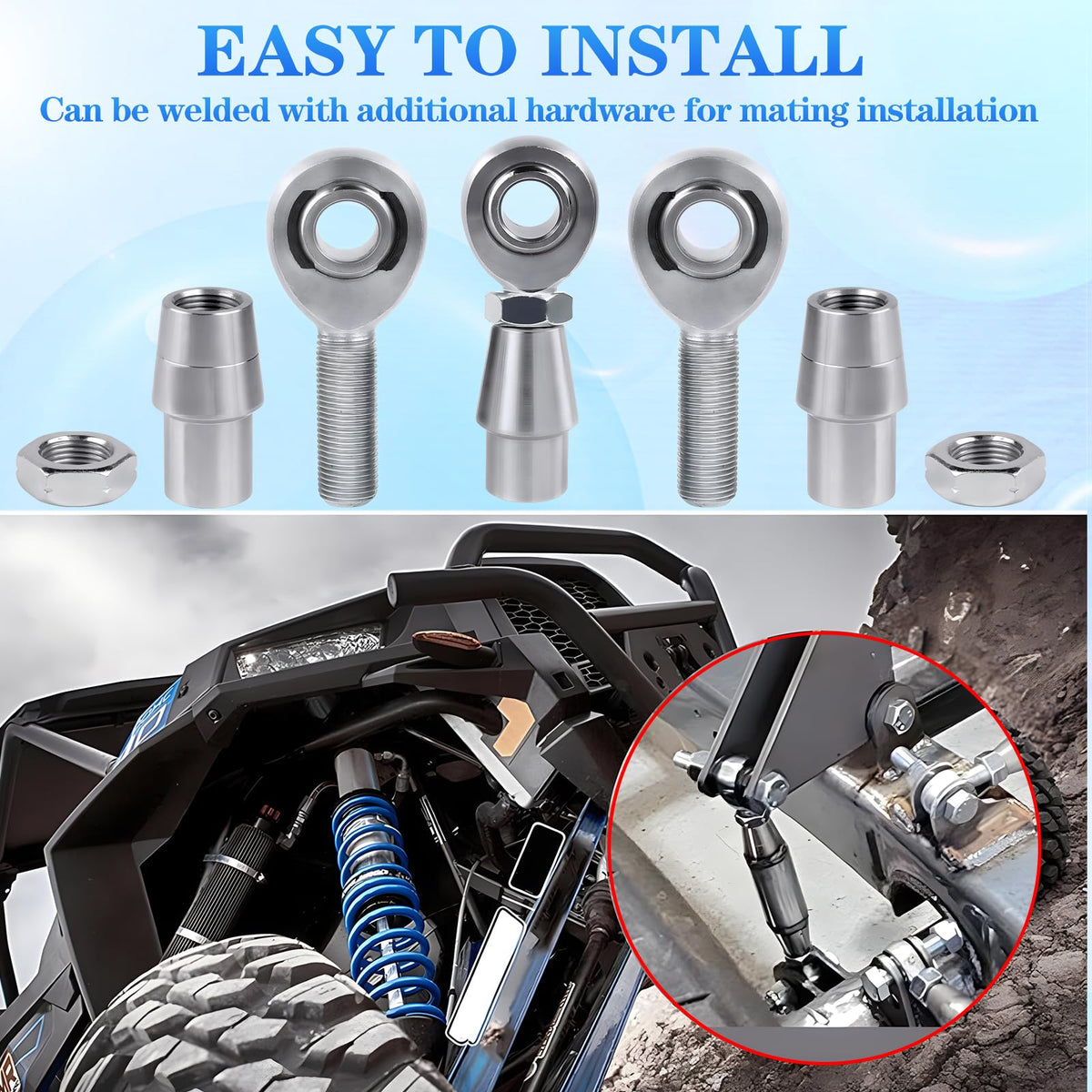

• Easy Installation & Versatile Application: Direct Bolt-On Upgrade designed to standard dimensions for a straightforward replacement or upgrade in a wide array of applications. Jam Nut Included: Each joint comes with a matching 5/8"-18 jam nut, so you have everything you need for a secure installation right out of the package

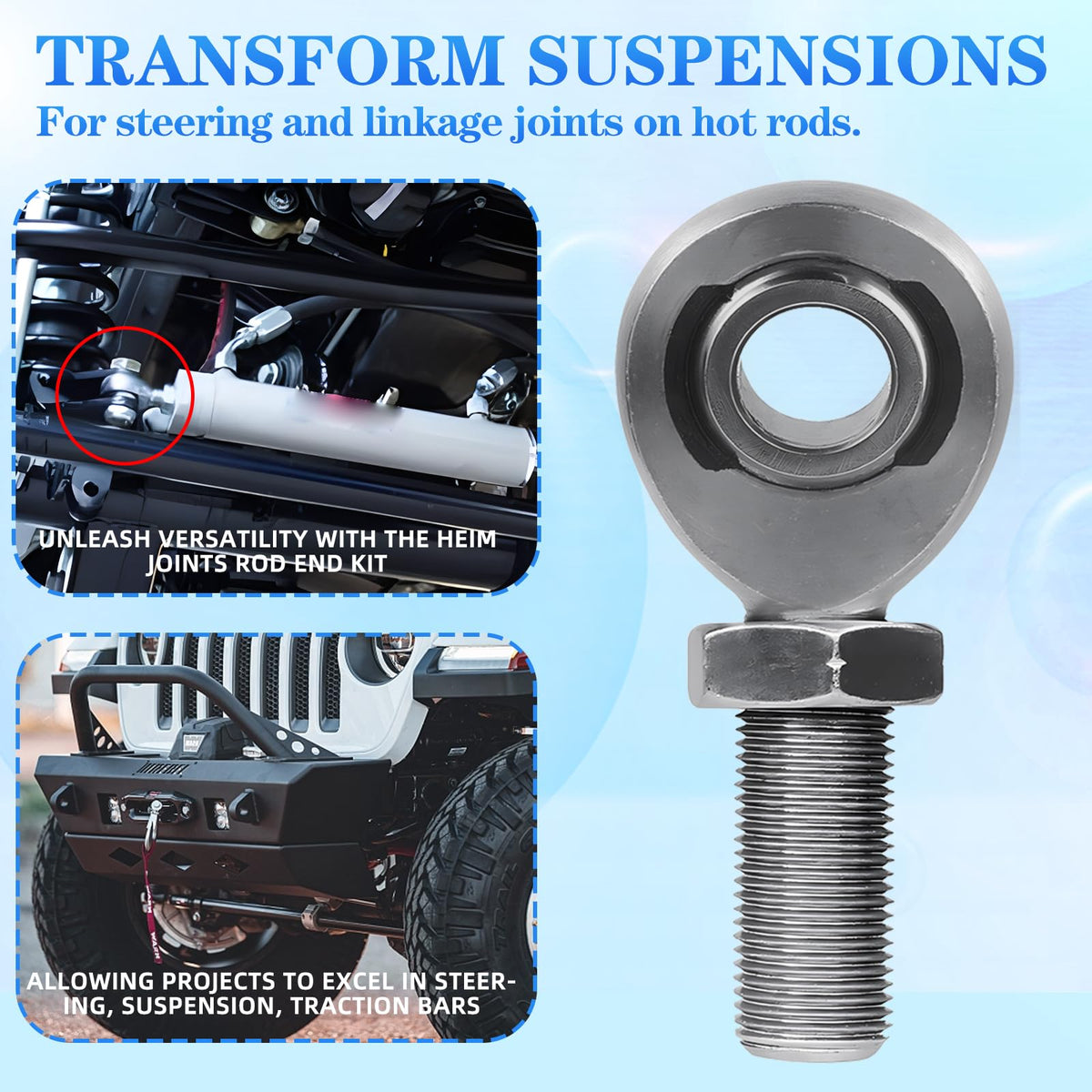

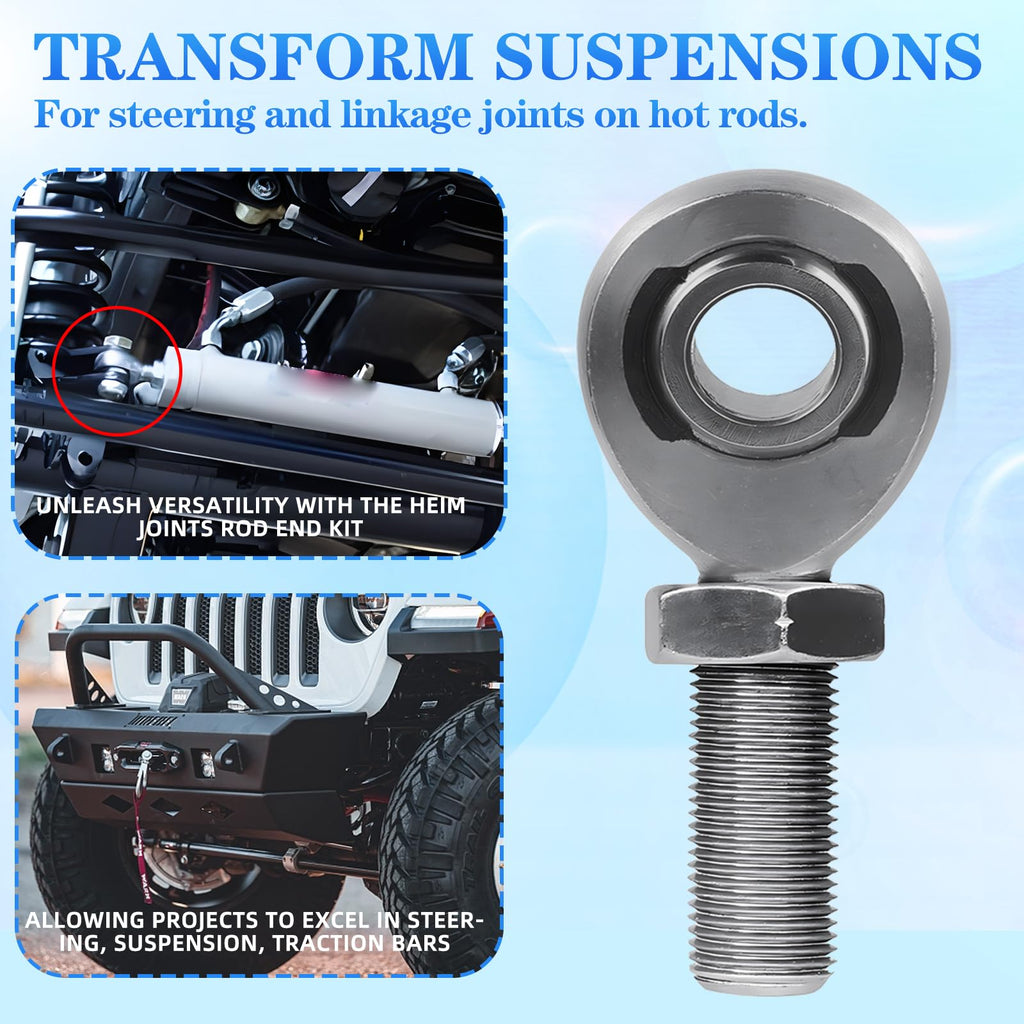

• Wide Range of Performance Applications: Steering Systems including drag link, tie rod, and steering linkage upgrades. Suspension Links: Panhard bars, track bars, sway bar links, and 3/4-link suspensions. Drivetrain & Chassis: Traction bars, throttle linkages, shift linkages, and chassis bracing. Racing & Off-Road: Go-karts, ATVs, UTVs, rock crawlers, and custom fabrication projects

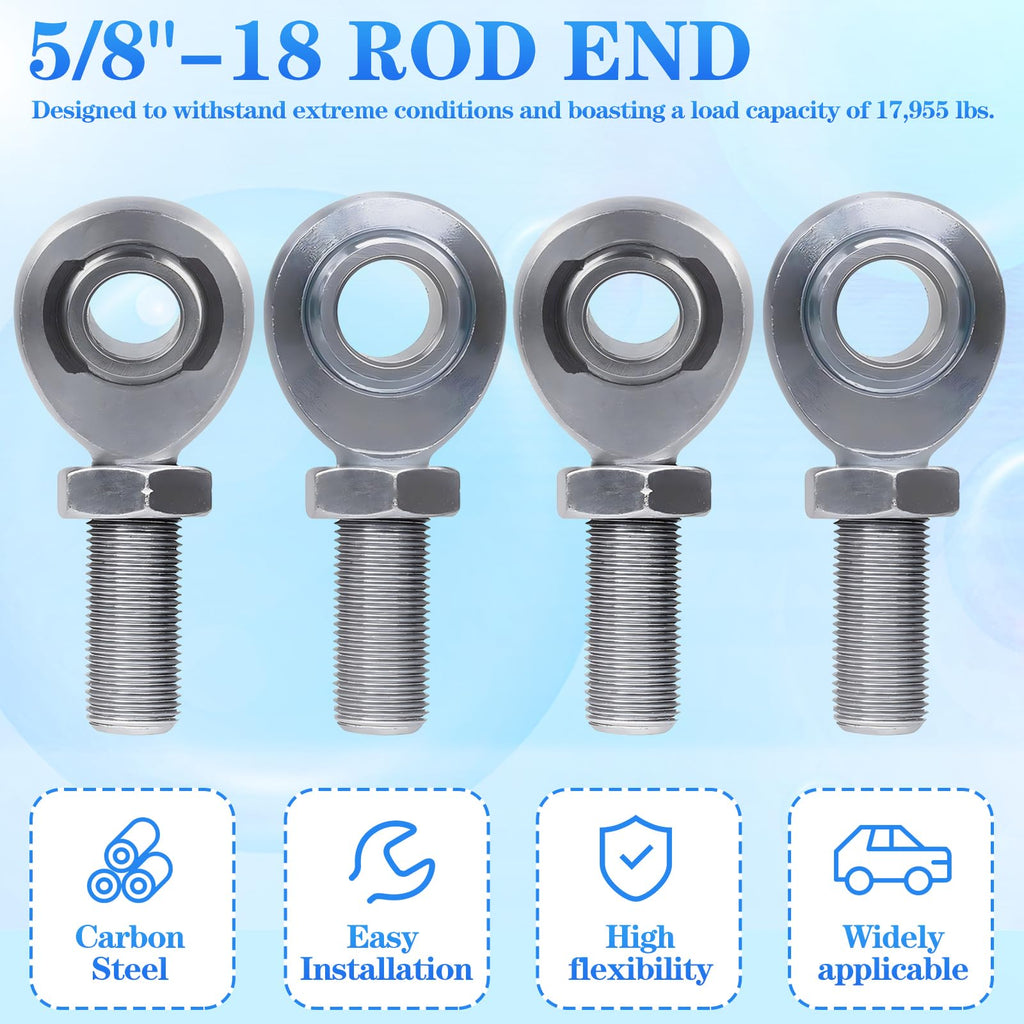

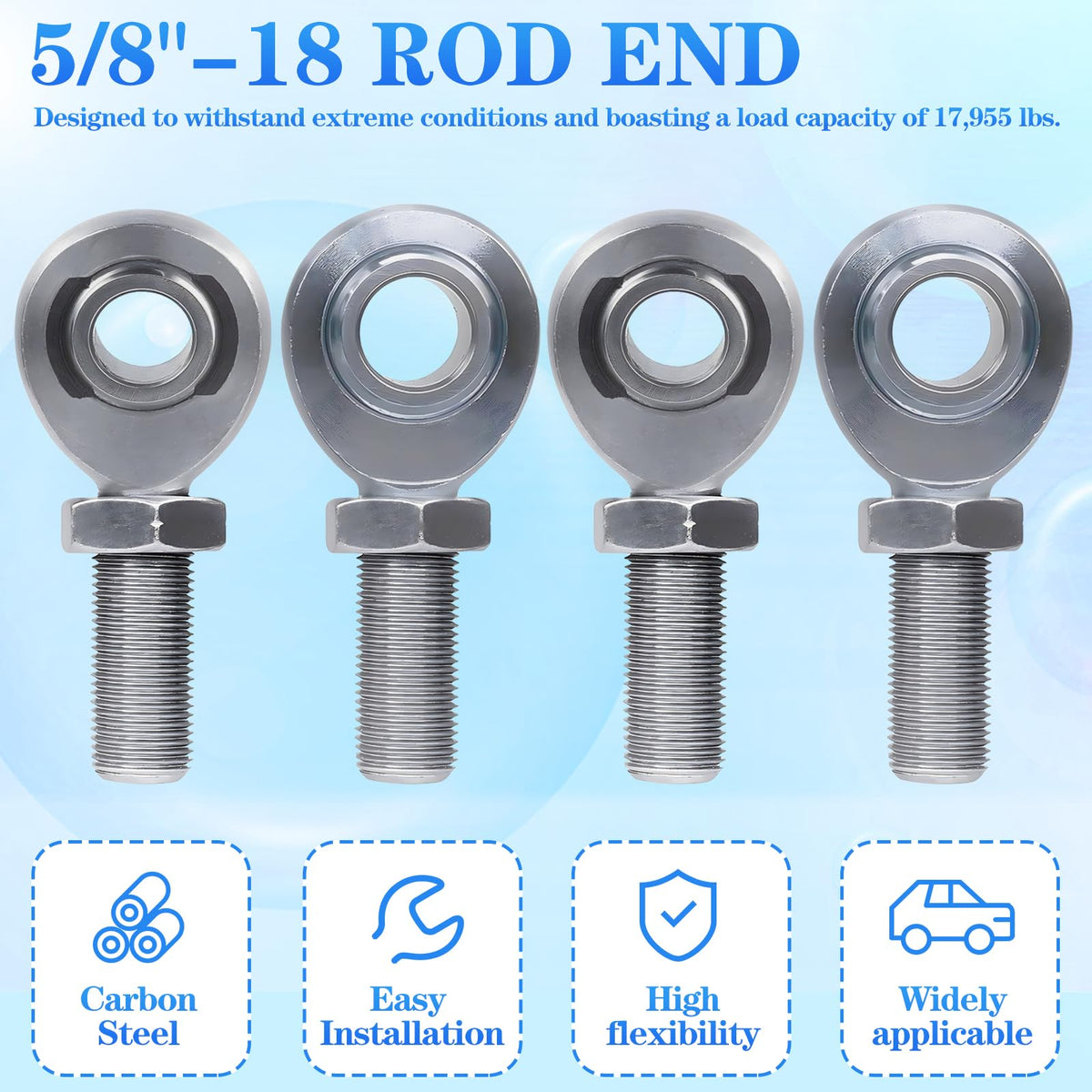

• High Load Rating Capacity: Engineered to support up to 17,955 lbs load rating capacity, ensuring reliable performance under demanding conditions and heavy-duty applications requiring maximum strength and durability

YIFUOK Rod End Heim Joint Kit 5/8"-18 LH and RH Male Thread Rod End： Thread Size:5/8"-18 Ball Bore: 5/8" Centerline Length: 2.63" Thread Length: 1.63" Load rating capacity: 17,955 lbs Jam Nut： Thread:5/8"-18 Width: 0.938" Height: 0.387" Carbon Steel, Silver Zinc Plated Includes：right hand thread Left hand thread Heim set. Spacers Jam nuts and tube adapters included

Free shipping included. 30-day hassle-free returns.
