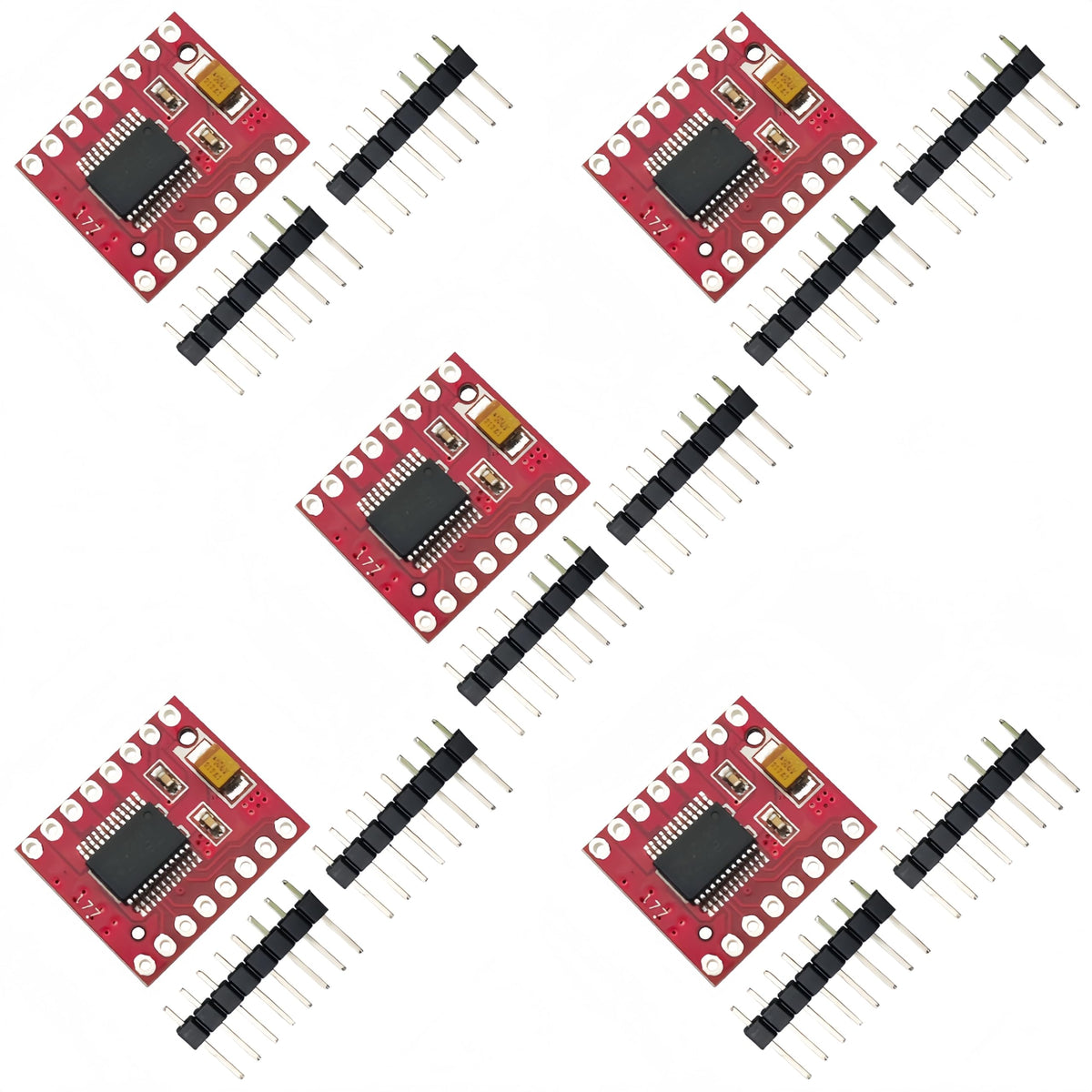

Yuuhseel 5PCS TB6612FNG Dual Motor Driver Controller Board DC Stepper Motor Driver Module Compatible with Arduino Raspberry Pi ESP32

Key features

• Drive voltage: YM input 4.5-10V, Logic level: VCC input 2.7-5.5V
• TB6612FNG is a dual channel DC motor driver chip. It adopts an H-bridge design and can independently drive two DC motors or one stepper motor, suitable for projects such as robots and small intelligent vehicles.
• This TB6612FNG module has significantly improved efficiency and reduced size. Please note that positive and negative (wire connection), recommended input voltage for TB6612FNG module is 12V or below.
• This chip supports forward and reverse rotation, braking, and standby functions, with specific features of high efficiency and low power consumption. Can provide MAX with a continuous current of 1.2A per channel and a peak current of up to 3.2A.
• The working voltage range is wide, and it integrates overheating and undervoltage protection, which is widely used in embedded control systems.
• Pin Description: AINI/AIN2, BIN1/BIN2, PWMA/PWMB: control signal input terminals. AO1/A02, BO1/B02: two motor control output terminals. STBY: control pin for normal working/standby mode. VM (<10 V): motor drive voltage input. VCC (2.7~5.5V): logic level input terminals. GND: ground.

This TB6612FNG module has significantly improved efficiency and reduced size. Please note that positive and negative (wire connection), recommended input voltage for TB6612FNG module is 12V or below. TB6612FNG is a dual channel DC motor driver chip. It adopts an H-bridge design and can independently drive two DC motors or one stepper motor, suitable for projects such as robots and small intelligent vehicles. This chip supports forward and reverse rotation, braking, and standby functions, with specific features of high efficiency and low power consumption. Can provide MAX with a continuous current of 1.2A per channel and a peak current of up to 3.2A. The working voltage range is wide, and it integrates overheating and undervoltage protection, which is widely used in embedded control systems. Size is 21*18mm, weight is 3g, color is red board Drive voltage: YM input 4.5-10V Logic level: VCC input 2.7-5.5V Working current: 1.2A, peak current: 3.2A Pin Description: AINI/AIN2, BIN1/BIN2, PWMA/PWMB: control signal input terminals AO1/A02, BO1/B02: two motor control output terminals STBY: control pin for normal working/standby mode VM (<10 V): motor drive voltage input VCC (2.7~5.5V): lo
