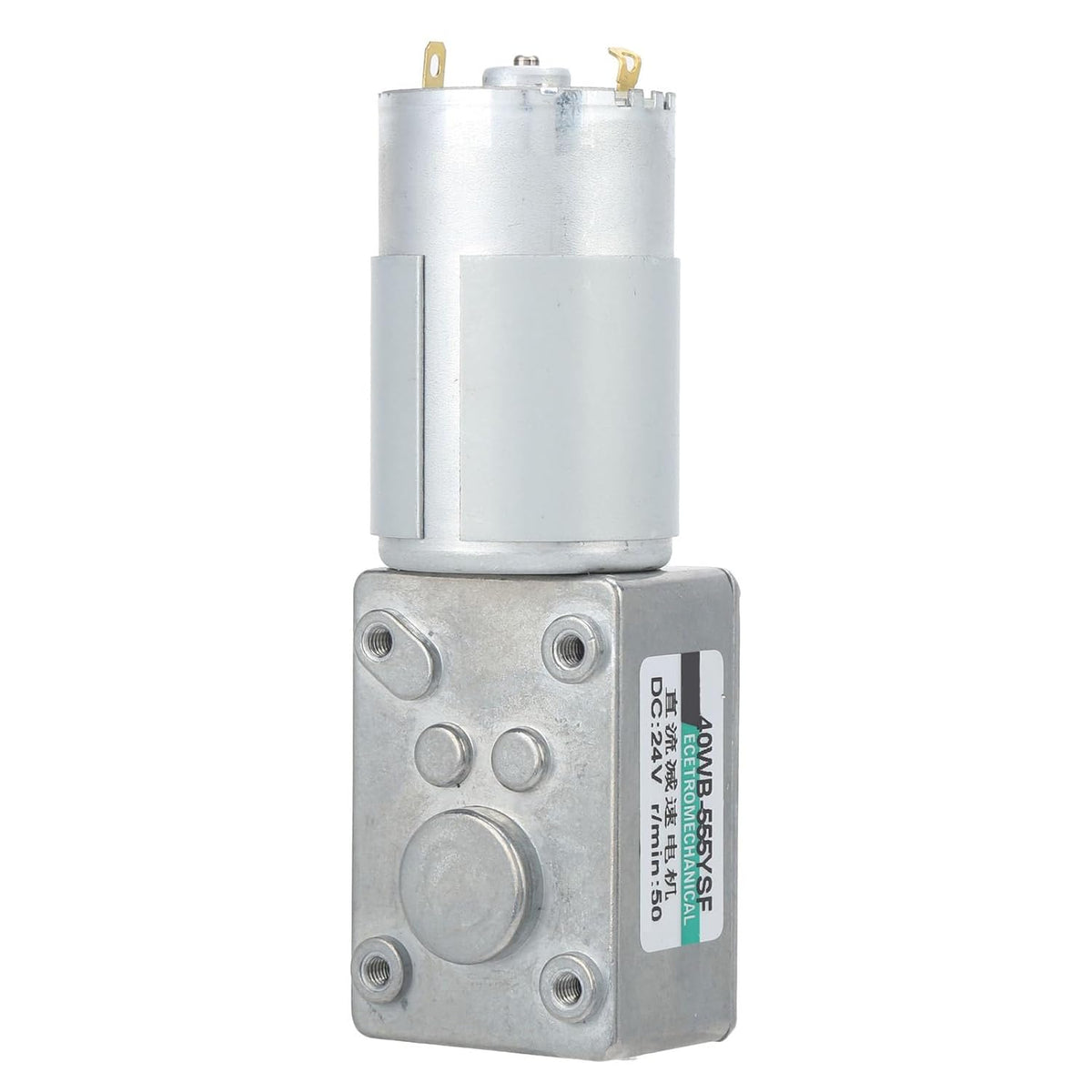

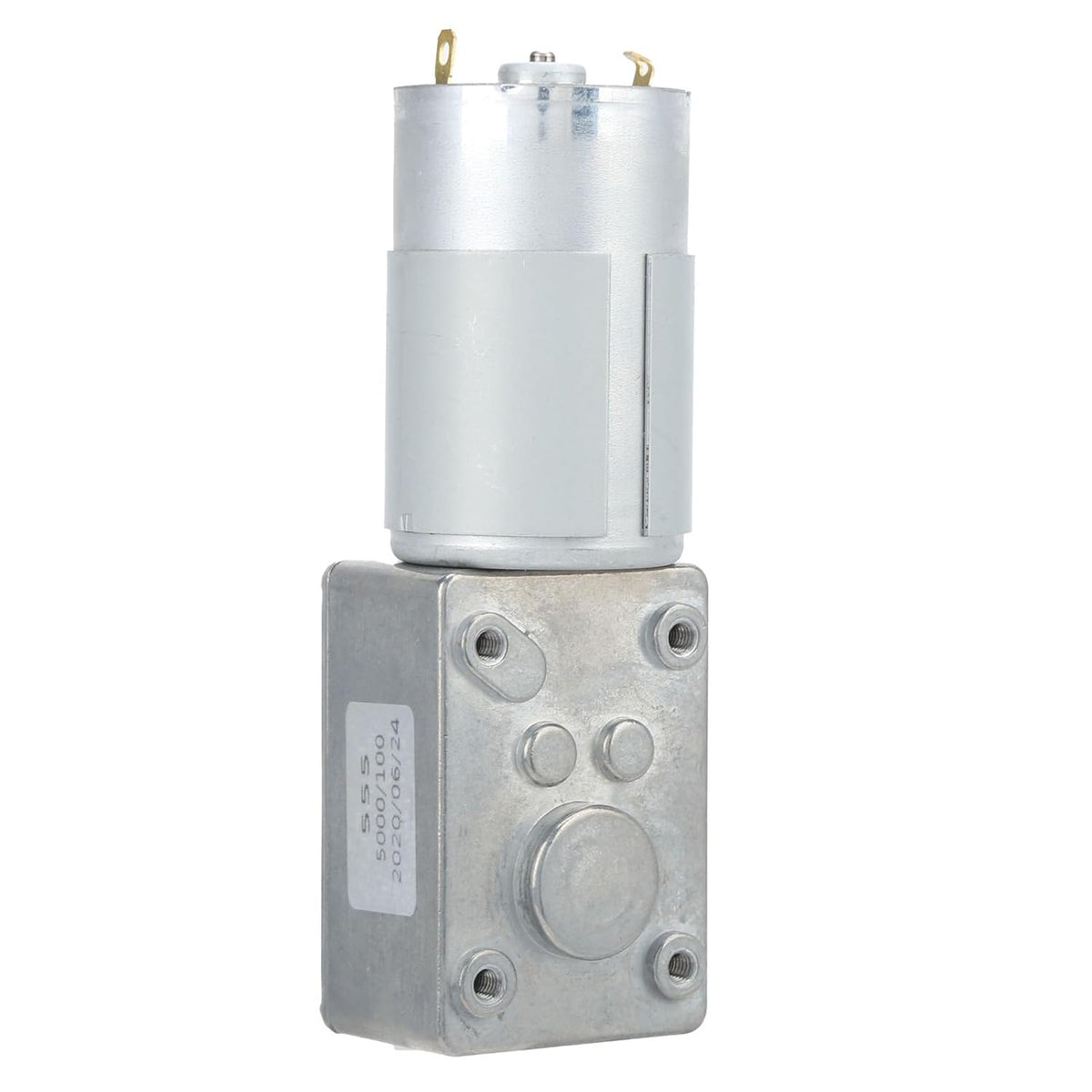

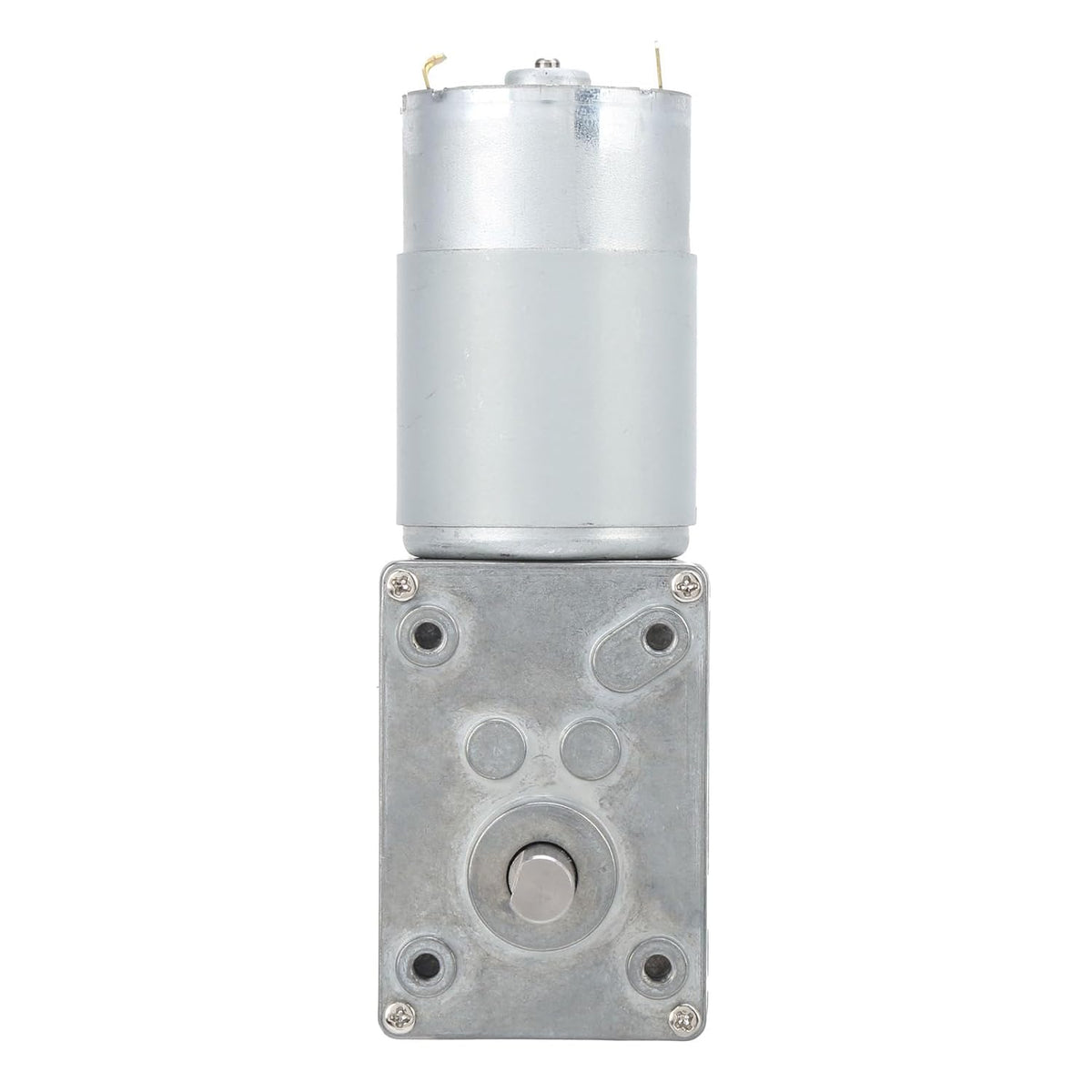

YWBL-WH DC 24V Gear Motor, High Torque Low Speed XD40WB-555YSF (50rpm/min)

Key features

• High Torque Metal Transmission: All metal gears are treated with high-temperature grease, reducing friction and noise while maintaining stable operation under continuous heavy loads.
• Pure Copper Winding: The stator and rotor use pure copper coils, strengthening conductivity and deceleration resistance to deliver consistent torsion for automated systems.
• Self-Locking Safety: The design provides inherent self-locking capability, preventing back-driving and ensuring precise positioning when the power is cut.
• Efficient Magnetic Circuit: Constructed with quality magnetic tiles, the motor achieves higher working efficiency with less dynamic loss, keeping the temperature rise slow during long cycles.
• Industry Application: Suitable for micro machinery, various robots, CNC machine tools, high-accuracy measuring instruments, and pharmaceutical equipment requiring controlled low-speed motion.

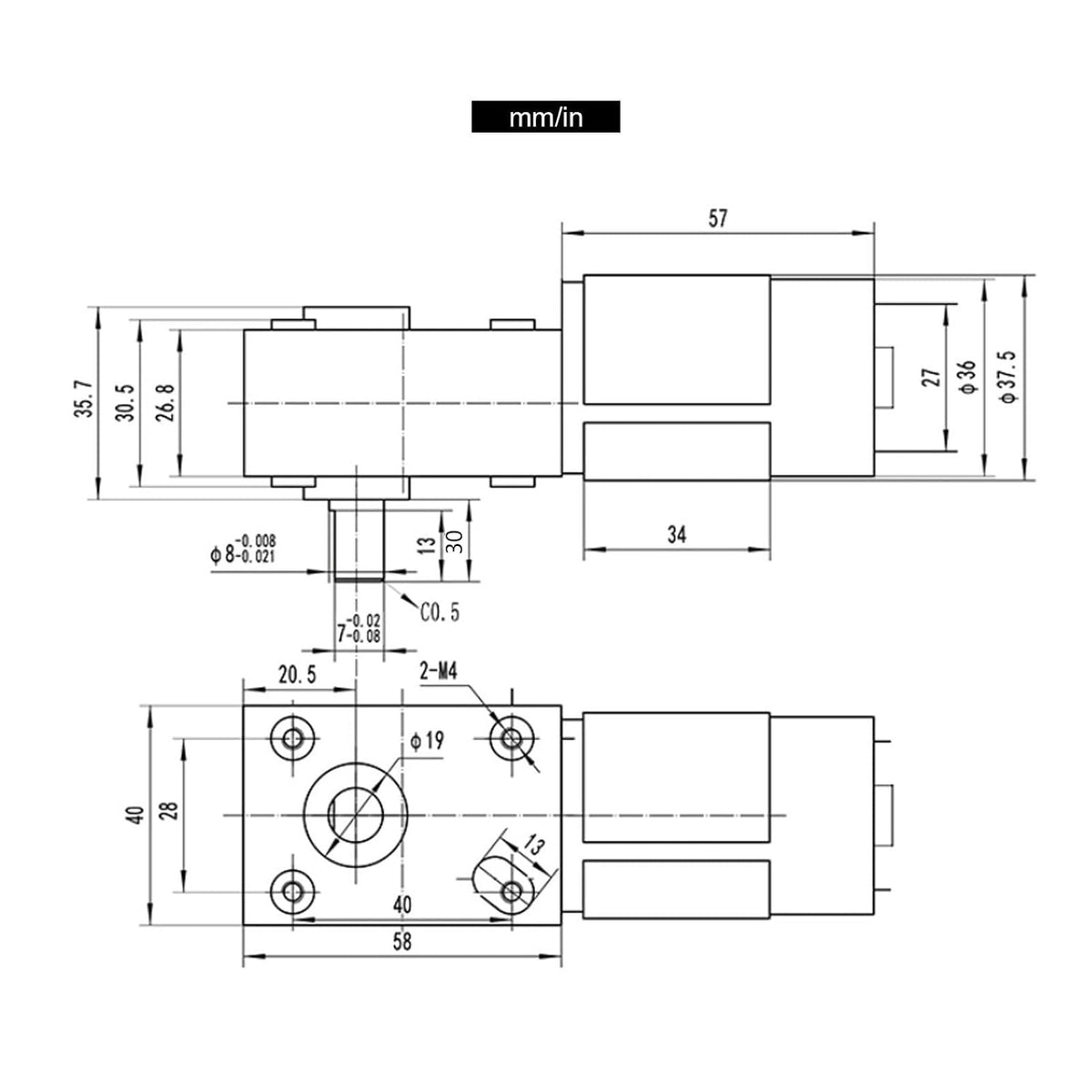

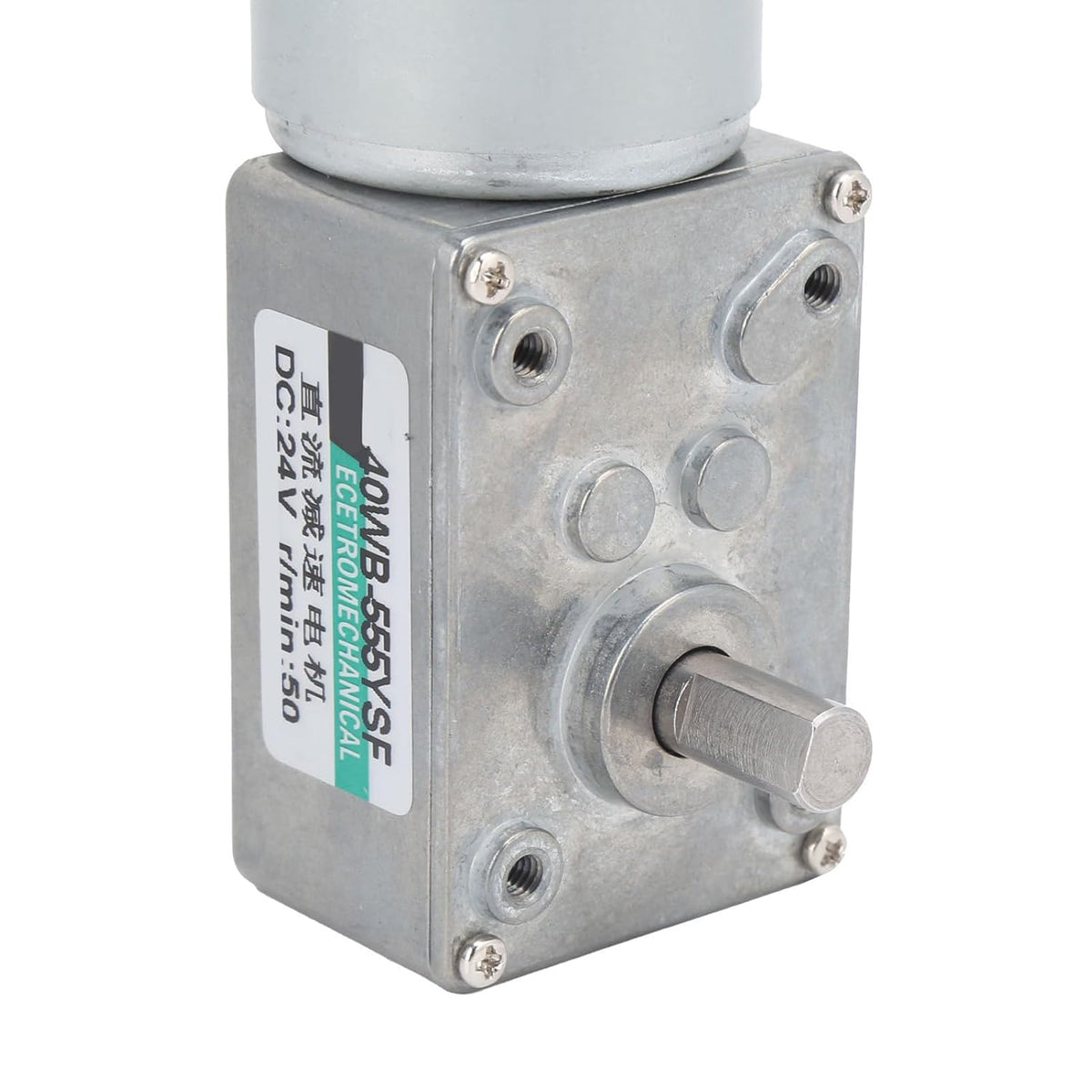

Spec: Item Type: Gear Model: XD40WB-555YSF Material: Copper Output Shaft Size: Approx. 8 x 30mm / 0.3 x 1.2in Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20MΩ Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for one minute, and the abnormality is 1500V. Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated operation under normal temperature and humidity by using the resistance to measure the temperature rise of the coil below 70℃ Insulation Class: Class B(130℃) Operating Environment Temperature: Motor: -10~+40℃ (no icing) Use Environment Humidity: 85% or less (no condensation) CW/CCW: Yes Speed Adjusted: Yes Model Voltage（DC/V） No-Load Speed (rpm/min) No-Load Current(A) Load Speed (rpm/min) Loading Moment（kgf·cm） Reduction Ratio（1:00） Power（W） XD40WB-555YSF 24V 10 0.3 9 24.9 505 20 30 0.3 27 12.4 260 20 50 0.3 45 7.4 156 20 100 0.3 82 3.74 78 20 Note
