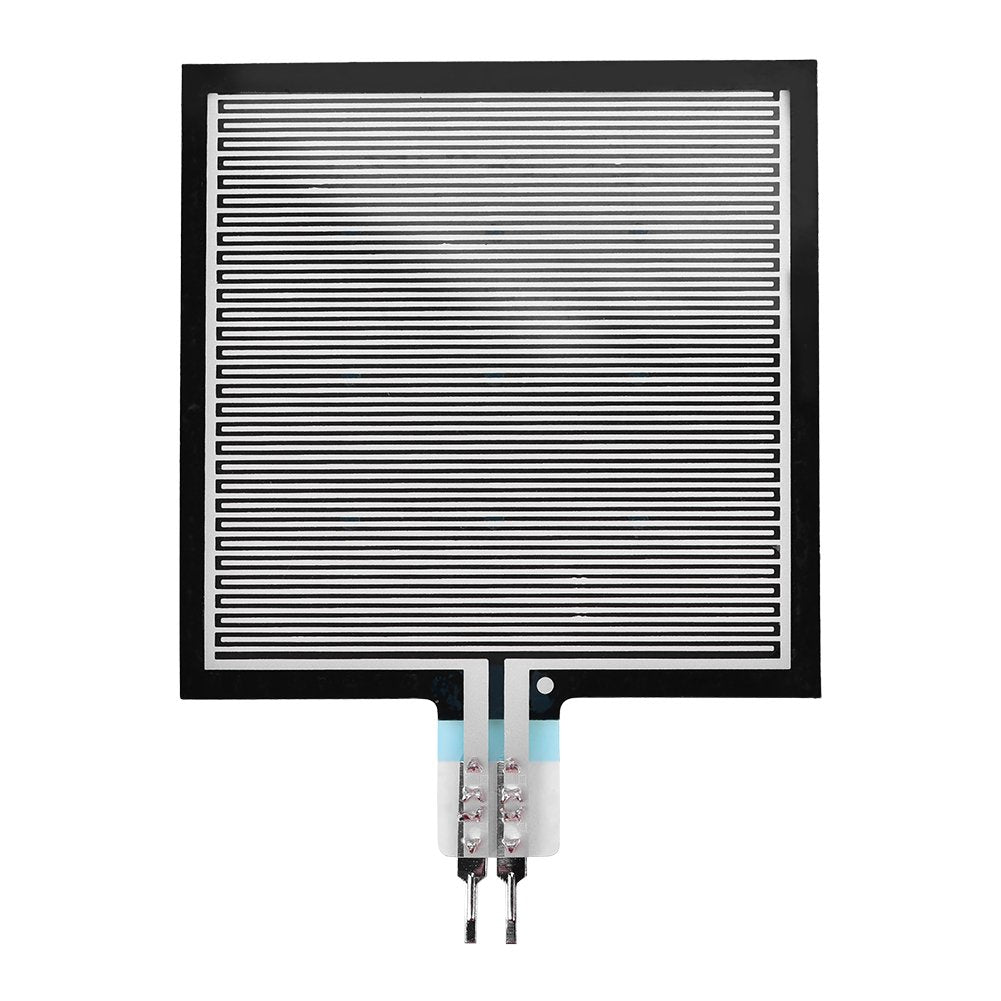

Zetiling Thin Film Pressure Sensor, Pressure Sensor Pad, Force Sensing Resistor RP-S40-ST Force Sensor for Intelligent High-end Seat

Key features

• Features: The flexible sensor has the characteristics of flexible ultra-low power consumption,extreme speed response, high stability and high consistency.
• Small Size: This flexible pressure sensor is based on new nanometer pressure-sensitive materials supplemented by film substrate.

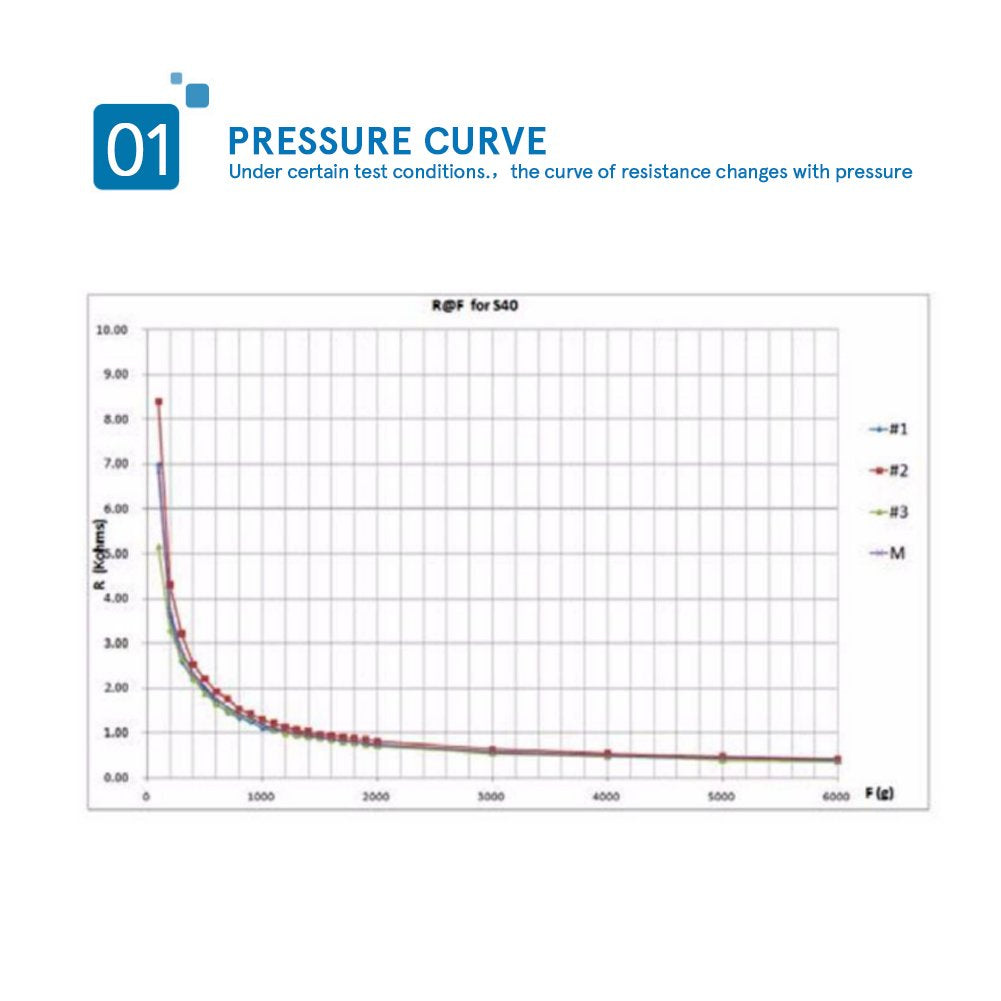

• Highly Sensitive Detection: Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.When sensor detects outside pressure, the of sensor will change.

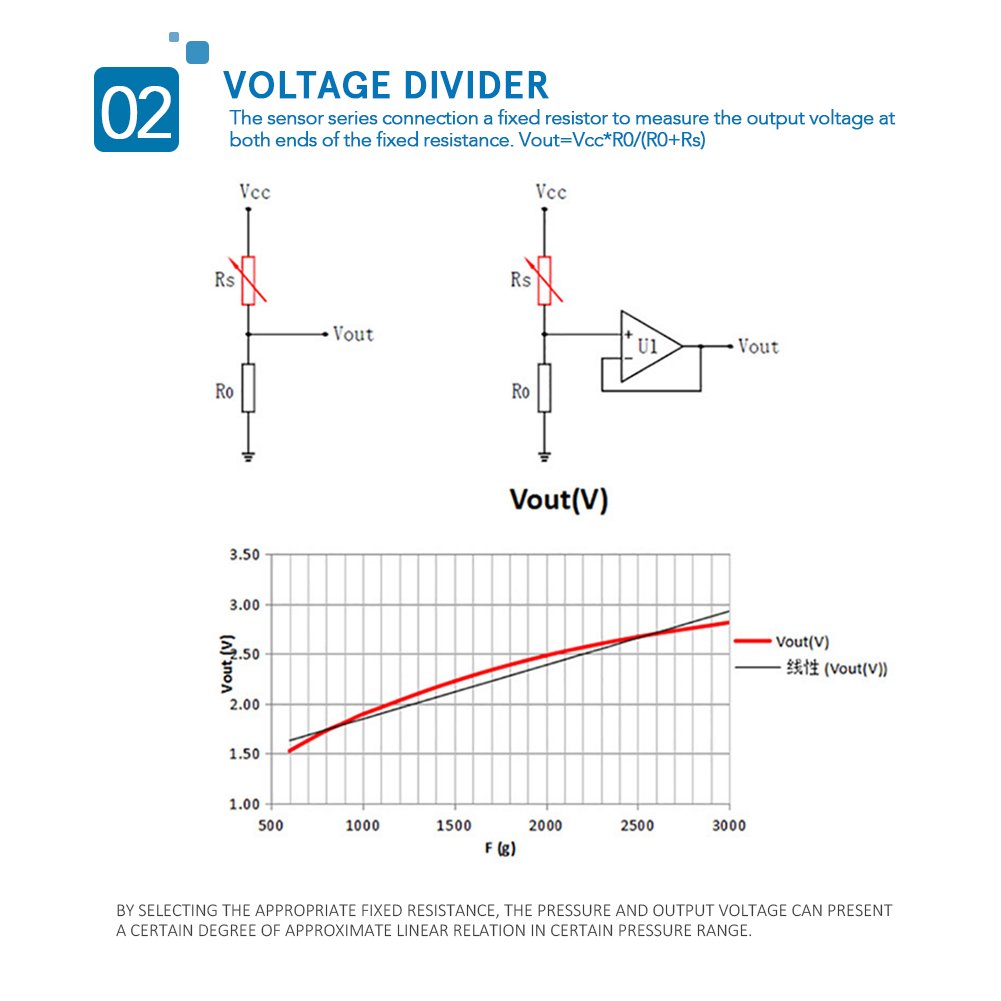

• Pressure : Force Sensing Resistor pressure can be converted into a corresponding electrical output using simple circuit
• Wide Application: Force Sensitive Resistor can be used to smart home, automotive electronics, new energy and so on

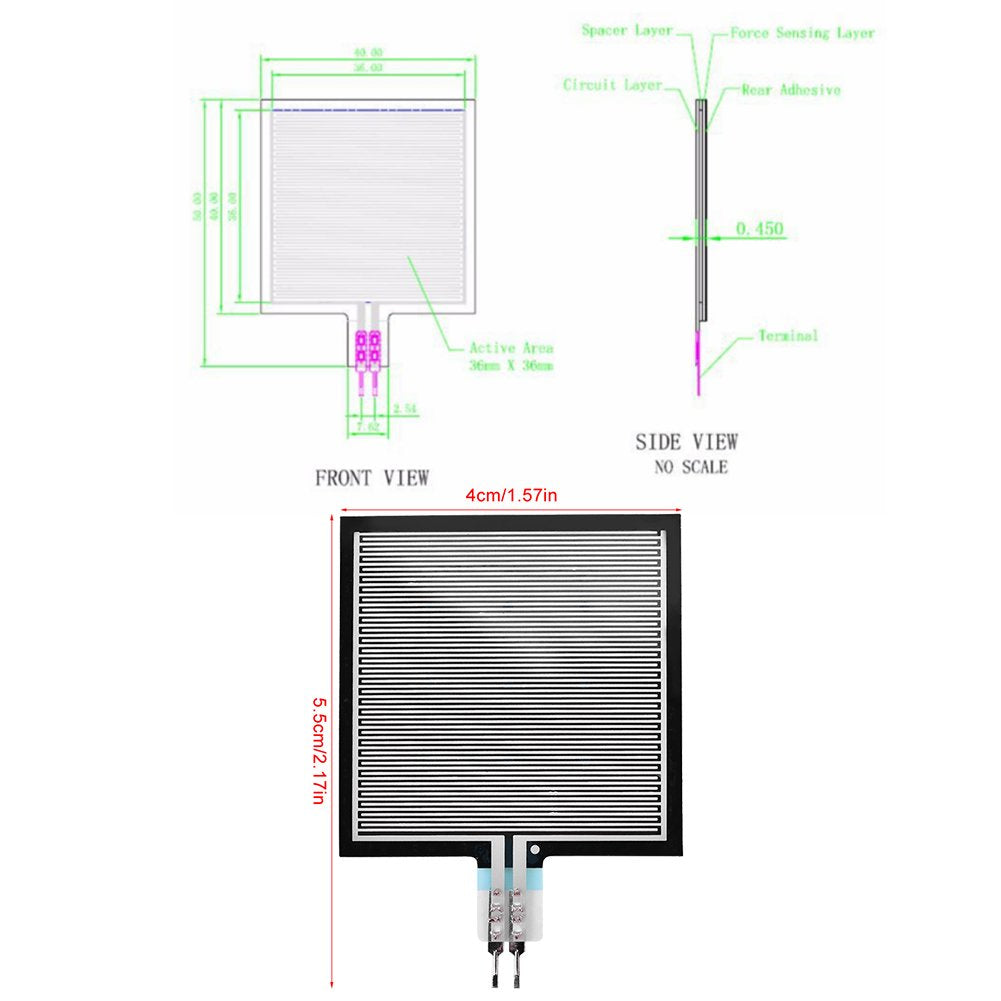

Features: 1.The flexible sensor has the characteristics of flexible ultra-low power consumption and extreme speed response, etc. 2.Small size, this flexible pressure sensor is based on new nanometer pressure-sensitive materials supplemented by film substrate. 3.This pressure sensor has the characteristic of high stability, high consistency. 4.Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure. When sensor detects outside pressure, the of sensor will change. 5 Pressure can be converted into a corresponding electrical output using simple circuit. Specifications: Model: RP-S40-ST Manufacturing process: thin film Output : analog Pressure induction range: 20g-10kg : 20 g, default 200k?, Thickness: 0.45mm Not : 10M? Activation time: 0.01s Delay: +10%, (RF+-RF-)/FR+,1000g force Response time: 10ms Size: 5 x 4cm / 1.97 x 1.57in Weight: 3g Package included: 1 x Pressure Sensor
