1 Pole 32 AMP Heavy Duty Enclosed AC Contactor | Replaces Virtually All Residential 1 Pole Models Rated at 32 Amps or

Key features

• UL Listed with Protactor 2 Year Replacement Policy: This contactor is certified by UL and comes with a comprehensive 2-year replacement policy for your peace of mind
• 32 FLA Amp Rating with 1 Pole and Shunt: Features a 24 Volt coil and replaces most 1 pole contactors rated at 20 Amps, 25 Amps, or 30 Amps on air conditioners and heat pumps
• Enclosed Contacts and Encapsulated Coil Design: Features enclosed contacts to keep out insects and debris, with an encapsulated 24 Volt coil for enhanced durability and protection
• Heavy Lug Terminals with Multiple Connection Options: Equipped with heavy lug terminals and push-on connectors for high voltage connections, providing maximum wiring flexibility
• Universal Compatibility with Major HVAC Brands: Replaces virtually all 1 pole contactors 32 Amps or less used by Carrier, Bryant, Payne, Rheem, Ruud, Weatherking, Lennox, Armstrong, Ducane, Trane, American Standard, York, Coleman, Evcon, Luxaire, Heil, Comfortmaker, and Tempstar

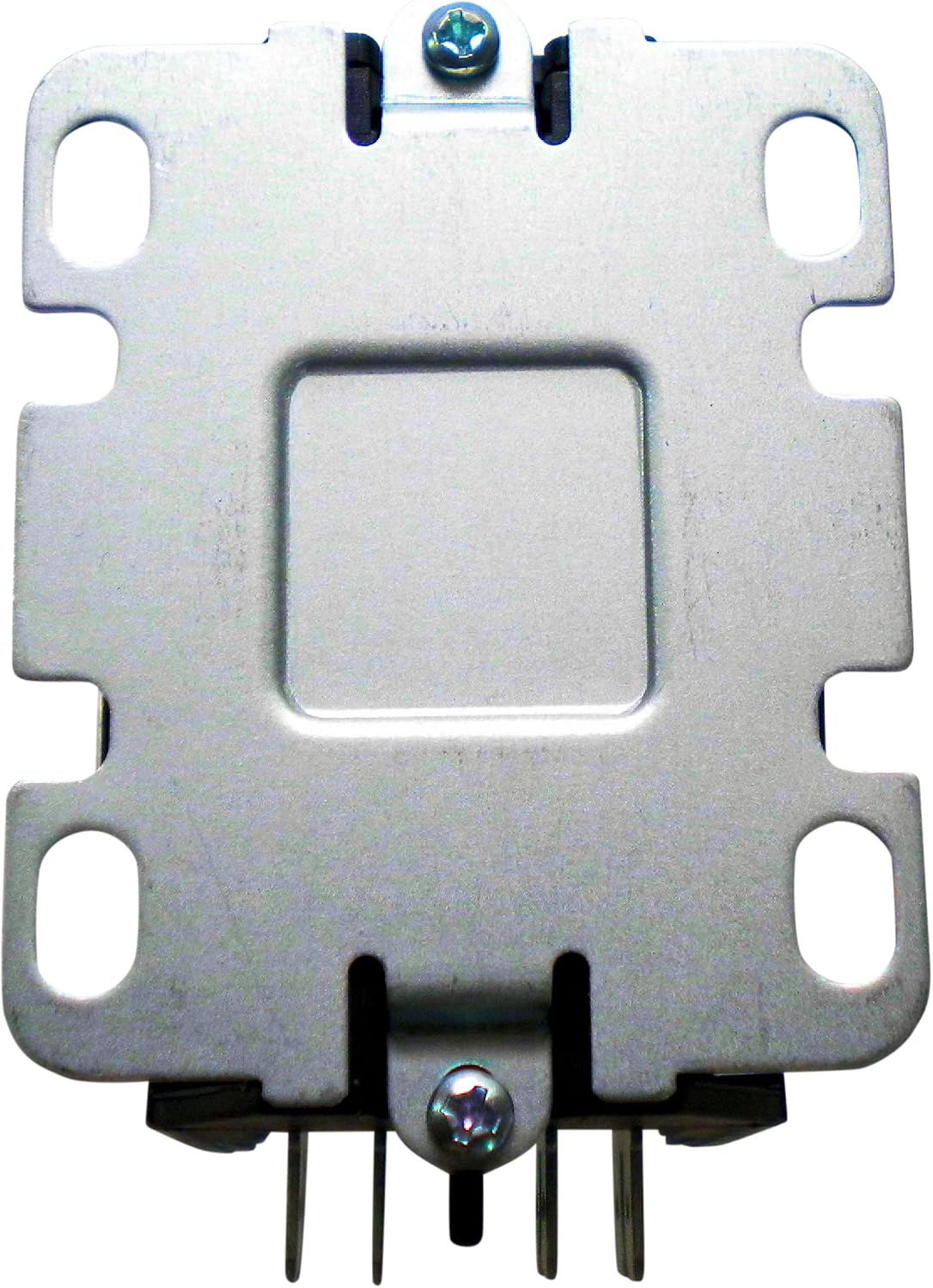

• Versatile Mounting Configuration: Mounting base measures 2-5/16 inches by 1-15/16 inches with four oblong mounting holes and four slots in the base to provide multiple mounting options

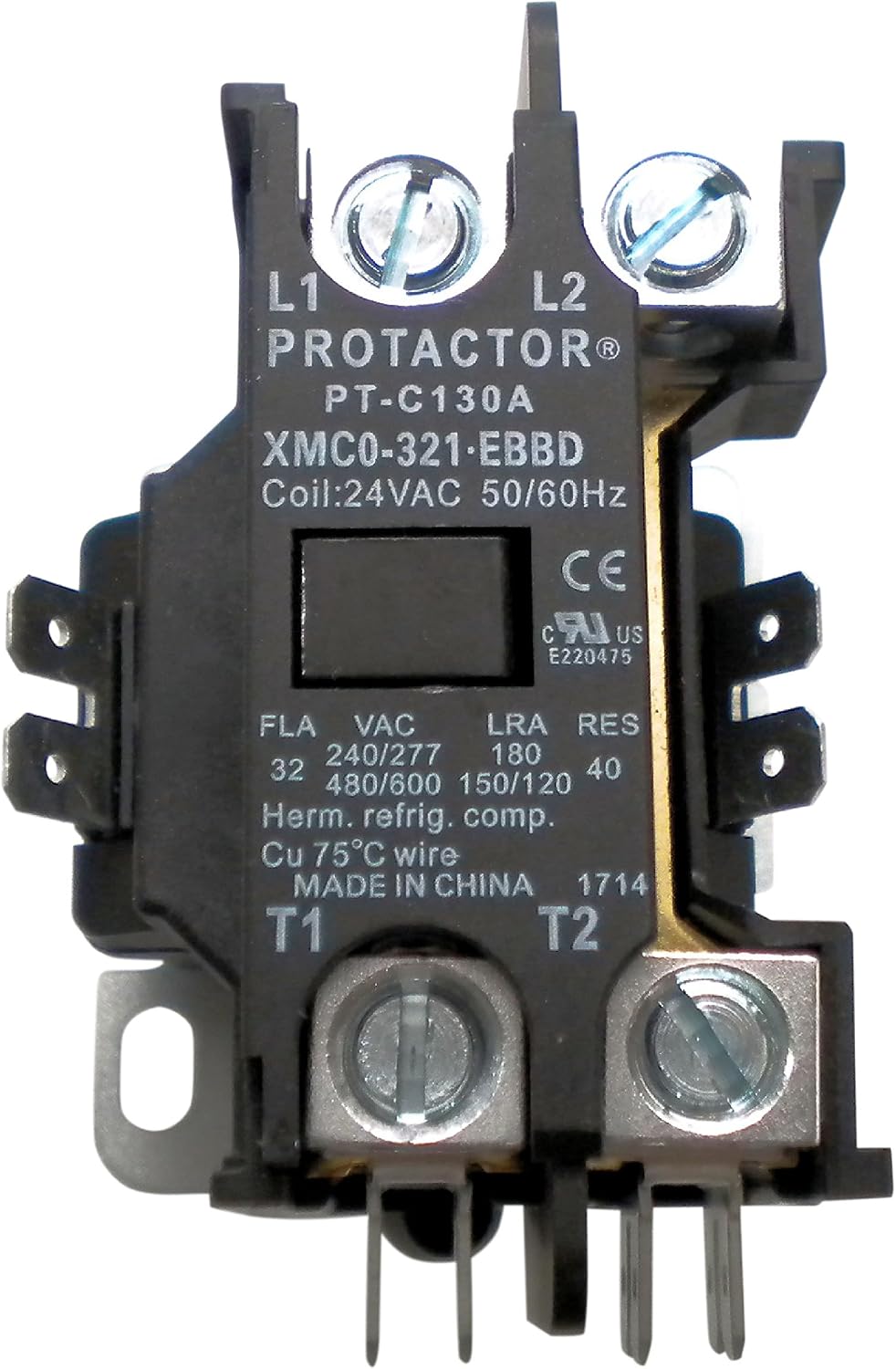

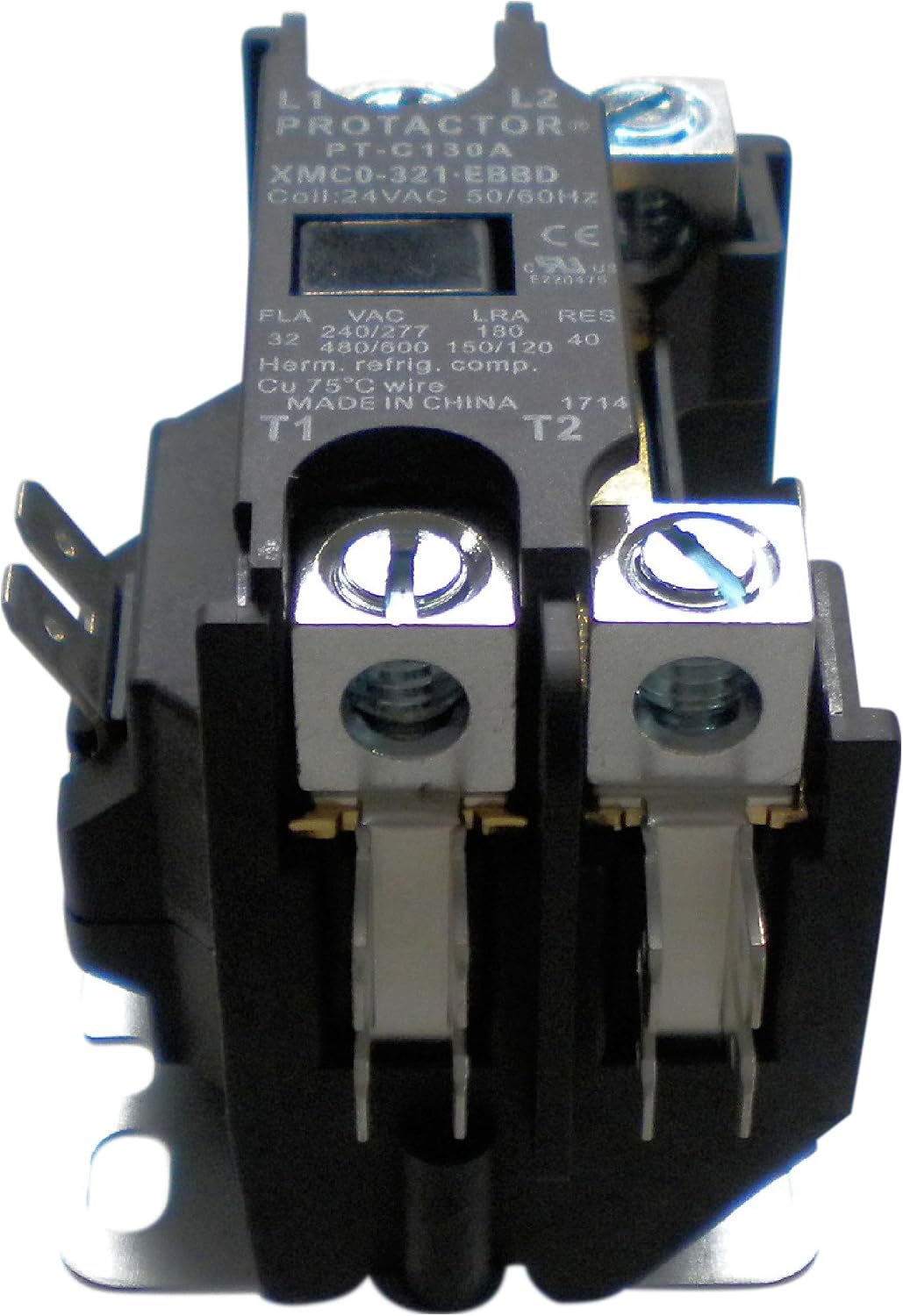

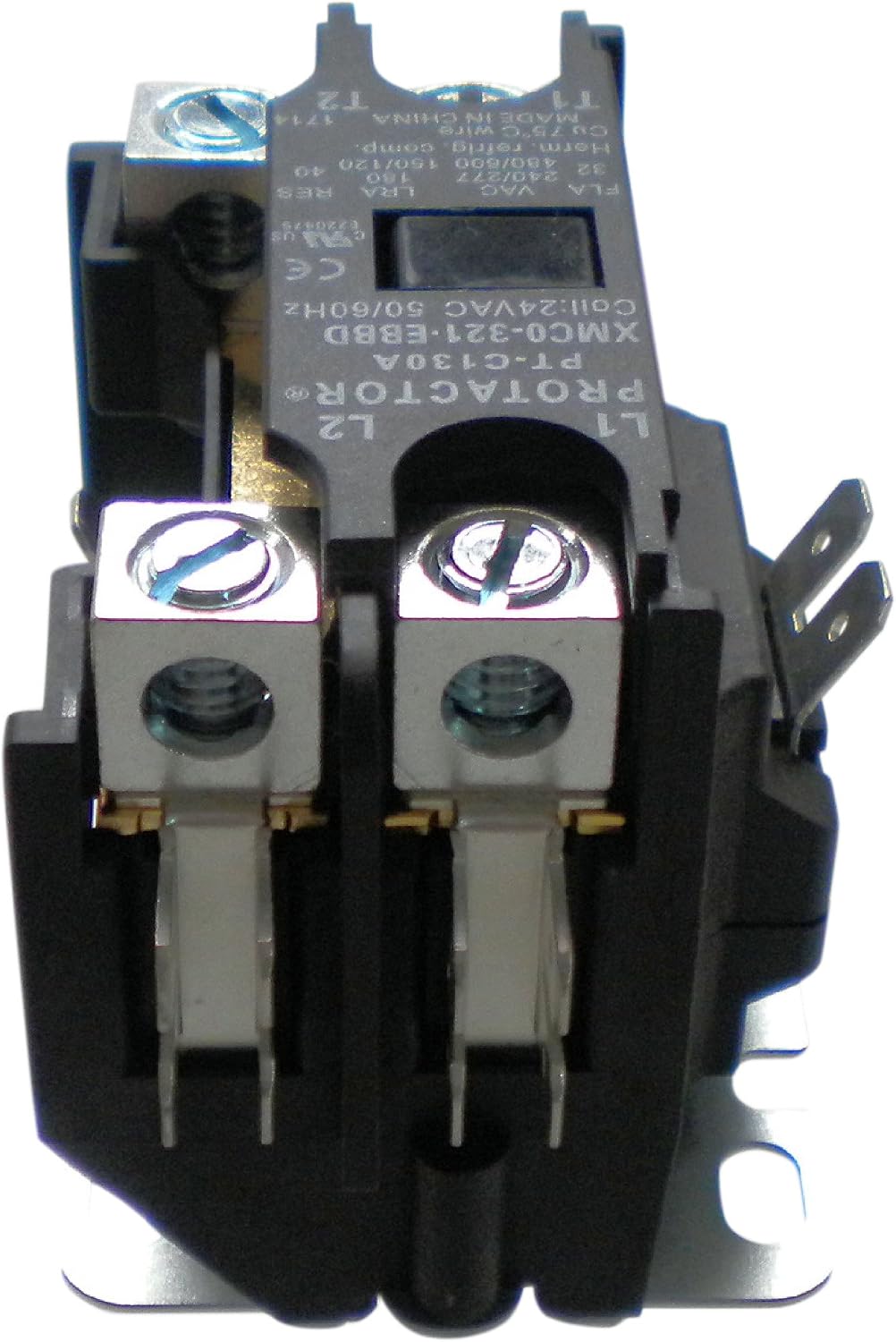

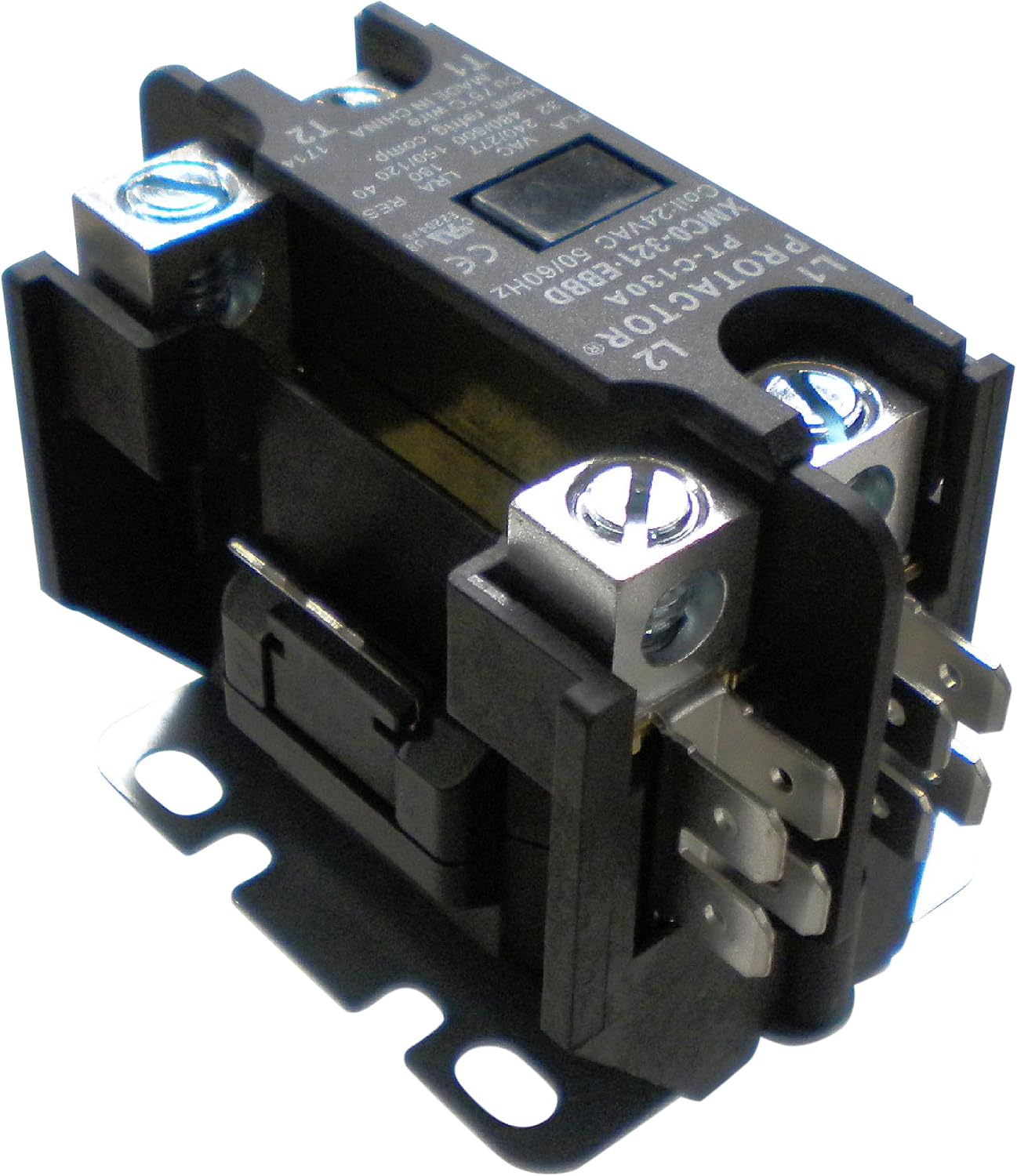

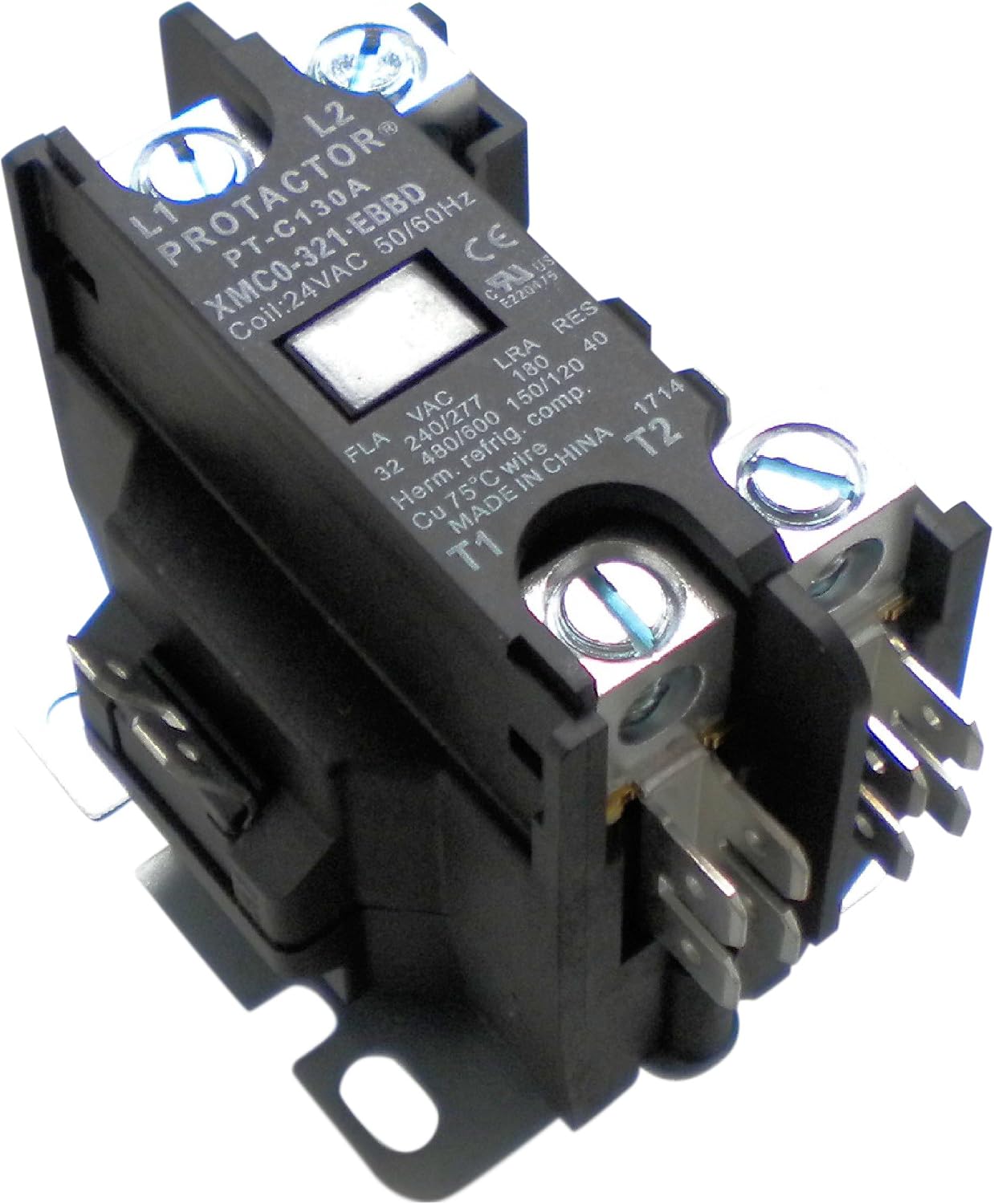

This contactor is a heavy duty enclosed replacement for all one pole contactors rated at 32 Amps or less which have 24 volt coils. This contactor is rated at 32 Amps and has a 24 Volt coil. This contactor has a heavy lug terminal and 4 male quick connect ¼” terminals on each line voltage connection to provide maximum wiring flexibility. The two terminals for the low voltage coil each have double ¼” male quick connects. The contact mechanism is enclosed to keep out insects and debris, but the visible plunger provides positive verification that the contacts are pulled in. The coil is encapsulated with no exposed tape wrapping. The mounting base measures 2-5/16” X 1-15/16” with four oblong mounting holes 1-5/8” x 1-5/8” on center. There are also four slots in the base to provide many mounting options. This part replaces most residential one pole contactors 32 Amps or less. The 24 volt coil is rated at 6 VA sealed / 31 VA inrush. This part is covered by the exclusive Protactor two year limited replacement policy. If this part fails within two years from date of purchase, return the defective part and a copy of the original invoice to the place of purchase for replacement. Contact the a

Free shipping included. 30-day hassle-free returns.
