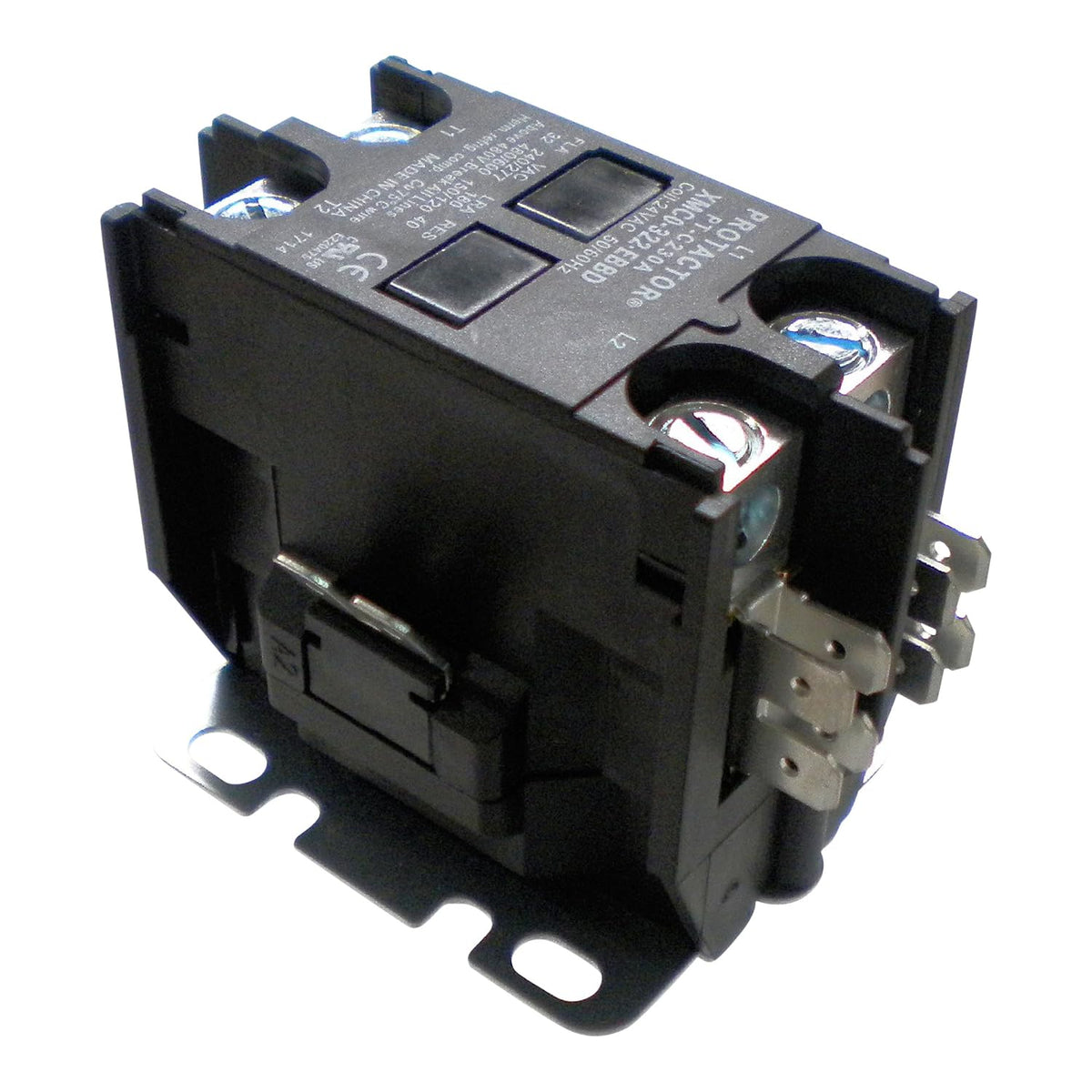

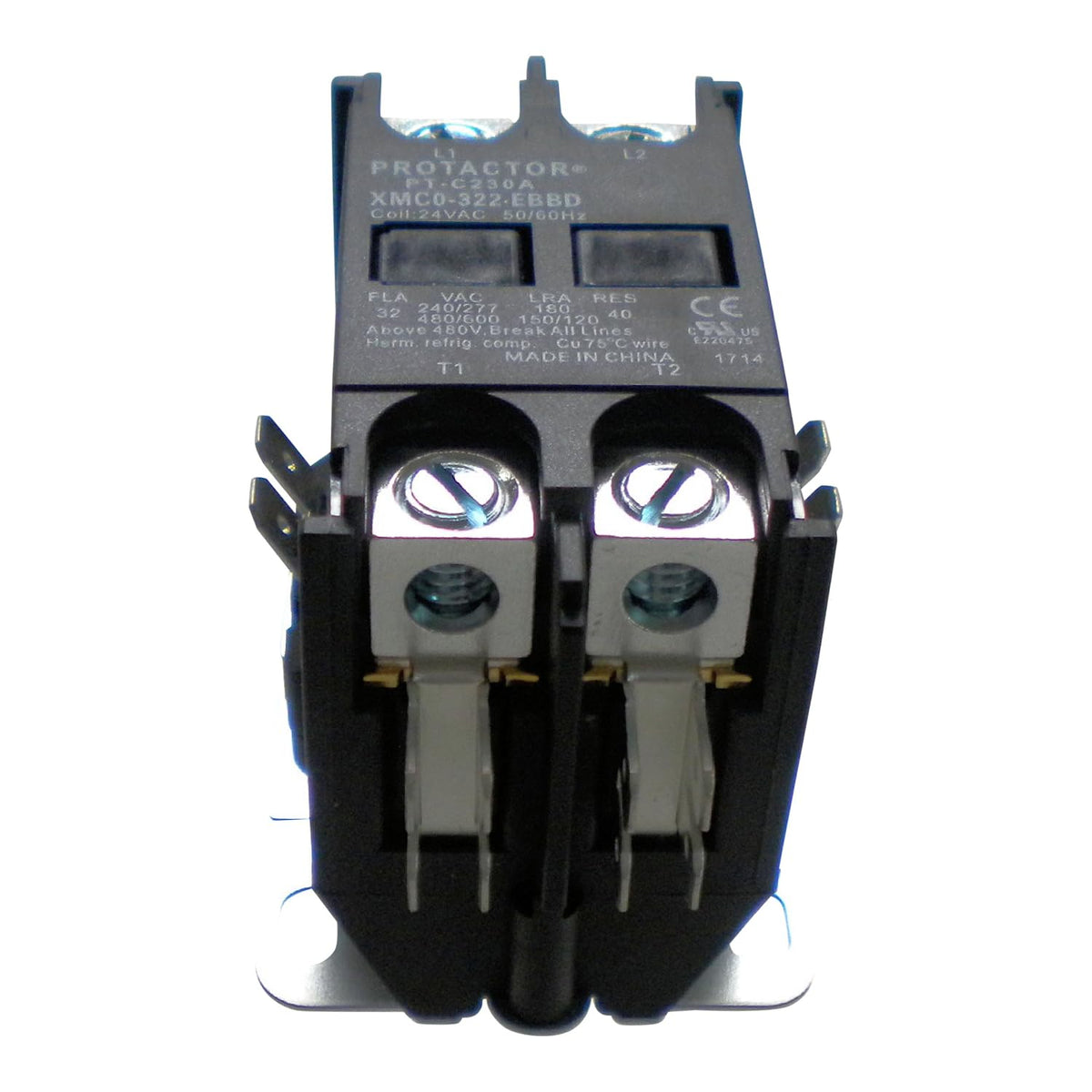

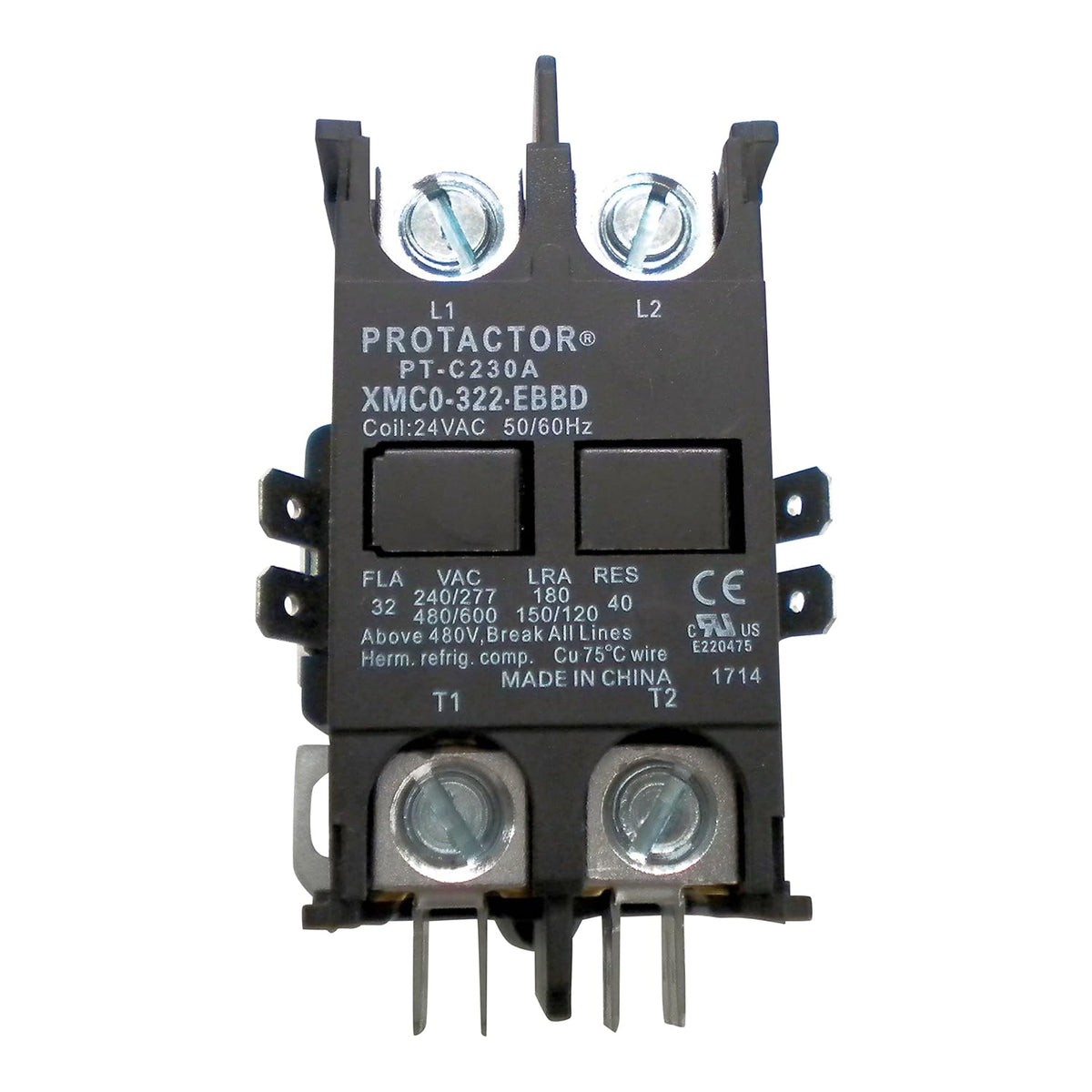

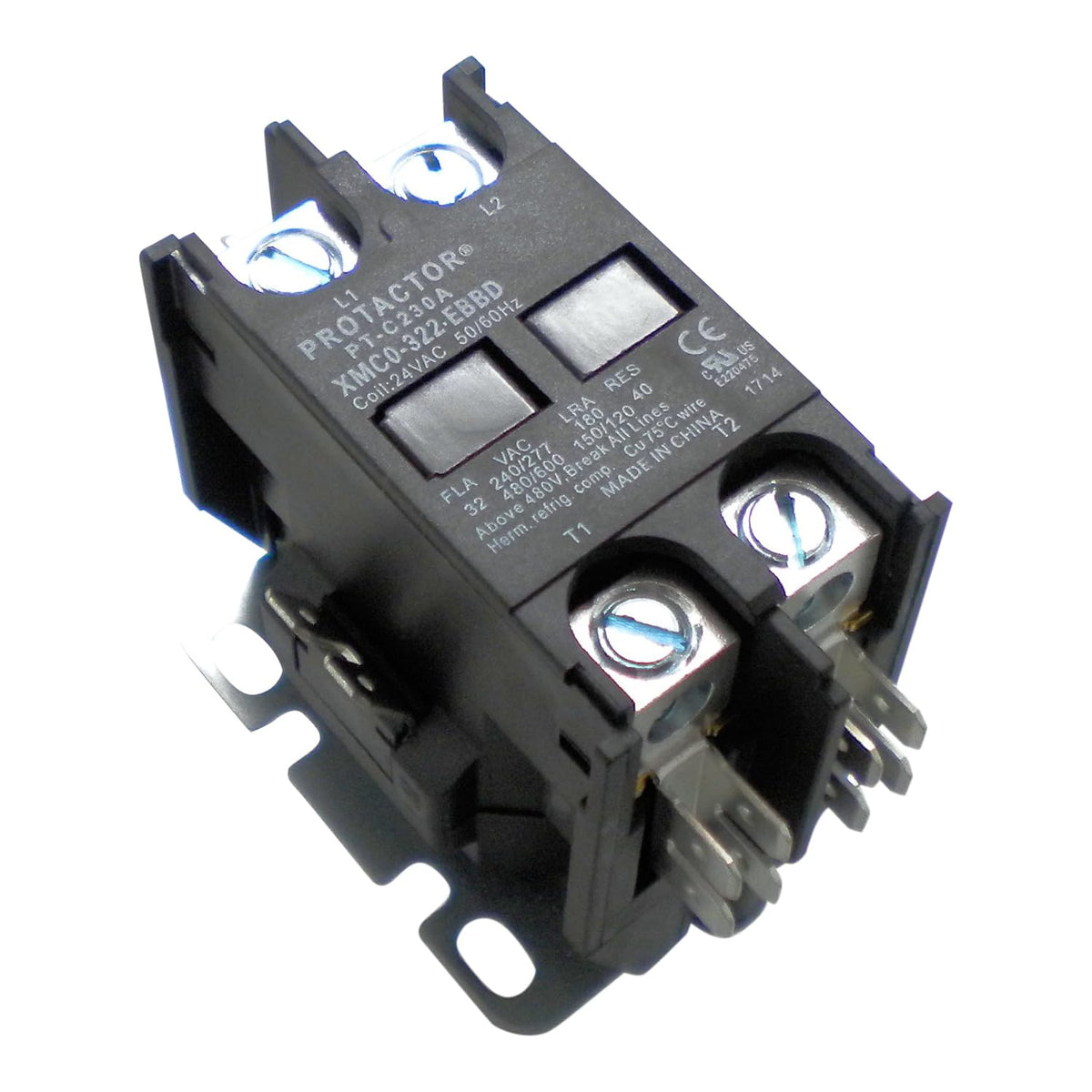

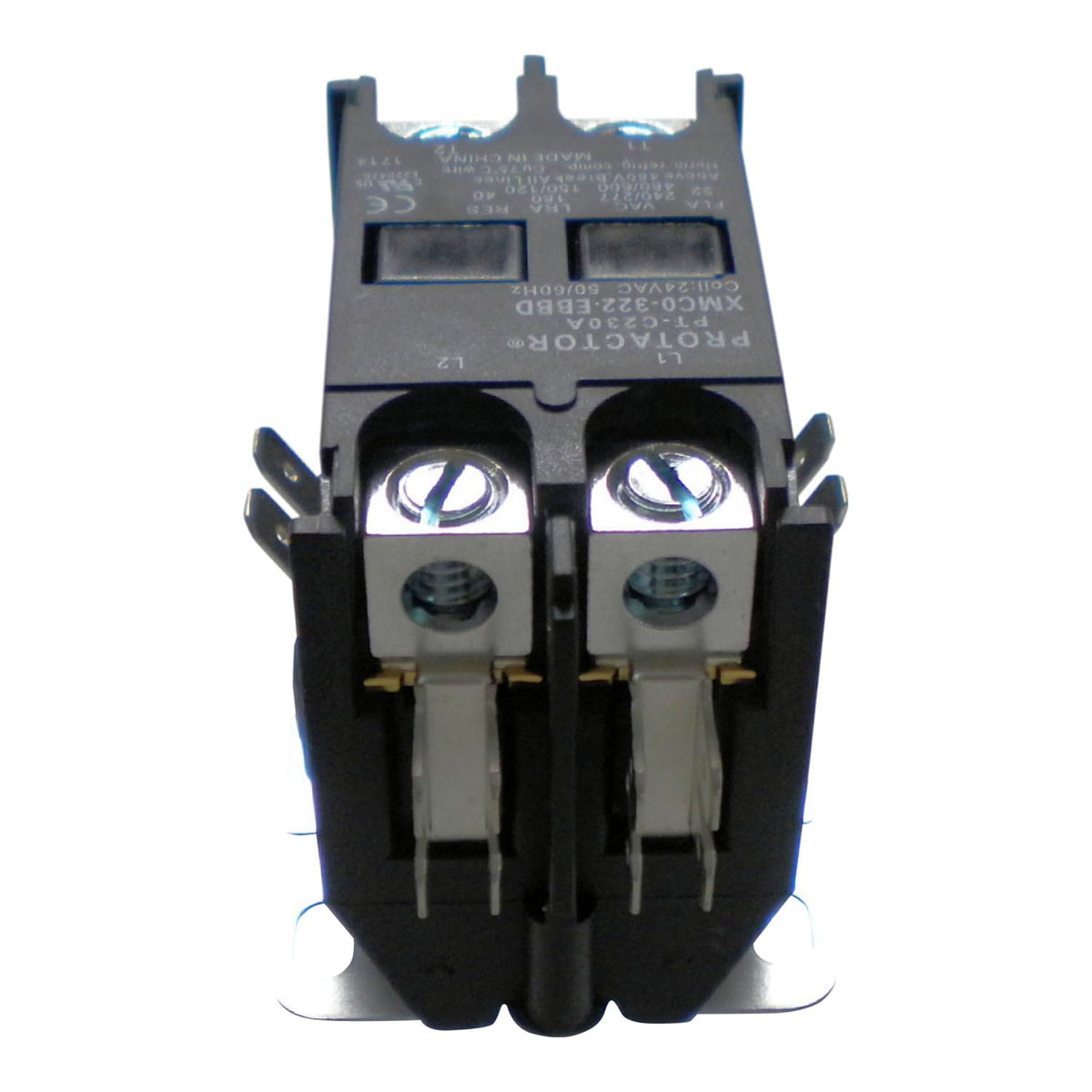

2 Pole 32 AMP Heavy Duty Enclosed AC Contactor

Key features

• UL Listed with Quality Assurance: This contactor comes with a 2 year replacement policy and is UL Listed for safety and reliability
• High Amp Rating and Compatibility: 32 FLA Amp Rating with 2 Pole configuration and 24 Volt Coil, replaces most 2 Pole contactors rated at 20 Amps, 25 Amps, or 30 Amps on air conditioners and heat pumps
• Protected Design: Features enclosed contacts and encapsulated 24 Volt coil to keep out insects and debris while providing reliable operation
• Versatile Connection Options: Heavy lug terminals and push-on connectors for high voltage connections provide maximum wiring flexibility with four male quick connect terminals
• Universal Replacement Part: Replaces virtually all 2 Pole contactors 32 Amps or less used by major brands including Carrier, Bryant, Payne, Rheem, Ruud, Weatherking, Lennox, Armstrong, Ducane, Trane, American Standard, York, Coleman, Evcon, Luxaire, Heil, Comfortmaker, and Tempstar

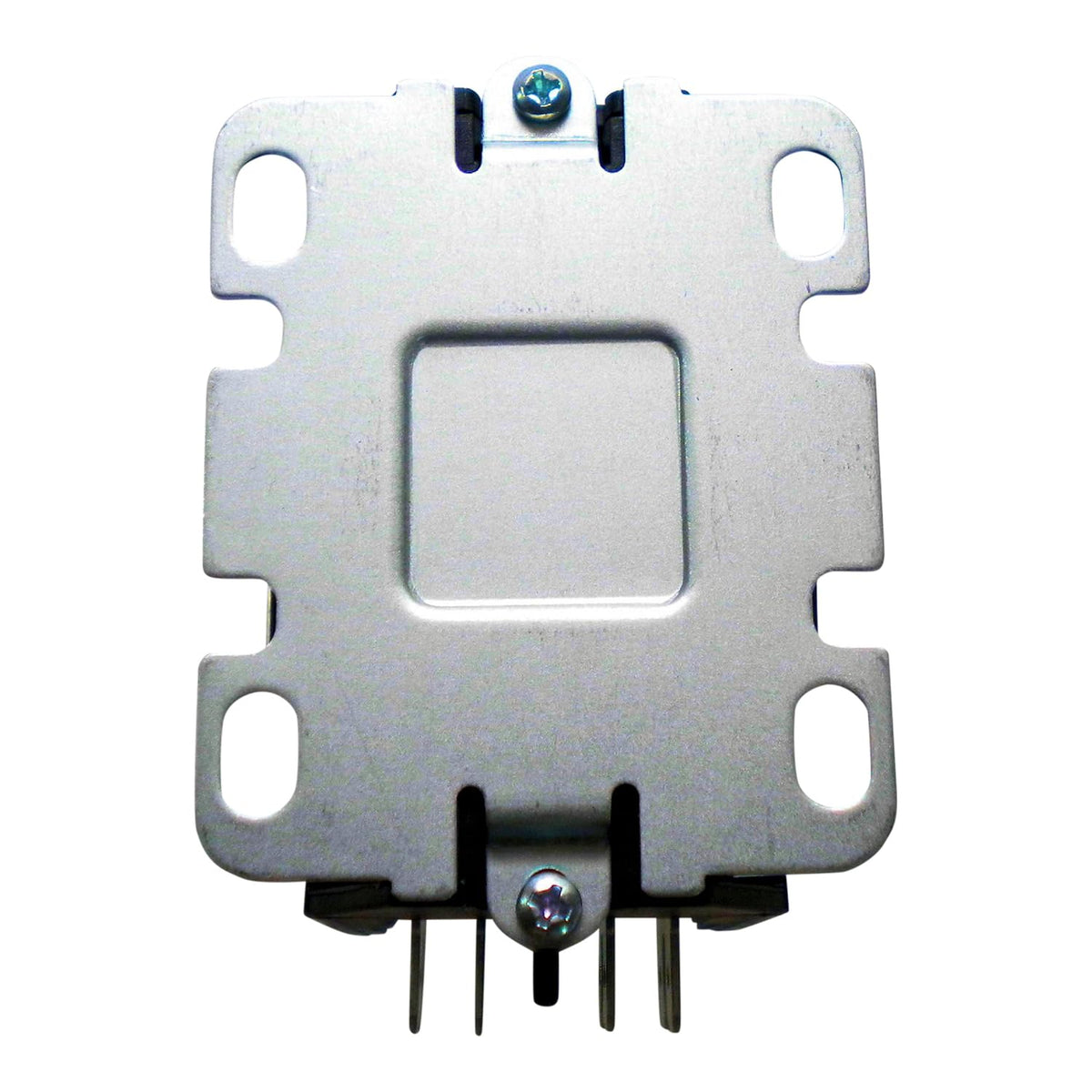

• Flexible Mounting System: Mounting base measures 2-5/16 inches by 1-15/16 inches with four oblong mounting holes and four slots providing multiple mounting options for easy installation

This contactor is a heavy duty enclosed replacement for all two pole contactors rated at 32 Amps or less which have 24 volt coils. This contactor is rated at 32 Amps and has a 24 Volt coil. This contactor has a heavy lug terminal and 4 male quick connect ¼” terminals on each line voltage connection to provide maximum wiring flexibility. The two terminals for the low voltage coil each have double ¼” male quick connects. The contact mechanism is enclosed to keep out insects and debris, but the visible plunger provides positive verification that the contacts are pulled in. The coil is encapsulated with no exposed tape wrapping. The mounting base measures 2-5/16” X 1-15/16” with four oblong mounting holes 1-5/8” x 1-5/8” on center. There are also four slots in the base to provide many mounting options. This part replaces most residential two pole contactors 32 Amps or less. The 24 volt coil is rated at 6 VA sealed / 31 VA inrush. This part is covered by the exclusive Protactor two year limited replacement policy. If this part fails within two years from date of purchase, return the defective part and a copy of the original invoice to the place of purchase for replacement. Contact the a
