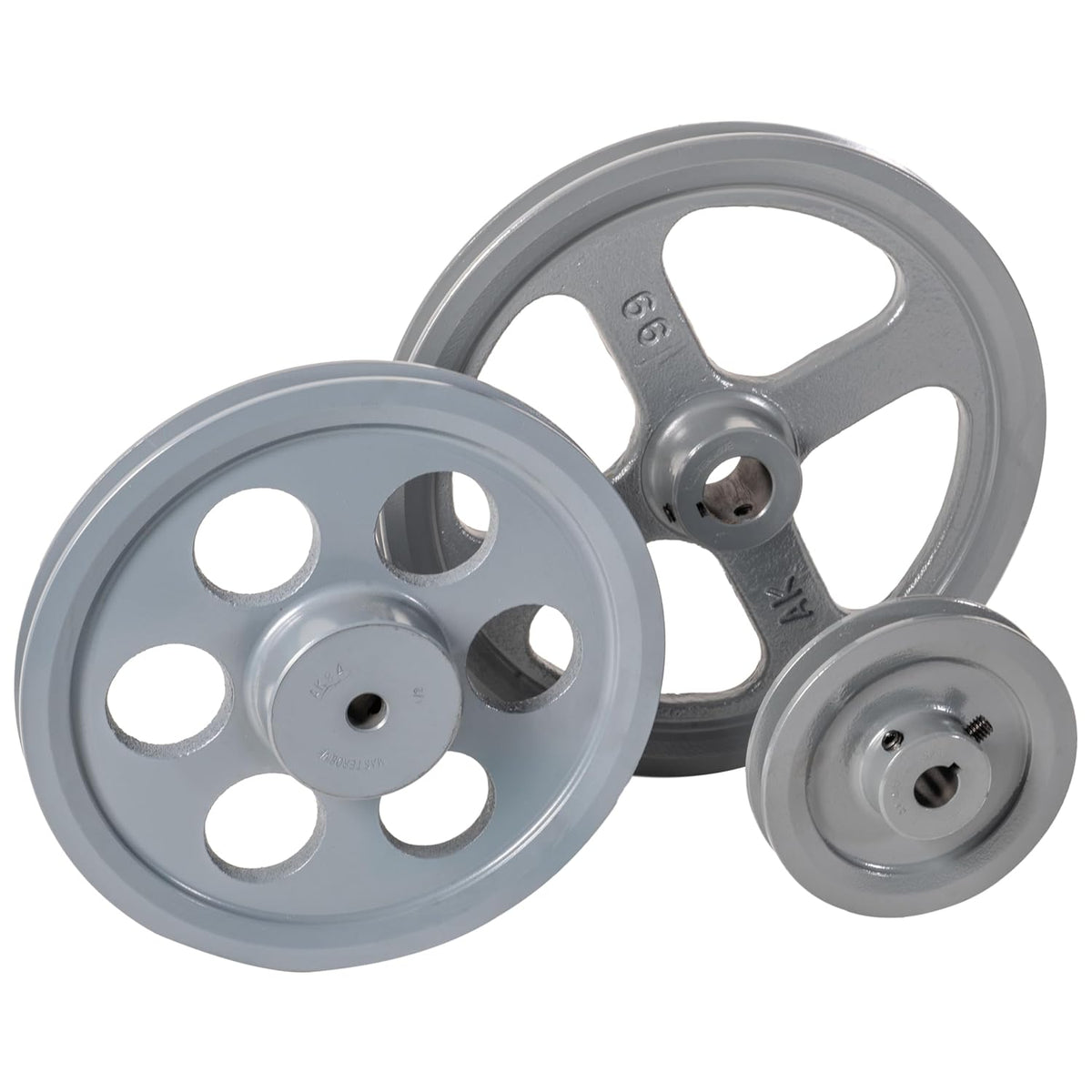

AK84-1-3/16 | V-Belt Sheave, 1.1875 in Bore, 3L, 4L, A Belt, 8.25 in OD

Key features

• Light Duty V-Belt Sheave, 3L, 4L, A Belt Section, 1 Groove, 1.1875 in Finished Bore, 8 in (A) Pitch Dia., 8.25 in OD, Gray Cast Iron Material

The AK84-1-3/16 is a v-belt sheave for v-belt power transmission drives in industrial, agricultural and HVAC equipment. Precision-machined for accurate belt tracking, smooth operation and long service life. Specifications: - Manufacturer Part Number: AK84-1-3/16 - Product Type: V-Belt Sheave - Material: Cast Iron - Belt Section Size: 3L, 4L, A - Pitch Diameter: 7.66 in - Pitch Diameter for 3L Belts: 7.66 in - Pitch Diameter for 4L or A Belts: 8 in - Number of Grooves: 1 - Bore Diameter: 1.1875 in - Bore Type: Finished Bore with Keyway and 2 Set Screws - Outer Diameter: 8.25 in - Overall Width: 1.46875 in - Overall Length: 8.25 in - Overall Height: 8.25 in - Length Through Bore: 1.4685 in - Hub Diameter: 2.205 in - Hub Length: 0.7165 in - Face Width: 0.752 in - Sheave Construction: Lighting Hole - Keyway Size: 1/4 X 1/8 - Set Screw Size: 5/16/2018 - Set Screw Quantity: 2 - Finish/Coating: Grey Paint - Recommended Tightening Torque (Lb-In): 110 in-lbs - Part Weight: 4.55 lb Stocked and shipped fast from offroadbelts.com. Industrial-grade replacement part for OEM, MRO and maintenance buyers — order with confidence.
