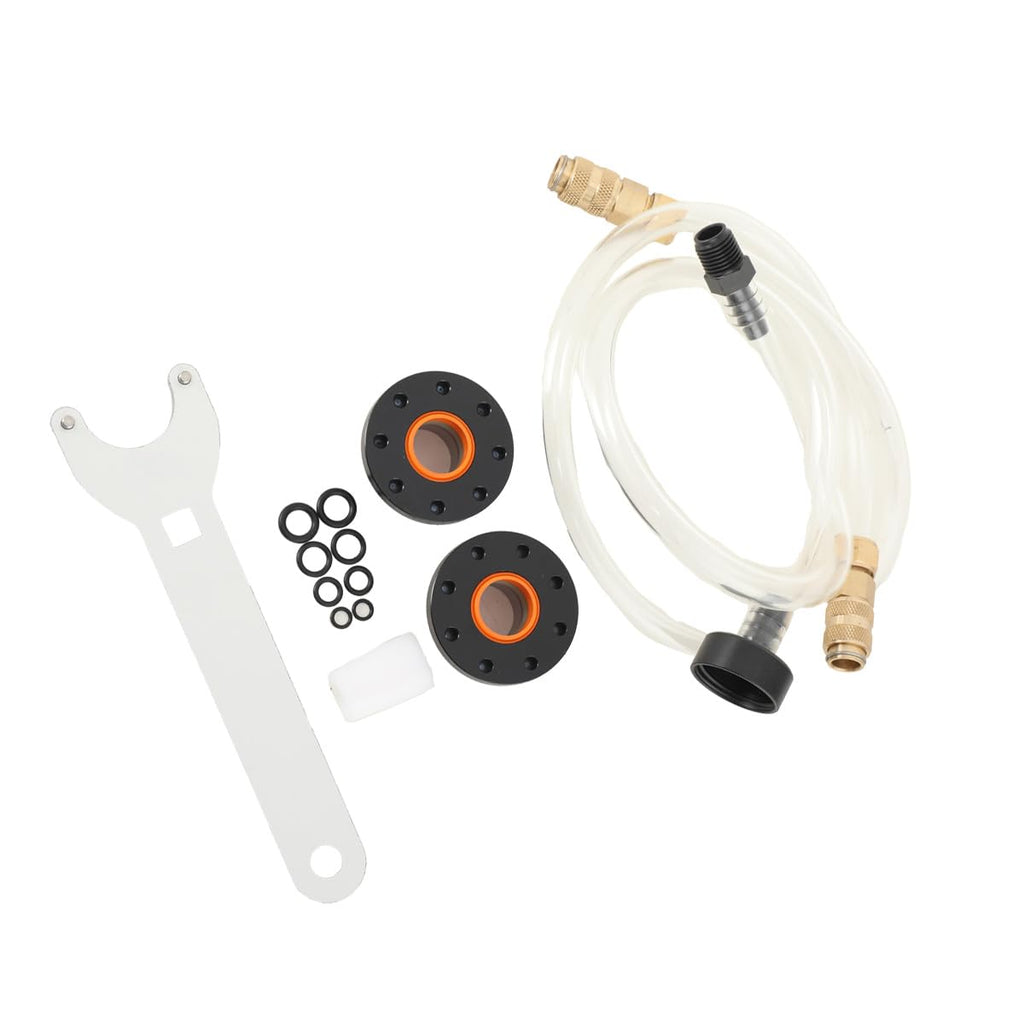

CDZHLTG HS5157 Front Mount Hydraulic Steering Cylinder Seal Kit

Key features

• Loosening the Seal Gland: Turn the outboard hard to port and place the pin wrench in the holes of a gland. Use a 5/8-inch box wrench on the nut on the port end of the piston rod. Turn counterclockwise on the pin wrench with opposite pressure on the box wrench to loosen the seal gland
• Removing the Support Bracket: Use a 3/4-inch socket wrench to remove the nut and washer securing the support bracket to the support rod. Do the same to the piston rod nut and washer. Use wrenches on the opposite ends to keep the rods from turning. With hardware gone, pull off the support bracket and use the pin wrench to remove the old seal gland
• Installing the New Seal Gland: Place the tapered guide tool from the kit on the end of the piston rod and lubricate it and the piston rod well with oil or grease. Carefully slide the new seal gland over the guide and onto the piston rod until it reaches the cylinder. Screw the seal gland into the cylinder, but do not tighten it yet. Remove the guide tool as it is not part of the final assembly
• Reinstalling the Support Bracket: Reconnect the support bracket to the support rod and piston rod and replace the washers and nuts, tightening the nuts against the washers. You may need to use wrenches on the opposite nuts to tighten sufficiently
• Tightening the New Seal Gland: Use the pin wrench to tighten the new seal gland while using a 5/8-inch box wrench on the starboard end of the piston rod for counter torque to ensure proper installation
• Compatible Fitment: Fits front mount cylinder parts including HC5340, HC5341, HC5342, HC5343, HC5344, HC5345, HC5346, HC5347, HC5348, HC5358, HC5365, HC5375, HC5394, HC5445, HC6750, HC6751, HC6752, HC6753, HC6754, and HC6755

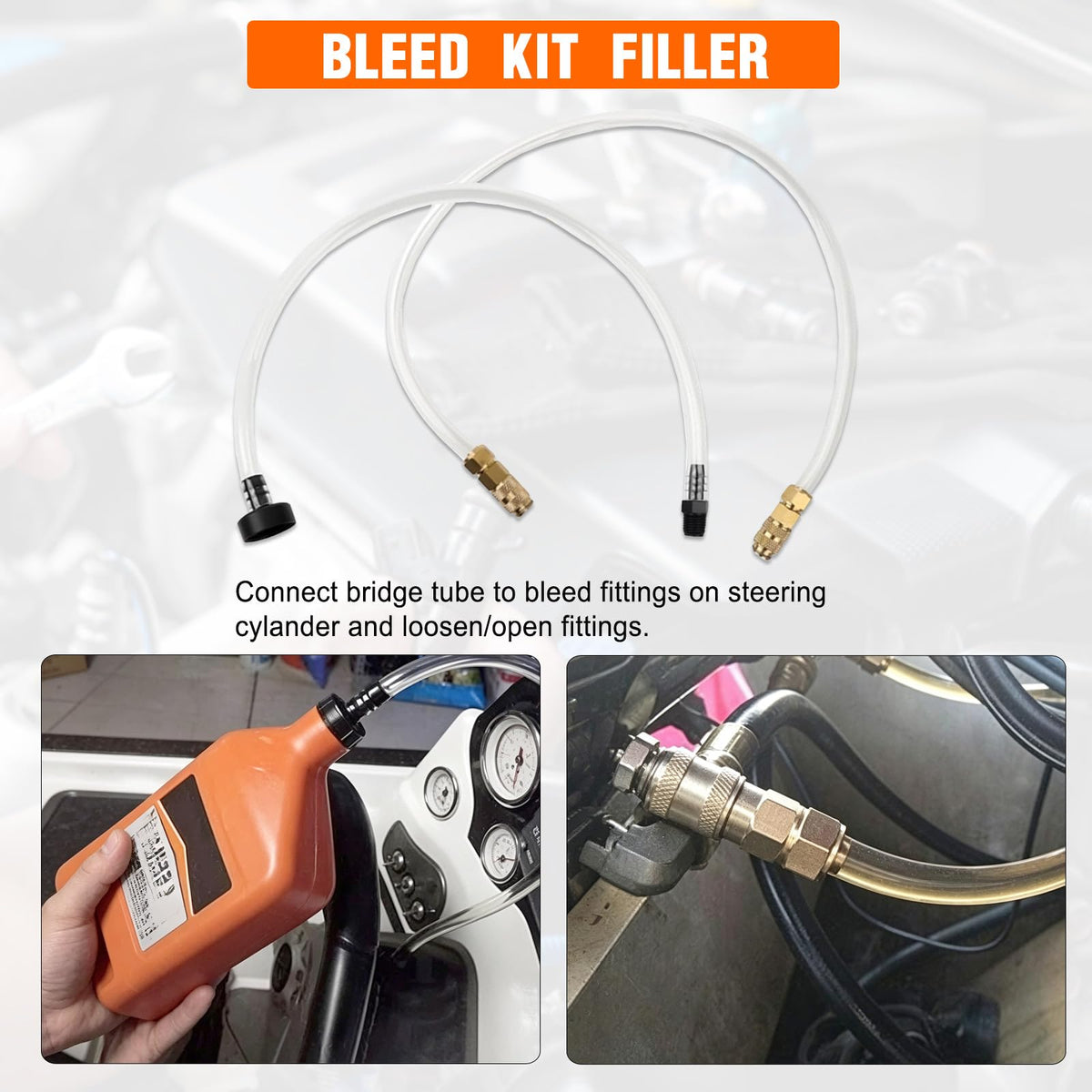

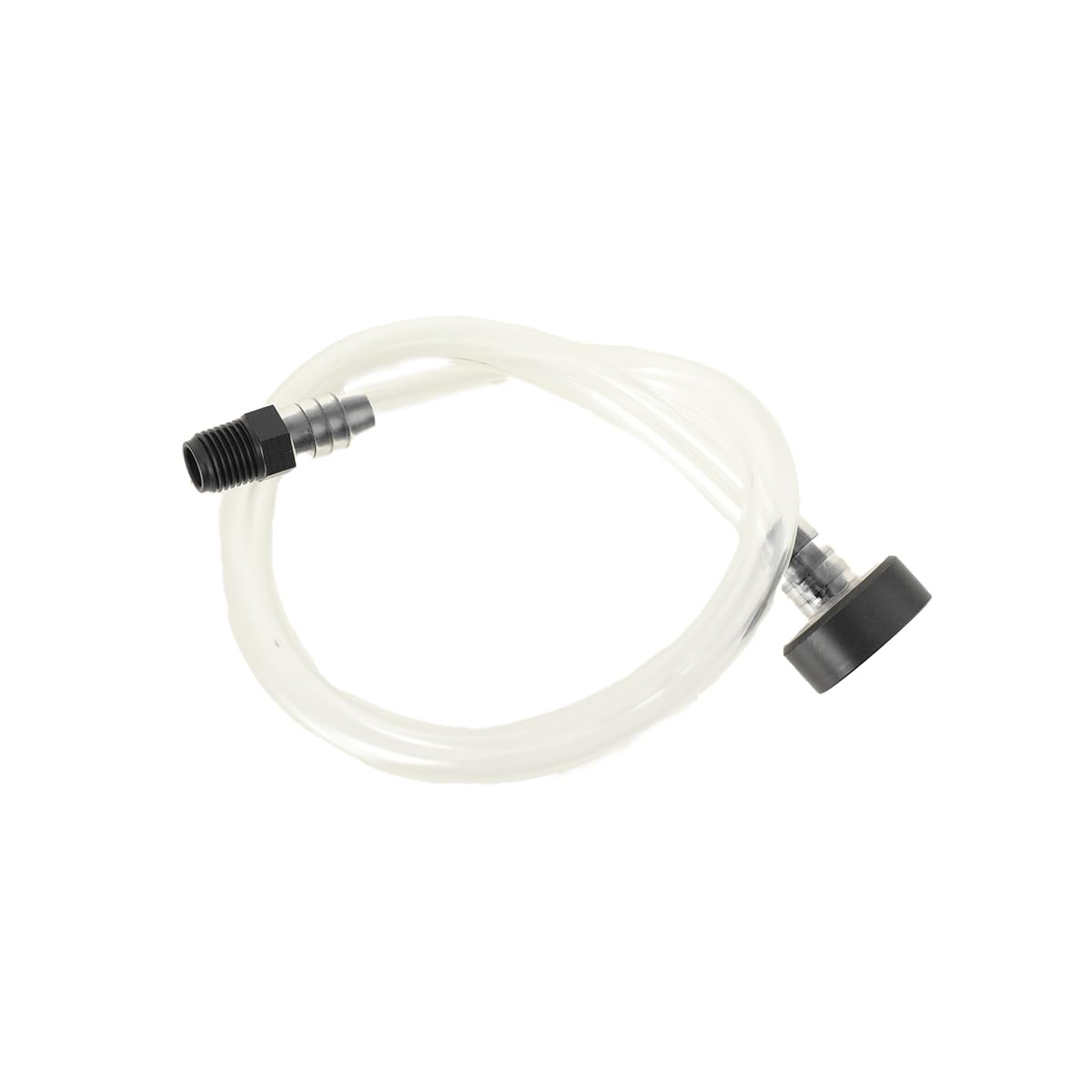

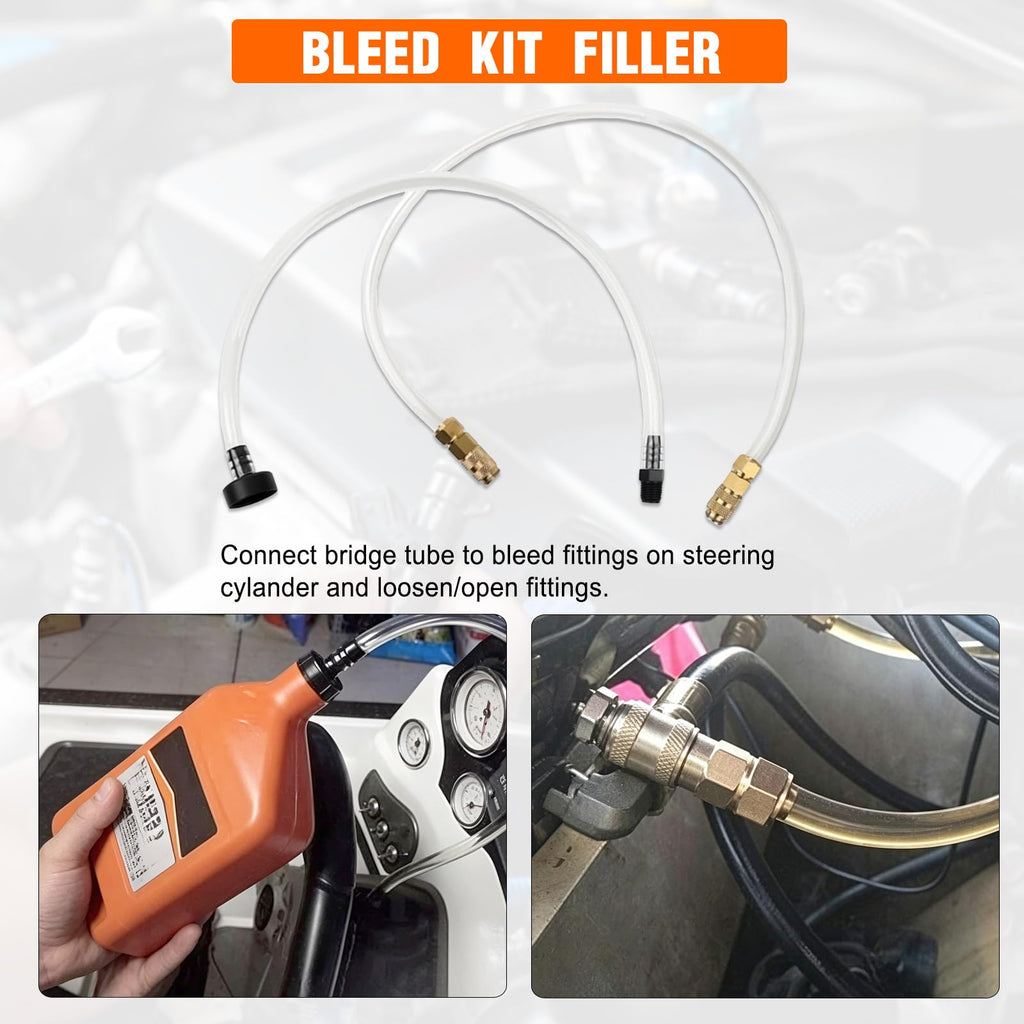

• Complete Bleed Kit Included: Package includes one bleed kit for SeaStar HS5157 with bridge tube and all necessary components to properly bleed air from your hydraulic steering system and ensure optimal performance
