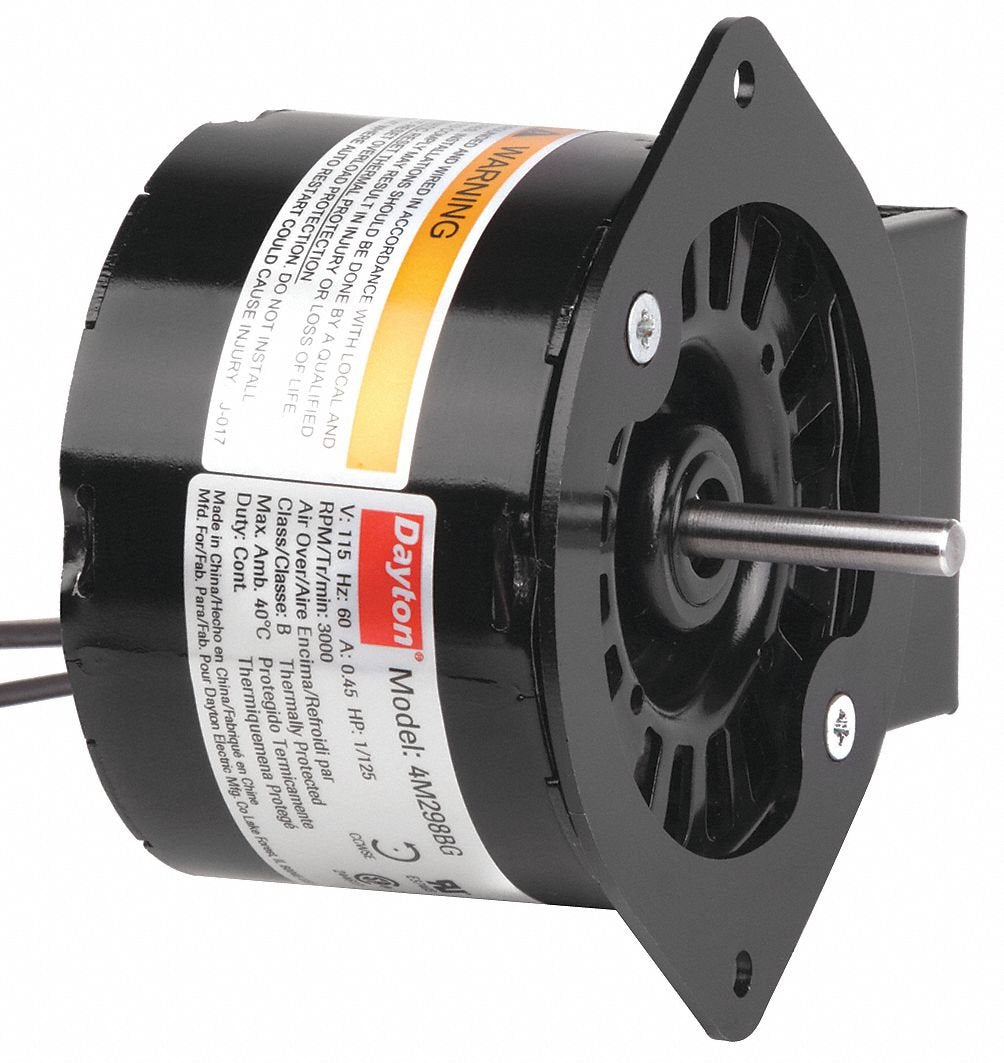

Dayton 4M298 Electric Motor Model

Key features

• 1/125 hp, 3000 rpm, .50 amps, 115 volt 60Hz
• Shaft = 1/4" x 7/8"; rotation = ccw
• 3.3 inch
• Continuous duty; class b insulation; open-air over motor
• 1 year manufacture warranty

The Dayton 4M298 is a 1/125 HP HVAC motor with shaded pole, 3000 nameplate RPMs, 115V, and 3.3 frame that replaces 1/50 HP PSC and less-efficient HVAC/R motors due to continuous duty and air-over enclosure design.This HVAC motor is also well-suited for direct drive fan/blower applications. The service factor is 1.0 and the full load amps are 0.5. The unit is 60 Hz with a CCWSE rotation and insulation rated at class B. This single-speed unit also carries a maximum ambient temperature of 40 degrees C, a mounting flange, sleeve bearings, automatic thermal protection, a body diameter of 3.3", shaft diameter of 1/4", shaft length of 7/8", and a length less shaft of 2-13/16". The stud/base mounting pattern is 2-7/8".
